Begin by locating the compressor on your vehicle’s schematic–it’s typically mounted near the engine block and connected via serpentine belts. Verify its placement against the manufacturer’s service manual, as incorrect belt tension or misalignment accelerates wear. Note the clutch assembly at the front of the compressor; failure here often manifests as intermittent cooling or unusual clicking sounds.

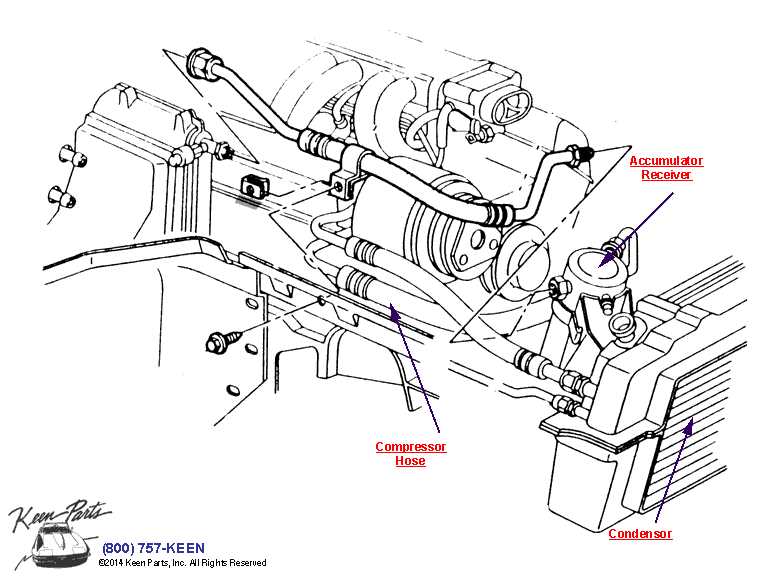

Trace the refrigerant lines from the compressor to the condenser, which sits ahead of the radiator. Ensure no kinks or bends restrict flow–even minor obstructions reduce cooling efficiency by up to 30%. The condenser’s fins should be cleaned seasonally to prevent overheating, particularly in high-humidity climates where debris accumulates faster.
The receiver-drier or accumulator follows next, usually positioned along the high-pressure line. Its desiccant material absorbs moisture; replace it every two years or after any system exposure to air, as saturated desiccant leads to ice formation in the expansion valve. Check the sight glass (if equipped) for bubbles–clear flow indicates proper refrigerant charge, while murky or oily residue signals contamination.
Examine the expansion valve or orifice tube last, which regulates refrigerant flow into the evaporator. A faulty valve causes uneven cooling or frost buildup. Test for proper operation by monitoring evaporator core temperature–ideal output ranges between 32°F and 40°F (0°C to 4°C). Replace these components in pairs with matching O-rings coated in compatible refrigerant oil to prevent leaks.
Vacuum the system to 29.9 inHg before recharging, removing all air and moisture to avoid compressor damage. Use electronic leak detectors at joints and connections, prioritizing flex hoses, which degrade faster under vibration. Recharge with manufacturer-specified refrigerant weight, overfilling reduces performance and risks compressor failure due to liquid slugging.
Understanding Your Cooling System’s Component Layout
Begin by locating the condenser coils–typically positioned at the front of the vehicle or outdoor unit. These fins dissipate heat absorbed from the refrigerant, so ensure they’re free of debris; even a thin layer of dirt reduces efficiency by up to 40%. Use a soft-bristle brush or compressed air to clean them, avoiding high-pressure water that risks bending the delicate aluminum fins.
Trace the refrigerant lines from the condenser to the compressor. The larger line (suction) carries cool gas, while the smaller (liquid) line delivers high-pressure fluid. Inspect for kinks or corrosion, especially near connection points–leaks here account for 35% of cooling failures. A soap-water solution will reveal escaping gas via bubbles; address leaks immediately with epoxy or line replacement.
Examine the evaporator assembly, usually hidden behind the dashboard or in the blower unit. Its serpentine coils cool air blown over them, but mold growth inside the ducts reduces airflow by 25% and circulating allergens. Spray a biocide cleaner through the drain tube every six months to prevent fouling, and replace the cabin air filter if visible contamination exists.
The thermal expansion valve regulates refrigerant flow into the evaporator based on temperature. A faulty valve causes inconsistent cooling–listen for a hissing noise indicating improper sealing, or use an infrared thermometer to verify the inlet/outlet temperature difference (8–12°F is optimal). Recalibration or replacement is needed if readings deviate significantly.
Check the accumulator or receiver-drier (located between evaporator and compressor) for moisture absorption. A saturated desiccant bag leads to ice formation and compressor damage. Replace this component every 2–3 years or after any system opening to maintain dryness; never reuse the old unit.
Fan motors–whether in the condenser or evaporator–must spin freely. A seized bearing draws excessive current, risking blown fuses. Test with a multimeter (3–5 ohms resistance is typical); lubricate bearings annually with electric motor oil, or replace the motor if grinding noises persist.
Draw a schematic on paper if none exists: label each component, note line sizes (e.g., 3/8” suction), and mark refrigerant type (R-134a or R-1234yf). Photograph the layout before disassembly–this reference prevents errors during reassembly, such as reversed valves or misaligned couplings, which void performance warranties.
Key Components Illustrated in a Climate Control System Blueprint
Start by locating the compressor in the schematic–it’s the heart of the refrigeration cycle, typically positioned near the engine bay. Ensure the wiring harness connects to the electromagnetic clutch; a failed relay or corroded terminals will prevent activation. Use a multimeter to verify 12V supply at the clutch coil when the system is engaged–resistance should read 3-5 ohms; values outside this range indicate a faulty unit.
- Condenser: Positioned in front of the radiator, it dissipates heat from high-pressure refrigerant. Check for bent fins or debris blocking airflow–even minor obstructions reduce efficiency by 20-30%. Flush with a non-corrosive cleaner if contamination is visible.
- Thermal expansion valve (TXV) or orifice tube: These regulate refrigerant flow. A clogged TXV restricts flow, causing evaporator freeze-up. Test by feeling the inlet and outlet pipes–if the outlet is colder by 10-15°C, the valve is functioning; equal temperatures signal a blockage.
- Receiver-drier or accumulator: Absorbs moisture and filters debris. Replace if the refrigerant turns acidic (pH 10-25 grams of desiccant–exceeding this saturation limit renders it ineffective.
Critical Sensors and Electrical Interfaces
Identify the pressure switches–low-pressure (typically 25-40 psi cut-off) and high-pressure (300-400 psi cut-off). These protect the system from damage. Probe the connectors: a switch showing infinite resistance when closed confirms a fault. For evaporator temperature sensors, use an ohmmeter; resistance should drop from 5kΩ at 0°C to 1kΩ at 20°C. Deviations suggest a defective sensor requiring recalibration or replacement.
- Inspect the blower motor resistor–if airflow weakens at lower speeds, the resistor’s thermal fuse is likely blown. Replace the entire module; bypassing risks overheating the motor.
- Trace the HVAC control module connections. Corrosion on pins 7, 12, and 21 (common for CAN bus) disrupts communication. Clean with contact cleaner and apply dielectric grease to prevent future oxidation.
- Verify the defrost door actuator alignment. Misalignment causes air leaks into the cabin–operate the defrost mode and confirm the door seals fully (listen for a distinct “click”); manual adjustment may be needed.
Check the serpentine belt tension if the compressor cycles erratically. A slack belt (less than 1/2 inch deflection) reduces torque transfer–replace if cracks exceed 3 per inch or glazing is visible.
Finding the Climate Control Compressor in Schematic Layouts
Scan the refrigeration circuit illustration for a circular or oval symbol with three ports–suction, discharge, and service. This shape stands out from rectangular condensers and evaporators.
Look for labels like “COMP,” “CMP,” or manufacturer codes (e.g., DENSO 7SB16). These abbreviations appear adjacent to the symbol, often in bold or distinct font.
Follow the thicker refrigerant lines: the compressor sits at the junction where low-pressure tubing (suction line) meets high-pressure tubing (discharge line). The service valve usually points toward the front of the engine bay.
Check corner insets if the main view lacks scale–OEM schematics frequently isolate the compressor in a detailed callout. Mitsubishi’s diagrams place it in the bottom-left quadrant of system drawings.
Trace electrical connectors next: compressors feature two wires (clutch coil) unlike single-wire sensors. The wires link directly to the climate control relay or ECU terminal labeled “COMP CLUTCH.”
Compare against known reference layouts: Sanden units show a squiggly internal line for the scroll mechanism; piston types display straight segments. This differentiates variable-displacement models.
Verify by cross-referencing the legend–compressors list displacement (e.g., “120cc”) or clutch coil resistance (3–5 ohms). Missing specs suggest misidentification.
Mark found components digitally or with highlighting tools to avoid re-checking. Adobe Reader’s comment tools work for PDF schematics; colored pens suffice for printed copies.
Decoding Condenser and Evaporator Positions in Climate Control Schematics
Locate the condenser on wiring schematics by tracing the high-pressure refrigerant line–it connects directly to the compressor output. Evaporators appear downstream on the low-pressure side, typically marked with dashed or blue lines. Verify placement using these identifiers: compressor discharge terminal (condenser) and thermal expansion valve inlet (evaporator). Misidentification risks reversed flow, causing compressor failure within 30–60 minutes of operation.
Schematics often group condenser fans and evaporator blower motors under separate relays. Check for:
- Condenser fan relay: controlled by high-pressure switch or ambient temperature sensor
- Evaporator blower relay: governed by cabin temperature thermostat or manual speed selector
- Dual-speed circuits: 2-stage windings or pulse-width modulated signals (PWM)
Fan motor resistances for 12V systems should measure 2–8Ω (low speed) and 0.5–2Ω (high speed)–deviations indicate internal corrosion or shorted coils. Use an ohmmeter across relay pins 85 (coil) and 30 (load) to confirm activation sequences.
Critical Grounding Differences
Condenser components typically share chassis ground near the radiator, while evaporator components use a dedicated ground bus in the HVAC module. Verify:
- Condenser ground locations: front frame rails, radiator support tabs
- Evaporator grounds: firewall-mounted ground studs, integrated control module housings
- Ground wire gauges: 14–16 AWG (fan motors), 10–12 AWG (compressor clutch)
Corroded evaporator grounds cause erratic blower operation–clean mounting surfaces with stainless steel wool and apply dielectric grease post-installation. Condenser grounds failing at the chassis connection point mimic fan failure symptoms; test for voltage drop exceeding 0.1V during operation.
Pressure switch integration distinguishes condenser from evaporator circuit protection. Condenser switches monitor high-side pressures (250–350 PSI cut-off), typically wired in series with the compressor clutch relay. Evaporator switches protect against freeze-up (15–45 PSI range) and often feed into the HVAC control module via low-current inputs. Bypass procedures:
- Condenser switch: jumper across terminals replicates normal operation for testing
- Evaporator switch: requires 5kΩ resistor for proper ECU feedback
- Wide-band pressure sensors (common in vehicles post-2018): require 1.5V reference voltage–measure with oscilloscope for linear output
Thermal Expansion Valve Wiring Interference
TEVs straddle both circuits–factory schematics mark their solenoids with violet or orange traces. Electronic TEVs (4-wire) demand:
- +5V reference (steady-state)
- Signal ground
- PWM control (blue/white wire, 1kHz frequency)
- Diagnostic feedback (yellow/black, 0–4V analog)
Incorrect polarity destroys the valve’s integrated circuit–always confirm pinout via manufacturer service bulletins before testing. Early mechanical TEVs (2-wire) connect to evaporator temperature sensors; conversion to electronic TEVs requires updated wiring harness pinouts to avoid ECU fault codes P0541/P0542.
