Start with the official service manual from the manufacturer–it contains exploded views for every assembly, including the engine (Kohler or Yanmar diesel models), transmission, and loader attachments. If the original documentation is unavailable, third-party platforms like PartStream or Messicks offer interactive schematics with OEM part numbers. Filter results by section: hydraulic system (pumps, valves), electrical components (fuses, switches), or drivetrain (belts, pulleys).
Verify compatibility by cross-referencing the 4-digit suffix in the part number–this indicates revisions specific to your model year. For instance, a fuel filter labeled RE50467-01 fits early production runs, while RE50467-02 applies to later models with updated emission standards. Avoid aftermarket substitutions for critical components like the 3-point hitch lift arms or hydrostatic pedals–stick to certified replacements.
For rare or obsolete items, salvage yards specializing in agricultural machinery often stock dismantled units. Request the serial number (located on the frame near the rear axle) to ensure exact matches. Online forums such as GreenTractorTalk or TractorByNet maintain user-uploaded diagrams with annotations for non-standard installations, like aftermarket cabs or modified PTO shafts.
When ordering, specify whether the component is for the standard 24 HP diesel or the optional ROPS/Canopy configuration–some brackets and linkage assemblies differ. For grease fittings and seals, check the IPL (Illustrated Parts List) under “Lubrication”–these schematics include torque values and thread sizes (e.g., 1/4” NPT for hydraulic connections).
Tractor Component Schematics: A Hands-On Reference
Locate the official breakdowns by entering the model’s serial number into the manufacturer’s online catalog. This bypasses generic exploded views and pulls up the exact revision for your equipment, reflecting factory updates post-2020, including Tier 4 emission changes and reinforced linkage brackets.
Print a color copy of the hydraulic subsystem sheet–pages 47-52 in the official manual–then laminate it. Keep it in the toolbox; grease spots wipe off easily, and sharpie annotations won’t smudge when marking worn bushings or clogged filters during field troubleshooting.
Use the three-letter prefix on each illustrated number (e.g., LVU for loader valve unit, RDM for rear drive module) to cross-reference the 12-page parts list PDF. This reduces search time when ordering from dealers or third-party vendors, as each prefix narrows results to sub-assemblies rather than individual bolts.
Highlight routing paths for the 15 amp fused circuits on the electrical schematic. Color-code fuses with yellow for ignition, red for lights, blue for PTO; this prevents blown fuses during jump-start attempts when swap-outs happen under time constraints.
Field-Specific Adjustments
Compare the gearbox housing gaskets in your schematic against the actual serial plate–early 2019 units have a three-bolt flange, while late 2019+ models switched to four bolts after persistent seal leaks. Order O-rings using the revised part code stamped on the newer diagrams.
For the mid-mount mower deck, isolate the five pulley positions on the schematic: blower, idler, spindle, tensioner, and PTO. Measure belt stretch in 3/16″ increments; if beyond 1/2″ over original length on the diagram’s dimension callout, replace the single serpentine belt instead of multiple v-belts to save labor during deck-level adjustments.

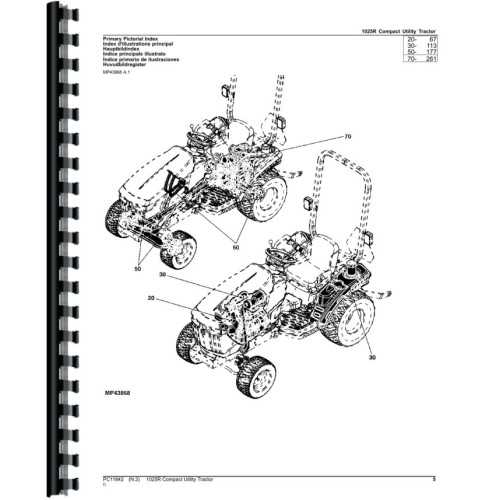

Official Sources for Your Compact Tractor Component Schematics
Start directly at the manufacturer’s portal: myjohndeere.com. Create an account, select your equipment model, and access exploded views via the “Owners” tab. The platform requires serial number verification to display correct configurations for your machine’s build year.
For dealers and repair technicians, Parts Catalog (PC200) remains the authoritative tool. While primarily internal, some dealers share screenshot-based schematics upon request. Contact local service centers–some provide PDF downloads of the full catalog for customers with active warranties or service agreements.
Explore Deere’s publication archive at techpubs.deere.com. Filter by product category (compact utility tractors) and model designation. Schematics appear as downloadable PDFs, organized by assembly subgroups–hydraulics, transmission, or electrical systems–with OEM part numbers embedded in each illustration.
eBay occasionally hosts original manuals from resellers. Search for “Official Service Manual” plus your model variant. Verify authenticity by checking for Deere’s watermarked logos, standardized part numbering (3-digit prefix), and ISBN barcodes. Some listings include high-resolution scans of factory diagrams.
Specialized forums like GreenTractorTalk or OrangeTractorTalks maintain pinned threads with crowd-sourced schematic collections. Members upload cleaned-up JPG versions of official diagrams, often annotated with aftermarket alternatives. Use forum search filters for “[Your Model] + schematic” to bypass outdated threads.
Agricultural machinery databases like Agrimaster Parts or Messicks aggregate OEM schematics alongside aftermarket cross-references. Both platforms offer zoomable images with clickable part numbers linking to stock availability. Note: Messicks’ interface requires model-year selection before viewing correct engine or attachment configurations.
For mobile access, the Deere Mobile App (“My Tractor”) includes a basic parts lookup feature. While limited to major assemblies, it’s useful for field repairs when paired with a saved PDF from another source. The app only displays diagrams for tractors registered under your account.
Archive.org occasionally preserves defunct dealer microsites with high-quality diagram files. Target cached pages from early-2020s domains like deere.epcparts.com. Use search operators “site:deere.com filetype:pdf [model identifier]” to uncover buried files Google’s standard search ignores.
Finding Key Components in Compact Tractor Schematics
Locate the engine block by tracing the airflow path on the illustration–start at the air intake, follow the intake manifold, then identify the cylinder head beneath the valve cover. The 3-cylinder diesel layout positions the fuel injectors directly above pistons; reference the numbered callouts (e.g., #7 for injector assembly) to isolate each piece. For transmission segments, scan the lower half of the sheet: hydrostatic units appear as paired hydraulic blocks (#22-24) connected by lines representing hoses, while the differential (#30) sits between the rear axle housings.
- Highlight recessed components first: oil pan (#15), crankshaft pulley (#18), and starter motor (#6). These sit behind engine mounts and shields on most charts.
- Use exploded views for linkage clusters–control rods (#35-39) attach near the shift lever tower and pivot at ball joints.
- Cross-reference PTO sections with the rear implement breakdown: clutch discs (#42) share the same housing split line.
Filtering cross-sections can reveal internal gears; toggle layers on digital schematics to expose hidden shafts. The input shaft (#26) connects from the flywheel end, but mid-mount gears only appear when selecting internal views. Printed manuals often include separate foldouts for gear trains–measure spline counts directly from these for exact replacement matching. Keep notation consistent: suffixes like “-A” denote updated revisions, critical when sourcing bearings or seals.
Step-by-Step Breakdown of Hydraulic System Components on the Compact Utility Model Schematic
Locate the hydraulic pump first–mounted directly to the engine’s PTO side. The 10.2 cc displacement pump delivers 19.5 L/min at 3,000 RPM under 20.7 MPa pressure. Inspect the suction strainer (part #LV15596) before the inlet; clogging here reduces flow by up to 40%. Replace every 200 hours if debris exceeds 0.1 mm particles.
- Control valves: The mono-block stacked valve assembly (MV25) contains three spools–one for loader, two auxiliary circuits. Each spool ports oil at 18 MPa; verify detent springs (part #M125680) hold position under 70 N load.
- Pressure relief valve: Adjustable cartridge (part #M145631) caps system pressure at 21 MPa. Test with a 0-40 MPa gauge; turn screw clockwise to increase by 1 MPa per full rotation.
- Hydraulic lines: High-pressure hoses (SAE 100R2AT) must endure 35 MPa burst pressure. Route away from sharp edges and rotating shafts, maintaining ≥ 70 mm clearance.
- Reservoir: Capacity is 15.1 L; filter (part #M116946) traps 10 µm contaminants. Drain sediment every 50 hours through the 1/4″ NPT port at the base.
For cylinder maintenance: Loader cylinders (part #M134568) have 50 mm bore and 300 mm stroke. Retract fully before disassembly–trapped oil under 1,500 kg load can eject pistons at 8 m/s². Coat piston rods with NLGI #2 grease after reassembly to prevent scoring; replace seals if leakage exceeds 3 drops per minute at operating temperature.
Finding and Procuring Electrical Components Using Compact Tractor Wiring Schematics
Begin by isolating the faulty circuit using the official electrical schematic provided in the service manual. Trace the voltage path from the battery to the component–common failure points include the ignition switch (part #LV46956), fuses (panel locations marked F1-F7), and the starter relay (M141762). Verify continuity with a multimeter before ordering replacements; correct readings should show near-zero ohms for intact circuits and infinite resistance for open circuits.
| Component Type | Common Failure Signs | Replacement Part Numbers | OEM Specifications |
|---|---|---|---|
| Solenoid (Starter) | Clicking without engine turnover | RE57307, TY26381 | 12V, 1.2kW engagement |
| Voltage Regulator (Rectifier) | Flickering lights, battery overcharge | LV82037, M135723 | 3-phase, 50A max output |
| Headlight Assembly | Dim illumination, intermittent operation | M151833 (LED), LV80915 (Halogen) | 12V, 35W/55W options |
For sensors and switches, cross-reference the schematic’s connector pinouts with physical labels on the harness. The PTO engagement switch (M126716) often suffers from corrosion on terminals–clean contacts with dielectric grease before considering replacement. When ordering, specify the exact model year (2013–2023 variants have minor harness revisions) to avoid mismatched connectors.
Third-party suppliers like Steiner, Green Parts Store, and Messicks maintain compatibility charts; use the schematic’s wire-color codes (BK=black, YL=yellow, GN=green) to verify substitutes. Aftermarket alternators (e.g., Delco 335-1012) must match the OEM’s 40A output rating to prevent electrical system strain. Avoid universal replacements without verified compatibility–improper voltage regulation can damage the instrument cluster (LV82846).
Store downloaded schematics in two formats: high-resolution PDF (for printing) and a vector-based file (e.g., SVG) for zooming without pixelation. Mark ordered components on the schematic immediately upon receipt to track inventory–for example, highlight the 30A fuse holder (M137743) in yellow once installed. Keep a digital log of part numbers, suppliers, and prices to streamline future replacements.
