Start by locating the model number on your unit’s data plate–typically found inside the front panel or access door. Use this identifier to search manufacturer-approved technical resources, as generic third-party illustrations often omit critical details like wiring harness routing or pressure switch configurations. Official service manuals from ICM Controls or United Technologies provide the most accurate internal layouts, including safety interlocks and combustion chamber assembly.
For gas-fired models manufactured between 2005 and 2015, pay close attention to the induced draft motor housing and flame sensor placement. These components frequently fail due to condensation buildup, and incorrect reassembly after cleaning can void ignition safety certifications. Reference the exploded view section of the manual to verify gasket orientation and blower wheel alignment before handling.
When replacing control boards, match the board’s revision number exactly–earlier versions may lack compatibility with newer variable-speed ECM motors. The schematic will indicate jumper settings required for different voltage configurations (typically 24V or 120V). Skip online forums claiming “universal” diagrams; variance in venting systems (80% AFUE vs. 90%+ condensing units) makes cross-model substitutions risky.
For troubleshooting limit switches or rollout sensors, use a multimeter set to ohms and compare readings against the depicted resistance values in the electrical diagram. Normal closed-contact resistance should register near 0 ohms; anything above 1 ohm suggests corrosion in the circuit. Always disconnect power at the breaker before probing live components–capacitors in older systems retain lethal charge for minutes after shutdown.
To order exact replacement thermal fuses or high-limit discs, cross-reference the part number on the component itself with the manufacturer’s parts list. Generic aftermarket suppliers often substitute lower-grade materials, leading to premature failure in high-temperature environments. Verify that heat exchangers remain structurally sound–cracks as small as 0.5mm can trigger carbon monoxide leaks detectable only with electronic sniffers.
Understanding Heating System Component Layouts: A Hands-On Approach
Locate the blower assembly by identifying the metal housing near the bottom of the unit. Remove the front panel screws–typically four 1/4-inch hex bolts–to access the internal components without damage. Use a multimeter set to 200 ohms to check continuity across the blower motor terminals; readings below 5 ohms indicate normal operation.
Examine the ignition system next. For direct-spark systems, inspect the electrode gap–it should measure between 3/32 and 1/8 inch. Clean the electrode with fine-grit sandpaper if corrosion is visible, but avoid adjusting the gap unless necessary. Hot-surface igniters require a resistance check: probe both terminals with the multimeter; expect readings between 50 and 150 ohms for silicon carbide models.
| Component | Expected Value | Troubleshooting Action |
|---|---|---|
| Blower Motor | 5–50 ohms | Replace if open circuit detected |
| Pressure Switch | Closed contact at startup | Clear vent blockages if fail-to-close |
| Control Board | LED flashes code 3-1-4 | Reset power, check flame sensor |
Verify the flame sensor’s functionality by unplugging the unit and carefully removing the sensor rod from its bracket. Wipe the rod with steel wool to remove carbon buildup, then reinsert securely. Reconnect power and monitor flame for consistent blue color–orange tips signal incomplete combustion requiring burner adjustment.
Trace the heat exchanger’s serpentine tubes visually while the system operates. Use a flashlight to inspect for cracks or soot accumulation; both indicate potential failure. For single-stage units, confirm the limit switch trips at 200°F–test with a hairdryer if the system fails to start, ensuring no airflow restrictions exist in the ductwork.
Document each step with photos before disassembly, noting wire colors and terminal locations for reassembly accuracy. Label all removed fasteners with masking tape to prevent mixing during reinstallation. Replace any O-rings or gaskets if compressed or brittle, using high-temperature silicone seals for replacements. Store components in labeled containers to avoid misplacement.
Locating Genuine Heating Unit Component Schematics for Your Specific System
Access official blueprints for your climate control equipment directly through the manufacturer’s authorized distributor network. Visit International Comfort Products (ICP) at icpHeatingAndCooling.com and navigate to the “Support” or “Product Documentation” section. Filters by serial number, product line (e.g., Durastar, QuietComfort, Performance), and model code (found on the rating plate inside the unit’s access panel) narrow results to exact schematics. Alternatively, contact ICP’s customer service at 1-800-251-1362 with your model and serial numbers ready–representatives email PDF versions within 24 hours.
- Local dealers: Verify credentials through ICP’s dealer locator tool. Authorized outlets provide printed or digital schematics, often bundled with replacement guides.
- HVAC supply houses: Chains like Ferguson, Johnstone Supply, Grainger stock technical manuals. Request model-specific exploded views by calling ahead; some charge a nominal fee for archived prints.
- Online databases:

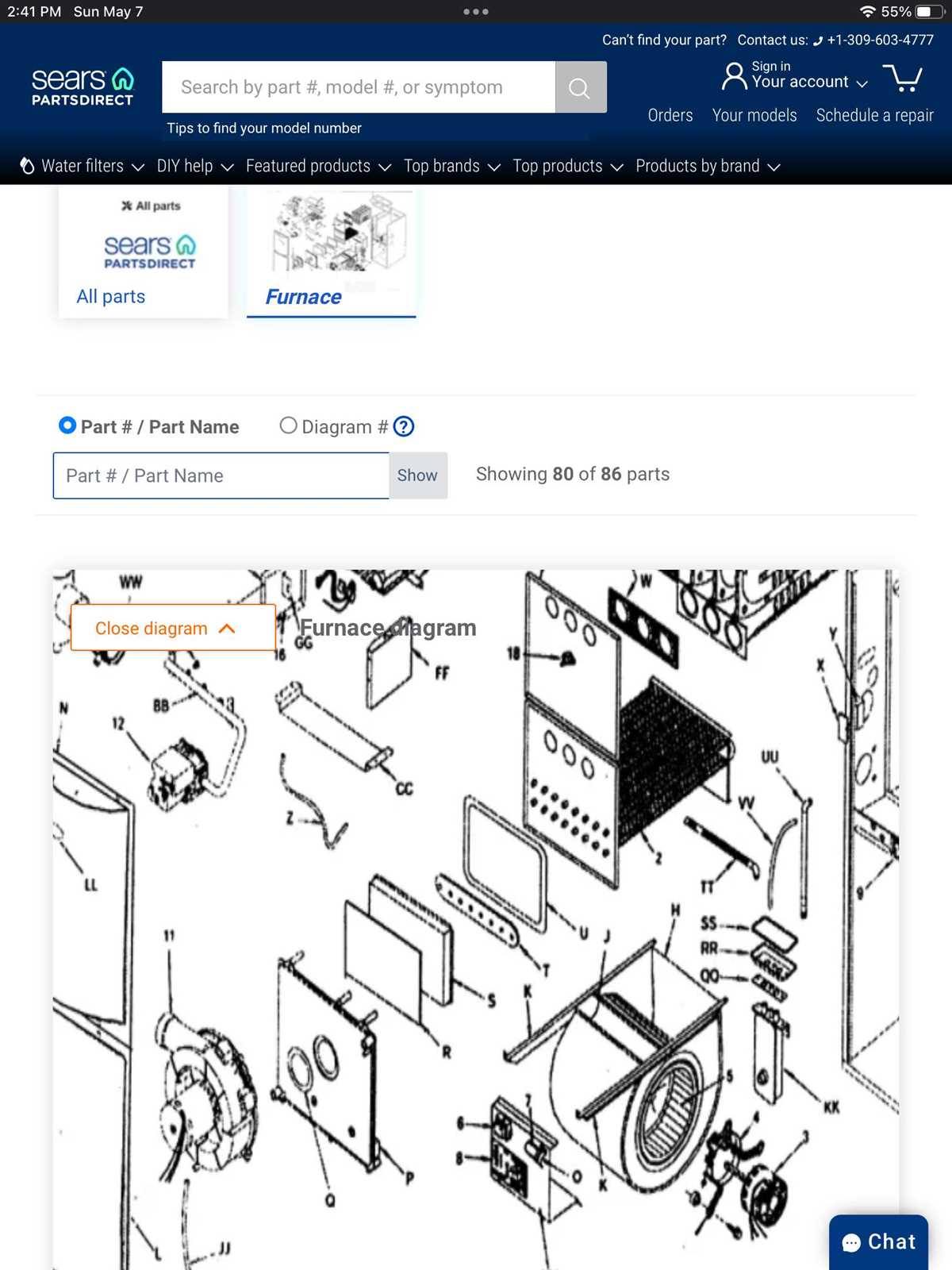

- AppliancePartsPros – Input model code to retrieve interactive breakdowns with part numbers.
- Sears PartsDirect – Features downloadable PDFs; search using the tag sticker info.
- Mobile apps: HVAC Buddy and Repair Clinic offer searchable libraries with zoomable diagrams; ensure compatibility with your system’s voltage/phase specs.
Locating Critical Elements in Heating Unit Schematic Blueprints
Begin by pinpointing the combustion chamber–typically labeled as the heat exchanger in most layouts. This central piece is often illustrated with thick, bold boundaries and lies adjacent to the burner assembly. Trace the ignition system wiring to verify connectors lead directly to this section, ensuring no corrosion or misalignment disrupts the signal path.
Next, isolate the blower motor assembly. It’s usually depicted near the base of the schematic with a distinct fan icon and labeled voltage specs (e.g., 120V or 240V). Check the capacitor symbol nearby; this small, cylindrical component must match the motor’s microfarad rating to avoid startup failures.
Identify the control board by locating a boxed area with multiple terminal connections. Look for labels like “R,” “W,” “Y,” and “G”–these designate power, heating call, cooling call, and fan activation circuits respectively. Cross-reference these terminals with the thermostat wiring guide in the manual to confirm correct mapping.
The flame sensor appears as a thin rod extending into the burner area, often marked with a resistance value (ohms). Its wiring should route back to the control board’s designated “FS” terminal. A compromised sensor will show erratic flame readings, so ensure no soot buildup obstructs its tip during inspection.
Trace the pressure switch tubing to the inducer motor. The schematic will highlight this connection with dashed lines representing tubing pathways. Verify the switch’s diaphragm is intact; faulty seals cause erroneous safety shutdowns during operation.
Find the limit switch–a safety device preventing overheating. It’s depicted as a small, circular symbol near the heat exchanger’s exhaust path. If temperatures exceed preset thresholds (typically 200°F), this switch cuts power to the burner, so test continuity with a multimeter if overheating issues arise.
Examine the condensate drain pathway in high-efficiency models. Look for a labeled pipe or trap leading from the secondary heat exchanger to the exterior. Blockages here trigger error codes, so ensure the path remains unobstructed and properly sloped for drainage.
Review the transformer symbol, usually shown as a small rectangle with primary (120V) and secondary (24V) voltage inputs. This powers low-voltage components like the control board and thermostat. If controls fail, measure output voltage–deviations from 24V indicate a faulty transformer requiring replacement.
Key Components for Heating Unit Upkeep: A Precise Replacement Guide
Begin by verifying the model number on the interior panel–located behind the lower access door–to ensure compatibility with new components. Ignition systems, such as hot surface igniters (HSI), fail most frequently; replace them every 3–5 years or at the first sign of flickering or delayed ignition. Use only OEM-spec silicon nitride igniters (e.g., Honeywell S8610M, Robertshaw 780-328)–generic alternatives risk premature burnout or erratic operation. For gas valve replacements, prioritize dual-rod models if your unit previously required repeated adjustments to maintain steady flame levels.
Critical Wear Items and Their Lifespans
- Blower motor: Lifespan: 10–15 years. Check bearing noise and amp draw annually–replace if exceeding nameplate rating by 10%. ECM motors (e.g., Genteq Evergreen) require less power but mandate matched drive boards; mismatched boards cause overheating within 90 days.

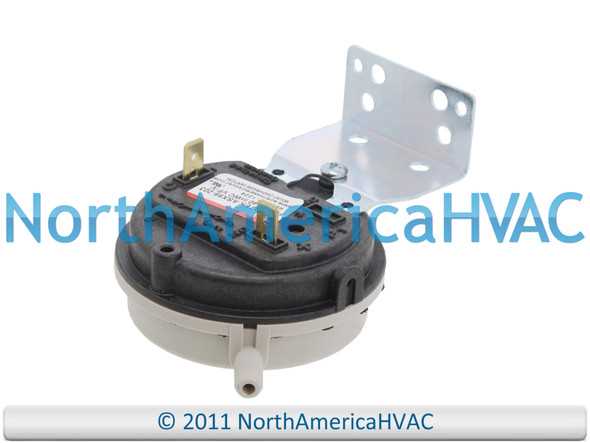

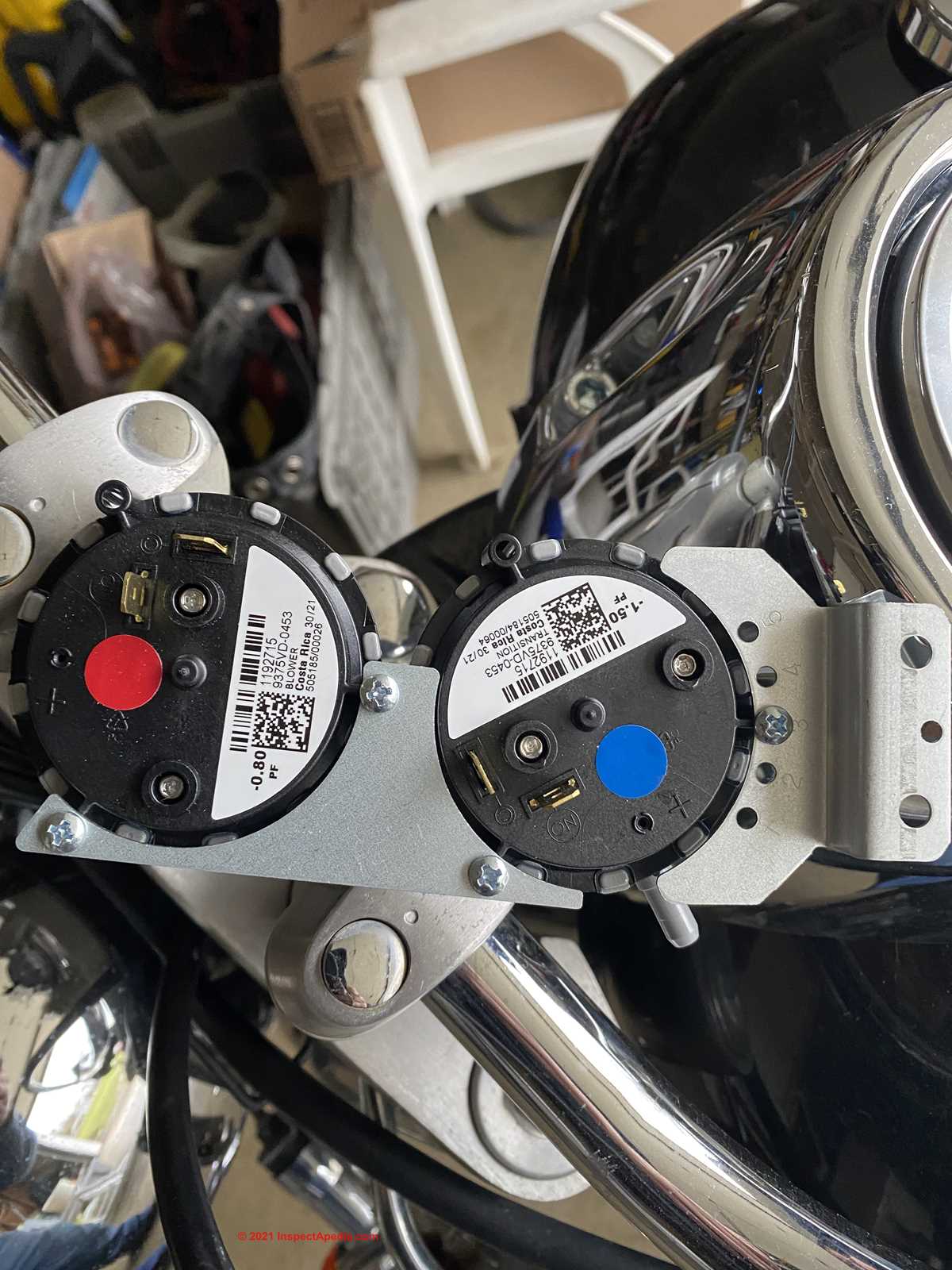

- Pressure switches: Replace if stuck open/closed or showing cracks. Test with a manometer–N/O switches should trip at 0.4–0.6″ WC, N/C switches at 0.8–1.2″ WC. Micro-switch variants (e.g., White-Rodgers 36J22) last longer but lack portability across models.
- Flame sensors: Clean with 400-grit emery cloth every season; corrosion beyond light surface scaling (visible white/green deposits) requires replacement. Bend the rod 1–2mm closer to the flame path if erratic shutdowns persist–but never exceed ¼” total adjustment.
Sequencer relays (e.g., Mars 9033-2) fail silently–use a multimeter in continuity mode to test; replace if coil resistance deviates ±15% from factory specs (typically 200–400Ω). Duct limit switches (normally closed) should react instantly to temperatures above 185°F; delay indicates faulty bimetallic discs–replace the entire switch, not just the disc. For secondary heat exchangers, inspect for pinhole leaks with a soap solution under 3 PSI pressure–minor corrosion at welds escalates rapidly, often requiring full system replacement within 6 months.
Installation Pitfalls by Component
- Control boards: Static discharge destroys boards–always ground yourself before handling. Aftermarket boards (e.g., ICM281) require firmware flashing if replacing a Honeywell or Emerson original; failure causes intermittent blower cycling.
- Rollout switches: Never bypass–reset only after confirming no flame impingement. Replace with manual-reset models if tripping frequently; auto-reset variants risk fire if the root cause (e.g., clogged burner orifices) isn’t resolved.
- Inducer motors: Check voltage at motor leads (should match nameplate ±5%); undersupply torques the shaft, melting plastic impellers within 8–12 months. Replace the entire assembly if impeller-to-housing clearance exceeds 0.03″–shaving the impeller reduces efficiency and increases noise.
