Start with the official exploded view manual from the manufacturer. This document, typically available in PDF format under product support sections, lists every replaceable element with numbered callouts. For the 2022 model variant, pages 12 through 18 cover the powerhead assembly, while the guide bar and sprocket details appear on pages 22–25. Cross-reference the part numbers with the dealer’s online inventory to confirm current availability–discontinued items like the OEM clutch drum (item #530 06 95-66) often have aftermarket alternatives from Stihl or Oregon.
Use the serial number etched on the crankcase to identify compatibility. Models produced after mid-2019 use a revised air filter housing (item #544 08 21-01) with a larger intake vent; earlier units require the older version (item #544 08 21-00). The fuel line routing also differs–follow the service bulletin SB-19-003 to avoid incorrect installation, which can cause vapor lock. Measure existing components before ordering: the drive sprocket’s pitch (0.325” or 3/8”) and the guide bar’s length (16”–20”) directly affect which replacement items will fit without modification.

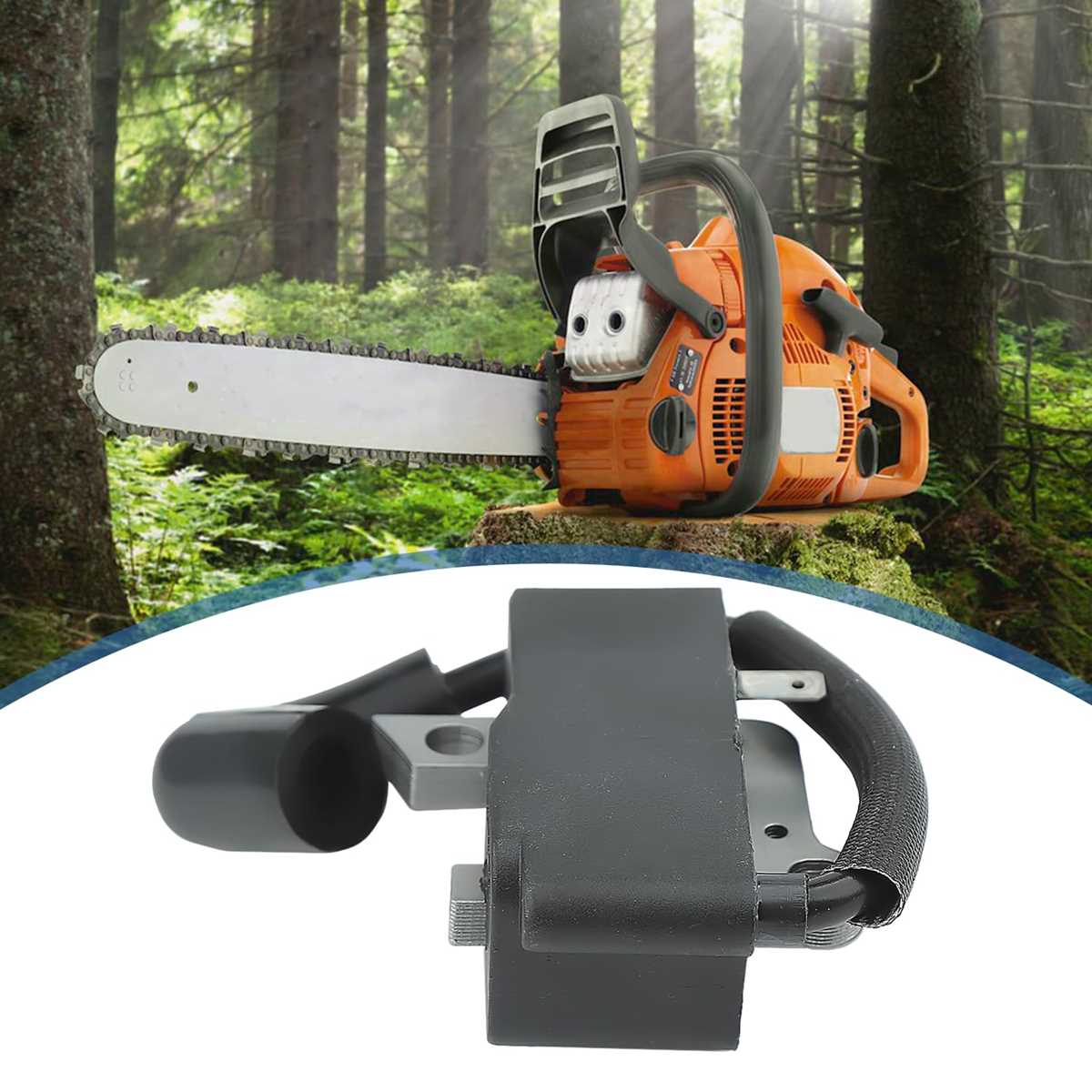

For the ignition system, focus on the coil’s resistance values. The primary winding should read 0.2–0.4 ohms, and the secondary 6.5–8.5 kOhms when tested with a multimeter. If readings fall outside this range, replace the coil assembly (item #544 03 11-01) rather than attempting repairs. The flywheel’s magnets rarely fail, but inspect for cracks–even minor damage can disrupt timing and necessitate a full replacement (item #544 03 08-01). Always use a torque wrench when reassembling: the cylinder head bolts require 18–20 Nm, while the flywheel nut demands 60–65 Nm to prevent loosening under operation.
Order consumables in bulk to reduce downtime. The air filter (item #537 20 13-06) lasts 25–30 operating hours in dusty conditions; keep three spares on hand. The spark plug (item #503 29 21-01) should be replaced every 50 hours–side-gap plugs like NGK BPMR7A offer better cold-start performance than standard configurations. Lubrication points, particularly the bar oil pump (item #544 08 19-01), require synthetic oil with a viscosity of 10W-30; conventional oil leaves gummy deposits that clog internal passages.
Key Components Breakdown for Your Pro-Grade Chainsaw Model
Start by locating the air filter cover – it’s secured by two screws near the rear handle, just beneath the pull starter assembly. Remove the screws with a T25 Torx driver to access the filter; replace it every 25 operational hours or when visibly clogged with sawdust. The filter’s housing doubles as a spark arrestor screen; clean the mesh with compressed air at a 45-degree angle to avoid damaging the fine wires. Ignoring this step leads to reduced engine performance and increased fuel consumption within 10-15 hours of use.
Next, inspect the bar’s oil inlet hole – a common failure point. Use a 1.5mm Allen wrench to remove the clutch cover, then lift the bar and chain assembly straight off the sprocket. Check the oil hole for debris; a blocked passage causes dry cutting within minutes, leading to premature bar wear. Lubricate the hole with SAE 30 oil before reassembly, ensuring the chain moves freely by hand. A stuck chain increases kickback risk and dulls teeth after just three cuts through hardwood.
For the carburetor, reference the exploded view’s numerical labels: part #531 11 31-33 (reed valve) and #531 11 31-26 (diaphragm) are critical. These components fail after 1,200-1,500 working hours, manifesting as hard starts or erratic idling. Replace them as a set; never reuse a torn diaphragm. Use a flathead screwdriver to adjust the L and H screws, turning clockwise ¼ turn for richer mixtures if the engine bogs under load. Measure RPM with a digital tachometer for accuracy – guessing leads to piston scoring.
Finding and Decoding the Authorized Chainsaw Assembly Breakdown Schematic
Begin by accessing the manufacturer’s authorized service portal–typically found under the “Owners” or “Support” sections of their corporate website. Filter search results by model year and engine displacement (e.g., 50.2 cm³) to eliminate outdated or unrelated schematics. The exploded view document is usually labeled as “Service Manual” or “Assembly Drawing” and is often a high-resolution PDF download rather than an interactive webpage.
Identify the schematic’s key components by locating the index legend–usually positioned in the upper-right corner or as a sidebar. Each part is tagged with a numeric identifier (e.g., “65” for the air filter, “112” for the clutch drum) that directly corresponds to the bill of materials. Cross-reference these numbers with the parts catalog to confirm compatibility before ordering replacements.
Zoom into critical sub-assemblies like the carburetor, bar mount, or ignition module, as these sections are frequently displayed as separate inset diagrams. Use the navigational bookmarks in the PDF to jump directly to these expansions rather than scrolling manually. Pay attention to dashed lines or color-coded overlays, which indicate fasteners, gaskets, or adhesive applications often omitted in younger replica schematics.
Decode assembly sequences by examining directional arrows and component layering. For instance, the crankcase dissassembly often requires removing the flywheel first, then the stator, before accessing internal bearings. The schematic may annotate torque specifications next to bolts (e.g., “10 Nm”)–always validate these against the printed service manual, as schematics sometimes generalize values.
Leverage third-party agronomic tool databases if the official schematic is temporarily unavailable–websites like Partstree or RepairClinic archive OEM documents under their respective brand name. However, confirm the part numbers match the original exploded view, as aftermarket providers occasionally alter identifiers or omit micro-components like circlips or spacers.
Print the exploded view at 100% scale on A3 paper if working offline, then laminate or protect it from oil and debris. Mark replaced components with a grease pencil to track maintenance history across rebuild cycles. Store digital copies on a ruggedized tablet or cloud drive synchronized with the physical workspace for real-time reference during field repairs.
Critical Spare Components for the 50.1cc Pro Chainsaw: OEM Codes and Recognition
Begin with the air filter (OEM 530 070 101) – replace every 25 operating hours or sooner if debris accumulation exceeds visible mesh coverage. Pair it with the pre-filter (OEM 544 083 301) for high-dust environments; the nylon mesh extends service life by 40%. Both elements snap into the intake housing without tools, but ensure the sealing lip aligns flush to prevent unfiltered air ingress.
For ignition reliability, the spark plug (OEM 544 078 430) requires seasonal checks–gap at 0.020″ (0.5 mm), electrode wear beyond 0.025″ mandates immediate swap. Cross-reference the resistor type if retrofitting non-OEM plugs; incorrect resistance disrupts ECM timing. The flywheel nut (OEM 530 040 943) secures the magneto; torque to 40 Nm using a shock-type wrench to avoid thread stripping.
Powerhead and Drive Train Essentials
The piston kit (OEM 530 040 944) includes rings, wrist pin, and circlips–replace as a set when compression drops below 120 psi. Lubricate the cylinder bore with fresh 2-cycle oil before assembly; dry starts accelerate scoring. The crankshaft (OEM 530 040 945) requires a bearing puller for removal; check runout with a dial indicator–values over 0.0015″ indicate journal wear necessitating replacement.
Clutch components demand attention at 100-hour intervals. The drive drum (OEM 503 25 58-01) wears grooves from chain friction; inspect under magnification for micro-cracks. Paired springs (OEM 503 56 03-01) lose tension progressively–inconsistent engagement signals replacement. The centrifugal shoes (OEM 503 61 00-01) must recoil freely; sticky operation causes chain drag and premature sprocket wear.
The bar (OEM 503 40 72-01) and chain (OEM 503 40 71-51) form a precision system–match gauge and pitch precisely. File depth gauges flat if beyond 0.025″ above cutting teeth; inconsistent heights cause kickback. The sprocket nose (OEM 503 40 70-10) requires flip-side use after 5 sharpenings or when rivets show visible play; misalignment accelerates bar rail erosion.
Filtration and Fuel System Maintenance
The fuel filter (OEM 544 035 360) clogs unpredictably–swap annually regardless of visual condition. Ethanol blends degrade the sock element; use non-woven mesh for E10 compatibility. The primer bulb (OEM 530 070 143) cracks at the base–inspect daily, replace if tactile feedback feels spongy. Fuel lines (OEM 503 47 04-01) harden after 2 years; brittle segments fracture under vibration, causing lean conditions that scuff pistons.
Step-by-Step Disassembly: Using the Illustrated Guide for Chainsaw Maintenance
Lay the power tool on a clean, flat surface with the bar positioned away from you. Remove the spark plug wire first to prevent accidental starts–this step is non-negotiable. Using a T25 Torx driver, unscrew the three screws securing the cylinder cover. Lift the cover carefully; the gasket may adhere, so wiggle it gently without forcing. Set the cover aside with screws attached to avoid misplacement.
Removing the Carburetor and Air Filter
Detach the fuel line from the carburetor by pinching the hose clamp with needle-nose pliers–pull straight to avoid kinking. Label the fuel and oil lines with masking tape if reconnecting later. Slide the air filter housing off by releasing the two clips; inspect the foam for debris, tapping it against a hard surface to dislodge sawdust. If the filter is saturated with oil, replace it–never reattach a compromised filter.
- Fuel line: marked “F” (white).
- Oil line: marked “O” (black).
- Two 8mm bolts hold the carburetor bracket–remove only after disconnecting linkages.
With the carburetor exposed, note the orientation of the throttle linkage arm before removal. Use a 10mm wrench to loosen the mounting nuts–turn counterclockwise, supporting the assembly with your other hand. Rotate the carburetor 90 degrees to access the impulse hose; disconnect it by pulling firmly but without twisting. Check the hose for cracks; replace if brittle. Store the carburetor in a sealed bag with silica gel to prevent moisture damage.
Disassembling the Bar and Chain Assembly
Flip the tool so the clutch faces upward. Engage the chain brake to release tension–failure to do this risks sudden recoil. Loosen the bar nuts with a 13mm socket, then pivot the guide rail outward to remove the cutting chain. Clean the groove with a flathead screwdriver, removing embedded debris. Inspect the drive sprocket for worn teeth; replace if grooves exceed 1mm in depth.
- Wipe the rail with a rag dipped in kerosene–never gasoline.
- Apply a thin layer of bar oil to the groove before reassembly.
- Check the clutch drum for glazing; sand lightly with 400-grit paper if shiny.
Release the chain brake by pulling the lever fully forward, then hold it in place while turning the tensioning screw counterclockwise with a flathead screwdriver. The cutting teeth should lift cleanly from the rail; if resistance is felt, tap the rail sideways with a rubber mallet. Store the chain in a container of clean bar oil to prevent rust–never wrap it in cloth, as fibers can foul the links.
