To troubleshoot or maintain industrial-grade spraying units, begin with the pump assembly. Locate the inlet valve and check valve–these regulate fluid flow and prevent backpressure. Reference the manufacturer’s exploded view; it typically groups parts by subsystem: motor, trigger gun, and hose connections. Replace worn seals or springs immediately if leaks appear at junction points.
Examine the nozzle configuration next. High-velocity units use numbered orifice tips (e.g., #4 for heavy debris) aligned in a specific spray pattern. Misalignment causes uneven cleaning or pump strain. Verify torque specs for threaded fittings–over-tightening damages brass or aluminum components.
Electrical schematics prioritize thermal overload protectors and capacitors. If the unit stalls, check voltage at the motor leads before disassembly. Use a multimeter set to ohms: readings outside 5-10Ω indicate winding failure. For diesel models, inspect the fuel filter and air intake filter–clogging reduces efficiency by 20-30%.
Storage tanks and chemical injectors require periodic descaling. Acid-resistant models use PVC or polyethylene diaphragms; metallic sediment in tanks signals corrosion. Flush lines with a 5% vinegar solution quarterly to prevent mineral buildup. Always purge residual liquid before winter storage to avoid freeze damage.
For reassembly, lubricate O-rings with silicone grease–not petroleum-based–to prevent swelling. Reattach hoses in sequence: inlet → pump → wand → nozzle. Tighten clamps to 15-20 Nm; overtightening cracks plastic housings. Post-maintenance, run a test cycle with low pressure to confirm leaks. Document part numbers for future reference–critical components like unloader valves vary by model year.
Exploded View Reference for High-Pressure Cleaning Equipment

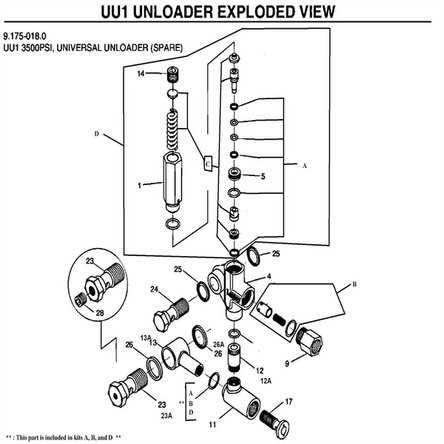

Start troubleshooting by locating the unloader valve in the schematic–usually item 12 or 15 in official manuals–marked as a brass or stainless steel assembly near the pump outlet. Check for corrosion or debris buildup, which disrupts pressure regulation and shortens hose life. Replace immediately if the spring tension feels weak or the piston fails to retract smoothly under finger pressure.
| Component ID | Common Failure Sign | Replacement Interval |
|---|---|---|
| Pump seals (kit) | Oil leaks at connections | 200–300 operating hours |
| Thermal relief valve | Overheating during idle | Annual inspection |
| Inlet water screen | Reduced flow rate | Every 50 operating hours |
For electric models, trace wiring colors in the diagram against physical connections: red (power), black (ground), yellow (thermal cutoff). Voltage drops below 110V AC often stem from frayed wires at the motor brush terminals–test continuity with a multimeter before disassembling the housing. On gas-powered units, verify the spark plug gap (0.025–0.030 inches) matches manufacturer specs; misalignment causes hard starts even with fresh fuel.

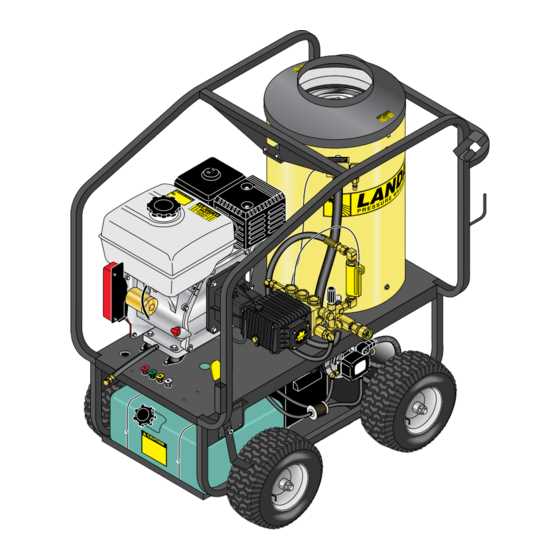

Inspect the lance assembly–cracked trigger mechanisms or worn ceramic nozzles (orifice size 2.0–4.0 mm) should be swapped in pairs to avoid uneven spray patterns. Store replacement nozzles in labeled plastic bags to prevent brass oxidation; zinc-plated variants corrode faster in high-mineral water regions. For hot-water variants, focus on the coil heat exchanger section: scale buildup appears as white crust on the 3/8″ tubing–flush with 5% citric acid solution every 75 hours.
When ordering spares, cross-reference part numbers with serial plate data–early 2018 models (Prefix HWH*) require distinct o-rings (Viton, 70 durometer) versus 2020+ units (Buna-N, 60 durometer). Keep a printed schematic laminated at the workshop station; digital manuals fail during onsite repairs in low-connectivity zones.
How to Decode an Exploded View of High-Pressure Cleaning Equipment
Locate the pump assembly first–it’s the core element depicted near the center of most schematics. Look for numbered callouts matching labels like “crankshaft,” “valve plate,” and “seals” to confirm its identity. A missing or damaged seal here causes water leakage, reduced output, or complete failure, so cross-reference the part number with the manufacturer’s repair manual before ordering replacements.
Recognizing Drive Components
Identify the motor or engine mounted adjacent to the pump; its coupling and pulley system transfer power. Inspect the schematic for alignment marks–misaligned belts generate excessive wear and noise. Check for torque settings in the manual; over-tightened bolts strip threads, while loose ones create slippage. Note the presence of safety switches or thermal protectors; bypassing them voids warranties and risks overheating.
Hoses and nozzles appear as elongated tubes with connectors–verified by quick-connect symbols or threaded ends. Trace each line from pump outlet to spray gun; kinks or cracks reduce flow efficiency. Schematics often highlight filtration elements (inlet screens, sediment traps) upstream of the pump; neglecting these causes premature wear on internal components. Replace clogged filters every 50 operating hours unless the manual specifies otherwise.
Frame and enclosure parts include brackets, wheels, and handles–often overlooked but critical for mobility and stability. Verify axle diameter and bearing type; undersized components fail under load. Pay attention to electrical harnesses if the unit is electric; frayed wires or corroded terminals disrupt power delivery. Isolate subassemblies like detergent injectors or pressure regulators; mismatched parts cause inconsistent chemical application or erratic spray patterns.
Always cross-check each identified component with the bill of materials (BOM) included in the schematic. Mismatches between diagram illustrations and physical items indicate either a revision update or incorrect installation. Use a multimeter to test electrical continuity on motors or heating elements before reassembly–failure readings signal hidden faults not visible during visual inspection.
Step-by-Step Guide to Finding Spare Components Using the Schematic
Identify the exact model number of your cleaning unit before referencing the schematic. This number is typically etched on a metal plate near the engine or motor housing–often beneath a protective panel. Without this, searching for components becomes inefficient, as schematics differ even between similar series.
Open the schematic and locate the exploded view matching your repair area. Most manuals split illustrations into sections: pump assembly, frame, spray gun attachments, or motor elements. Check the legend for symbols–arrows may denote fasteners, circles highlight seals, and dashed lines indicate hidden connections. If the diagram lacks clarity, note the component’s shape and relative position to nearby screws or brackets.
Key Reference Points in the Illustration
- Item numbers: Cross-reference these with the accompanying list to confirm names and specifications (e.g., O-rings vs. nozzles).
- Material codes: Some schematics include part composition; “BR” often means brass, “N” nylon, “SS” stainless steel.
- Scale indicators: Verify measurements if replacing internal seals or hoses, as proportions matter for proper fit.
Trace the component’s pathway in the diagram. For example, if replacing a worn valve, follow the line from the trigger handle to the pump inlet. Note adjacent parts–removing a corroded bolt might require disconnecting a nearby hose clamp first. Use a digital zoom tool if the PDF is blurry, or request a high-resolution version from the manufacturer’s support portal.
Verify Before Ordering
- Compare the schematic description with the physical piece. Check for:
- Thread count (e.g., 1/4″ vs. 3/8″ fittings).
- Notch patterns on connectors.
- Unique markings like “L” or “R” for left/right mounts.
- Search using the exact part number or model + component description (e.g., “Kärcher K5 hose assembly”). Avoid generic terms like “pump part,” which return irrelevant results.
- Consult third-party vendors only if OEM options are backordered–ensure compatibility by matching tolerances (e.g., 3000 PSI vs. 4000 PSI seals).
Key Components Prone to Degradation and Where to Find Them in Schematics
Replace the pump seals every 500–800 operating hours to prevent bypass leakage and pressure loss. In technical blueprints, locate these under labels like “high-pressure chamber gaskets” or “axial piston ring sets.” Most manufacturers mark them near the fluid inlet module, often with alphanumeric codes (e.g., P-23A or VX42-B). Keep spare kits sized for your model’s flow rate–using mismatched seals causes premature failure.
- Nozzle inserts: Check spray tips weekly for mineral buildup or erosion. Schematics usually denote these as “discharge orifice assemblies,” positioned at the gun or wand exit. A worn tip (visible as enlarged or uneven openings) reduces cleaning efficiency by 30–45%. Replace when orifice diameter exceeds 0.02 mm over spec.
- Inflatable ring packings: Found adjacent to the motor coupling (often coded C-8 or MU12), these degrade from thermal cycling. Inspect for micro-cracks or hardening every 200 hours. Failure here triggers water contamination of motor bearings.
- Check valves: Look for “unidirectional restrictors” in hydraulic sections. Clean ball-and-seat assemblies monthly; sediment causes intermittent pressure drops. Most diagrams highlight them in exploded views of the bypass manifold.
Identifying High-Friction Points
Focus on grease nipples in the crankshaft and connecting rod junctions–diagrams label these “lubrication ports” with arrows. Apply lithium-based EP2 grease until resistance increases, typically every 100 hours. Neglecting these leads to scoring on bearing races, detectable by blackened lubricant or metallic shavings. Tools needed: 0–100 Nm torque wrench and a 3/8-inch hex socket.
- Locate the 6-mm hex plug marked “LUB” on the motor housing.
- Remove debris cover (if present) using a 12-mm spanner.
- Attach grease gun to Zerk fitting; pump until old grease purges past seal lips.
- Wipe excess to prevent dust ingress.
Failure to maintain these zones can reduce component lifespan by 40%.
