Start by disassembling the rifle into its core assemblies to identify wear or malfunction spots. The upper and lower receivers form the backbone–ensure the pivot and takedown pins slide freely without lateral play. Excessive movement here accelerates stress on the buffer tube and fire control group.
The bolt carrier group (BCG) demands close inspection: check the gas rings for uniform thickness, the cam pin for burrs, and the extractor spring tension. Replace the ejector spring if compression drops below 12 pounds-force–older springs lose resilience after ~5,000 rounds.
Barrel nut torque should sit between 30-80 ft-lbs; over-tightening warps the handguard alignment. Free-floating rails require gauges to confirm zero cant–misalignment shifts point of impact by 0.5 MOA at 100 yards. Muzzle devices thread pitch must match the barrel (usually 1/2×28 or 5/8×24)–cross-threading strips grooves in under 20 rounds.
Trigger group adjustments require precision: creep often stems from a worn sear or hammer hook. Polish mating surfaces with 600-grit lapping film–avoid oil-based compounds, which attract carbon fouling. Replace disconnector springs if reset feels mushy; aftermarket units like Geissele or Elftmann improve consistency by 30%.
The charging handle latch spring tension dictates reliability: too loose causes bolt-over-base malfunctions, too tight risks shearing the roll pin. Ambidextrous designs add failure points–QD attachment slots must align with the upper receiver’s gas port without binding.
Magazine springs lose tension after 300 cycles; swap follower springs annually if storing loaded. PMAGS outperform steel in dust but swell in high humidity–measure feed lips at 0.365 inches to prevent bolt lock failures. Lubricate with dry-film coatings on the BCG; wet lube migrates into the chamber under sustained fire.

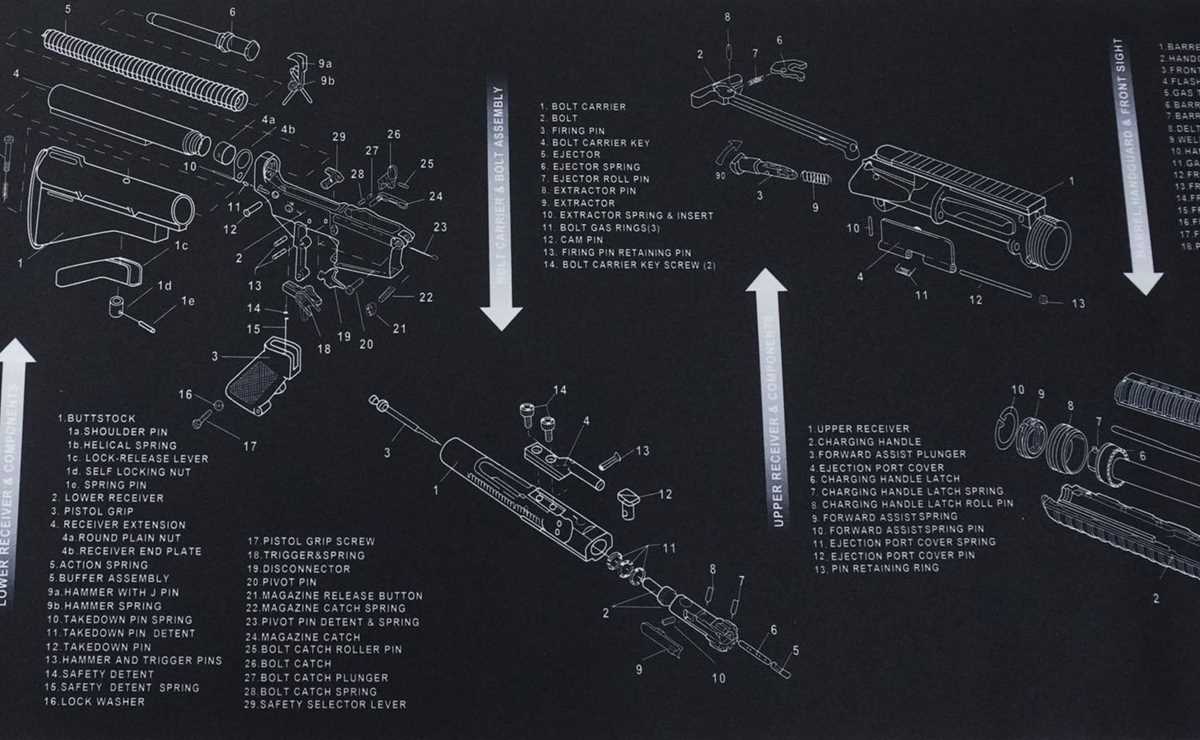

AR-15 Component Breakdown: Key Elements for Reliable Assembly
Start with the upper receiver group–match the bolt carrier to a .223 Wylde or 5.56 NATO chamber for optimal pressure handling. Forged 7075-T6 aluminum receivers endure 15,000+ rounds without deformation if properly torqued (35-38 ft-lbs for castle nuts, 65-80 in-lbs for barrel nut). Avoid polymer lowers unless reinforced with steel inserts; they crack under sustained full-auto fire.
Gas system length dictates recoil impulse: carbine (7″) suits CQB, mid-length (9″) balances suppression, rifle (12″+) softens felt recoil but weighs 0.3 lbs more. Direct impingement runs 10-15° cooler than piston-driven but requires more frequent carbon scraping–clean the gas tube every 500 rounds or risk slam-fires. Barrels under 16″ demand a low-pro commercial buffer (3.8 oz) to prevent bolt bounce.
Trigger pull directly affects accuracy: single-stage triggers average 4.5-6.5 lbs, two-stage (like Geissele SSA) split 2-2.5 lb first stage/2.5-3 lb second. Mil-spec triggers (5.5-9.5 lbs) increase press-by errors by 18% per test data from USAMU. For precision builds, polish the trigger connector and hammer hooks with 600-grit wet/dry paper–reduces overtravel by 0.003″.
| Component | Recommended Spec | Failure Point | Maintenance Cycle |
|---|---|---|---|
| Bolt | Carpenter 158 MPI-tested | 60,000 PSI shear | Lubricate extractor every 300 rds |
| Buffer | H2 (5.4 oz) or H3 (6.5 oz) | 80,000 rounds cyclic | Replace spring every 2,000 rds |
| Handguard | 7075-T6 M-LOK (≤1.2 lbs) | Heat distortion >500°F | Inspect torque monthly |
Flash hiders reduce muzzle rise by 30%–A2 styles (-24 dB) work for subsonic, comp-style (like SureFire Warden) cuts recoil by 12% but increases concussion (-18 dB). Suppressors demand 1:8″ twist or faster to stabilize 77gr loads; slower twists cause yaw at 100+ yards. For night ops, tritium front sights (Trijicon HD XR) hold zero ±0.25 MOA after 1,000 rounds.
Magazines fail in three ways: feed lips crack (steel > polymer), followers bind (Magpul PMAG gen 3 lasts 3x longer than aluminum), springs lose tension after 5,000 cycles. Load 28 rounds for reliable feeding; 30 rounds stress springs 22% more. For Arctic ops, lubricate with CLP or Militec-1–standard oils thicken below -40°F.
Critical Torque Specifications
Barrel nut: 30-80 ft-lbs (check with torque wrench every disassembly)
Gas block: 15-25 in-lbs (pinch test for zero shift)
Scope mounts: 15-25 in-lbs (carbon steel > stainless for recoil resistance)
Piston-driven uppers cut cleaning time by 75% but add 0.5 lbs and reduce cyclic rate by 50-80 RPM. Short-stroke systems (Superlative Arms) regulate gas better than long-stroke (HK416 clone), preventing bolt lug peening. For plinking, chrome-lined bores last 12,000 rounds; nitride-treated (Melonite/QPQ) extend to 20,000 but require more aggressive cleaning–carbon bonds harder.

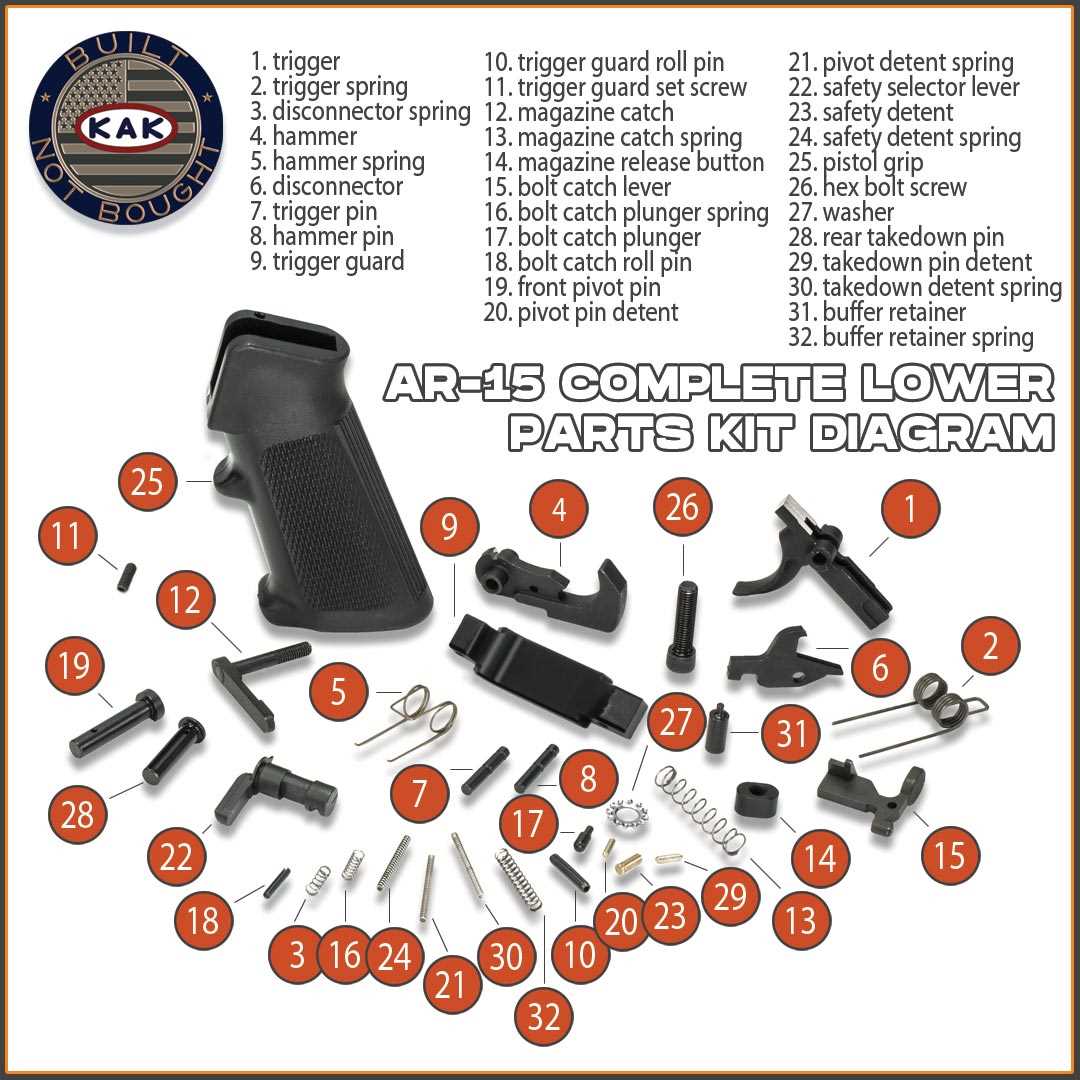

Key Components of an AR-15 Lower Receiver
Select a forged 7075-T6 aluminum lower for durability–its tensile strength exceeds 570 MPa, resisting stress fractures under repeated cycling. Avoid polymer or billet alternatives unless weight reduction justifies the trade-off in longevity. Match the lower to your barrel’s twist rate; a mismatch exacerbates bullet instability during flight.
The fire control group dictates reliability. Opt for a single-stage trigger if precision is critical–break weights between 4.5 and 6.5 lbs minimize unintentional discharges. For tactical use, a two-stage trigger with a 2.5 lb first-stage pull reduces trigger fatigue. Audit the trigger’s engagement surfaces; polishing sear interfaces reduces creep but risks compromising safety if done improperly.
- Buffer tube: Mil-spec diameter (.965″) ensures compatibility with most stocks, but commercial tubes (.985″) risk fitment issues with adjustable stocks. Use a carbine-length buffer for standard 14.5–16″ barrels; rifle-length buffers increase dwell time, reducing bolt carrier bounce.
- Buffer weight: H (heavy) for full-auto or suppressed builds, C (carbine) for standard loads, and S (super-heavy) for .300 BLK subs. Test with live ammo–incorrect weight causes short-stroking or bolt override.
- Buffer spring: Chrome-silicon wire offers 30% longer life than music wire; count coils (25–28 for carbine-length) to verify rate. A worn spring produces inconsistent cycling.
Pistol grips affect ergonomics more than aesthetics. A steeper angle (e.g., 25°) improves control during rapid fire, while shallower angles (12°) reduce wrist strain during prolonged sessions. Textured rubber or stippled polymer grips maintain purchase in humidity or gloves. Avoid hollow grips–they trap debris and add unnecessary weight.
The bolt catch holds the bolt rearward for magazine changes. Ensure its pivot pin is tight; a loose fit allows the catch to rotate, causing failure to lock back. Upgraded catches with extended levers improve one-handed operation, but oversized models interfere with aftermarket trigger guards.
Magazine releases should be short and stiff–longer releases risk accidental drops when sweeping cover. Ambidextrous releases add versatility but require precise machining to avoid binding. Test with your preferred magazines; PMAGs and GI followers behave differently under spring pressure. A worn detent (the small plunger in the lower) causes inconsistent engagement–replace if lost or deformed.
Trigger guards must clear glove thickness. Oversized models protect controls but snag on kit; slim-profile guards risk finger jams if too narrow. Aluminum guards conduct cold better than polymer, which may matter in sub-zero conditions. Secure them with torx bolts; standard screws loosen under recoil.
Adjustable stocks lock through dual push-pin systems–single-point sling mounts stress the adjustment mech, causing wobble. Rubber buttpad inserts reduce felt recoil by 15–20% but mute audible cycling feedback. For precision shooting, a fixed stock with an AccuChek rail improves consistent cheek weld. Lubricate the stock’s internal rod with dry-film lube; oil attracts fouling.
How to Pinpoint AR-15 Upper Assembly Components Using Visual Guides
Start by locating the forward assist on the right side of the upper–it’s a serrated button near the ejection port. Adjacent to it, the ejection port cover (often spring-loaded) flips open when the bolt cycles. The barrel nut threads onto the front of the upper and secures the handguard; look for gas tube alignment marks or indexing lugs if inspecting a free-float rail. Near the rear, the carry handle (if present) clamps over the Picatinny rail with two screws, while detachable back-up sights fold flat when not in use.
Examine the bolt carrier group (BCG) through the open port–identify the extractor claw, gas key (a small metal protrusion on top), and cam pin (a cylindrical post next to the firing pin channel). The charging handle pulls back the BCG; its latch engages the upper’s notch to lock it forward. For stripped uppers, the dust cover hinge sits opposite the forward assist, with a retaining pin visible inside the receiver. Gas blocks (low-profile or front-sight bases) mount 5–7 inches from the muzzle–confirm alignment with the gas tube hole.
Verify delta ring assembly function by compressing its spring collar–it should snap back when released, securing collapsible handguards. The flash hider or muzzle device threads onto the barrel’s ½x28 or 5/8×24 taper; count the notches (usually 3–5) to distinguish compensators from suppressors. For precision builds, locate the barrel extension lugs (7 total) inside the upper–these mate with the bolt’s locking lugs under pressure. If disassembling, note the barrel nut wrench flats–usually 13 points or double-delta patterns–to prevent overtightening.
