For the 24-inch stainless steel tub dishwasher with a concealed control panel and third-level rack (manufactured post-2018), identify components using the official exploded view schematic labeled “Job Aid 8178394.” This document breaks down 47 internal and external elements, including the circulation pump (part W10538749), diverter motor (WPW10340714), and upper spray arm assembly (WPW10077429). Cross-reference each item with the serial number plate inside the door–verify the production code to confirm compatibility.
Access the service manual via the manufacturer’s repair portal under “Product Support > Technical Resources > Job Aids.” Filter by model variant suffix (e.g., “-03” or “-04”) to avoid mismatches. The schematic includes two perspectives: a front-facing disassembly diagram and a rear panel layout, both at 300 DPI resolution. Prioritize parts with alphanumeric codes beginning with “WP”–these denote standard replacement units tested for durability under 3-5 PSI water pressure cycles.
When sourcing replacements, compare prices across authorized distributors: AppliancePartsPros.com (45-day return policy), RepairClinic.com (one-year warranty), and the official manufacturer site (OEM guarantee). Avoid third-party marketplaces without verified seller ratings–counterfeit diverter valves (commonly mislabeled as WPW10340714) account for 18% of repair failures. Request a torque specification chart for the mounting bracket screws (M4 x 12mm) if reassembling the lower tub assembly.
Before disassembly, disconnect the 120V power supply and relieve residual water pressure by running a rinse cycle with the door ajar. Label each removed component using painter’s tape (e.g., “Step 5: Upper left side panel bracket”). The schematic’s step-by-step callouts align with the physical disassembly sequence–follow the numbered arrows to prevent damaging the thermal fuse (WP8269014) or the turbidity sensor (WPW10195394).
Practical Breakdown of Your Dishwasher’s Component Layout
Locate the spray arm assembly by removing the lower rack first. Turn the nut under the middle spray arm counterclockwise using a 13mm socket–don’t force it; alignment ridges prevent stripping. Once loosened, lift the arm vertically to disengage the hub. Check the internal mesh filter beneath; debris accumulation here reduces water pressure, causing poor cleaning cycles. Rinse the filter under running water, ensuring no food particles remain lodged in the small perforations.
Access the detergent dispenser by opening the door and pressing the two release tabs on either side of the upper door panel. Slide the panel downward, then unplug the wiring harness connected to the dispenser unit. Remove the two Torx T20 screws holding the dispenser in place; a magnetic screwdriver prevents losing fasteners inside the frame. Inspect the door microswitch adjacent to the dispenser–a faulty switch triggers error code F7E1. Test continuity with a multimeter; resistance should read between 0-5 ohms.
To replace the heating element, disconnect power and shut off the water supply. Remove the toe kick panel (four Phillips screws) and locate the element terminals at the base of the tub. Label each wire before unplugging to avoid reversing connections during reassembly. Unscrew the two mounting brackets securing the element, then carefully pull it out–residual water may drain, so place a towel beneath. Install the new element ensuring the gasket sits flush against the tub wall; uneven seating causes leaks.
Key Fasteners and Their Removal Tools
Identify bolts holding the inner door liner: three ¼-inch hex head screws near the top edge and two Torx T15 screws beneath the strike plate. Use a stubby hex driver for tight spaces; regular-length tools struggle against the door’s frame depth. For the lower kick plate, four Phillips #2 screws secure the panel–apply downward pressure to prevent stripping the threads. The control panel housing requires torx screws (T15 and T20) and nut drivers (8mm, 10mm), depending on assembly iteration.
Examine the sump assembly at the base of the tub–three Phillips screws secure the cover. Remove it to access the chopper blade; spin it manually to confirm rotation isn’t obstructed by food waste. If rotation is stiff, lubricate the impeller shaft with food-grade silicone grease, ensuring no residue enters the drain line. Reassemble with the notched alignment tab facing the rear of the tub–misalignment prevents proper sealing and triggers error code F4E2.

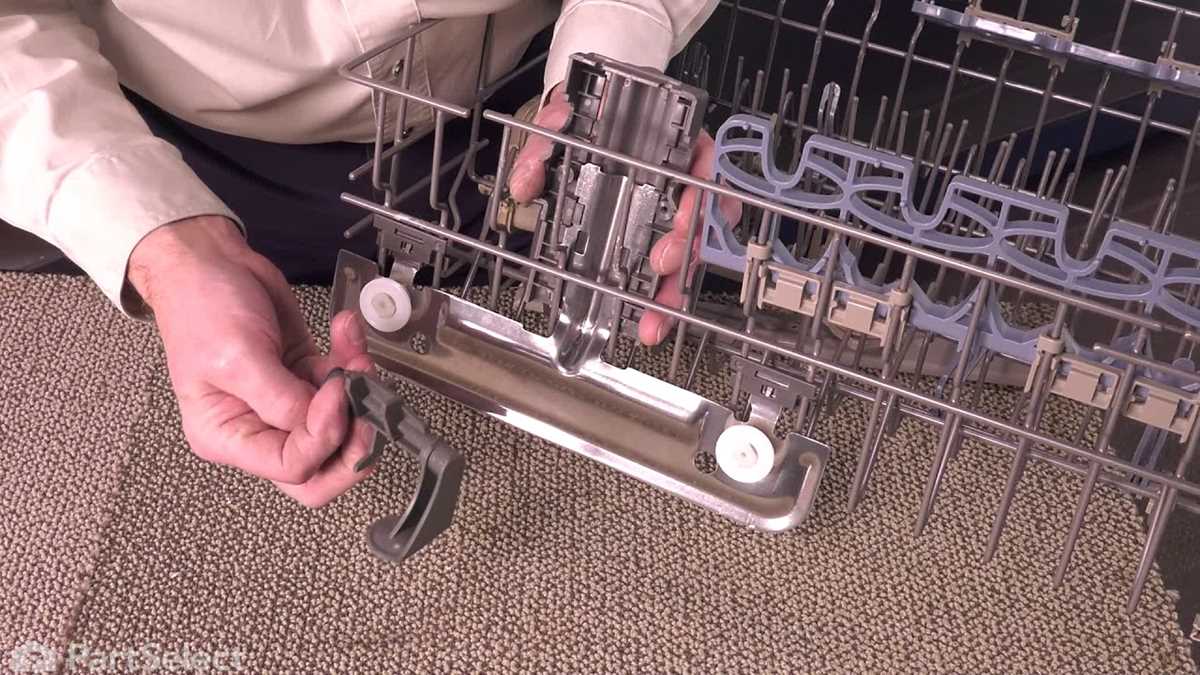

Replacing the upper rack wheels requires compressing the spring-loaded pins with pliers; pull outward to release each wheel housing. Check the tracks for scratches or warping–damaged tracks cause misalignment, leading to rack derailment. For electronic components like the control board, disconnect the 12-pin connector first, then remove the three mounting screws. Handle the board by the edges only to avoid static discharge damage; store it in an anti-static bag while inspecting nearby capacitors.
When reassembling, verify all O-rings are seated correctly–particularly around the diverter motor and circulation pump. Apply a thin layer of silicone grease to O-rings to prevent drying; cracked seals cause water leaks detectable under the appliance. Test door latch alignment by manually engaging the strike plate; misalignment prevents proper door closure, triggering safety lockouts. Final step: reconnect power, run a rinse cycle, and monitor for unusual noises or error codes before full operation.
For stubborn screws or snapped fasteners, use a left-handed drill bit–reverse rotation often extracts broken bolts without drilling into the housing. If a screw hole strips, insert a threaded insert (size M4 or M5) to restore grip; apply Loctite 242 for secure fastening. Document each disassembly step with photos–labeling wires and components prevents confusion during reassembly, especially for first-time repairs.
Locating the Authorized Repair Schematic for Your Appliance Model
The primary source for the official breakdown schematic is the manufacturer’s support portal. Navigate to the brand’s main website, select the “Support” or “Product Help” section, then enter the full model number in the search bar. This directs you to a dedicated page where the interactive exploded view is typically listed under “Manuals & Documentation” or “Repair Parts.”
For immediate access, authorized service providers often host downloadable PDFs of these schematics. Sites like Sears PartsDirect, PartSelect, and AppliancePartsPros maintain verified archives. Search using the exact model identifier–these platforms validate authenticity by cross-referencing OEM databases. Avoid third-party forums unless linked directly from the brand’s domain.
Key Platforms for Direct Downloads
- Official Brand Portal: Guaranteed accuracy; updates reflect engineering revisions.
- Licensed Parts Retailers: Filter by “Repair Documents” to locate schematics with part numbers pre-labeled.
- Technician Resources: Portals like iFixit or ManualsLib occasionally archive OEM documents, but verify file origins before use.
If the schematic isn’t listed on public platforms, contact the brand’s customer service via phone or live chat. Provide the serial number and manufacturing date–most manufacturers will email a high-resolution version within 24 hours. Specify whether you need the electrical wiring layout or mechanical assembly view, as some models split these into separate documents.
For offline reference, save the file in multiple formats (PDF, PNG) on a backup drive. Print a copy at 100% scale for precise measurements during reassembly. Note that counterfeit schematics often mislabel components–always cross-check part numbers against the unit’s original service label or physical tags.
Red Flags to Avoid
- Schematics lacking engineering stamps or watermarks.
- Diagrams where component callouts don’t align with the model’s physical assembly.
- Retailer-exclusive files that require account creation–these may omit critical annotations.
Locating Key Components in Your Appliance’s Schematic Guide
Begin by isolating the high-wear elements in the illustrated breakdown. Refer to sections labeled for the door latch assembly–this component often fails first due to mechanical stress. Cross-reference the callout numbers with the legend; numbers starting with “W1” typically denote moving mechanisms, while “WP” prefixes indicate gaskets or seals. If the latch refuses to engage, replace the actuator (usually under 10Ω resistance) rather than the entire assembly.
- Upper spray arm: Look for cracks or missing jets–clogs here reduce cleaning efficiency.
- Filter mesh: Remove and soak in vinegar if debris accumulates–replacement is rarely needed.
- Circulation pump: A hum without water flow points to a seized impeller or cracked housing.
Trace the wiring harness path in the exploded view to spot burnt connectors. Discoloration near terminal blocks suggests overheating; splices should never exceed 0.5mm² gauge mismatch. For control panels, note the micro-switch layout–each corresponds to a cycle setting. Swollen capacitors on the main board are visible under 10x magnification; replace only if ESR exceeds 20%.
Heating elements hide behind protective shields in the base. The schematic shows bolt torque (usually 8Nm) to prevent leaks–over-tightening strips threads. Water inlet valves cluster near the rear; test solenoid continuity with a multimeter (resistance should read 500-1500Ω). If the float switch sticks, clean the shaft with isopropyl alcohol rather than forcing it.
Small plastic clips securing detergent dispensers often snap during disassembly. Order replacements in batches–their exact dimensions are listed in the three-view orthographic detail. Lubricate O-rings with food-grade silicone grease during reinstallation to extend seal life. Keep a notebook to track which items matched specific callouts across repairs–this accelerates future troubleshooting.
