Identify the shade first–it’s often secured by a threaded ring or spring clamps. Unscrew or release these fasteners gently to avoid warping the frame. If the fabric or glass is cracked, replace it with material of identical thickness; mismatch causes uneven light diffusion.
The harness–typically a metal or plastic socket housing–holds the bulb and wiring. Check for scorch marks near the connection points; discoloration signals overheating and requires a full inspection of the internal wiring gauge (minimum 18 AWG for standard torchiere models).

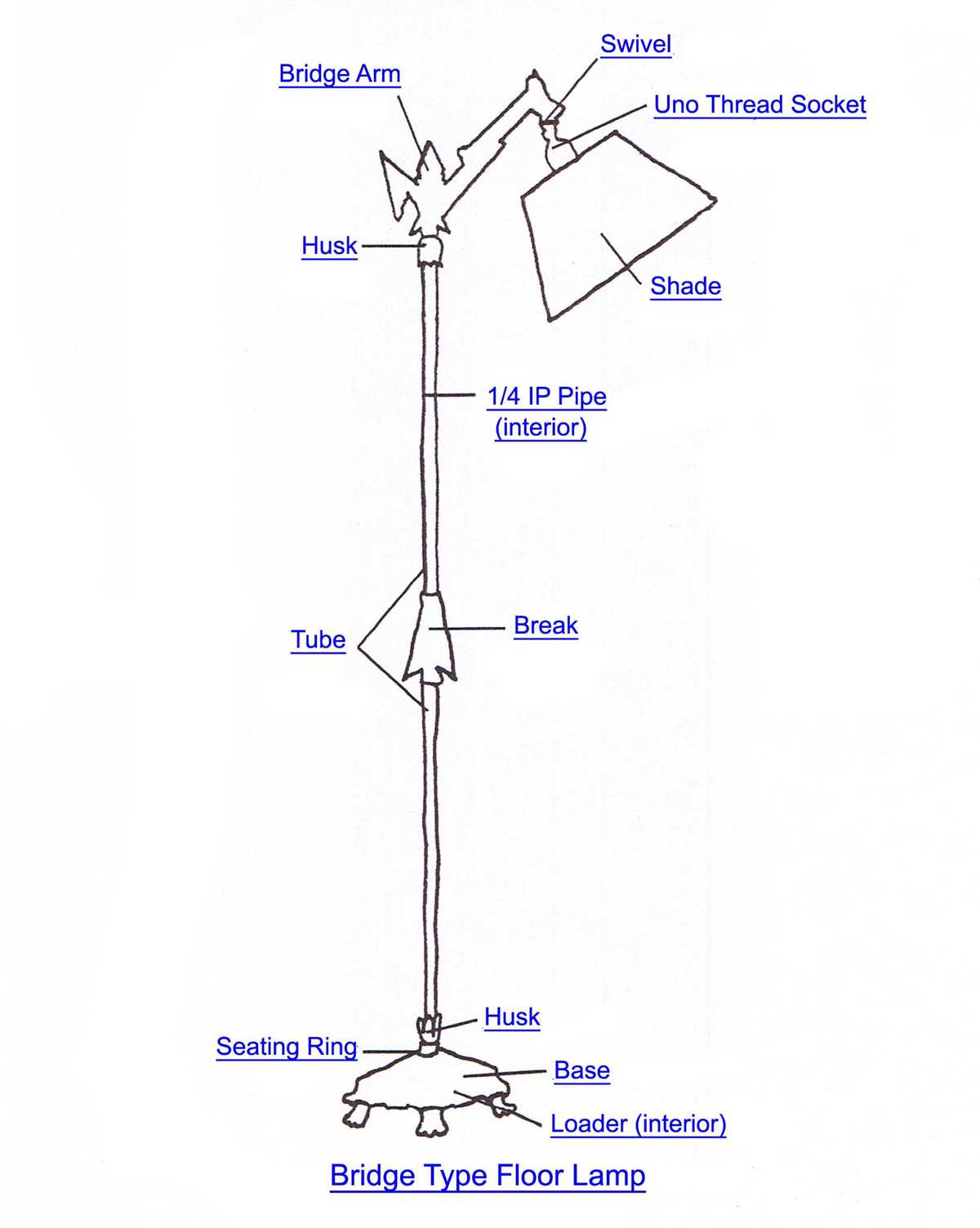

The support column (central rod) connects to the base via a threaded joint. Apply thread-locking adhesive (Loctite 242) when reassembling to prevent loosening from vibrations. If the joint spins freely, the threading may be stripped–replace the rod or use a larger-diameter bolt with matching nuts.
Heavier bases (stabilizers) rely on rubber feet to prevent surface scratches. Ensure these are intact; worn feet cause wobbling, risking structural failure. For added stability, embed steel weights (lead-free) inside hollow bases–calculate 2 pounds of counterbalance per foot of column height.
Modern designs include control modules–dimmers, touch-sensitive panels, or remote receivers. If these fail, bypass the electronics and wire directly to the socket (bypassing the circuit board) as a temporary measure. Always disconnect from mains before testing continuity with a multimeter (set to Ωx1).
Cord exits the base through a strain relief grommet. If fraying is visible, splice a new cord: strip 1 inch of insulation, twist strands clockwise, and solder for a durable connection. Route the cord along the column using adhesive-backed clips to prevent tangling.
Illuminating Torchiere Component Breakdown
Begin by unscrewing the finial at the top of the shade–most are threaded clockwise–using a cloth to protect polished metal finishes. If resistance occurs, apply a drop of penetrating oil along the threads and wait 10 minutes before retrying; this prevents thread stripping in brass or steel screws.
Examine the diffuser beneath the finial–typically frosted glass or perforated acrylic–to assess its condition. Clean dust accumulation with a solution of 1 part white vinegar to 3 parts distilled water, using a soft microfiber cloth to avoid scratching. For textured diffusers, use a soft-bristle brush dipped in the solution to reach crevices.
Assemble a reference table for common torchiere joint types and their securing mechanisms:
| Joint Location | Typical Fastening Method | Loosening Tool | Lubrication Requirement |
|---|---|---|---|
| Base column to pole | Hex bolt (M8, 12mm) | 5mm Allen key | Silicone spray, 1x yearly |
| Pole sections | Threaded connection (G1/8) | Adjustable wrench, 200mm | Graphite powder, 1x every 2 years |
| Arm swivel | Phillips screw (#2) | Precision screwdriver | No lubrication needed |
| Socket housing | Bayonet mount | Firm twist counterclockwise | None |
Identify the power cord routing path before disassembly–most modern designs channel the cord internally through the pole. For older models, trace the cord externally along the column and note any splices or junction boxes; these often require waterproofing with dielectric grease if exposed to moisture.
Check the switch mechanism–whether rotary, push-button, or touch-sensitive. Rotary switches should turn smoothly through all positions; if stiff, apply contact cleaner through the openings while rotating the knob. Touch-sensitive modules require a 1mm gap between the sensor pad and the metal housing to function reliably; adjust spacing with non-conductive washers if responsiveness falters.
Inspect the pole segments for alignment–misaligned sections create tension on internal wiring. Measure the gap between sections with calipers; ideal spacing is 0.3–0.5mm for threaded joints, 0.8–1.2mm for telescoping designs. If gaps exceed these ranges, realign using a rubber mallet to tap sections into place without damaging anodized finishes.
Evaluate the base stability by placing a level atop the weighted plate–most high-quality torches maintain a tolerance under 0.5° tilt when standing on uneven surfaces. If exceeding this, redistribute internal weights or adjust levelling feet; avoid exceeding 20% of the base’s weight limit with added counterweights to prevent tipping risks.
Replace burnt-out sockets immediately–use UL-listed components matching the original wattage rating. For halogen uplights, ensure the replacement socket includes a ceramic insulator; plastic insulators degrade at temperatures above 150°C, creating fire hazards. Secure all connections with heat-shrink tubing rather than electrical tape for longevity in high-heat zones.
Key Elements of a Standing Illuminator Foundation
Begin by examining the weighted pedestal–this is the counterbalance ensuring stability. Look for a metal or composite disc (typically 5–8 lbs) secured at the bottom with screws or an adhesive seal. If absent or loose, tilting hazards increase. Verify the disc’s diameter matches the baseplate’s width within a 1 cm tolerance; misalignment compromises balance.
Trace the central stem anchor: a threaded rod or compression fitting emerging vertically from the pedestal. Check for rust, thread stripping, or wear–replacement requires a 3/8″ or 10 mm tap wrench if threads are damaged. For modular designs, confirm the stem’s retention mechanism (e.g., set screw or bayonet lock) engages fully; partial insertion risks wobble under lateral force.
Inspect the baseplate interface–usually a thin polymer or felt layer adhering to the underside. Peel it back to expose fasteners: three or four screws (often 6–32 or M4) spaced equidistantly. Corrosion here demands immediate attention; clean with 220-grit sandpaper followed by zinc-rich primer. Replace degraded screws with stainless steel counterparts to prevent oxidization.
Locate the cord channel exit, a rubber-grommeted cutout near the pedestal’s edge. Ensure the flexible conduit (typically 1/2″ ID) remains pliable–brittle tubing fractures under tension, exposing wires. If rewiring, route cables through a 3/4″ spiraled retainer to prevent abrasion against sharp edges.
How to Read a Wiring and Socket Assembly Schematic
Locate the polarity markings first–typically “+” and “–” near terminal screws or wire entry points. If absent, trace the neutral wire (white or striped) to its origin; it connects to the wider prong slot in standard plugs. Live wires (black, red, or brown) attach to brass screws, while ground (green or bare) fastens to the green screw. Check for voltage ratings inscribed on ceramic or plastic housings–exceeding these will cause overheating.
Follow the conductive path: cord enters the base, splits at a junction block, then routes through a switch (if present) before reaching the bulb receptacle. Toggle switches show “ON” and “OFF” positions with internal contacts; test continuity with a multimeter set to ohms (0Ω when closed). If wiring splits into multiple branches (e.g., for adjustable heads), label each strand with masking tape to avoid crossed connections during reassembly.
Inspect insulation integrity–cracked sleeves near heat sinks or moving joints require replacement with heat-shrink tubing. Threaded sockets often have a central contact spring; ensure it presses firmly against the bulb base. For dimmable setups, confirm compatibility with the driver module (marked “TRIAC” or “ELV”), and note that LED modules demand exact voltage (e.g., 12V) to prevent flickering.
Step-by-Step Guide to Disassembling a Shade and Diffuser
Unplug the fixture and allow the bulb to cool for at least 15 minutes. Locate the retaining ring securing the diffuser–most models use a threaded metal or plastic collar that twists counterclockwise to release. If resistance occurs, apply gentle inward pressure while turning to prevent cross-threading. For fabric or parchment shades held by friction-fit clips, squeeze the tabs simultaneously to detach without tearing; note their positions for reassembly.
Handling Fragile Components
- Glass diffusers: Wrap in microfiber cloth before removal to avoid fingerprints or chipping edges.
- Metal frames: Use a rubber-coated tool (not bare pliers) to pry stubborn fasteners without scratching.
- Wiring grommets: Push through from the interior outward to prevent damaging the shade’s finish.
Store removed elements in a labeled container–common pitfalls include mixing up directional clips or losing small washers.
Reassembly Validation
- Ensure threads align straight before tightening–the last ¼ turn should require slight force but no binding.
- Test stability by gently shaking the shade; rattling indicates loose internal components.
- For LED panels, verify the diffuser sits flush to prevent light leakage or uneven distribution.

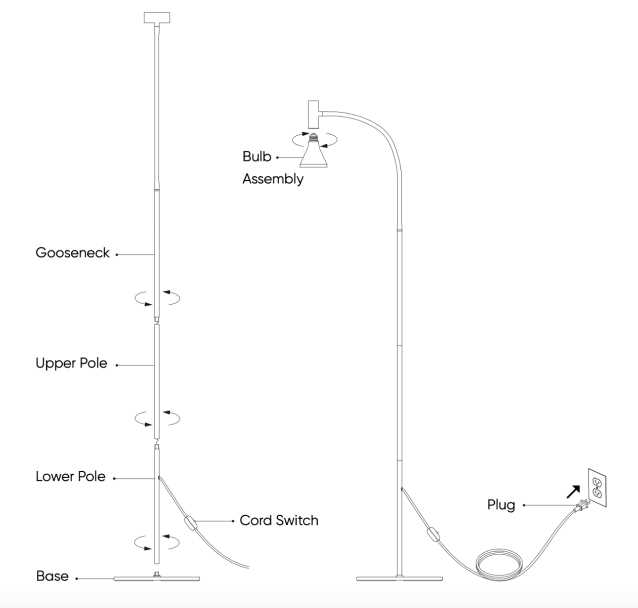

Common Adjustable Pole and Joint Mechanisms Explained
Opt for a threaded collar system if precise height customization is critical. These designs use a screw-based pole where sections twist into place, locking via grooves or ridges. Look for anodized aluminum or steel for reduced striping–plastic variants wear faster under frequent adjustments. Test clearance at joints; minimum 1.5mm gap prevents binding when extending.
Friction-held segments are ideal for quick, tool-free positioning. These rely on clamps or spring-loaded buttons pressing against an inner rod. Prioritize mechanisms with dual-pressure points–single-point setups flex unpredictably if bumped. A drawback: fine adjustments below 30-degree increments are impractical. Pair with a weighted base (minimum 3kg) to offset sway.
- Ball-and-socket joints excel in multidirectional flexibility. Ensure the ball diameter exceeds 25mm–smaller sizes shear under lateral strain.
- Ratcheting hinges offer preset notch angles; 15° increments are standard, but 5° models exist for niche use.
- Multi-tension joints use nested cylinders; lubricate annually with graphite powder to maintain smooth motion.
Telescoping rods require smooth inner sleeves–polished stainless steel lasts decades, while coated brass oxidizes unevenly. Avoid systems with fewer than three draw locks; single-lock poles twist misaligned under load. Check extension resistance: a 1kg pull should move the segment without jerking. Seal the base entry point to dust ingress if used outdoors.
Maintenance Practices
- Retighten threaded collars every 6 months; vibration loosens gripping surfaces over time.
- Silicone spray prevents squeaking in friction joints–WD-40 leaves residue attracting dirt.
- Sand rough edges on ratcheting teeth annually to extend trigger life.
- Wipe ball sockets with microfiber cloths; lint-free options reduce particulate build-up.
Hybrid mechanisms combine friction slides with magnetic locks–these offer both infinite adjustability and vibration resistance. Test stability before finalizing installation; lean forces should not exceed 8N/cm² on the joint node. Avoid mounting within 50cm of heat sources; thermal expansion distorts tolerances.
Weighted swivel joints require specific counterbalance ratios. For a 5kg head assembly, allocate 2kg per pivot point–lower weights cause drooping. Use brass counterweights for corrosion resistance; zinc coatings flake in humid environments. Inspect welded pivot stops monthly–fissures propagate silently.
Quick-release levers suit rapid height changes but fail under sustained shear loads. Replace nylon washers biannually to prevent metal-on-metal wear. For vertical tracks, machined aluminum extrusions outlast stamped steel–ensure lateral play under 0.3mm for consistent sliding. If noise develops, regrease the channel with lithium-based lubricant.
