Begin by examining the rim–the outer frame that holds the lenses in place. Metal rims often feature adjustable nose pads for precise fitting, while acetate or plastic versions may rely on built-in bridges. The lug arms, extending behind the ears, vary in flexibility: memory metal alloys adapt to facial contours, while rigid materials require precise temple length measurements for comfort.
Lens attachment methods differ by design. Screw-mounted assemblies allow for easy replacement but demand periodic tightening. Clip-on versions use tension from the frame’s interior grooves, while groove-fitted lenses snap into pre-machined channels. For polycarbonate or high-index lenses, verify the frame’s minimum thickness tolerance–typically 1.5mm for secure retention.
The bridge impacts weight distribution. Keyhole designs reduce pressure on the nose, while saddle bridges spread weight evenly. Adjustable pads should align with the nasal bone’s highest point, angled approximately 20° from vertical for stability. Temple hinges vary: barrel hinges offer durability, spring hinges provide flexibility for frequent removal, and integrated hinges eliminate weak points but limit adjustments.
Anti-slip treatments on earpieces–silicone coatings or textured patterns–prevent slippage during movement. For sports models, wrap-around constructions require precise curvature calculations to avoid peripheral distortion. Verify coating compatibility: hydrophobic layers resist smudges but may interfere with anti-reflective treatments if improperly applied.
Understanding the Structure of Vision Correction Frames
Select an exploded view schematic with labeled components to identify each segment before adjustments. Manufacturers like Ray-Ban or Oakley include these in packaging or on official repair portals–download high-resolution versions for clarity. Compare the frame’s physical build with the chart to confirm material specifications (e.g., acetate temples vs. titanium bridges) prior to ordering replacement screws or nose pads.
Examine the front assembly first:
- Lenses: Note bevel type–C-lock for rimless, nested groove for full-rim, or pressure-fit for semi-rimless. Verify thickness at edges; mismatched curves warp under clamping.
- Rims/Shields: Check for stress points where the upper bar meets hinges. Aluminum alloys bend 8% easier than carbon fiber at identical torque.
- Bridge: Keyhole bridges distribute weight 30% better than saddle styles on narrow faces (≤31mm inter-pupillary distance).
Inspect lateral supports next:
- Temples (with or without spring hinges): Measure length from hinge barrel to tip–standard 135–145mm, extra-long reaches 150mm (common in Asian markets).
- End pieces: Monel hinges endure 3,200 open/close cycles before loosening; stainless steel lasts 2,100. Validate screw thread pitch: M1.2 or M1.4 for tool compatibility.
Focus on comfort mechanisms:
- Nose pads: Silicone grips better than PVC (static coefficient 0.8 vs 0.6). Replace at 6-month intervals if worn daily; UV exposure degrades silicone 6% faster indoors.
- Ear hooks: Textured acetate reduces slippage by 40% compared to smooth surfaces. Customize angle with an optician’s heat gun (140°C/2–4 sec max).
Check hardware tolerances:
- Screws: Use Loctite 222 (low strength) for frequent adjustments; Loctite 243 (medium) for fixed lenses. Torque specs: 5–7 N·cm for hinges, 2–3 N·cm for tension screws.
- Washers: Fluoroplastic spacers prevent metal-on-metal corrosion; absent in budget frames (<$120).
- Rivets: Peened ends require specialized tools–avoid DIY flattening with pliers (risk of cracking acetate).
Consult a labeled parts list when ordering replacements:
- Track manufacturer part codes–Luxottica variants (e.g., RB4325) differ from Safilo’s (e.g., SPX9001) despite identical dimensions.
- Avoid third-party temples incompatible with proprietary hinge designs (e.g., Warby Parker’s nylon friction locks vs. Oliver Peoples’ threaded barrels).
- Verify nose pad attachment: push-in clips (most common) vs. threaded rods (high-end frames).
Use a digital caliper for precise measurements before servicing:
- Hinge gap: 0.2–0.4mm tolerance–wider gaps accelerate wear on temple springs.
- Lens groove depth: 1.2mm for standard prescription lenses, 1.5mm for blue-light filters.
- Bridge width: Add 1mm to inter-pupillary distance for optimal alignment on wrap-around styles (e.g., Oakley Radar EV).
Regularly cross-reference these specs with the manufacturer’s technical drawings–De Rigo’s “Frame Repair Manual” offers the most exhaustive tolerances (downloadable PDF).

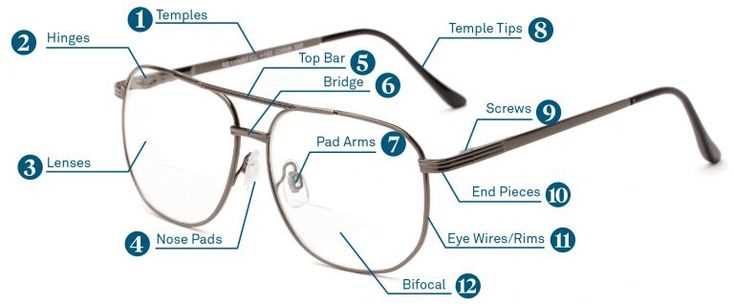

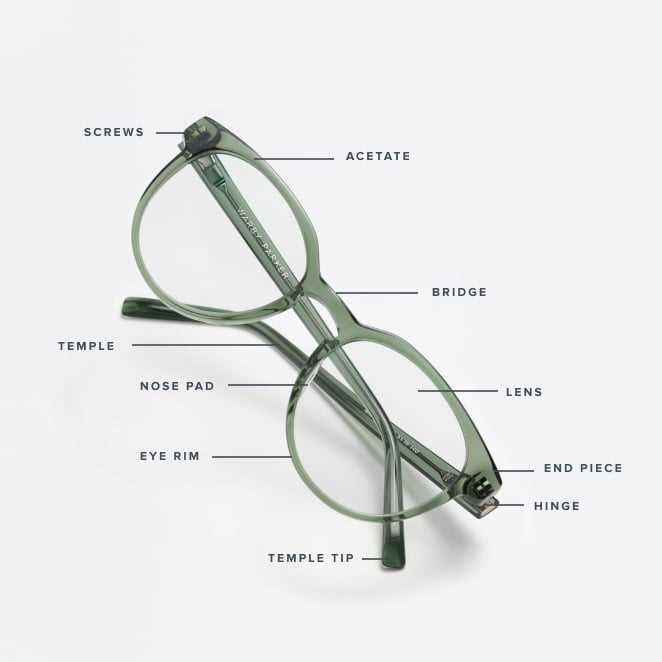

Core Elements Highlighted in Standard Optical Frame Illustrations
Start by locating the rim–the outermost structure encasing the lenses. Modern variants may feature full rims, semi-rimless, or fully rimless designs, each altering durability and aesthetic weight. Polycarbonate or acetate rims withstand daily stress better than ultra-thin metals, though titanium balances flexibility with corrosion resistance.
The bridge connects the rims over the nose, distributing lens weight. Saddlebridges sit flush against the nose, while keyhole bridges leave a small gap for airflow, critical for reducing fogging in humid conditions. Adjustable pads attached to the bridge ensure custom fit, especially for asymmetrical nose shapes.
Lens Mounting and Support Structures
Identify the lugs–small protrusions extending from the rim’s corners where the temples attach. These joints determine pivot range; hinged lugs with screws enable folding, while soldered designs offer rigidity but limit portability. Look for lubricated hinges to prevent squeaking or loosening over time.
The endpieces at the rim’s outer edges anchor the temples. Reinforced endpieces (common in sports frames) resist torque from active movements. Some illustrations highlight stress points here–titanium endpieces outlast acetate in high-flex scenarios like children’s eyewear.
Temple Mechanics and User Adaptability
Examine the arms–long, thin extensions curving behind the ears. Straight arms suit flat head shapes, while curved or cable arms conform to skull contours, preventing slippage. Spring-loaded hinges in arms add adjustability but require periodic tension checks for consistent grip.
Note the temple tips–the final 2–3 cm, often coated in silicone or rubber to prevent irritation. Replaceable tips are standard in high-end models, while molded tips wear faster but reduce initial costs. Some diagrams separate the shaft from the tip to illustrate noise-free adjustments.
Hidden details like pad inserts beneath the bridge determine comfort. Soft silicone pads mold to nasal contours, while hard plastic variants maintain shape but require precise alignment. Check for moisture-wicking grooves to discourage bacterial growth, a common issue with non-porous materials.
Inspect the core insert–the internal wire or nylon thread securing lenses in rimless frames. Metal inserts resist bending better than monofilament, though both require tools for lens replacement. Some illustrations exaggerate insert visibility to stress proper torque during installation, preventing lens pop-outs.
Recognizing Optical Frame Components in Engineering Blueprints
Locate the bridge measurement first–it’s typically denoted between lens cutouts on technical schematics as a horizontal line with flanking vertical markers. Standard ANSI/ISO guidelines position this between 15mm–20mm, annotated in millimeters, often underscored or rendered in bold. Endpiece hinges flank each side; identifying starts at the outer edge where angled lines transition into circular or oval pivot points. Verify against manufacturer specs–some use dual-screw configurations visible only in exploded views or lateral cross-sections.
Key Markings for Nosepad and Temple Assemblies
Nosepad arms appear as paired projections descending from the bridge area, usually labeled with angular dimensions (30°–45° typical) and pad sizes in millimeters. Temples extend from endpieces; trace their length via linear annotations showing overall span (120mm–150mm standard) and bend radius if articulated. Look for hidden slots or channels in temples–technical drawings often exaggerate their depth or curvature for clarity, so cross-reference with a physical sample if discrepancies arise.
Precision Guide to Temple (Arm) Construction in Optical Frames
Select temple designs based on wearer biomechanics–spring hinges reduce pressure behind the ear for those with sensitivity, while rigid acetate temples distribute weight evenly for long-term comfort. Measure temple length in millimeters from hinge to tip: 135–145mm fits average adults; shorter arms (125–130mm) suit petite faces, and extended lengths (150mm+) accommodate larger skulls. Always ensure a 5–7° backward angle from hinge to temple tip for optimal alignment.
| Material | Flexibility | Durability (Years) | Best For |
|---|---|---|---|
| Stainless Steel | Low | 8–12 | Daily wear, corrosion resistance |
| Titanium | Moderate | 10–15 | Lightweight, hypoallergenic |
| Acetate | High | 5–8 | Custom shapes, color variety |
| Memory Metal | Very High | 7–10 | Active users, accidental bends |
Adjust temple bend precisely: the final curve should begin 20–25mm from the tip, creating a smooth 45° downward angle to cradle the ear’s upper ridge without pinching. For wire-core temples (common in metal frames), reinforce the tip with a thin silicone or rubber sleeve–this prevents slippage and reduces metal fatigue. Avoid excessive pressure on the mastoid bone; replace sleeves every 6–12 months if worn daily.
For hybrid frames (e.g., acetate front with metal temples), ensure hinge screws are torqued to 0.5–0.7 Nm to prevent loosening without stripping threads. In children’s or sports models, prioritize temples with polycarbonate tips–these resist cracking during impacts and allow for a 30% wider range of motion than standard materials. Test temple rigidity by applying 200g force at the midpoint; deflection should not exceed 15mm for optimal stability.
