Locate the pump assembly at the rear of the unit–it connects directly to the engine via a splined shaft. Check for the thermal release valve near the inlet, identifiable by its brass fitting. If leaks occur, replace the high-pressure seals (PN: 18-2439) before disassembling the housing.
The wand lance uses a quick-connect system; ensure the O-ring (PN: 12-0081) is intact to prevent pressure loss. For nozzle issues, refer to the 0°, 15°, 25°, and 40° color-coded markers–mismatched angles reduce cleaning efficiency.
Inspect the unloader valve every 50 hours of operation. Adjust the tension screw clockwise to maintain consistent spray force. The chemical injection tube should sit snugly in its port; loose connections cause detergent dilution. Replace the inlet filter (PN: 15-9672) monthly to avoid clogs.
For engine maintenance, the air filter (PN: 32-1114) requires cleaning every 25 hours. The fuel line uses a ¼” ID hose–verify no kinks exist before starting. Spark plug gaps must measure 0.030″ for optimal combustion.
Wiring harnesses attach via spade connectors–check for corrosion if the unit fails to start. The thermal sensor (PN: 27-8903) triggers automatic shutdown if overheating occurs; reset by powering off for 5 minutes.

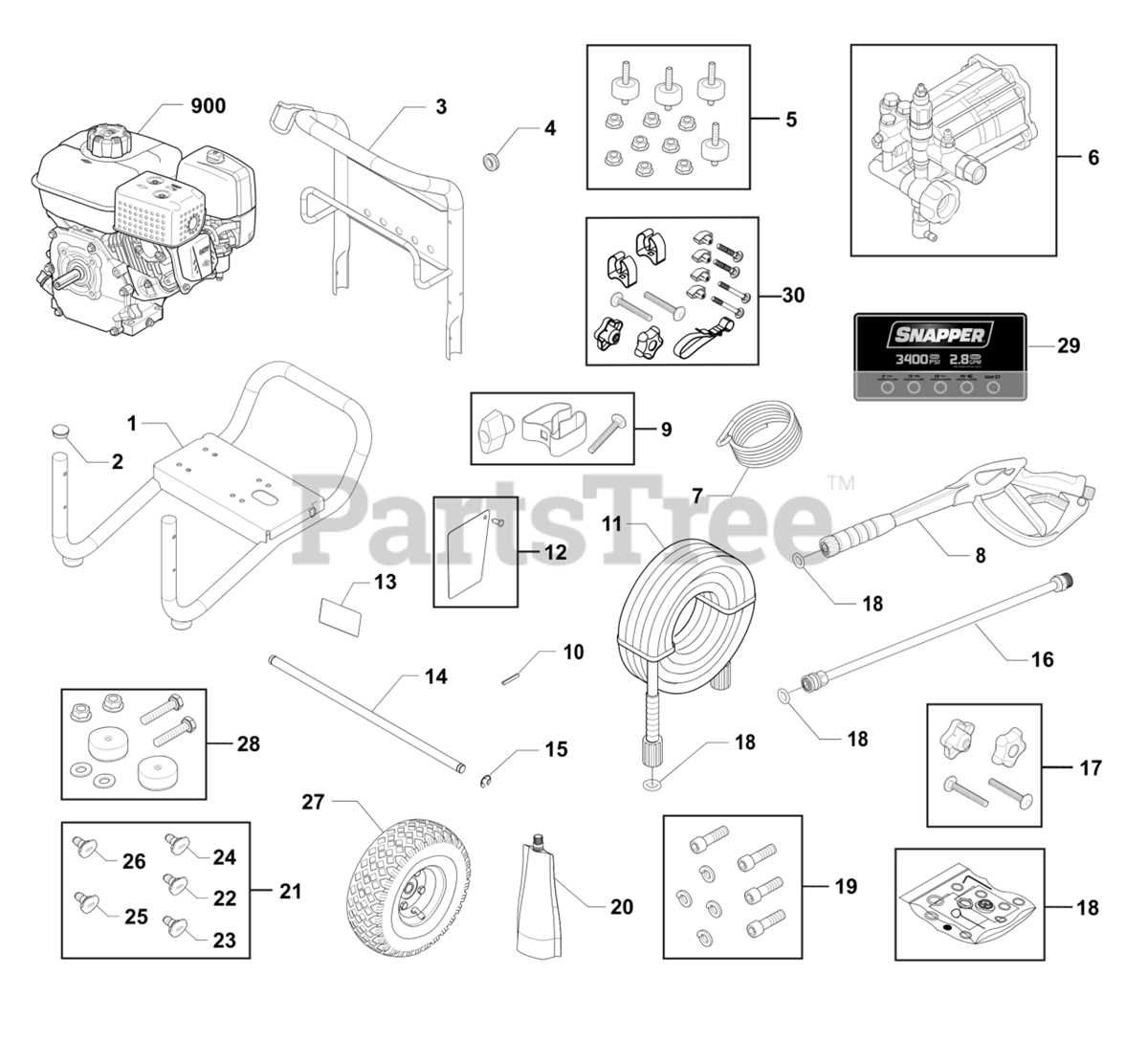

Exploded View Guide for High-Pressure Cleaning Unit Repair
Begin by locating the pump assembly on the right side of the engine housing–marked by three brass fittings and a black discharge hose. Remove the brass caps using a 14mm socket, then disconnect the unloader valve (part #80779) by turning counterclockwise with pliers. Check the valve spring for rust or deformation; replacement kits cost $12–$18 and take under 10 minutes to install.
- Air filter housing sits atop the engine; pry off the plastic cap with a flathead screwdriver.
- Replace the pleated paper filter (part #21056) every 100 operating hours–mounted with a single 8mm bolt.
- Inspect the carburetor linkage; adjust tension by turning the brass screw clockwise if throttle sticks.
Key Wear Components
Thermal relief valve (part #33030) connects between the pump and detergent injector–test monthly by holding under load at half throttle for 30 seconds. If water leaks from the brass fitting, replace the valve ($9.50) immediately to prevent pump cavitation. Spray wand O-rings degrade fastest; carry a 3-pack set (part #44178) for field repairs–each ring fits both the lance and gun connections.
- Detergent siphon tube clogs frequently–remove the black tube from the underside tank port and flush with warm vinegar.
- Reassembly torque for pump mounting bolts: 25 ft-lbs–use a ½” drive torque wrench to avoid crushing the aluminum housing.
- Storage: drain pump completely after each use by pulling the trigger until air hisses from the spray tip.
Critical Elements and Where to Find Them in Your Cleaning Powerhouse
Start by locating the pump assembly at the base of the engine shaft–this is the heart of your unit, where water compression occurs. The axial cam pump in most models sits directly beneath the flywheel, secured by three bolts. Mark their positions before disassembly; even a minor misalignment during reassembly will damage seals. The inlet valve (often a spring-loaded brass disc) is inside the pump head–inspect it for calcium buildup every 50 hours of use. Replace immediately if pitting exceeds 0.5mm.
Follow the high-pressure hose from the pump outlet to the spray gun. The unloader valve–a brass cylindrical component with a spring–is integrated into the gun handle or mounted near the pump. Never exceed 300 psi when adjusting its tension; overtightening will cause premature pump failure. The thermal relief valve, typically located on the pump manifold, activates at 140°F–test it monthly by briefly obstructing the spray wand to ensure proper venting.
Engine and Fuel System Breakdown
The horizontal shaft engine’s air filter is positioned inside a plastic housing on the side opposite the recoil starter. Remove it every 25 hours and tap dust off the pleated paper element–never use compressed air, as it tears the fibers. The carburetor sits directly above the crankcase, accessed by removing the blower housing. Clean jets with 0.010” wire only; larger tools will strip the calibrated orifices.
Spark plugs reside under a rubber boot on the engine’s front. Gap new plugs to 0.030” before installation. The flywheel, behind the blower housing, contains embedded magnets–check for rust accumulation every season, as debris disrupts ignition timing. The fuel tank’s sediment bowl–located at the tank’s base–filters particles; drain it before winter storage to prevent gumming.
Nozzle and Wand Assembly Details
Attach the spray tip to the wand only when threads are clean and dry–even minor dirt causes misalignment and rapid wear. The black chemical injection nozzle (if equipped) is housed in a brass fitting on the wand’s underside. Ensure the metering valve is fully closed before flushing; residual detergent will corrode internal pump seals within hours. Replace the quick-connect fittings if leakage exceeds 2 drops per minute at full pressure.
The wand grip’s trigger lock–an often-overlooked brass pin–prevents accidental engagement. Test its function before each use; a stuck lock can trap high-pressure water inside the hose, risking catastrophic failure. The wand extension’s internal filters (located at the quick-connect junction) must be inspected weekly; a single grain of sand here reduces performance by up to 40%.
Thermal regulator strips (red-colored) are located beneath the engine shroud. They prevent overheating–never operate the unit with a missing or damaged strip. Final check: the wheel axles use grease zerks; lubricate them every three months with lithium-based marine grease to prevent seizure.
Step-by-Step Guide to Accessing the Pump Assembly
Disconnect the power source immediately–unplug the unit or remove the spark plug to prevent accidental activation. Locate the engine housing bolts, typically four to six hexagonal fasteners secured with a 10mm or 12mm socket. Use a ratchet with the correct size to avoid stripping the threading; apply penetrating oil if corrosion is present.
Remove the bolts in a diagonal pattern to evenly release tension on the cover. Lift the housing straight upward to avoid damaging gaskets or attached wiring. Set aside the bolts in a labeled container to prevent misplacement during reassembly. If the cover resists, check for hidden clips or additional screws near the base.
Identify the pump’s mounting bracket–usually a metal plate attached with three or four screws. Loosen these screws gradually, ensuring the pump doesn’t shift unexpectedly. Some models feature a quick-release clamp; slide it sideways to detach the pump without tools. Inspect the drive shaft coupling for wear before proceeding.
Slide the pump assembly outward, keeping it level to avoid spilling internal fluids. Note the orientation of seals and O-rings; replace any deformed components with manufacturer-specified replacements. If the pump is stuck, gently tap the sides with a rubber mallet–never use excessive force to prevent cracking the casing.
Check the inlet and outlet ports for debris; flush with compressed air if blockages are detected. Examine the thermal relief valve, often located on the side–test its spring mechanism for proper tension. Reassembly requires reversing the steps, aligning the drive shaft coupling precisely before securing the mounting bracket.
Torque all fasteners to the equipment’s manual specifications, typically 12-15 ft-lbs for bolts and 8-10 ft-lbs for screws. Reconnect the power source only after ensuring all connections are secure. Run the unit briefly to verify proper operation and check for leaks around the pump seals.
Recognizing High-Friction Components and Swap Guidelines

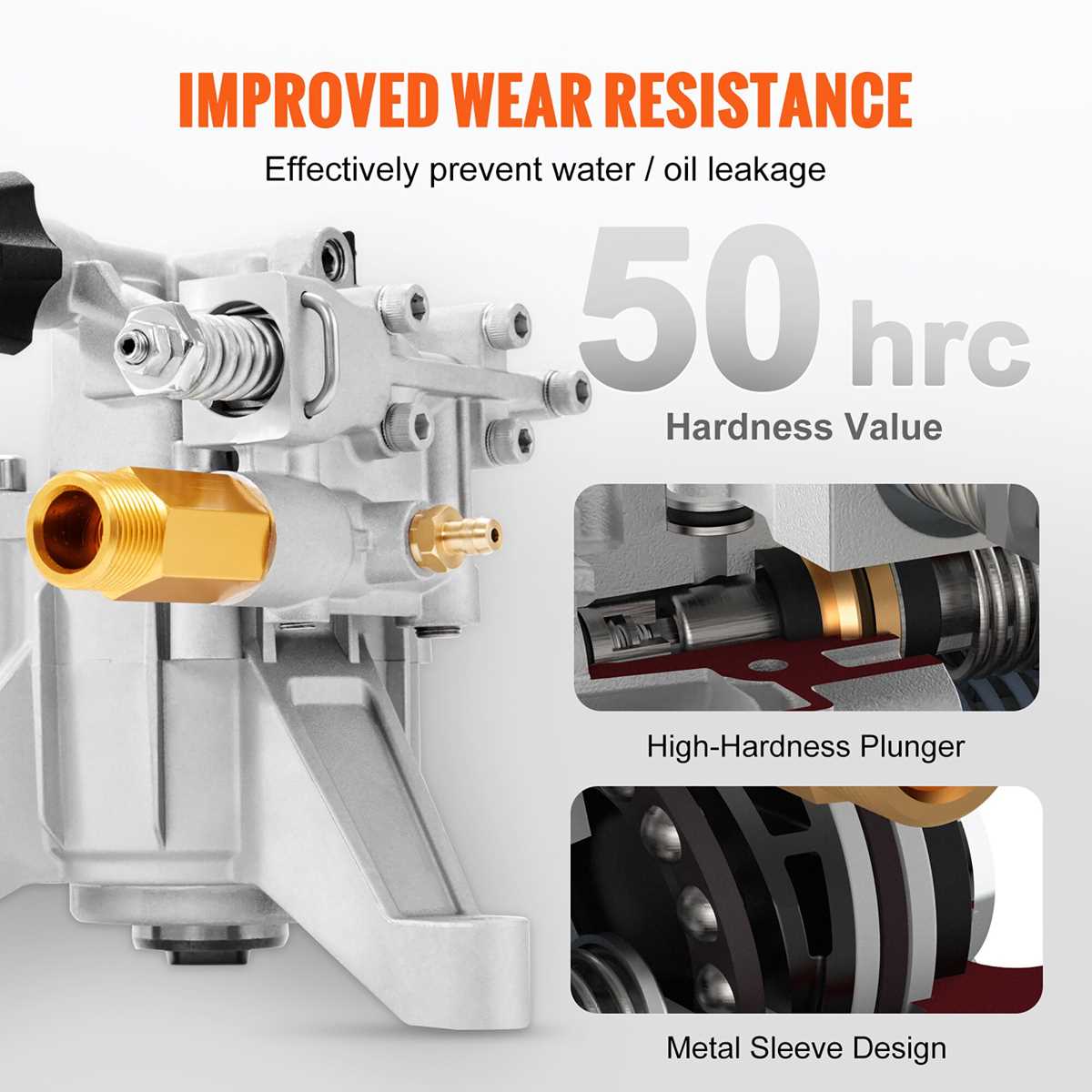

Start by inspecting the pump seals every 50 operating hours–visible leaks or milky residue near the plunger housing signal imminent failure. Keep replacements pre-stocked: O-ring kits for this model typically include sizes #2-117, #2-120, and #2-214 (measured in inches). Clean mating surfaces with acetone before installation; residual debris causes 70% of premature seal degradation. For plunger rods, check for scoring–chrome wear beyond 0.003″ depth requires rod replacement rather than polishing, as honing reduces structural integrity.
- Unscrew the wand coupler quarter-turn counterclockwise to access the spray tip–clogged nozzles (indicated by a >10% pressure drop) should be soaked in white vinegar for 30 minutes, not poked with wire; metal scrapers damage the orifice calibration.
- Air filters lose 40% efficiency after 25 hours in dusty conditions; tap against a hard surface to dislodge debris, then rinse with soapy water. Avoid compressed air–it embeds particles into the foam.
- Thermal relief valves should trigger at 145°F (±5°); test by submerging in heated water with a candy thermometer. If unresponsive, replace the valve assembly–internal springs fatigue after ~150 cycles.
Fastener and Housing Integrity Checks
Torque all engine casing bolts to 8 ft-lbs using a beam-type wrench; overtightening strips the lightweight aluminum threads. Inlet screens corrode within 6 months if exposed to chlorinated water–opt for stainless steel mesh replacements (part #MS-008). For cracked thermoplastic housings, patch with J-B Weld PlasticWeld only after sanding with 120-grit paper; acrylic-based adhesives fail at temperatures above 120°F. Store the unit with the fuel valve closed and piston in bottom-dead-center to prevent valve seat indentation.
