Replace the unloader valve first if water leaks persist after shutdown. This brass fitting, located near the output hose connector, regulates excess fluid flow during pauses. If worn, it fails to seal properly, causing residual drips or inconsistent pressure spikes. Check the O-ring inside–cracks or deformation indicate replacement. Use a 17mm socket to remove the valve body; apply thread sealant when reinstalling to prevent future leaks.
Inspect the ceramic plunger next. Three pistons inside the aluminum housing endure constant friction; scoring or pitting reduces efficiency. Remove the pump head (four bolts) and examine the plungers’ surface under light. Dents deeper than 0.2mm require new plungers and seals–Honda’s part #12311-ZE1-000 includes a matched set. Clean the cylinder bores with 400-grit emery cloth before assembly; residue from detergents accelerates wear.
For the inlet valve assembly, focus on the check ball and spring. A stuck ball prevents priming or causes sporadic pressure drops. Disassemble the manifold (three screws) and submerge components in undiluted mineral spirits for 10 minutes to dissolve calcium deposits. Test the spring’s tension–it should compress 2mm under 1.5kg of force. Replace if deformed; Honda’s spring (part #16012-ZL5-010) is color-coded red for proper tension.
When reassembling the crankcase, use molybdenum grease on the connecting rods. Standard lithium grease breaks down at the pump’s 180°F operating temperature, leading to premature bearing failure. Apply a thin coat to the rod journals before securing the crankshaft–torque bolts to 12 Nm in a cross pattern. A dry setup causes seized rods within 50 hours of use, often misdiagnosed as a faulty engine.
Verify the thermal relief valve’s operation annually. This brass cap on the pump head releases excess heat-built pressure; a clogged valve cracks housings or blows seals. Test by immersing the valve in boiling water–it should click open within 3 seconds. If silent, replace the entire assembly (Honda part #19013-ZE1-000) rather than attempting to clean it; internal passages are non-serviceable.
Exploded View of the GCV160 Motorized Sprayer Component Layout
Start repairs by locating the brass unloader valve on the right side of the axial cam assembly–it’s prone to clogging from mineral deposits. Remove it with a 17mm wrench, then soak it in vinegar for 30 minutes to dissolve calcium buildup. Replace the O-ring (part #6 in most schematics) if cracks appear, as even minor damage causes bypass leaks.
For piston head maintenance, disconnect the high-pressure hose first–residual force can eject components. The ceramic-coated plungers (typically 3) must be inspected for scoring; a single scratch deeper than 0.005 inches warrants replacement. Lubricate new plungers with pump-specific grease (Mobil SHC 634 is compatible) before sliding them into the crankshaft bores.
Critical wear points include:
- Inlet check valves (spring-loaded, prone to debris blockage)
- Thermal relief valve (resets at 120°F–test with infrared thermometer)
- Crankcase oil seal (failure causes oil mixing with water)
Replace these annually if operating in dusty environments or with hard water.
Torque Specifications for Reassembly
Use a click-type torque wrench for critical joints:
- Head bolts: 12-14 ft-lbs (gradual cross-pattern)
- Connecting rod bolts: 9-11 ft-lbs
- Pump body to engine mount: 22-25 ft-lbs
Over-tightening the head bolts by 30% can crack the aluminum housing.
When replacing the thermal valve, note the directional arrow on the body–flow reversal reduces efficiency by 40%. The valve’s brass exterior hides a wax-filled core; if opened, the melting point drops irreparably. Always pair it with a new gasket (0.015″ thick, fiber-composite).
For the wand trigger assembly, disassemble the quick-connect coupling carefully: the internal ball bearings tend to scatter. Apply thread-locking compound (Loctite 243) to the trigger screw to prevent loosening from vibration. Test the wand flow before full reassembly by cycling water through the system without the nozzle; air bubbles indicate incomplete sealing.
Air filter housing removal reveals the flywheel nut (19mm socket). Before accessing it, rotate the pulley to align the keyway upward–this prevents shear pin damage during disassembly. The flywheel’s magnets interact with the ignition coil; maintain a 0.012″ gap when reinstalling. Misalignment reduces spark efficiency, leading to hard starts.
The crankcase drain plug (1/2″ NPT) requires a double seal: first a copper washer, then a rubber gasket. Engine oil capacity is 16.9 oz (0.5 liters)–overfilling causes foaming and oil starvation at tilt angles above 15°. Use SAE 30 non-detergent oil for temperatures below 50°F; 10W-30 for ambient conditions above 70°F.
Key Elements of the GCV160 High-Pressure Unit Assembly
Locate the unloader valve immediately–it regulates flow within the system by redirecting excess liquid when the trigger isn’t engaged. This component sits adjacent to the output fitting, typically secured with a brass housing and identifiable by its spring-loaded mechanism. If performance drops, check here first for debris or wear; replacement requires precise torque specs (12-15 ft-lbs) to avoid leaks.
Inlet and Outlet Check Valves
Inspect the ceramic-coated check valves located at both intake and discharge points. These one-way seals prevent backflow and maintain consistent pressure, with failure often causing irregular spray or loss of output. Test by blowing through each port–intake should restrict reverse airflow, while the outlet should allow only forward movement. Clean with non-abrasive tools if clogged; harsh scraping damages coatings, reducing lifespan.
The axial cam piston assembly drives the core operation, converting engine rotation into reciprocating motion. Three pistons arranged radially create pulsing pressure, each paired with a ceramic sleeve for durability. Listen for uneven noise during operation–this signals potential piston seizure or worn seals. Lubricate with synthetic oil specifically formulated for high-temperature environments to prevent scoring.
Finally, verify the thermal relief valve’s function by running the unit at max load for 30 seconds, then feeling the valve body (located near the pump head). It should release excess heat by discharging a small liquid burst–if cold, it’s clogged or faulty. Replace using OEM components to maintain pressure thresholds, as aftermarket parts often alter discharge patterns.
Step-by-Step Guide to Disassembling the GCV160 High-Pressure Fluid Delivery Assembly
Begin by releasing residual tension in the system–engage the trigger on the spray wand while the engine is off to depressurize the unit. Failure to do this risks sudden fluid discharge or component damage. Place the equipment on a stable, flat surface, ensuring no moving elements are obstructed.

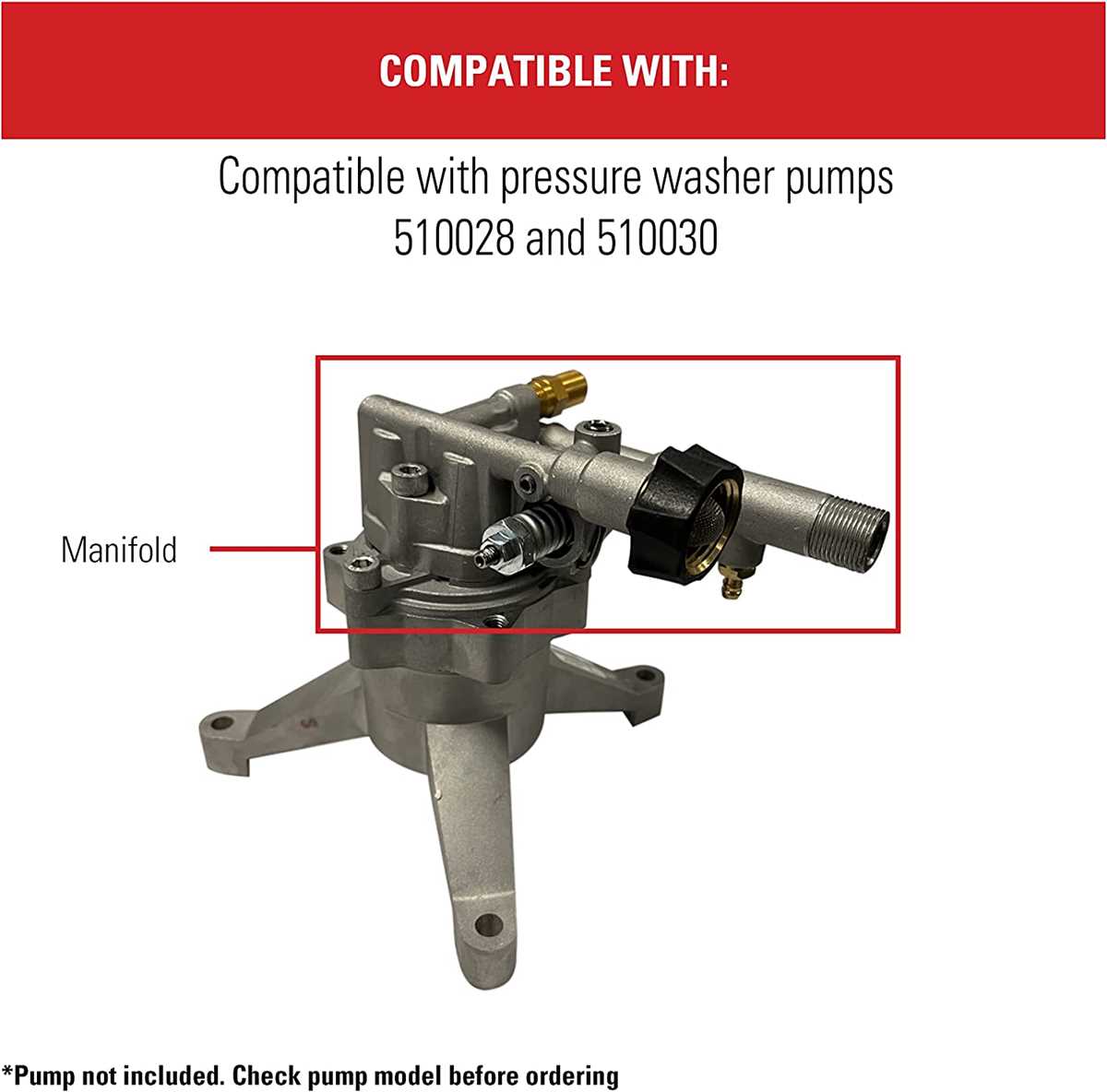

Remove the six flange screws securing the manifold cover using a 10mm socket. These fasteners are often torqued to 12-14 Nm; store them in a labeled container to avoid misplacement. Lift the cover carefully–a silicone gasket may adhere to either the manifold or cover. Inspect the gasket for cracks or deformation; replace if integrity is compromised.
Next, detach the unloader valve assembly. It’s held by two 8mm bolts; a thread-locking compound is typically applied, so apply counterforce with a wrench while loosening. The valve spring inside exerts moderate resistance–pull straight to avoid bending the piston. Note the orientation of the O-rings (one on the piston shaft, another in the valve body) before disassembly for correct reassembly.
| Component | Tool Required | Torque Spec (Nm) | Critical Notes |
|---|---|---|---|
| Manifold Cover Bolts | 10mm socket | 12-14 | Gasket inspection mandatory |
| Unloader Valve Bolts | 8mm socket | 8-10 | Thread-locked; support opposing side |
| Pump Head Screws | 6mm hex key | 18-20 | Mark position before removal |
Proceed to the pump head–it’s fastened by four 6mm hex screws. These screws are torqued to 18-20 Nm, so use a breaker bar for initial breakaway. Before removing, scribe alignment marks on the head and housing to ensure precise reinstallation. Misalignment can cause seal failure or abnormal wear on the ceramic plungers.

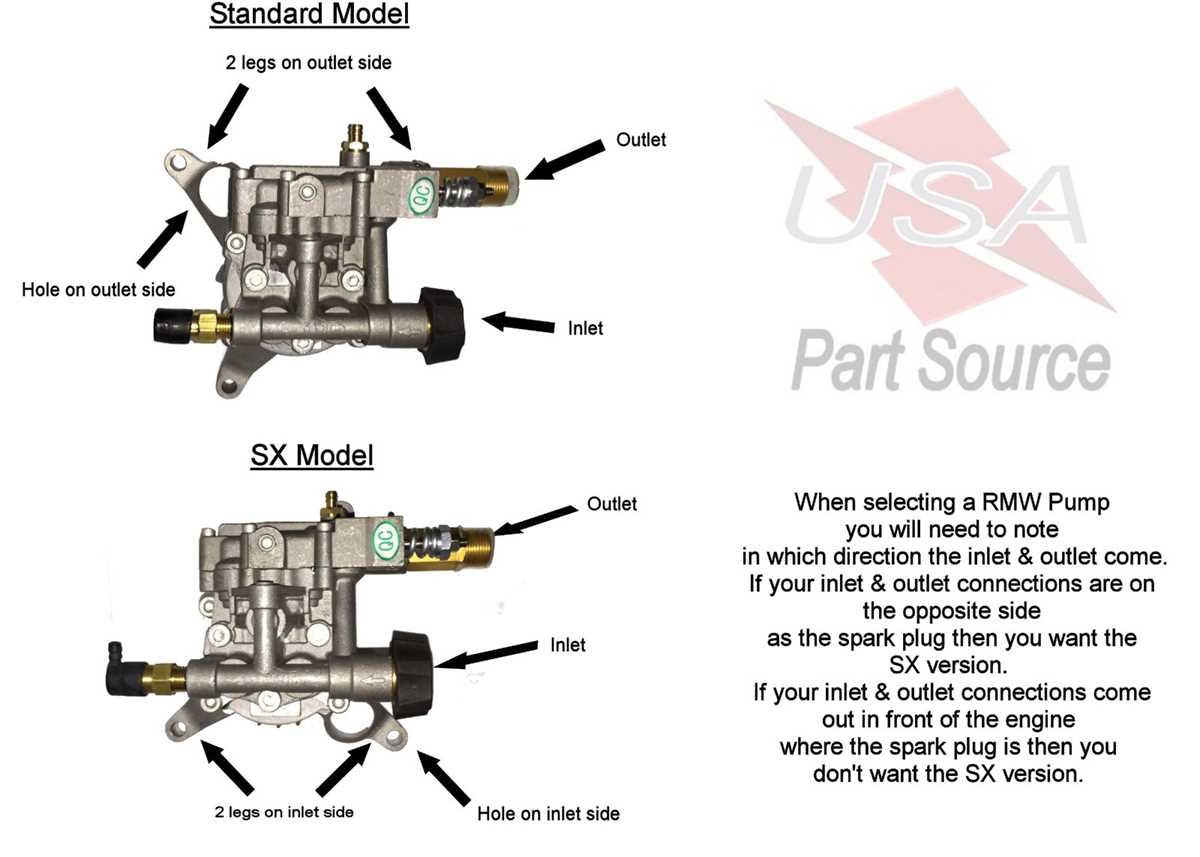

Extract the inlet/outlet check valves by unscrewing the brass fittings with adjustable pliers. These valves control one-way fluid flow; verify the ceramic or stainless-steel balls move freely within their seats. Debris accumulation here is a common cause of reduced output; clean the seats with compressed air or a solvent-soaked rag. Avoid using metal tools that could scratch the sealing surfaces.
Finally, separate the crankcase cover by removing eight 10mm bolts arranged in a circular pattern. The internal components–including the connecting rod, crankshaft, and seals–are now accessible. Handle the crankshaft bearing journals with care; even minor scratches can lead to premature bearing failure. If bearings or seals show signs of wear, replace the entire assembly to prevent operational issues.
Critical Post-Disassembly Checks
Examine all ceramic plungers for scoring or cracks. These components are prone to wear under high-cycle use; replace any showing pitting or discoloration. Inspect the oil level in the crankcase–low or contaminated oil accelerates internal wear. Refill with ISO 68 or 100-grade nondetergent oil if necessary, using the dipstick hole located on the side of the casing.
