Begin by locating the evaporator coil in your cooling system–typically found behind the front panel of the indoor unit. Most split systems position this core element directly adjacent to the blower fan, where it absorbs heat from circulated air. If refrigerant lines appear corroded or fittings show signs of wear near this section, replace copper tubing immediately to prevent leaks that reduce efficiency by up to 25%.

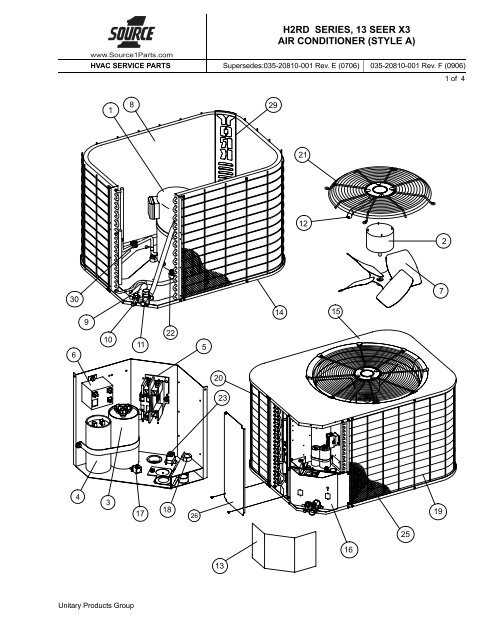

Examine the condenser assembly outdoors next. The compressor, housed at the base, should emit a steady hum during operation; irregular vibrations often indicate failing motor mounts requiring silicone lubricant or full replacement. Check coil fins for debris–bent fins restrict airflow, cutting cooling capacity by nearly 15% if more than 30% of the surface area is blocked. A fin comb can realign bent sections, but damaged fins exceeding 5% of the total area necessitate professional repair.
Inside the electrical control box, identify the capacitor bank. Start capacitors, recognizable by their cylindrical shape (usually labeled with mFD values like 35/5), must match the motor’s requirements. Swollen or leaking capacitors fail silently–test with a multimeter set to capacitance mode; readings below 90% of the rated value signal imminent failure. Always discharge capacitors before handling using a 20,000 ohm resistor to avoid severe electrostatic shocks.
Inspect the expansion valve between the evaporator and condenser coils. Thermostatic valves regulate refrigerant flow via a bulb sensor clamped to the suction line; if frost forms near the bulb, the valve is either clogged (requiring cleaning with dry nitrogen) or incorrectly sized (demanding replacement with a unit matching BTU specifications). For fixed-orifice systems, a clean filter-dryer upstream prevents contaminants from restricting the metering device–replace the dryer every 24 months under normal conditions, or immediately if moisture indicators turn pink.
Trace the liquid line from the condenser to the evaporator. The sight glass, often a small circular window along this line, should show clear, steady flow without bubbles during normal operation. Bubbles indicate refrigerant undercharge–add refrigerant only after verifying no leaks exist (use an electronic leak detector) and checking superheat/suction pressure against manufacturer charts. Copper lines should maintain a gentle slope toward the evaporator; improper pitch traps oil, starving the compressor and reducing lifespan by 40%.
HVAC System Blueprint: Key Elements Explained
Start by locating the evaporator coil behind the indoor unit’s front panel–usually marked with foam insulation. Clean it every 3 months using a soft brush and 50/50 water-vinegar mix to prevent mold buildup, which reduces efficiency by up to 30%. Disconnect power before servicing; check for bent fins (straighten with a fin comb at 90° angles) and refrigerant leaks (soapy water test: bubbles indicate leaks). Replace filters monthly if located in dusty areas (40-60 MERV rating balances airflow and filtration).
Outdoor compressors require 2-foot clearance on all sides for proper ventilation. Inspect the condenser coils annually–remove debris with a garden hose at low pressure (never upwards) to avoid damaging fins. Verify the fan motor’s oil ports (if applicable) and lubricate with SAE 20 oil if the manual specifies. Capacitors degrade over time; test with a multimeter (rated μF ±6% tolerance) and replace if bulging or leaking. Refrigerant lines should be insulated with closed-cell foam (R-4 to R-6 rating) to prevent energy loss–seal joints with aluminum tape.
Common Failure Points and Fixes
- Thermal expansion valve (TXV): If the system cycles too quickly, check for clogged filters or incorrect superheat (target 8-12°F for R410A). Adjust via valve stem (turn clockwise to decrease refrigerant flow).
- Blower wheel: Vibrations indicate imbalance–remove and clean with mild detergent (avoid abrasives). Balance using a dynamic balancer or replace if wobble exceeds 0.005 inches.
- Defrost control board (heat pumps): If ice forms on outdoor coils, test the defrost thermostat (should close at 25-45°F). Bypass temporarily to confirm failure–most boards last 8-12 years.
Electrical components: Use a clamp meter to check current draw on compressor (compare to nameplate amps). If draw is 10% above normal, suspect faulty start capacitors or motor windings (ohm test between terminals and ground). Replace contactors if pitted–arching reduces lifespan by 50%. Always discharge capacitors safely (use a 20kΩ resistor).

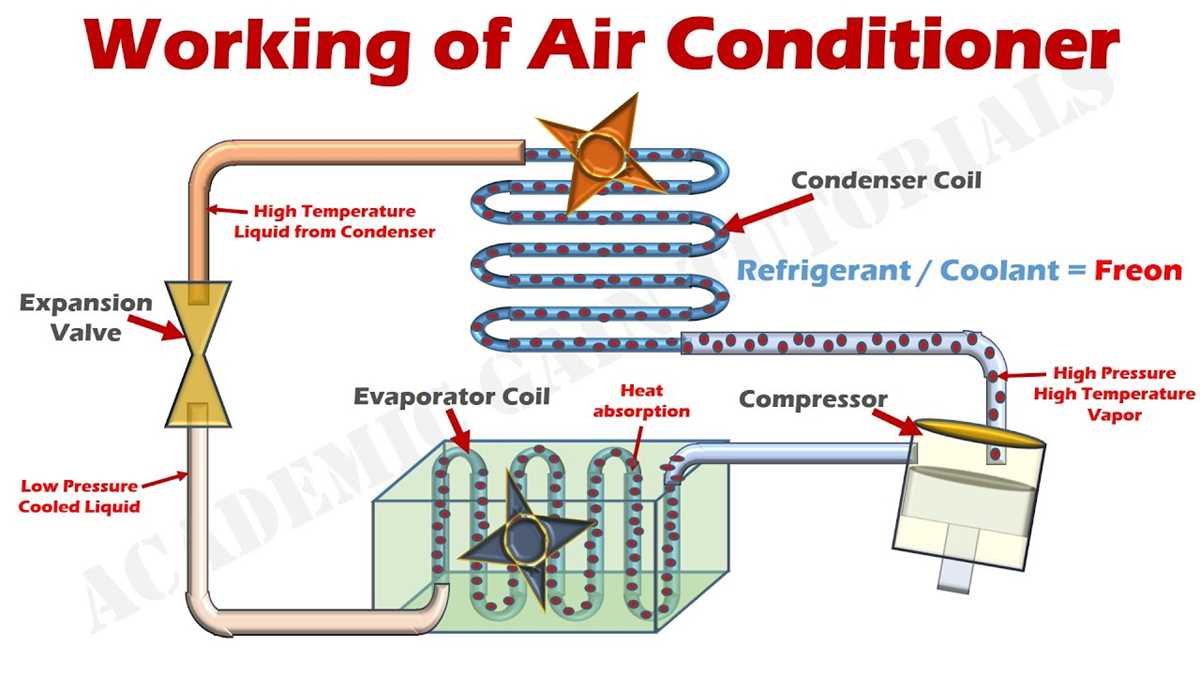

How to Pinpoint the Compressor in Your Cooling System Blueprint
Begin by identifying the refrigeration cycle section on the schematic. The compressor is always positioned at the start of this cycle, immediately after the suction line and before the condenser. Locate the symbol resembling an electric motor–often labeled “COMP” or “CM”–to confirm its placement.
Check the color-coding conventions if present. Many technical drawings use red for high-pressure lines leading into the compressor and blue for low-pressure return lines. Trace these lines backward from the condenser coils to their origin; the first mechanical component encountered is the compressor.
Key Visual Indicators in Different Schematics
| Drawing Type | Compressor Symbol | Adjacent Components |
|---|---|---|
| RAC Unit Schematic | Circular with internal winding depiction | Accumulator, start capacitor |
| HVAC System Blueprints | Square or oval outline with “HERM” label | Suction filter drier, discharge line |
| Refrigeration Circuit Diagrams | Motor icon with “CP” text | Oil separator, pressure switches |
Verify the component’s electrical connections. The compressor typically shows three distinct wiring points: common (C), start (S), and run (R). Cross-reference these with the legend–mismatched labels indicate a misidentification.
Measure the physical scale if the schematic includes dimensions. Compressors usually occupy 20-30% of the evaporator assembly footprint. Smaller footprints suggest a different component, like a condenser fan motor.
Examine the legend for abbreviations. Common compressor designations include:
- HRC (hermetic reciprocating)
- SCR (scroll-type)
- SWP (semi-hermetic piston)
Absence of these labels in a motor’s vicinity suggests an alternate component.
Troubleshooting Misidentifications
Compare the suspected compressor with nearby mechanical symbols. If the symbol includes fins or a fan blade outline, it represents a condenser or evaporator unit instead. The compressor’s icon lacks these features and focuses on the motor’s internal structure.
Use a multimeter to test terminals if the schematic is unclear. Resistance readings between 0.5Ω–5Ω between common and run terminals confirm a compressor–values outside this range suggest a different device under examination.

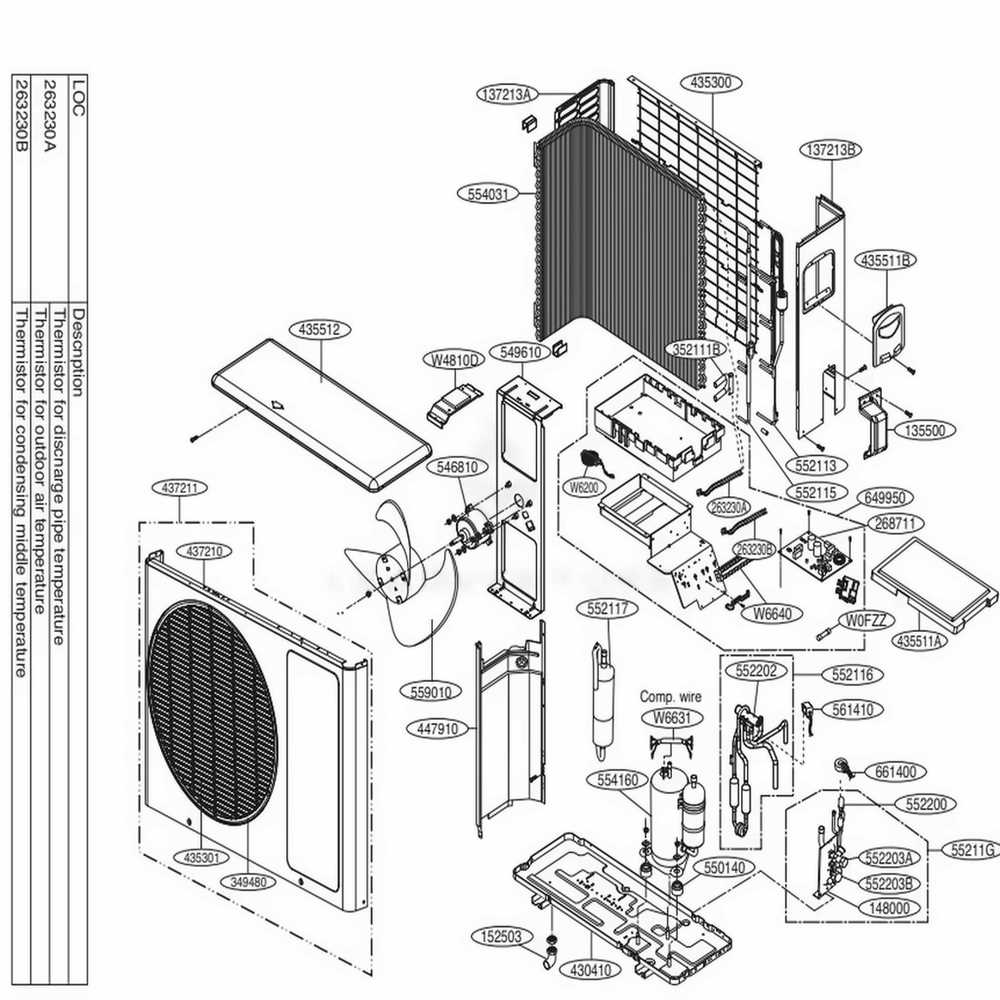

Locating the Condenser Coil in a Split Cooling Unit Schematic
Begin by scanning the outdoor component illustration–typically the larger unit depicted on the right or bottom of the layout. The condenser coil resembles a tightly wound metallic grid, often shaped like a rectangular frame or a series of parallel tubes with thin fins. Its location is almost always adjacent to the compressor, marked by proximity to the fan assembly, which assists in heat dissipation.
Key visual markers to confirm its identity:
- Fins: Thin, closely spaced aluminum or copper plates running perpendicular to the tubing–design ensures maximum surface area for heat exchange.
- Tubing: Visible serpentine copper lines looping back and forth, filled with refrigerant. These tubes connect directly to the compressor via thicker liquid and suction lines.
- Brackets: Reinforced mounts securing the coil to the chassis, often annotated with arrows or labels like “condenser” or “heat exchanger.”
- Size: Proportionally larger than the evaporator coil found indoors, reflecting its role in expelling heat rather than absorbing it.
If the schematic includes color coding, condenser coils are frequently highlighted in:
- Blue or green for refrigerant pathways during the cooling cycle.
- Orange or red to indicate high-temperature zones–aligning with the coil’s function of releasing heat.
- Gray or black for metallic components, distinguishing them from electrical wiring in yellow or white.
Examine the legend–manufacturers like Daikin, Mitsubishi, or LG consistently apply these conventions.
When cross-referencing with physical units, note that condenser coils are vulnerable to debris buildup (leaves, dust). Schematics often include maintenance arrows pointing to areas requiring clearance–typically a 30–60 cm gap around the coil to ensure unimpeded airflow. Inverter models may show additional sensors embedded within the coil framework, marked as “temperature probes” or “pressure switches”–these are critical for system efficiency but not the coil itself.
Locating the Expansion Valve in a Window Cooling System Electrical Scheme
Check the refrigerant tubing near the evaporator coil–this is where the expansion valve typically mounts in most window cooling units. Look for a small brass or copper component with capillary tubes attached, often positioned between the condenser’s outlet and the evaporator’s inlet. Models like the GE AHY08LZ or Frigidaire FFRA051WAE place it directly on the suction line assembly, labeled as a “metering device” in wiring layouts.
Key Identification Markers on Schematics
Inspect the unit’s electrical diagram for symbols resembling a zigzag line or a small rectangular box–this represents the thermal expansion valve (TXV). Common labels include “TXV,” “capillary tube,” or “metering valve.” Brands like LG (e.g., LW8016ER) often annotate it near the compressor relay, while Kenmore models (e.g., 70075) integrate it into the control board’s low-voltage circuit. If no diagram exists, trace the refrigerant path from the condenser: the valve sits immediately upstream of the evaporator.
