Replace worn blades by first locating the spindle housing–refer to your model’s manual for the exact placement, typically beneath the frame near the discharge chute. On models XT1 LT42 (2015–2020), mark the positioning of the belt tensioner pulley before disassembly; alignment errors cause premature belt failure within 20–25 operating hours. Identify the anti-scalp wheels: these must maintain a 1/4-inch clearance above the turf to prevent scalping on uneven terrain. Use a 3/8-inch drive torque wrench to tighten flange nuts to 45–50 ft-lbs–overtorquing shears threads in aluminum casings.
Inspect the idler arm spring every 50 hours of use. A stretched spring reduces belt engagement force, slipping under load. For Kohler 7000 Series engines, the PTO clutch gap should measure 0.012–0.015 inches–adjust with a feeler gauge before reassembling. Replace the discharge chute liner if cracks exceed 1 inch; fragments ejected at 180 mph pose injury risks. Label each fastener group during takedown–mix-ups between the 1/2-inch deck hangers and 5/16-inch stabilizer rods cause misalignment. Store removed components on a magnetized tray to prevent loss of small washers or clips.
Check the blade adapter keyway for wear. A worn adapter causes the blade to wobble, increasing vibration levels above 0.3 g at the handle–measure with a handheld accelerometer for verification. Clean debris from the pulley grooves with a wire brush; residue builds up at 0.1 mm per season, altering belt tracking. For electric clutch systems (models CC 500E), ensure the flywheel gap is 0.04 inches–improper spacing leads to clutch drag and overheating. Reassemble in reverse order, verifying each step against the exploded view in the service manual.
Understanding Your Mower Cutting Assembly Components

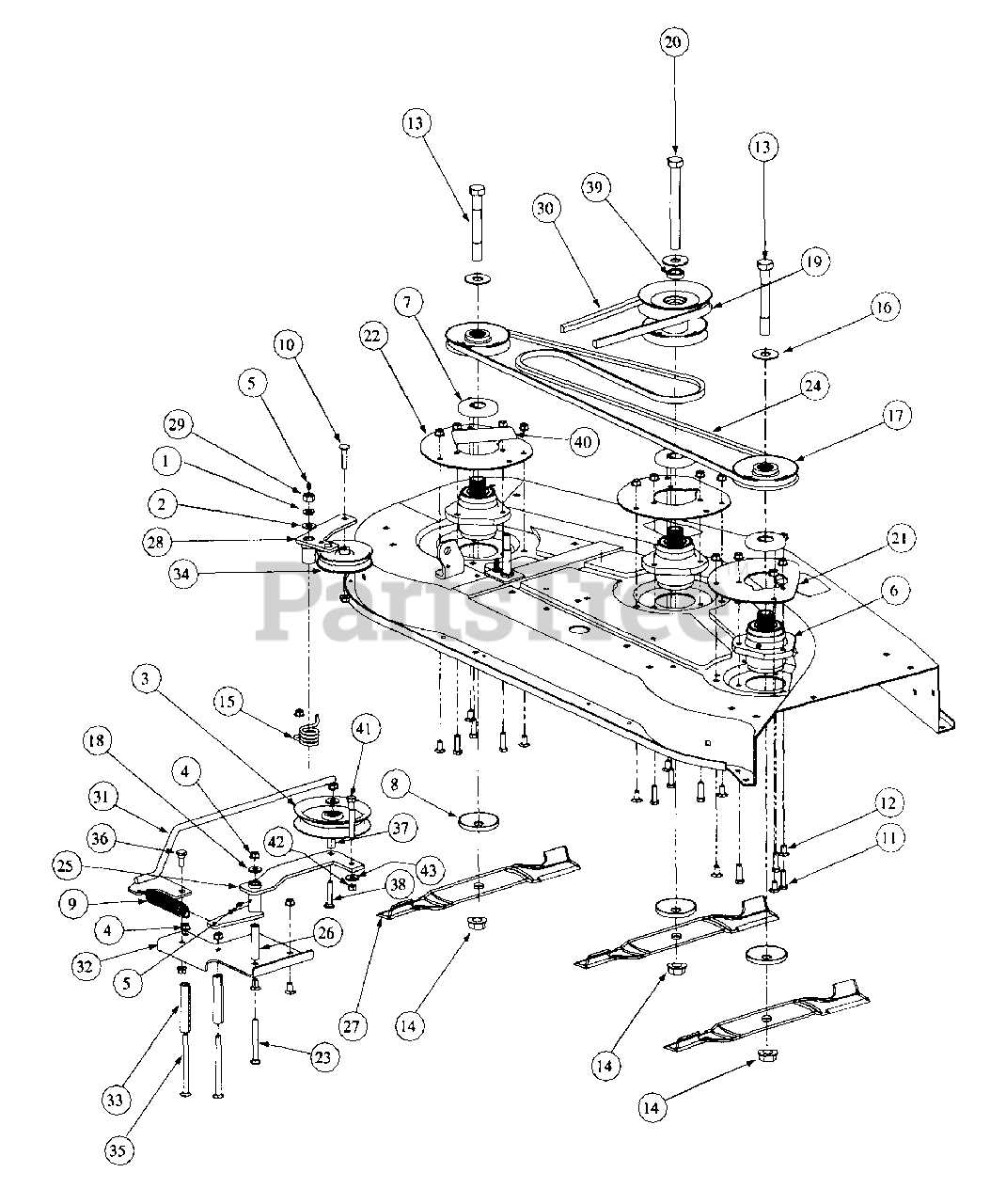

Begin by locating the exploded view schematics in your owner’s manual–this is the fastest route to identifying individual components without disassembly. Each manufacturer provides numbered callouts linking names to positions; cross-reference these with physical tags on the housing unit. For models produced after 2018, Husqvarna-based designs often integrate fuse clip brackets directly into the spindle mounts, while earlier versions use separate bolt-on plates. Replace any worn spindle pulleys immediately–signs include irregular belt alignment or chirping sounds under load–using part numbers 532196355 (21-inch) or 532196748 (23-inch) for exact compatibility.
Inspect the blade adapter annually, focusing on the keyway slot for cracks; a damaged adapter will fail to engage fully, causing blade wobble. Torque specifications for spindle bolts vary: 40-45 ft-lbs for aluminum housings, 55-60 ft-lbs for steel frames. Apply thread locker (Loctite 243) to prevent loosening from vibration–a critical step often overlooked. Below is a reference table for common replacement intervals based on usage hours:
| Component | Replacement Interval (Hours) | Signs of Failure |
|---|---|---|
| Spindle assembly | 300-400 | Uneven cut, excessive vibration |
| Belt (drive) | 150-200 | Squealing, glazed surface |
| Blade adapter | 500+ | Wobble, keyway wear |
| Pulley (idler) | 250-300 | Cracks, bearing noise |
Clean debris shields monthly–accumulated grass beneath them accelerates corrosion, especially on powder-coated surfaces. Use compressed air at 90 PSI to purge compacted clippings from tight curves around discharge chutes. For side-discharge configurations, verify chute deflector engagement; misalignment here reduces cut quality by up to 30%. Lubricate pivot points with lithium-based grease (NLGI #2) every 50 hours, targeting articulation joints and height adjustment linkages.
When ordering replacement blades, match the exact series stamping–LT42″ models require 11-gauge steel with a 3/16″ thickness, while residential units use thinner 13-gauge profiles. Sharpen blades at a 30° bevel angle using a dedicated jig; freehand sharpening risks uneven edge geometry, leading to premature dulling. Balance blades dynamically using a cone-style balancer (e.g., Oregon model 400-360) before reinstallation–static balance tests alone miss critical high-speed imbalances.
For electrical troubleshooting, start with the PTO clutch: disengagement failure often stems from worn brushes (part #532196702), not the clutch itself. Test resistance across the clutch plate–values should read 2.5-3.5 ohms; readings outside this range indicate internal shorting. Replace the entire clutch assembly if scoring is visible on the rotor face, as machining marks disrupt magnetic field consistency. On hydrostatic models, inspect the wiring harness for chafe points near the mowing unit’s contoured surfaces, securing loose sections with nylon clips (part #532168882).
Locating Critical Elements in Your Lawn Equipment Cutting Assembly Blueprint
Begin by pinpointing the blade spindle housing on the schematic–this assembly anchors the rotary blades and typically includes a bolt pattern matching the cutting width specifications. Verify the spindle’s serial number or casting marks against the manufacturer’s reference chart to ensure compatibility with replacement bearings or seals, as mismatches lead to premature wear or misalignment.
The anti-scalp rollers appear as circular or wheel-like symbols positioned near the outer edges of the frame. These components prevent excessive turf gouging during uneven terrain passes; confirm their quantity and spacing aligns with your model’s official documentation, as aftermarket rollers often vary in diameter or mounting points.

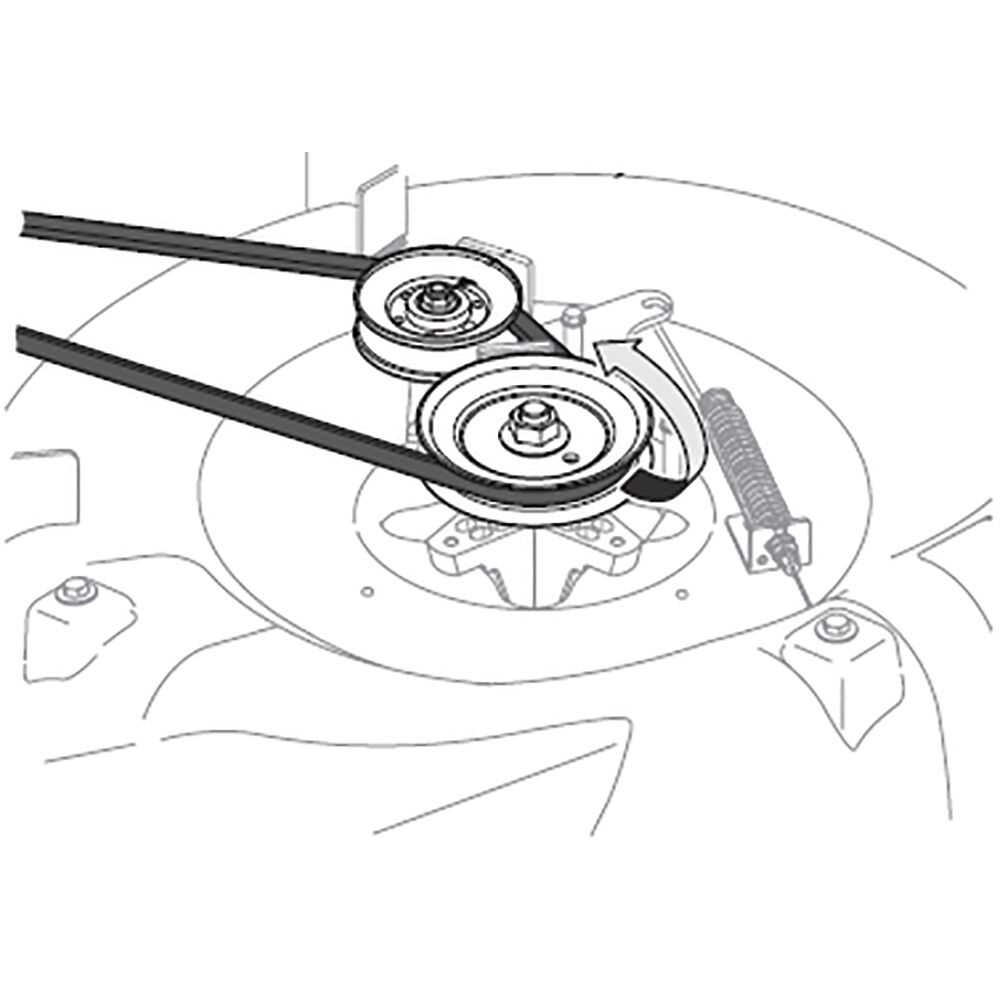

Trace the belt routing path from the drive pulley through tensioner arms to the blade pulleys–this sequence dictates torque delivery and cutting efficiency. Note any idler pulleys labeled “fixed” versus “spring-loaded”; incorrect belt installation risks slippage or catastrophic disengagement, especially under heavy grass loads.
Inspect the deflector shield contour on the blueprint–this curved plate redirects discharge and must sit flush with the assembly’s rear edge to prevent clogging. A misaligned shield traps debris, accelerating belt abrasion; reassembly requires torquing fasteners to 25-30 ft-lbs to withstand vibration without warping the mounting flanges.
Cross-reference every fastener symbol (hex-head bolts, carriage bolts, or shoulder screws) with thread pitch and length dimensions, as interchangeable hardware often causes structural failure. Use a thread gauge if physical samples lack markings–metric and imperial mixes void warranty claims on stamped steel components.
Step-by-Step Guide to Locating Pulley and Belt Assembly in Schematics
Locate the engine housing section in the technical blueprint first, as it typically anchors the drive system components. Identify the primary spindle–usually marked with a numbered reference like P-4 or B-12–which connects directly to the transmission. Trace the belt path from this point outward, noting how the route intersects with auxiliary pulleys. Schematics often exaggerate spacing for clarity, so cross-reference measurements with real-world gaps.
Key Annotations in Blueprints
- Pulleys appear as circles with dashed lines indicating grooves; belts are wavy or zigzag lines.
- Label suffixes like -L (left), -R (right), or -C (center) denote mounting orientation.
- Assembly zones may use color-coding: red for tensioners, blue for idlers, black for fixed mounts.
- Check for hidden layers in digital schematics–toggle visibility for “exploded views” to reveal obscured parts.
Verify the tensioner’s position by following the belt’s longest uninterrupted stretch. It should align with a spring-loaded arm or adjustable bracket (often marked T-7 or ADJ-3). If the schematic lacks labels, measure the pulley diameter–primary spindles are 3–4x larger than idlers. Compare these ratios to the physical components to confirm accuracy.
- Pinpoint the smallest pulley in the schematic; this is usually the blade engagement point.
- Count pulley rotations between the engine and this target–odd counts signal direction changes.
- Locate the belt’s break point (a gap or dedicated section) to ensure proper reinstallation order during maintenance.
- Cross-check part numbers with the legend–some schematics group similar pulleys under a single reference.
For hybrid mechanisms, scan for clutch assemblies (cylindrical housings with radial lines). The belt may wrap around these before returning to the spindle. Note any offset axes–canted pulleys require precise alignment to prevent slippage. If the schematic includes side views, use them to confirm vertical spacing between tiers; typical clearances range from 1/4″ to 1/2″.
Troubleshooting Schematic Discrepancies
When dimensions don’t match, prioritize the physical measurement. Schematics sometimes omit minor variants (e.g., aftermarket modifications). For missing parts, search adjacent assemblies–tensioners are frequently grouped with bracket hardware. Document any deviations; misaligned pulleys often cause uneven wear, visible as feathered belt edges or glazed grooves.
Decoding Spindle Housing and Cutter Assembly Markings on Outdoor Equipment Schematics
Check the alphanumeric codes embossed directly on the spindle casing–typically a combination like SP-42 or BL-1825. These denote specific housing models and blade attachment compatibility. Schematics list these codes under exploded views, often near the component’s illustration. Match the code exactly; adjacent variations (e.g., SP-42A vs. SP-42B) may signal minor dimensional differences affecting fitment.
Examine the blade mount plate for stamped torque specifications–usually format 30-35 ft-lb or 40-45 Nm. Overlooking these values risks improper assembly, leading to uneven cuts or premature wear. Schematics frequently omit torque values from the main component list, so scan the fine print in margins or supplementary tables.
- Lubrication points: Look for triangular or dot symbols next to grease zerks on housing diagrams. These correlate to maintenance intervals; schematics often use color-coding (green = annual, red = seasonal) but confirm with the accompanying legend.
- Anti-scalp rollers: Labelled as ASR or SKD, these appear as small circular nodes near deck perimeters. Their presence (or absence) in the diagram dictates height adjustments–missing rollers may require shim installation.
- Spindle orientation: Arrows or “FRONT” markings indicate correct installation direction. Reversed assembly causes inconsistent blade engagement; verify against the schematic’s side-view cross-section.
Cross-reference part numbers printed on sheared-off labels with the schematic’s bill of materials. Manufacturers use prefixes to denote revisions (e.g., P/N 736-04020 → 736-04021); even single-digit changes reflect updated bearing seals or mounting hole configurations. Order replacements through the exact revision listed, not the base number.
Identify clutch engagement markers–typically a CE or lightning bolt icon–on diagrams near the PTO shaft. These correlate to solenoid wiring colors on tractors (e.g., CE-Purple → PTO-Black/Red stripe). Miswiring here results in non-functional blade disengagement; most manuals include a dedicated wiring inset, often on page edges.
