Begin by identifying the central control unit–its model dictates compatibility with valves, sensors, and power sources. For residential setups, Rain Bird ESP-Me or Hunter Pro-C offer durable housings and expandable zone capacity (up to 24 stations). Commercial installations demand heavier-duty controllers like the Toro TMC-4200, supporting 48 zones and surge protection.
Valves regulate water flow; brass or heavy-duty plastic outperforms standard PVC in high-pressure scenarios. Select 24V AC solenoid valves (e.g., Hunter PGV or Orbit Jar-Top) for consistent activation. Avoid cheap alternatives–failure rates triple under 80+ PSI conditions.
Piping requires calculated diameters: ¾” mainlines handle 15-20 gallons per minute (GPM), while ½” laterals suffice for 5-8 GPM. Use schedule 40 PVC for buried lines (resistant to UV degradation) and high-density polyethylene (HDPE) for temporary setups or rocky soil.
Nozzles determine coverage patterns. Fixed spray heads (Rain Bird 1800 Series) excel for small lawns, while rotary nozzles (Hunter MP Rotator) reduce runoff by 30% on slopes. Match radius to manufacturer specs–overreach wastes 15-20% of water per cycle.
Backflow preventers (e.g., Watts 009 or Wilkins 720A) must comply with local codes; test annually to avoid fines. Install above-grade models in freezing climates, buried units in warmer zones.
For quick troubleshooting, reference zone-by-zone flow charts before digging–mapping each component saves 3+ hours of labor. Keep spare parts (diaphragms, gaskets, solenoid coils) on-site to minimize downtime.

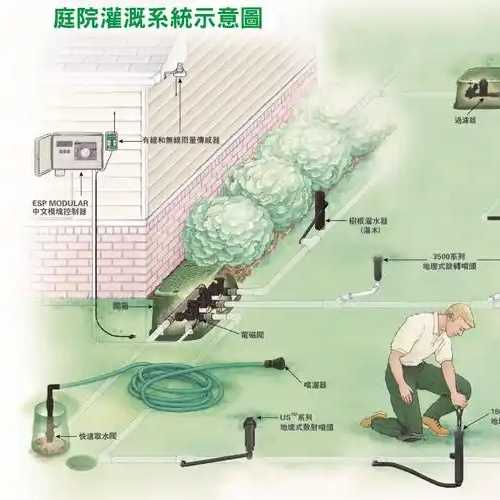

Understanding the Blueprint of Automated Irrigation Components
Start by labeling each pipe, valve, and nozzle on your schematic with waterproof tags. Color-code zones for quick visual reference–blue for drip lines, green for rotary heads, and red for control valves. Keep measurements precise: lateral pipes should slope 0.5% downward toward the flush valve to prevent sediment buildup. Mark the main water supply connection point at the center of the layout to minimize pressure loss.
Install backflow preventers immediately downstream of the shutoff valve, ensuring compliance with local codes. Use schedule 40 PVC for main lines but switch to flexible polyethylene for lateral connections to simplify repairs. Avoid sharp bends–use sweep 90-degree elbows to reduce friction by up to 30%. Label each controller wire by function before burying, with spare wires coiled at the valve box for future upgrades.
Position rain sensors 15–20 feet away from any water source and elevate them 5 feet above ground to avoid false readings. For rotary heads, calculate arc coverage–standard 15-foot spacing applies only to full-circle models; quarter-circle variants require 7.5-foot intervals. Replace worn nozzles annually; a 1/2-inch orifice loses 22% flow rate after three seasons due to mineral deposits.
Draw the schematic on 1/4-inch graph paper first, scaling at 1 inch = 10 feet. Include depth markers–bury lateral pipes 8–12 inches deep and main lines at 18 inches to prevent frost damage. Add a legend specifying symbols: dashed lines for electrical wiring, solid lines for piping, triangles for emitters. Update the diagram every time you modify the zone layout, and store a laminated copy in the valve box for field reference.
Critical Elements Marked on a Standard Irrigation Network Blueprint
Begin by locating the backflow preventer–a mandatory safety device installed directly after the main water shutoff valve. Models like the Reduced Pressure Zone (RPZ) assembly must comply with local codes (e.g., ASSE 1013 standard). Verify the device’s orientation: inlet at the bottom, outlet at the top, with test ports facing upward for easy access during annual inspections.
| Component | Placement Rules | Pressure Requirements |
|---|---|---|
| Pressure regulator | 6–12″ above grade, downstream of backflow preventer | 25–50 PSI output (adjust per zone needs) |
| Solenoid valves | Centermost position in manifold box, buried 6–8″ deep | Min 20 PSI for reliable actuation |
| Drip emitters | Stagger emitters 12–18″ apart, tubing secured with 6″ stakes | 10–20 PSI for uniform flow |
Zone control manifolds should cluster within a valve box no larger than 18″×24″ to simplify excavation and future access. Route wiring through Schedule 40 PVC conduit, burying it 12″ deep where foot traffic occurs. Label each wire with heat-shrink tubing at both ends–white for common, colored for zones–to eliminate guesswork during troubleshooting.
For rotary nozzles, maintain a minimum 3-foot clearance from buildings, fences, or walkways to prevent overspray damage. Use a flow calculator to match nozzle size to available pressure: e.g., a 2.5 GPM nozzle at 40 PSI covers a 15-foot radius, while a 1.8 GPM nozzle at the same pressure covers 12 feet. Adjust arc settings (90°, 180°, 360°) on-site using a flat-head screwdriver–avoid factory defaults to prevent dry spots.
Install rain sensors at the highest uninterrupted point (e.g., roofline) to override automatic cycles during precipitation. Models with adjustable delays (e.g., ¼”, ½”, ¾”) prevent false triggers from dew. Secure sensor wiring 18″ above grade along a fence or wall, avoiding direct contact with irrigation lines to prevent voltage interference.
How to Trace and Assemble Irrigation Components in Schematics
Locate the main water feed line first–typically the thickest pipe on the schematic, often marked with a solid blue or black line. Follow it from the source (e.g., pump, meter) to where it splits into lateral branches. Check for labels like “1” (main), “Main Supply,” or diameter in inches (e.g., “1.5” PVC). Smaller lines branching off will carry identifying numbers or colors (e.g., red for zones, green for driplines). Use these markers to cross-reference with the legend if present.
Identify control points next–valves appear as distinct symbols: circles, rectangles, or T-shaped icons, often filled or semi-transparent. Manual valves usually show a lever or handle; automated ones may include a solenoid symbol (a small zigzag or coil). Note the valve’s position relative to the pipe:
- Inline valves sit directly on the pipe (look for a break in the line).
- Anti-siphon/backflow preventers are paired with check valves (two arrows opposing each other) near the source.
- Zone valves connect to laterals via short feeder pipes, labeled with zone numbers (e.g., “Z2”).
Matching Fittings to Pipe Types
Compare the fitting symbols to material codes:
- PVC: Solid lines with dashed or dotted joins (glue couplings). Tee, elbow, and reducer fittings appear as clear junctions.
- Polyethylene: Thicker lines with clamps or barbed connectors (ridged symbols). Look for “insert” fittings with arrows indicating flow.
- Copper: Thin, continuous lines with soldered joints marked by small circles at connections.
- Galvanized steel: Thick lines with threaded fittings (short perpendicular lines at joints).
Measure pipe diameters in the legend–mains are usually 1–2″, laterals 0.5–1″. Mismatched fittings (e.g., a 0.75″ tee on a 1″ pipe) indicate errors or omitted adapters.
Trace each lateral to its endpoint: emitters (small circles), sprayers (arc-shaped icons), or rotors (concentric dashed circles). Note the spacing–emitters often cluster (e.g., every 12″ for drip), while sprayers are spaced 4–15′ apart. Connect laterals to zone valves using the shortest path possible, avoiding sharp bends (use 45° elbows instead of 90° where space allows). For buried valves, mark a 2′ × 2′ access box in the diagram above each valve location.
Verify connections against flow direction:
- Arrows on pipes denote water movement; valves must permit this flow when open.
- Check valves (arrows pointing one way) prevent backflow–ensure they’re oriented correctly.
- Pressure regulators (usually near the source) show a spring or diaphragm symbol; link these upstream of valves if required.
Label each component with its function (e.g., “Z1 Valve,” “Main Elbow”) before assembly. For complex layouts, color-code zones on the schematic (e.g., Zone 1 = red, Zone 2 = blue) to simplify on-site installation.
How to Decode Fire Protection Nozzle Details in Blueprints
Locate the nozzle symbol first–typically a small triangle, circle, or rectangle with radiating lines. Each shape correlates to a specific spray pattern: upright (triangle), pendent (circle), or sidewall (rectangle). Check the adjacent alphanumeric code; the letters indicate the manufacturer (e.g., “VK” for Viking, “TY” for Tyco), while the numbers denote the orifice size in hundredths of an inch. A “VK-17″ means a Viking head with a 0.17” discharge opening.
Examine the color-coded deflector or frame next. Bright red frames signal a temperature rating of 135–170°F, suitable for standard commercial spaces. Yellow (175–225°F) fits kitchens or machinery rooms, while white (250–300°F) applies to industrial ovens. Confirm the rating against the room’s ambient temperature on the schematic’s notes or legend–mismatches risk delayed activation.
Note the coverage area, often marked in square feet beside the symbol. A “15′ × 15′” label means the nozzle protects a 225 sq ft zone. Cross-reference this with spacing details on the layout grid; heads placed closer than 10 feet apart indicate high-hazard zones, while 15-foot spacing suits light-hazard areas like offices. Overlapping coverage zones should mirror the hydraulic calculations at the blueprint’s margins.
Hydraulic Data Interpretation
Follow the dashed or solid lines connecting nozzles to pipes. The numbers along these lines (e.g., “25 GPM”) show required flow rates. Compare these values to the main supply line’s capacity–typically 100 GPM for branch lines–ensuring no more than 4 nozzles exceed this per riser. Look for pressure drop annotations (“ΔP 5 psi”); if ΔP exceeds 10 psi, the riser may need resizing or a booster pump.
Verify Response Time Index (RTI) if listed–fast-response nozzles (RTI
