Start by identifying the crossarm–the horizontal support beam mounted perpendicular to the mast, typically 6 to 8 inches wide and extending 4 to 6 feet on either side. Ensure it’s secured with galvanized bolts (minimum ½-inch diameter) spaced no more than 18 inches apart. Check for splits or warping; a compromised crossarm risks insulator failure under load. Use a torque wrench set to 45–55 ft-lbs for proper tension.
The insulator must match the voltage rating– porcelain for 15 kV, polymer for 35 kV or higher. Examine the skirt shape: fog-type insulators prevent tracking in humid conditions, while standard units suit dry climates. Affix each insulator to the crossarm using a ⅜-inch machine bolt with locking washers; omit washers, and vibration will loosen connections over time.
Locate the ground wire–a 6-gauge copper conductor running vertically along the mast, terminating at a driven rod at least 8 feet deep. Verify continuity with a multimeter (
For guying, select anchors rated for the soil type–screw anchors for loose soil, expanding plate anchors for rocky terrain. Position guy wires at 45° angles, tensioned to 70–80% of wire breaking strength. Secure each guy with preformed guy grips, avoiding splices within 3 feet of the anchor point to prevent stress concentration.
Trace the primary conductors from dead-end insulators to the transformer connection. Aluminum conductors require oxide inhibitor at terminals; copper interfaces need bimetallic lugs to prevent galvanic corrosion. For 1/0 ACSR, use compression sleeves with die sets sized for 0.345-inch diameter; improper crimps lead to hotspots visible in thermal scans.
Understanding Electrical Support Structure Components
Begin by identifying the crossarm–the horizontal beam mounted perpendicular to the main column. Standard designs include wooden (typically Douglas fir or southern pine) or fiberglass variants, with dimensions ranging from 3.5″ × 4.5″ × 8′ for distribution lines to 6″ × 8″ × 12′ for transmission. Inspect for splits or cracks exceeding 0.25″ in depth, as these compromise structural integrity under wind loads up to 90 mph.
Examine insulators–ceramic or polymer devices that prevent current leakage. Polymer types (e.g., silicone rubber) weigh 30-50% less than porcelain and resist vandalism, but degrade under UV exposure within 15-20 years. Verify torque specs: 25 ft-lbs for 5/8″ bolts on pins, 40 ft-lbs for 3/4″ hardware. Loose connections increase resistance, risking hotspots detected via thermal imaging at temperatures above 70°C.
Check guy wires and anchors–critical for stabilizing angled supports. Strand diameters of 5/16″ (7-strand) or 3/8″ (19-strand) handle loads up to 6,000 lbs and 12,000 lbs respectively. Anchor types include screw (8′ depth for clay soils), plate (12″ × 18″ for sandy conditions), or rock (expansion bolts for granite). Misaligned guys create tension imbalance, leading to column lean exceeding 5° from vertical–measure using a digital inclinometer.
Assess transformer mounts, typically ¼”-thick steel brackets welded to the column or crossarm. Single-phase units require 18″ minimum clearance from vertical conductors; three-phase mounts need 30″. Verify bonding straps (minimum #6 AWG copper) connecting the mount to the ground rod, reducing step potential hazards. Corroded straps increase resistance–test with a ground meter (target
Review conductor attachments, including suspension clamps and dead-ends. ACSR (aluminum conductor steel-reinforced) cables use compression sleeves (e.g., Burndy C1012) crimped at 6,000 psi with hydraulic tools. For vibration-prone spans, install armor rods (preformed wire wraps) at clamp points to prevent fatigue failure. Sag calculations must account for ambient temperatures: 1.5″ sag per 100′ at 60°F, increasing by 0.3″ per 10°F rise.
Inspect lightning arrestors, positioned 12-18″ below the top insulator. Polymer-housed arrestors (e.g., Hubbell POLIM-H) divert surges to ground via #4 AWG copper leads. Check gap settings: 0.6″ for distribution, 1.2″ for transmission. Failed arrestors exhibit discoloration or pitting on the varistor discs–replace if leakage current exceeds 1 mA at MCOV (maximum continuous operating voltage).
Verify grounding systems, consisting of a 5/8″ × 8′ copper-clad steel rod driven to refusal (minimum 6Ω resistance). Bond all metallic components–crossarms, mounts, guys–to the rod using irreversible compression connectors. For rocky terrain, use chemical ground rods (conductive gel lowers resistance by 40%). Document connections with torque wrenches to 35 ft-lbs, preventing loose joints that escalate fault current risks.
Key Elements of Utility Structure Assemblies
Begin by locating the vertical support beam–typically a galvanized steel or wood post–embedded in concrete. Verify its structural integrity by checking for cracks, warping, or corrosion at the base, where moisture accumulation accelerates degradation. For steel variants, probe weld seams and bolts; rust spots near joints signal potential failure points requiring immediate attention.

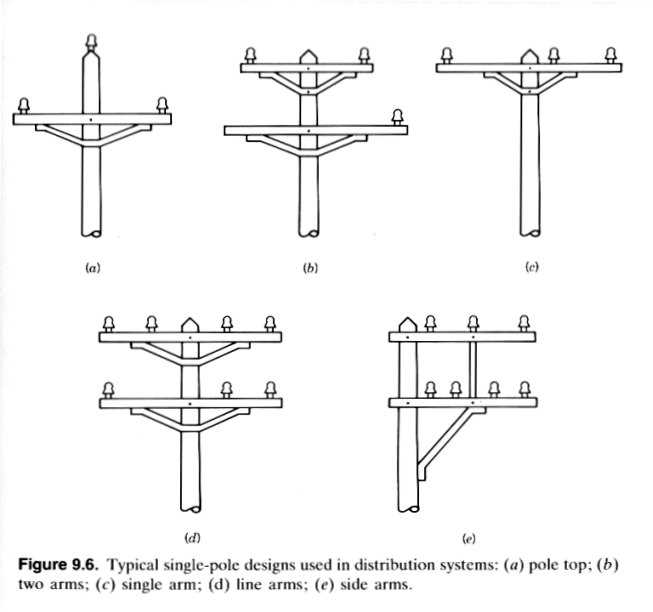

Inspect the crossarm, the horizontal bracket attached near the top. Standard installations use Douglas fir, treated pine, or fiberglass composites, each with distinct load-bearing capacities. Measure dimensions: primary arms span 8–12 feet for distribution lines, while secondary arms range 4–6 feet. Look for splits exceeding 1/4-inch width or fungal growth on wooden arms, indicators of compromised strength.
Insulator and Conductor Configurations
Identify insulators by material: porcelain, polymer, or glass. Porcelain units feature ribbed skirts; polymer types have smooth, hydrophobic surfaces. Count the number of shed profiles–each additional rib increases leakage distance by 1–2 inches, critical for high-contamination areas. Confirm proper spacing between conductors: minimum 36 inches for 15 kV lines, adjusted upward for higher voltages.
- Pin-type insulators: bolt directly to crossarms, common for lower-voltage lines.
- Suspension insulators: hang vertically, used for higher capacities (69 kV and above).
- Strain insulators: positioned at angles or dead-ends to manage tensile forces.
Trace conductor paths from insulators to attachment hardware. ACSR (aluminum conductor steel-reinforced) wires require compression dead-ends; look for marked crimping dies to confirm proper installation. Copper conductors use split bolts or wedge clamps–verify no frayed strands exceed 5% of total wire gauge. Note sag measurements: calculated at 60°F ambient temperature, typical values range 0.5–2 feet per 100-foot span.
Grounding and Protective Devices

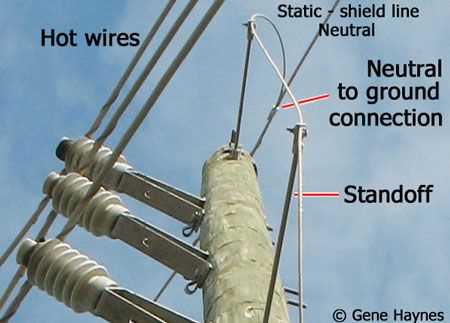

Examine the grounding rod, usually a 5/8-inch copper-clad steel rod driven 8–10 feet into soil. Check clamp integrity–corroded connections reduce fault current dissipation. For overhead shield wires, ensure continuity with ground electrodes; resistance should not exceed 25 ohms. Locate lightning arresters: gap-type units require annual inspection of porcelain housing and internal gaps (typically 1.2–1.5 times line voltage rating).
- Remove vegetation within 10 feet of the base to prevent fire hazards.
- Verify label placards for compliance: utility ownership, voltage ratings, and emergency contact details.
- Document observations using a checklist: photograph corrosion, cracked insulators, or missing hardware.
Step-by-Step Breakdown of Wooden Utility Structure Components
Begin by identifying the butt–typically 6 to 10 feet underground–which anchors the structure through soil resistance and compression. Treat this buried section with copper naphthenate or pentachlorophenol to resist rot, insect damage, and fungal decay; untreated Douglas fir butts fail within 7–12 years, while properly treated cedar lasts 35–50. Above-ground grading must follow ANSI O5.1 standards, ensuring minimum 0.60 pcf retention for Class 4 structures in high-decay zones. Crossarms attach 8–12 inches from the top, secured with 5/8-inch galvanized through-bolts and 3-inch square washers to distribute weight; improper installation creates stress fractures under ice load.
Insulator and Hardware Placement
Position pin-type insulators 6–8 inches from crossarm ends using truss-head lag screws, spacing them according to voltage–24-inch separation for 12 kV lines, 36-inch for 34.5 kV. Porcelain units withstand 125 kV BIL, while polymer models require hydrophobic coatings to prevent tracking. Guy wires attach at 60% of structure height via thimble-eye bolts and preformed guy grips; under-tension angles exceeding 30° mandate stub poles. Ground wires connect via exothermic welds to 8-foot copper-clad rods driven 18 inches into damp soil, achieving ‹5 Ω resistance in loamy clay.
Critical Components in Electrical Network Infrastructure
Select insulators rated for at least 20% above the line’s maximum operating voltage to prevent flashovers under contamination or humidity. Porcelain and composite polymer units differ in performance–field tests show composite variants reduce maintenance cycles by 35% in coastal zones due to superior hydrophobic properties. Ensure creepage distance meets IEC 60815 standards: 25–35 mm/kV for clean environments, 45–60 mm/kV for industrial or saline areas.
- Pin-type insulators: Use for straight-line supports up to 33 kV. Secure with galvanized steel pins; verify torque at 45–55 Nm to avoid thread stripping.
- Suspension insulators: Apply strings with a 1.2 safety factor for 66–230 kV lines. Ceramic discs require corona rings at ≥132 kV; composite alternatives need none.
- Strain insulators: Deploy horizontally for dead-end towers. Load capacity must exceed conductor tensile strength by 20%.
Conductors demand precise tensioning: ACSR cables stretched to 20% of UTS at installation, with sag calculations including ice loading (12 mm radial thickness) for regions above 30° latitude. Use vibration dampers on spans exceeding 120 m–Stockbridge types reduce aeolian vibration fatigue by 70%. Aluminum-clad steel cores outperform pure aluminum in salt-spray corrosion resistance by 15 years.
Crossarms must withstand dynamic loading–solid Douglas fir treated with CCA resists rot for 40 years but requires annual inspection for splintering under UV exposure. Steel alternatives (ASTM A572 Grade 50) need hot-dip galvanizing (>85 μm) and torsion testing at 1.5x design load. Bolt patterns follow ANSI C135.1: 16 mm holes for ≤350 kV, 20 mm for EHV applications. Avoid through-bolts on wooden crossarms to prevent galvanic corrosion.
- Anchor rods: Embed 1.8 m into undisturbed soil, extending 0.9 m above grade for 3:1 safety against uplift (test pull: 20 kN). Use zinc-rich epoxy coatings in acidic soils.
- Grounding systems: Copper-clad rods (20 mm diameter) driven 3 m deep; resistance target
- Lightning arresters: Install polymer-housed units rated for 10 kA impulse current. Mount 0.3 m below conductors; spacing ≤30 m on rural lines, ≤15 m in high-keraunic zones.
