For an accurate repair, locate the service manual for your model (typically printed inside the machine’s rear panel or available on the manufacturer’s support site). Use the product serial number–found on a sticker near the door–when searching diagrams. Generic schematics rarely match specific builds, so verify parts against official documentation before ordering replacements.
Begin disassembly by removing the top panel (two screws at the back). Beneath it, the suspension rods and shock absorbers connect to the drum assembly–identify their mounts if vibration issues persist. The door lock mechanism, often failing in older units, sits near the door frame; test its continuity with a multimeter before replacing the entire latch.
Inside the rear access panel, trace the pressure switch hose to its connection at the tub’s bottom. A kinked or clogged hose causes improper water levels; clear debris or replace the tube if brittle. The heating element (if equipped) hides behind the rear panel–inspect for mineral buildup, which increases energy consumption by 20% or more.
When troubleshooting the control module, check for error codes using the machine’s diagnostic mode (consult the manual for button sequences). Resoldering loose connections on the board can resolve intermittent faults, but replace the entire module if corrosion is visible. Always disconnect power before handling electronic components to avoid short-circuit risks.
For drum-related noise, examine the drive belt and tensioner pulley. A frayed belt (lifespan ~5 years) requires replacement, while a defective pulley often squeals under load. Lubricate the drum bearings with high-temperature grease if grinding occurs, but prepare for full tub disassembly if the noise persists–failed bearings indicate a costly rebuild.
Understanding Your Automatic Laundry Machine Component Layout
Begin by identifying the control module positioned behind the operational panel–usually secured by two screws and a snap-fit cover. A multimeter set to 20VDC range will verify voltage (4.8–5.2V) at the main connector pins J3 (red probe) and J4 (black probe) before disassembly to avoid static damage. Label each wire with masking tape and note its corresponding pin number from the technical manual, as color-coding varies between assembly revisions EWM1000+, EWM2000, and later models.
Replace the drain pump only after confirming blockage with a flashlight inspection through the sump hose connection. Models manufactured after 2018 integrate an inline filter upstream of the pump; failure to clean this every three months causes error code E20. Use a 7mm socket to remove the retaining clamp–plastic clips fracture under excessive torque, so support the housing with your palm while turning the socket clockwise.
| Component | Symptom | Replacement Steps | Tool |
|---|---|---|---|
| Pressure switch | Incorrect water level E35 | Disconnect hose→unscrew bracket→swap new unit (PN 1327054) | Flathead screwdriver |
| Door lock assembly | Door won’t latch E40 | Remove detergent tray→pry control bezel→unplug harness→replace lock (PN 1346720) | Plastic pry bar |
| Bearing kit | Grinding noise at 1000 RPM | Dismantle tub→press out old bearings (6203ZZ, 6204ZZ)→grease new ones lightly | Bearing puller & 30mm socket |
Suspend the drum assembly from the machine’s frame using a sturdy nylon strap before separating the rear half of the tub. Latex gloves prevent skin oils from contaminating the new seal lip, which must be coated with non-silicone tub grease (PN 383008) during installation. Align the arrow on the seal with the top of the front panel–misalignment by more than 5mm causes water bypass.
Test the motor stator before fitting it back into the cabinet by applying 120VAC to the windings via alligator clips. Normal current draw is 0.8–1.2A; readings above 1.5A indicate shorted coils requiring full replacement (PN 551395). Secure the stator with Torx T25 screws torqued to 5Nm–over-tightening strips threads in the aluminum casting.
Reassembly sequence reverses disassembly, but pay special attention to the counterweight positioning. The upper weight must sit flush against the drum flange with its rubber cushion intact; any gap introduces vibration codes E50–E52. Weigh the detergent drawer and spin the drum by hand–any hesitation signals residual tightness in the tub bearings.
Final calibration demands running a service test cycle (hold Start 3 seconds while powering on). The display should show “C0” within ten seconds–absence of this code means the control board (PN 1323654) needs re-flashing via USB using firmware revision matching the serial number’s tenth digit.

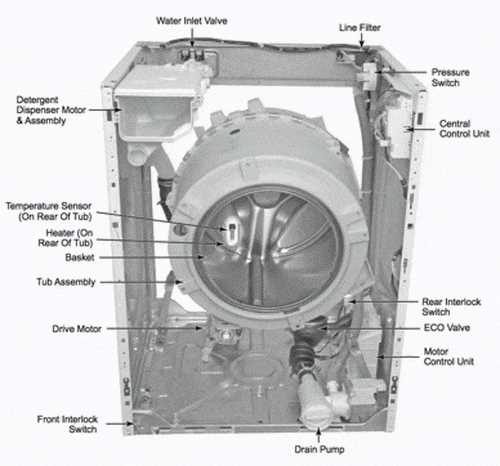

How to Find Key Elements in Your Home Laundry Machine
Unplug the appliance and move it away from the wall to access the rear panel. Most models have a removable cover secured by screws–locate these along the perimeter, usually four to six, depending on design. Use a Phillips screwdriver to remove them; store screws in a small container to avoid misplacement. Once detached, the back casing exposes the motor, drive belt, and pulley system. Trace the belt from the drum pulley to the motor shaft to confirm alignment; a loose or misaligned belt often causes excessive vibration.

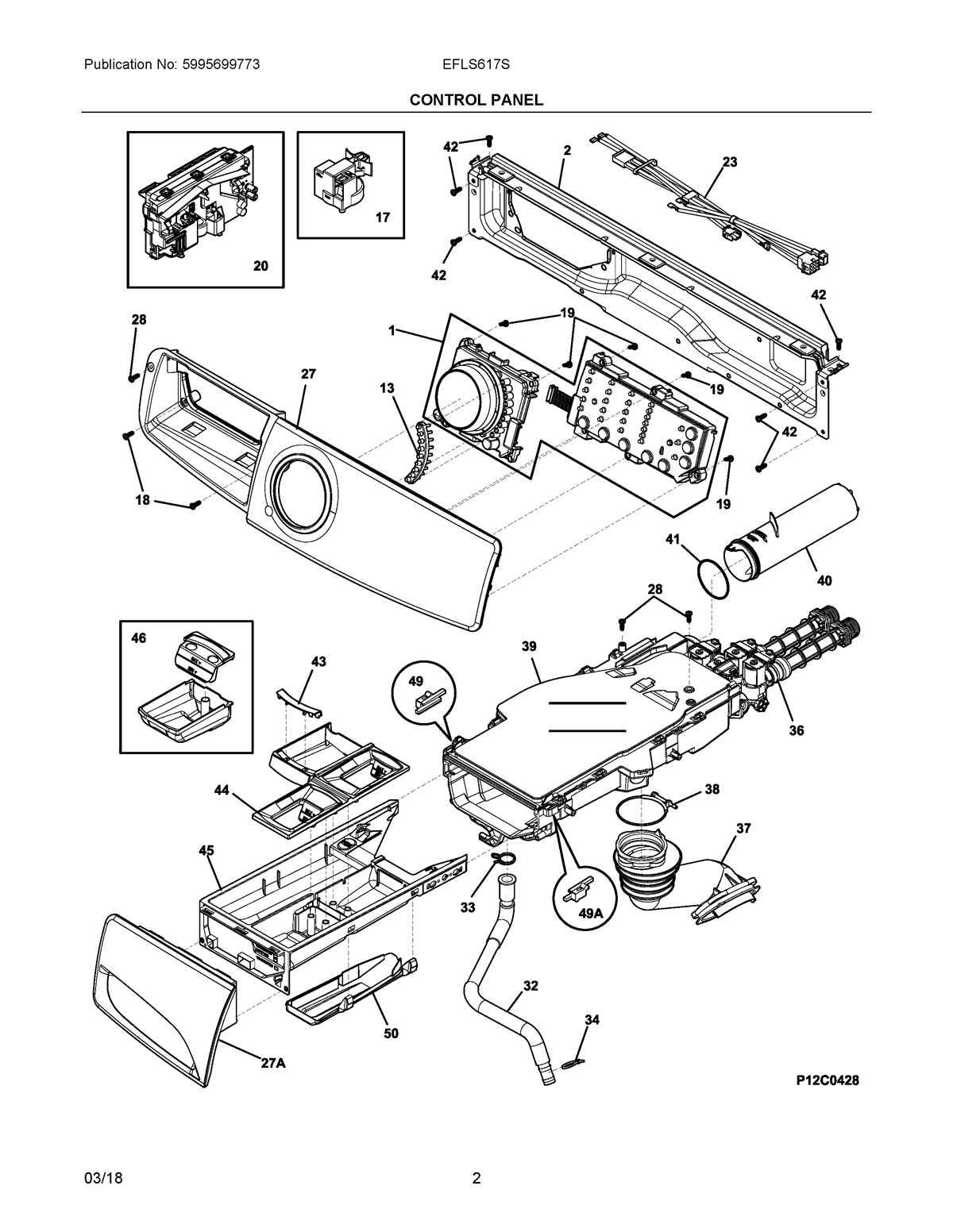

The control board sits behind the user interface, typically near the top front under the detergent dispenser. Remove the dispenser drawer by pressing its release tab–it should slide out without force. Behind it, two screws secure the control panel; removing these allows gentle lifting to reveal the electronic components. Avoid yanking wires; some connectors have release clips that must be depressed first. If troubleshooting error codes, note the board’s model number printed on its surface to cross-reference with repair guides.
Door lock mechanisms are mounted on the door’s right side, visible once the front panel is removed. The panel is held by screws beneath the lower kickplate–pry it off carefully to avoid damaging plastic clips. The lock assembly includes a solenoid and switch; test with a multimeter set to continuity mode. Probe the connectors while activating the latch manually–no reading indicates a faulty unit needing replacement. Check for burnt smells or scorch marks, common signs of electrical failure.
Water inlet valves connect to hoses at the rear upper corner, identifiable by their dual-coil design and solenoid valves. Shut off water supply before unscrewing hose fittings to prevent leaks. Each valve has a screen filter–remove debris with needle-nose pliers or flush under running water. If valves fail to open during cycles, test for 120V at their terminals when the machine calls for water; inconsistent voltage suggests control board issues.
Suspension rods hang from the top frame down to the tub, dampening movement during spin cycles. Inspect for cracks or wear, especially where rods meet brackets. Lubricate friction points with silicone-based grease if squeaking occurs; avoid petroleum jelly as it degrades rubber components. Replacement requires removing the tub assembly, so verify suspected damage before disassembly–false positives often stem from unbalanced loads rather than faulty hardware.
Drain pumps reside at the base, accessible by tilting the unit on its side. Remove the lower access panel to expose the pump housing; check for obstructions in the impeller by rotating it manually. If seized, clear debris with tweezers–coins, buttons, or lint buildup are frequent culprits. Test pump operation by jumping its terminals with a 120V source; if it fails to activate, replace the pump rather than attempting repairs, as seals and internal bearings rarely survive disassembly.
Step-by-Step Guide to Accessing the Door Lock Assembly
Disconnect the appliance from power by unplugging it or switching off the circuit breaker; failure to do so risks electric shock or damage to internal components. Remove the rear panel by unscrewing the six Torx T20 fasteners securing it–store them in a magnetic tray to prevent loss. Tilt the machine backward at a 30-degree angle, supporting it with a wooden block to access the base.
Locate the wiring harness connected to the door latch mechanism–it’s identified by a white connector with four pins. Depress the release tab on the harness while pulling it straight out; avoid twisting to prevent bending the pins. If resistance is felt, inspect for corrosion or debris and clean with contact cleaner if necessary.
Remove the top cover by sliding it forward after releasing two clips at the rear corners. These clips require slight downward pressure to disengage–use a flathead screwdriver if they’re stubborn, but avoid excessive force. Lift the cover vertically to detach it fully; it weighs approximately 1.8 kg, so support it with both hands.
Peel back the rubber door seal (bellow) from the metal rim using a plastic trim tool–start at the top near the latch and work downward. The seal is held by a tensioned wire spring; pry it gently from the groove to avoid tearing. Once freed, fold the bellow inward to expose the lock assembly mounting bracket.
Disassembling the Lock Assembly
Mark the position of the lock assembly bracket with a paint pen before removing–it’s secured by two Phillips #2 screws. The left screw is 12mm long, the right 15mm; swap them if reinstallation alignment is off. Pull the assembly forward to access the failed microswitch or solenoid–check for continuity with a multimeter set to 200 ohms.
Reassemble in reverse order, ensuring the seal’s spring is seated evenly in its groove. Reattach the wiring harness until it clicks, then apply downward pressure to confirm a secure connection. Power on the unit and run a test cycle–listen for a distinct “click” from the latch 3-5 seconds after door closure.
If the latch fails repeatedly, inspect the control board for burnt traces near relay R5–replace the entire module if damage is visible. Recalibrate the door lock by holding the “Start” button for 5 seconds with the door closed; the display should flash “Ad” before resetting.
