For precise handling adjustments, start by identifying the steering column assembly beneath the operator’s seat. This core mechanism typically includes a worm gear, sector gear, and pitman arm–critical elements that translate rotational input into wheel movement. If loose or erratic response occurs, inspect these components first before replacing anything. A common failure point is the tierod ends, which connect the pitman arm to the front wheels; worn bushings here cause excessive play. Check for damaged threads or bent rods–these require immediate replacement to maintain alignment.
Next, examine the steering wheel shaft and its coupling to the gearbox. Rust buildup or stripped splines often disrupt smooth operation. Lubricating the universal joints with grease every 50 hours of use prevents premature wear. If the wheel feels stiff or jerky, the rack-and-pinion housing may be obstructed–remove debris from the gear teeth before considering part swaps. For models with hydraulic assist, verify the fluid reservoir is at the correct level; low fluid mimics mechanical failures.
When disassembling, label each piece–especially the bearing races inside the gear case–to avoid misalignment during reassembly. The tension spring on the pitman arm ensures consistent wheel return; if broken, replace it immediately. Use a torque wrench to tighten bolts to manufacturer specifications (often 35–45 ft-lbs for critical joints). For electrical models, ensure the power steering motor engages properly–faulty wiring can cause intermittent failures indistinguishable from mechanical issues.

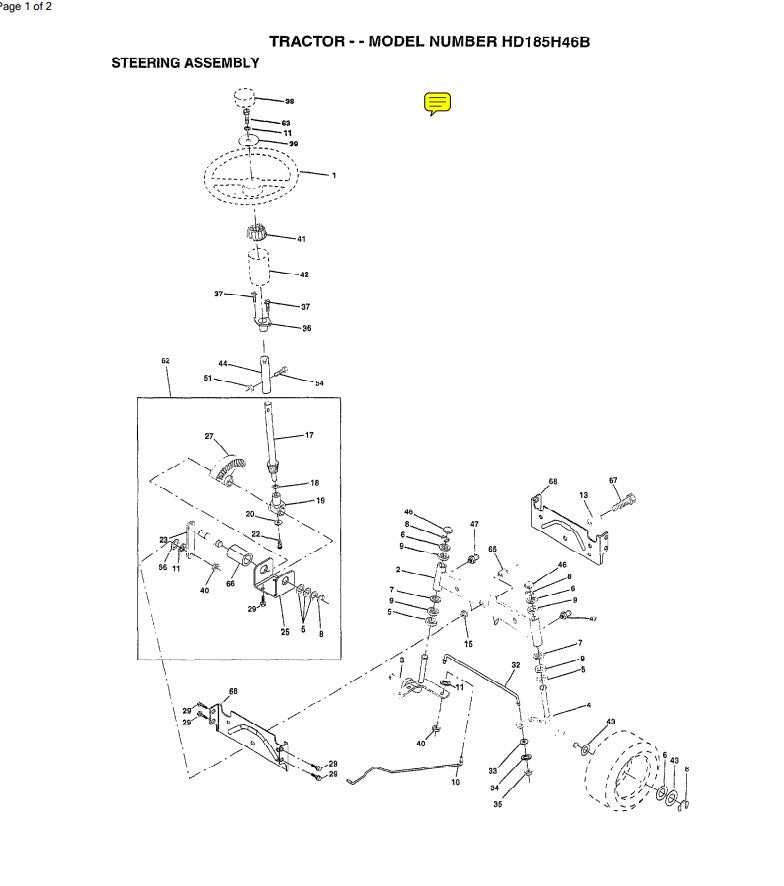

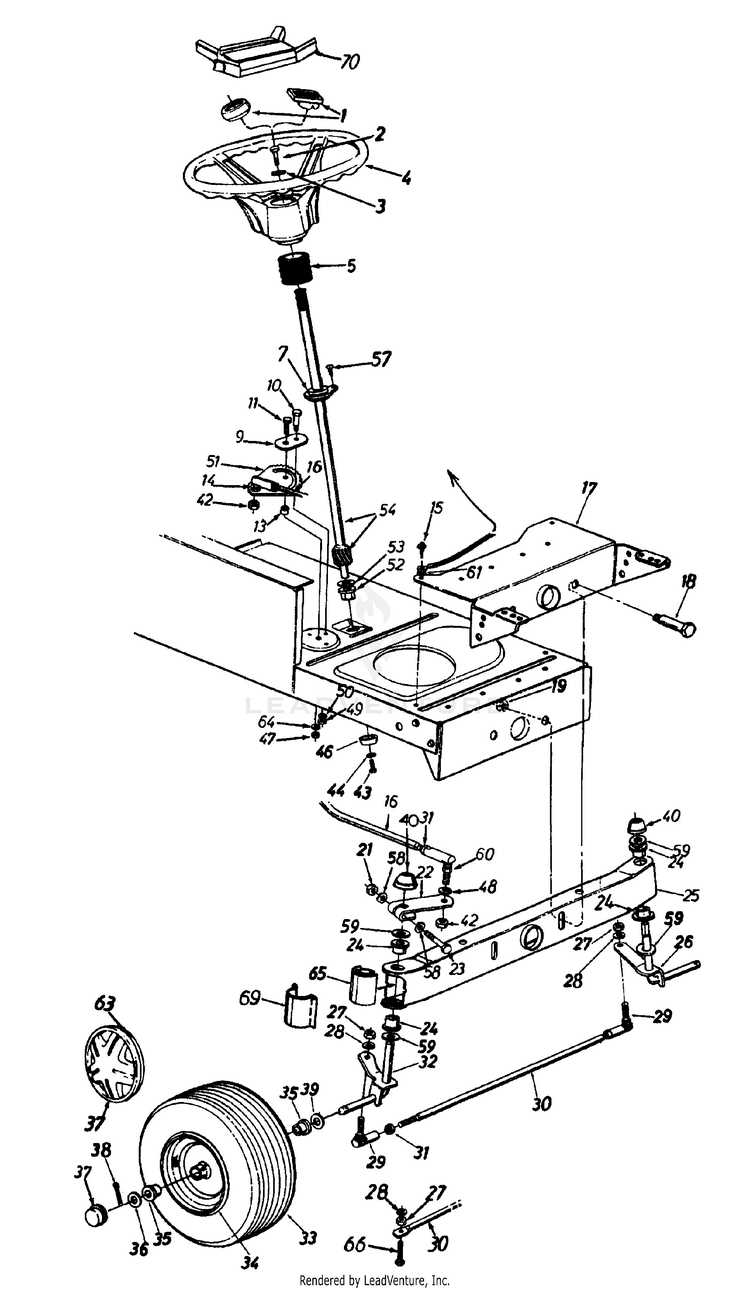

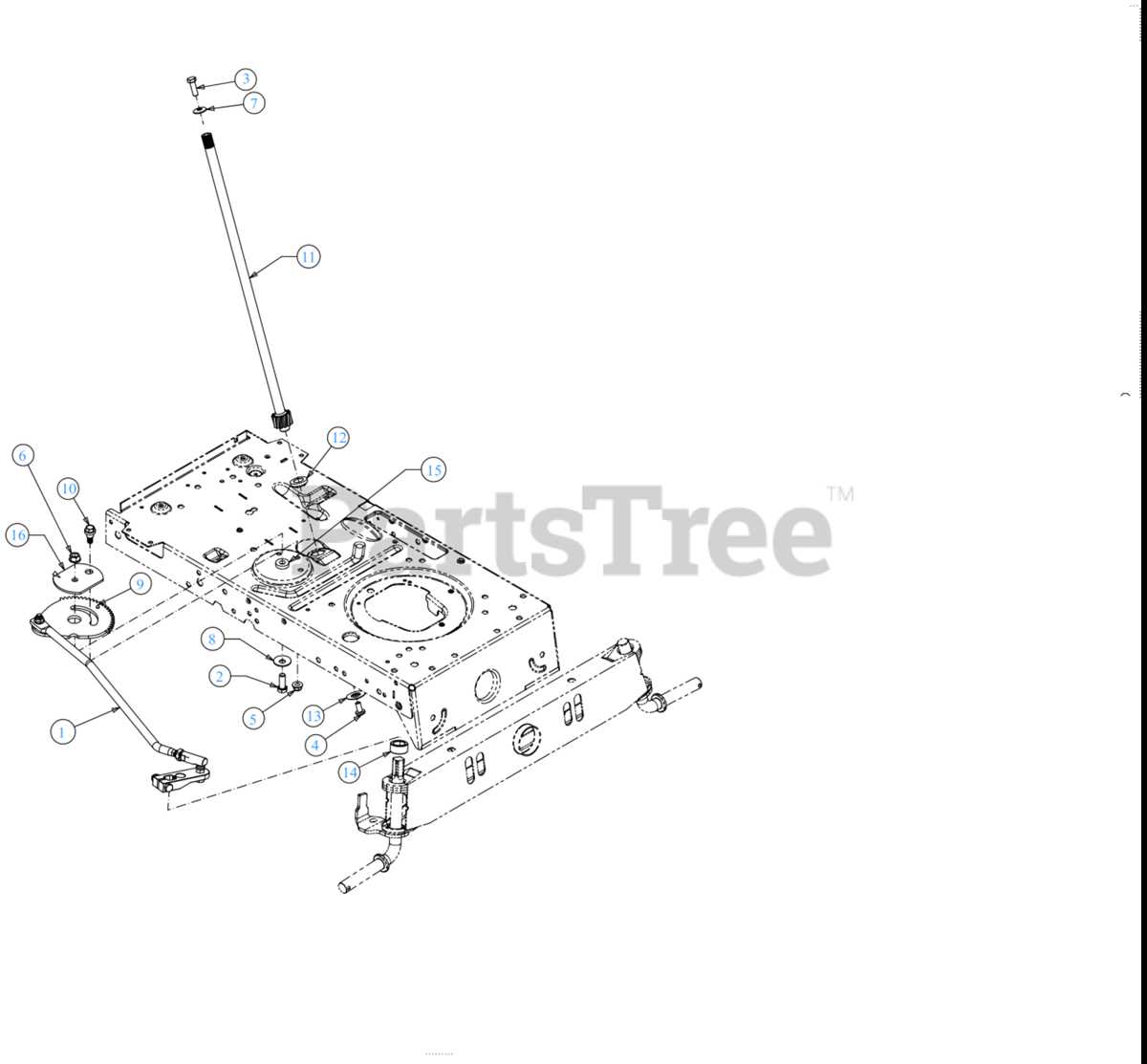

Understanding Your Garden Tractor Wheel Control Components
Begin by locating the pitman arm beneath the operator’s seat–this forged steel linkage connects the vertical column to the front axle assembly. Inspect for wear at the ball joints, where dust seals often degrade first; replace immediately if play exceeds 1/8 inch. The arm’s splined end meshes with the lower steering shaft via a tapered pin; ensure this connection is torqued to 25-30 ft-lbs to prevent slippage.
Check the sector gear mounted on the shaft housing–this 12-tooth bronze alloy gear engages the worm gear inside the gearbox. Noise during turns typically indicates inadequate grease or worn teeth; apply lithium-based EP-2 grease every 25 operating hours through the zerk fitting. If the gearbox leaks fluid, replace both the seal (part #382-4567) and the O-ring (0.375 ID, Buna-N) simultaneously–mixing old and new seals causes premature failure.
The drag link transmits motion from the gearbox to the front wheels; its threaded ends use left-hand threads on the right side and standard threads on the left. Adjust length by loosening the jam nuts and turning the rod–each 1/8 turn moves the toe alignment by 0.035 inches. Measure wheelbase variations with a digital caliper; ideal toe-in is 1/16 inch total for smooth tracking.
| Component | Material | Wear Limit | Replacement Interval |
|---|---|---|---|
| Ball joints | 1045 carbon steel | 0.125″ play | Every 100 hours |
| Sector gear teeth | C93200 bronze | 0.020″ flat spots | Every 200 hours |
| Zerk fittings | SAE Grade 5 | Visible corrosion | Annually |
Examine the steering column support bracket–this stamped steel plate mounts to the frame with four 1/2-13 bolts. Misalignment here introduces slack; shim under the bracket if the gap at any bolt exceeds 0.005 inches. The upper shaft runs inside a pressed nylon bushing; replace the bushing (part #382-4568) if lateral movement exceeds 0.040 inches–lubricate during assembly with PTFE spray to reduce drag.
For the tierod ends, use a pickle fork to separate them from the spindle arms–heat can help loosen corroded joints. Align new ends by threading them to match the old length before installation; each 1/4 inch of adjustment affects camber by 0.15 degrees. Always pair left and right ends together–mixing brands causes uneven tire wear.
When reassembling, verify that the worm gear mesh pattern centers on the sector gear teeth–an off-center pattern leads to binding. Test the gear lash by rotating the wheel slowly; any notchiness indicates improper preload on the bearings. Final torque specs: upper column clamp 8-10 ft-lbs; sector gear locknut 35-40 ft-lbs; tierod jam nuts 30-35 ft-lbs.
Key Handling Elements in Lawn Tractors: A Breakdown
Locate the pitman arm first–it connects directly to the wheel sector under the tractor’s front deck. Trace its movement by turning the wheel sharply: any play exceeding 1.5 cm indicates wear in the ball joints or sleeve bushings. Replace if the gap is visible during full lock.
The steering wheel shaft runs vertically through the console, secured with a snap ring near the dash. Inspect the splines for rounding; stripped grooves cause intermittent engagement. A missing or loose ring lets the shaft slide, binding at acute angles.
Check the tie rods–threaded ends adjust alignment within ±12 mm. Cross-threaded rods skew wheels inward, chewing tires in 10–15 hours of use. Apply anti-seize to threads before re-installing; torque to 40 ft-lbs to prevent backing off.
Examine the sector gear behind the front axle–teeth mesh with the worm gear inside the column. Pitting on three or more teeth demands a complete gear set. Lubricate sparingly: excess grease migrates to the braking surface, reducing response by 20%.
Identify the drag link along the left side frame–its ball sockets pivot smoothly but fail abruptly. Test play by lifting the front end and rocking the linkage: more than 5 mm deflection warrants immediate replacement of both sockets and O-rings. Always match socket diameter to the original; aftermarket oversize causes binding.
Inspect the column housing for cracks above the pedal cluster. Fractures propagate from the pivot boss downward, splitting the plastic. Reinforce with industrial epoxy before full separation–repairs hold 90% strength if applied within 48 hours of detection.
Step-by-Step Disassembly Guide for Front Wheel Assembly Servicing
Disconnect the battery terminals first to prevent accidental engagement while working. Use a 10mm socket to remove the negative cable, followed by the positive. Tape or insulate the ends to avoid short circuits during the procedure.
Remove the hood and side panels by unscrewing the retaining bolts along the perimeter. Mark each bolt location with painter’s tape to simplify reassembly. Store fasteners in a magnetic tray to prevent loss.
Lift the machine frame using a hydraulic jack or sturdy blocks. Secure with jack stands placed under the designated support points–never rely solely on the jack. Ensure the chassis is stable before proceeding.
Detach the linkage rods connecting the wheel mechanism to the control arm. Use a 15mm wrench to loosen the ball joint nuts, then separate with a puller tool to avoid thread damage. Inspect rod ends for wear before reinstalling.
Handling the Wheel Hub Assembly
Unbolt the wheel hub cap using a 12-point socket. Apply penetrating oil to seized fasteners if necessary. Remove the cotter pin from the castellated nut and loosen it with a deep socket. Slide the wheel off the spindle, noting the washer and bearing arrangement for correct reassembly.
Check the bearings for heat discoloration or pitting. If replacement is needed, press out the old bearings using a bearing driver set. Clean the spindle thoroughly before installing new components, applying a thin layer of grease to reduce friction.
Reinstall the wheel in reverse order, torquing the castellated nut to manufacturer specifications–typically 75-90 ft-lbs. Secure with a new cotter pin, bending the ends to prevent loosening. Reattach all linkage rods and tighten ball joints evenly.
Final Inspection and Reassembly
Lower the machine and reconnect the battery. Test the wheel movement by turning the control arm manually–it should articulate smoothly without binding. Replace panels and hood, ensuring all bolts are tightened securely. Verify alignment with a short test drive at low speed.
Identifying and Swapping Faulty Handwheel Bearings
Disconnect the spark plug wire first to prevent accidental engine start. Use a 3/8-inch drive socket to remove the center cap nut holding the handwheel in place–most models require 15–20 ft-lbs of torque for this fastener. Slide the wheel off the shaft carefully to avoid damaging the splines; mark their position with chalk if reinstallation requires alignment with the sector gear below.
Inspect the bearings by gripping the shaft with pliers and testing for radial or axial play. A worn bearing will exhibit movement beyond 0.005 inches or produce a gritty feel when rotated. Replace both the upper and lower bearings as a set; aftermarket components like Timken LM11949/LM11910 (common for 10–12 horsepower models) or equivalent sealed ball bearings fit most shafts with a 3/4-inch ID. Pack each bearing with NLGI #2 grease before installation, applying 1–2 grams evenly around the races to ensure proper lubrication.
Press the new bearings onto the shaft using a hydraulic press or a bench vise with soft jaws–never strike them directly with a hammer. Reinstall the handwheel, tightening the cap nut to the manufacturer’s specified torque (verify with a service manual, as values vary between 25–35 ft-lbs). Reconnect the spark plug, then test operation by turning the wheel through its full range; resistance should be uniform without binding or slack.
