Begin by locating the pump assembly–typically positioned near the engine or motor housing. This segment includes the unloader valve, inlet/outlet fittings, and pressure control knob. Refer to your unit’s schematics to identify brass fittings marked with color-coded rings: red for inlet (water entry) and black or blue for outlet (high-pressure discharge). Misalignment here causes leaks or pressure drop.

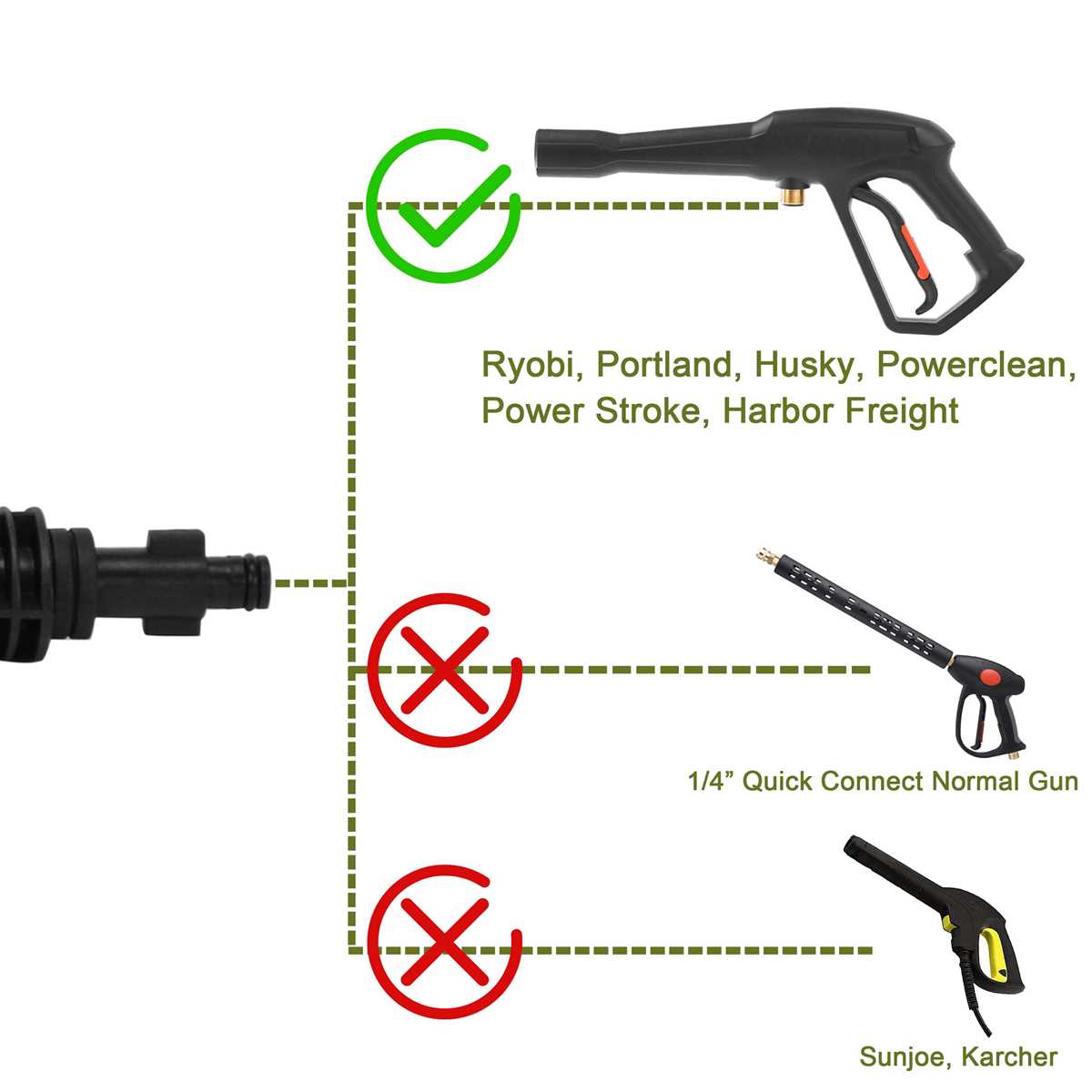

The wand and nozzle system demands attention next. Inspect the trigger gun for cracks in the plastic casing–these weaken under repeated stress. Replace worn seals before they degrade further; most kits include O-rings sized at 5/8″ for the wand connection and 1/4″ for the nozzle base. Use silicon-based lubricant sparingly to prevent corrosion buildup.
For the frame and casing, focus on critical stress points where the handle meets the chassis. Look for fatigue cracks along weld seams; these often develop near the wheel mounts or detergent tank bracket. Reinforce weak spots with epoxy resin rated for outdoor temperatures (-20°F to 140°F).
Electrical components–ignition coils, starter capacitors, and thermal switches–should be tested with a multimeter. Typical resistance readings: ignition coil (5-12 kΩ), capacitor (0.05-0.20 µF). Clean corrosion from battery terminals using a baking soda solution (1 tbsp per cup of water) before reattaching cables.
Hoses require periodic inspection for abrasion, especially near connectors. Replace hoses showing bulges or brittleness–these indicate imminent failure. Secure hose clamps with a torque wrench (12-15 in-lbs) to prevent slippage under pressure (standard rating: 1500-3000 PSI).
When sourcing replacements, cross-reference part numbers against the original manufacturer’s catalog. Generic labels like “nozzle tip” lack precision–opt for exact specifications (e.g., 15° yellow or 25° green) to match your model’s flow rate. Keep a printed reference of torque values and pressure tolerances taped to the unit’s storage case.
Understanding Your High-Pressure Cleaning Equipment Schematics
Begin by locating the model number on your machine–typically engraved on a metal plate near the engine or pump housing. Compare this with the manufacturer’s repair manual for precise compatibility, as even minor deviations in component layout exist between models like the 2600 PSI and 3100 PSI variants. Digital copies of these manuals are often available on the brand’s official support portal under “Documentation” or via third-party retailers specializing in OEM replacements.
Key Components and Their Exact Placement
Refer to the following table for critical elements and their common locations within most pressure-cleaning units. Verify measurements against your specific schematic before ordering replacements, as mounting points may shift by ±1 cm depending on the year of production.
| Element | Function | Typical Location | Visual Identifier |
|---|---|---|---|
| Unloader valve | Regulates pressure by redirecting flow | Adjacent to pump discharge port | Brass fitting with spring-loaded knob |
| Thermal relief valve | Prevents overheating in stalled conditions | Embedded in pump head, near coolant intake | Small, hexagonal stainless steel protrusion |
| Inlet water screen | Filters debris from water supply | Threads into hose connector at base | Mesh disc behind plastic or metal flange |
| Detergent injector | Mixes cleaning solution into stream | Downstream of pump, before lance connection | Plastic or metal T-junction with black tubing |
Replace O-rings and seals during any disassembly–these degrade after 50–70 hours of use regardless of visible damage. Use Viton for hot-water applications (above 60°C) and Buna-N for cold-water models. Apply silicone-based lubricant sparingly to threaded connections to prevent galling, but avoid over-application near rubber components, as it accelerates deterioration.
Troubleshooting Without Full Disassembly
For inconsistent spray patterns, first check the nozzle orifice using a needle–worn nozzles (common after 100–150 hours) often produce a 10–15% wider spray angle, reducing cleaning efficiency. Swap nozzles between identical units to isolate the issue. If pressure drops suddenly, inspect the hose for kinks or internal delamination; flex the hose every 30 cm while running the machine to detect hidden blockages.
Store spare components in sealed polyethylene bags with each bag labeled by function and model year. Include a silica gel packet to prevent moisture absorption, which causes premature corrosion on metal fittings and swelling in rubber seals. Keep a second copy of the schematic annotated with torque specifications (e.g., pump mounting bolts: 18–22 ft-lbs) to avoid over-tightening during reassembly.
Locating Authentic Schematics for Your High-Pressure Cleaning Equipment
The Home Depot Product Manuals portal remains the primary source for verified technical illustrations. Enter the model number into the search bar–typically found on a metal plate near the engine or pump–to access exploded views, component numbers, and electrical layouts. Downloads are PDF-based, ensuring compatibility with mobile devices or workshop computers without requiring online access during repairs.
Third-party distributors with direct manufacturer authorizations often host identical schematics:
- eReplacementParts.com – filter by product category, then select Outdoor Power Equipment; schematics appear under the Manuals tab.
- Ridgid Tool Repair Central – despite differing branding, certain models share identical internal frameworks; cross-reference engine and pump codes.
- Jack’s Small Engines – specializes in carburetor and pump assemblies; schematic previews are watermarked but retain full detail.
Manufacturer subdomains sometimes archive older model documentation. Append /support/manuals to the domain for brands licensing the original designs–e.g., techtronicindustries.com. Registration isn’t mandatory, yet creating an account grants faster retrieval of recently updated diagrams.
Forums Where Technicians Share Confidential Links
DoItYourself.com’s Pressure Washer Forum and Reddit’s r/pressurewashing thread pin verified PDFs alongside anecdotal fixes. Moderators frequently remove dead links; persistently cached versions can be uncovered via:
- Right-clicking broken hyperlinks–select Copy link address, paste into
archive.org. - Installing browser extensions like SingleFile to snapshot pages containing embedded schematics before they vanish.
YouTube repair channels occasionally embed diagrams within video annotations. Search for “[model-number] service manual“–some creators overlay component overlays directly onto real-time disassembly footage, syncing timestamps with demanded replacements.
Offline Alternatives When Connectivity Fails
Local dealers servicing outdoor equipment often retain physical manual binders. Provide the exact model variant–stamped on the frame or pump housing–to bypass mismatched schematics. Libraries catalog repair handbooks under 621.2 (Dewey Decimal), though coverage favors models released within the last seven years.
Key Components to Check in Your Gas-Powered Pressure Cleaner
Start with the spray gun–inspect the trigger mechanism and seals first. Corrosion or wear here causes inconsistent flow; replace the O-rings or the entire assembly if leaks persist. The wand extension often cracks near the connection point; high-pressure models tolerate no flexing. Swap it if hairline fractures appear.
Nozzles and Pump Internals
Nozzles clog frequently; soak them in vinegar overnight to dissolve mineral buildup. If the 25° tip wears unevenly, order a brass replacement–plastic versions degrade faster under constant heat. The unloader valve, usually brass, regulates pressure; clean it with compressed air or substitute if the unit surges. Pump pistons and valves succumb to sediment; disassemble annually and coat with silicone grease.
Engines demand fresh spark plugs every 100 hours. Fouled electrodes strand users mid-clean; gap new ones at 0.028–0.031 inches. Air filters trap dust but collapse when saturated; rinse foam types monthly, discard paper variants once clogged. Fuel lines split under ethanol blends; upgrade to Viton tubing to prevent seepage.
Belts stretch after heavy use, reducing impeller speed. Measure deflection–replace if exceeding ½ inch. Hoses rupture at weak points; test for bulges weekly. Quick-connect fittings strip easily; steel versions last longer than nylon. Frame cracks near welds compromise stability–grind and reweld immediately.
Recoil starters fail silently; examine the cord and pulley for fraying. Carburetors gum up after off-season storage–use Berryman B12 cleaner for deposits. Exhaust ports corrode internally; repack with high-temp ceramic paste before pitting worsens. Always purge the system with pump saver before winterizing.
Step-by-Step Guide to Locating the Pump Assembly in Illustrated Schematics

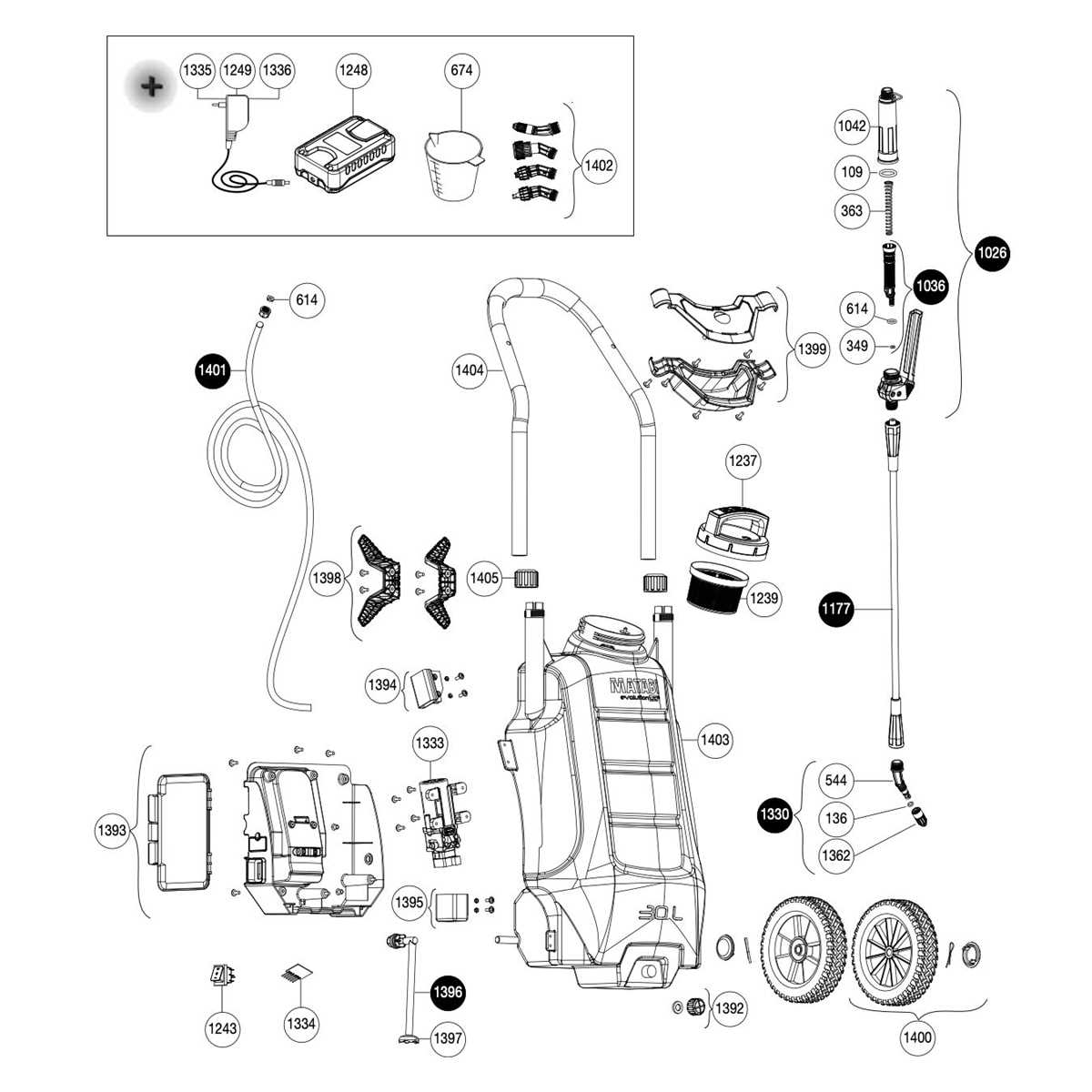

Begin by identifying the exploded view section of the manual–typically labeled “Fluid Delivery Components” or “Pressure Mechanism.” The pump block is almost always clustered near the engine or motor mount, distinguishable by its cylindrical or rectangular housing with inlet/outlet fittings. Look for arrows or callouts pointing to a part number starting with “PU” or “PM,” followed by digits–this confirms the core unit.
Trace the high-pressure hose from the spray gun backward. It connects directly to the pump’s outlet port, marked in schematics with a bold line or color highlight (often red). The inlet, conversely, attaches to the water feed line, usually depicted in blue. If the diagram splits into sub-assemblies, focus on the section where both lines converge–this is your target zone.
Key Visual Indicators
- Shape: The pump body resembles a small enclosed box with protruding nozzles. Some models include a brass or aluminum head with cooling fins.
- Mounting: It’s bolted to the frame with 2-4 screws, sometimes atop rubber vibration dampeners.
- Adjacent Components: Look for the thermal release valve and chemical injector–both attach to the pump’s side or rear.
If the schematic uses numbered annotations, cross-reference the pump label with the corresponding index. Manufacturers often group related elements: the unloader valve, pressure regulator, and pump share the same sub-diagram. Locate item #5-#12 on most brands’ layouts–this range invariably includes the primary fluid-driving unit.
Troubleshooting Ambiguity
- Check for hidden views: Rotate the diagram mentally–some schematics show a rear perspective, hiding the pump behind the engine.
- Search for “short block” or “triplex” labels; these denote compact or industrial-grade pumps.
- If lines blur, highlight all parts connected to the pressure hose with a marker–this isolates the delivery system.
For digital blueprints, use Ctrl+F to search “pump,” “plunger,” or “volute.” On physical copies, fold the page along the engine’s edge to align visual cues–this often reveals the pump’s position instantly. Keep a 4 mm Allen key nearby; pump assemblies frequently require this tool for disassembly.
