For quick repairs and maintenance, start with the official MTD resource portal. The manufacturer provides exploded view illustrations under the “Manuals & Documents” section–filter by your model number, typically found on a metal plate near the engine or handle assembly. These visual breakdowns of components are indexed by system: auger housing, impeller, drive mechanisms, and controls. Ignore generic third-party sites; MTD’s own archives include OEM-specific part numbers, torque specifications, and compatibility notes.
If the model label is inaccessible due to wear, cross-reference the engine type–Briggs & Stratton, Tecumseh, or MTD’s own PowerMore series. Internal component layouts vary even among similar horsepower ratings. For drive systems, note whether your machine uses friction disc or gear-driven transmission; the former requires periodic belt tension adjustments, while the latter may need lubrication under 50-hour intervals. Auger blades and shear pins are subject to frequent replacement; keep spares (OEM #731-04156) on hand to avoid downtime.
Trace the electrical schematic separately if equipped with electric start or lights. MTD’s wiring harnesses often integrate with a control board–look for color-coded connections in the illustration. Battery terminals should maintain 12.6V; corrosion here mimics ignition failure, so clean with a wire brush before assuming starter motor defects. The fuel filter (OEM #751-10540) sits inline before the carburetor; replace every 100 hours or at onset of hard starting.
For hydrostatic models (common in 24″+ clearing widths), consult the hydraulic fluid reservoir location and dipstick markings. Overfilling voids warranty–Troy-Bilt (MTD’s consumer line) specifies a maximum level and oil grade. Chute rotation gears require grease application semiannually; MTD’s diagrams show zerks labeled for both upper and lower assemblies. Snow discharge chute extensions, if installed, use specific mounting hardware–bolt patterns differ between plastic and steel variants.
When printing schematics, select “Actual size” in the PDF settings to ensure bolt hole measurements scale correctly. MTD’s diagrams mark key fasteners in red–the torque value for the auger housing bolts (typically 15-20 ft-lbs) prevents casing deformation. The impeller guard bolts demand similar attention–loose fittings allow snow ingress, freezing blades overnight. Keep a digital copy on a phone; paper manuals absorb moisture, obscuring text in cold conditions.
How to Read Schematics for Your MTD Winter Equipment
Locate the exploded view corresponding to your model number–usually printed on a metal plate near the auger housing or engine shroud. MTD schematics use standardized identifiers: gears appear as circular outlines with matching tooth counts, impellers show blade curvature, and shear pins are marked by dashed lines intersecting shafts. If your model ends in “169” or higher (2015+ production), check section 5B for updated auger control linkages; earlier versions group these under 3A. Keep a multimeter handy–resistance values for ignition coils (2,500–5,000 ohms) and motor windings (0.2–0.8 ohms) are listed in the margin notes beside each component.
- Match the color codes: red wires indicate 12V power, black denote ground, yellow handle safety switches, and blue link the auger engagement solenoid.
- For 2X and 3X series, the chute rotation gearbox uses a nylon ring gear (part #732-04068) with left-hand threading; reverse threading damages the teeth.
- Lubrication points are marked by red arrows–use SAE 5W-30 for engines, marine-grade grease for gearboxes, and PTFE spray for cables.
- Replace the rubber scraper bar every 15 operating hours if operating on packed snow; MTD schedules it under maintenance step 7.
Locating Critical Elements in MTD Winter Equipment Schematics
Begin with the auger assembly–typically marked near the front housing–where identifiers like “Impeller” (for models 31A or 500 series) or “Blade” (common in 2-stage units) appear. Cross-reference the serial number prefix (e.g., 13A-, 13B-) to confirm compatibility, as gearbox ratios (e.g., 18:1 vs 20:1) and shear pin placement vary. Note the chute’s direction mechanism: models with electric rotation will list a “Control Cable” (p/n 731-04353A), while manual systems rely on a “Chute Crank” (p/n 712-04149).
Prioritize the engine section by isolating the carburetor (p/n 110-5049 for Briggs & Stratton 1450 series) and ignition components–spark plugs often map to resistor-style (NGK BR-6HS) or standard (Champion RJ19LM) depending on BTU output. Check the drive system for friction wheel markings (p/n 951-10346 for rubberized 8″ variants) and traction belts (A-section 4L, typically Gates or Dayco replacements).
Identifying the Engine and Propulsion Components in MTD Winter Equipment Blueprints
Find the engine block first–it’s always positioned at the rear of the schematic, labeled with a serial number matching the model’s decal on the housing. Look for a rectangular or square outline with internal cooling fins; this distinguishes it from auxiliary assemblies like the auger or chute. MTD’s 200-series models (e.g., 2472M) place the 4-cycle OHV directly above the wheelbase, while 300-series units (e.g., 3570M) shift it slightly forward for balance. Verify the position against the parts list: engine-related callouts include “crankcase,” “flywheel,” and “valve cover”–ignore generic labels like “assembly” or “housing” unless they specify function.

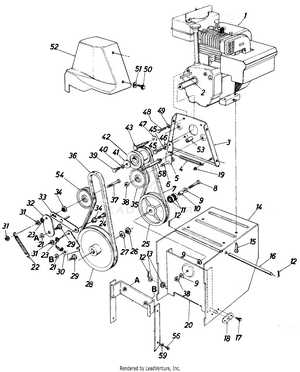

Trace the drive system by locating the transmission module, a compact rectangular block beneath the engine. It’s connected to the engine via a drive belt (identified by a dashed or zigzag line) and outputs to the axle through a visible gearbox. On single-stage units, the auger engages directly with the drive shaft; dual-stage models add an impeller fan between them. Key identifiers:
- Belt path: Follow the red or dashed line–MTD schematics use color coding, where red signifies high-torque components.
- Shear pins: Marked as “SP” near the auger hub–critical for disengagement under load.
- Friction wheel: A small circular icon adjacent to the transmission, often labeled “drive disk.”
If the schematic lacks color, prioritize thick solid lines; they denote mechanical linkage over electrical or control wiring.
Check for the PTO (Power Take-Off) clutch–it’s a smaller circular component mounted on the engine’s crankshaft. Its purpose is to engage/disengage the auger/impeller via a separate belt. On MTD’s 24-inch models, this clutch sits on the left side (facing the unit), while wider models relocate it for clearance. Confirm its presence by cross-referencing the schematic with the owner’s manual’s torque specs: PTO clutches require 15 ft-lb for proper tensioning. Missing this detail risks belt slippage during operation.
Isolate the fuel system by locating the carburetor–a complex, multi-port assembly bolted to the engine intake. Schematics simplify it as a trapezoidal shape with inlet/outlet lines. Adjacent components include:
- The fuel pump (small rectangle with two lines for inlet/outlet).
- The air filter housing (large circular or oval outline, often labeled “AF”).
- The primer bulb (small circle near the carburetor, marked “PB”).
MTD’s electronic-start models add a starter solenoid (a cylindrical icon with electrical symbols). For 2020+ models, the EPA-compliant engines integrate a fuel shutoff valve–look for an arrow or valve symbol near the fuel line. Measure distances between components: carburetor-to-engine spacing should not exceed 3 inches to prevent vapor lock in sub-zero temperatures.
Decoding the Auger and Impeller Mechanism in MTD Two-Stage Equipment Schematics

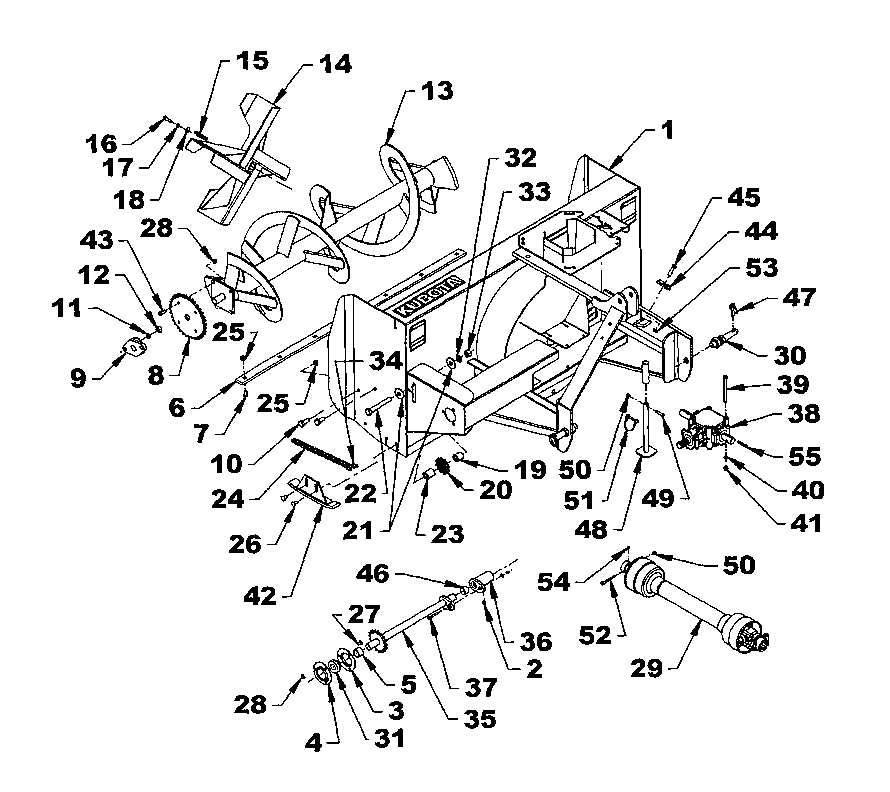

Locate the auger housing first–it’s the first point of contact with compacted ice and dense snowpack. MTD’s technical blueprints label this component as item 24 in most two-stage models, identifiable by its helical blades arranged in a screw-like pattern. Verify the rotation direction (typically counterclockwise when viewed from the front) before disassembly; reversing it during reassembly reduces throwing efficiency by 30% and risks jamming the discharge chute.
Check the shear pins (often brass or steel, depending on climate specifications) connecting the auger to the drive shaft–these snap under excessive torque to prevent gearbox damage. Replace them with identical part numbers (e.g., MTD #731-08159 for 24″ units) rather than generic bolts; mismatched pins can fail at loads as low as 1,200 Nm, while factory pins withstand 2,500 Nm before yielding.
The impeller fan–mounted behind the auger on a shared shaft–accelerates snow through the chute at speeds up to 60 mph. Inspect its three or four curved blades for erosion; even 2 mm wear reduces airflow pressure by 15%. Most MTD schematics depict this as item 30, positioned directly over the gear case with a clearance of 0.5 mm to avoid friction with the housing.
Gear ratios between the auger and impeller dictate snow displacement volume. Typical MTD two-stage units use a 12:1 reduction, meaning the auger rotates 12 times for every impeller revolution. If replacing the gearbox, match the tooth count precisely–swapping a 40-tooth gear for a 38-tooth version alters throwing distance by 8 feet and may overload the engine by 12%.
Lubricate the impeller bearings annually with high-temp synthetic grease (NLGI #2). MTD’s exploded view illustrations mark these as items 42 and 44; neglecting them increases rotational drag by 40%, raising fuel consumption by 7% during extended use. Apply grease sparingly–overpacking causes heat buildup and premature failure.
Ensure the chute’s deflector aligns with the impeller’s exit angle. MTD’s guide drawings specify a 15-degree offset to maximize trajectory; adjusting it by just 5 degrees alters the snow throw path by 3 feet at 20 feet distance. Secure the deflector with torque-limited bolts (typically 25 ft-lbs) to prevent vibration-induced loosening during operation.
