Begin by identifying the hub assembly on any folding mobility base–it serves as the anchor for the rear wheels and axles. Locate the bearing cartridge embedded within; if the device emits grinding noises during movement, this component often requires lubrication or replacement. Measure the inner diameter of the cartridge against the axle shaft’s outer dimensions–standard sizes range from 12mm to 15mm, with tolerances of ±0.1mm. Failure to match these specifications leads to bearing seizure or premature wear.
Inspect the cross-brace connections where the seat frame intersects. These pivot points endure significant stress and should move freely without lateral play. Apply silicone-based grease to the sleeves every 500 miles of use–this prevents corrosion and ensures smooth folding. Check the rivets or bolts securing the braces; torque specifications typically range between 8–12 Nm, depending on the manufacturer’s engineering guidelines.
The caster stems demand attention if turning feels unstable. Remove the stems and examine the fork bearings–they should rotate 360° with minimal resistance. Replace the bearing stack if motion feels notchy or if debris accumulates in the raceway. For front casters, ensure the swivel mechanism locks into place when braking; misalignment here causes lateral drift during operation.
Assess the motor mount plates (if electric) for cracks near weld points. These plates distribute torque from the drive unit to the frame and often develop hairline fractures under repeated load. Use a magnifying glass to inspect weld integrity; replace the plate if defects exceed 1mm in length. Verify the gearbox alignment relative to the wheel hub–misalignment accelerates gear wear by up to 40% in extreme cases.
Examine the seat slider rails for stripped threads or bent tracks. These rails determine seat height and must glide without binding. Clean the rails with a wire brush to remove dirt buildup, then apply dry graphite powder–this reduces friction without attracting debris. Test the locking mechanism’s engagement under load; if the seat shifts during use, recalibrate the tension adjustments as outlined in section 3.2 of most service manuals.

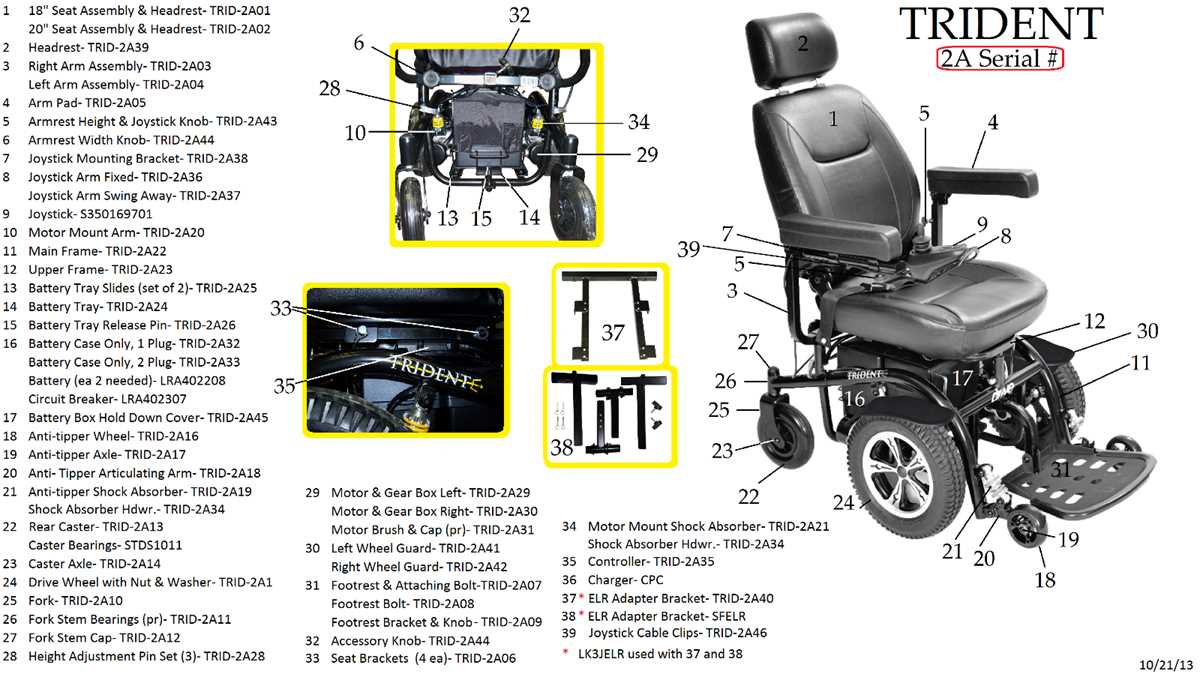

Visual Guide to Mobility Aid Component Breakdown
Locate the motor housing beneath the seat frame–removing its cover reveals the brushless DC unit, two helical gears, and a slip ring assembly. Mark connection points with masking tape before disassembly to avoid misalignment during reassembly. Gear ratios vary: standard models use 12:1, while heavy-duty variants opt for 16:1 for torque. Check gear teeth for pitting or wear; replace if surface roughness exceeds 0.2mm.
Critical Assembly Points
- Battery Trays: Positioned beneath the rear axle; most models use two 12V AGM cells. Verify tray integrity–cracks compromise structural support. Measure voltage drop under load (should not exceed 1.5V at 20A).
- Caster Forks: Inspect swivel bearings for play; excessive movement (>3mm) indicates bearing failure. Replace fork assembly if thread damage is visible on spindle bolts.
- Joystick Module: Contains potentiometers with 5kΩ resistance. Test sweep linearity–non-linear response requires recalibration or replacement. Secure ribbon cable connections with dielectric grease to prevent oxidation.
Pneumatic tires on manual push versions require 35–45 PSI; overinflation causes accelerated tread wear. Solid inserts eliminate maintenance but reduce shock absorption. For powered units, check wheel hub seals–for visible grease leakage indicates bearing failure within 100–150 operational hours.
- Disconnect power before servicing. Use a multimeter to confirm zero voltage across terminals.
- Remove anti-tip wheels before axle disassembly. Note spacer locations–standard spacing is 20mm; deviations affect tracking stability.
- Lubricate gear contacts with molybdenum disulfide paste every 500km. Avoid petroleum-based greases–they degrade polyurethane components.
- Reassemble in reverse order, torqueing spindle nuts to 25 Nm. Verify caster alignment by rolling the unit–deviation >5° requires fork adjustment.
Core Elements of a Motorized Mobility Base and Their Placement
Position the cross-brace assembly at the geometric center of the base–this dual-axis pivot ensures stability during turns while distributing weight evenly across the structure. Misalignment here causes uneven tire wear and reduces maneuverability in tight spaces.
Mount the drive motors on the rear axle assembly, securing them with 12mm stainless steel bolts to handle torque up to 45 Nm. Avoid welded attachments; vibration from daily use can fatigue the metal, leading to premature failures. Each motor should align within ±2° of parallel to the frame’s lateral axis to prevent tracking issues.
Chassis Reinforcement Points
Reinforce the lower side rails with 3mm thick aluminum gussets at stress concentration zones–typically where the seat mount interfaces with the frame. Without this, repeated load shifts (e.g., from curb drops) can deform the tubing, compromising structural integrity. Test these points with a 150 kg static load before final assembly.
The front caster forks demand a 6061-T6 aluminum alloy construction, not steel, to balance durability and weight. Ensure the fork stems feature sealed bearings rated for at least 5,000 km of travel; rubber dampeners between the fork and frame reduce vibration transfer to the user. Replace bearings every 2,000 km regardless of visible wear.
Power Transmission Layout
Route the control module wiring through a corrugated nylon conduit along the left side rail, securing it with zip ties every 15 cm. Exposed wires near the drive wheels risk entanglement or abrasion from moving components. Use waterproof connectors (IP67 rating) for all junction points to prevent corrosion in outdoor conditions.
The battery tray should sit 10 cm above ground level, directly beneath the seat pan, to lower the center of gravity. A tray made of 2.5mm thick polypropylene resists impact better than metal and won’t degrade from electrolyte spills. Secure batteries with non-conductive straps–metal strapping can short-circuit if the casing cracks.
Inspect the suspension arms for cracks every 500 km of use; these 20mm diameter steel tubes bear 70% of the payload and fail without warning if fatigued. Apply a torque of 40 Nm to the mounting bolts, using Loctite 243 on the threads to prevent loosening from vibration. Replace arms if hinge points show more than 1mm of play.
How to Identify and Label Motors and Gearboxes on Technical Schematics
Begin by locating the power transmission components–each motor typically connects to a cylindrical or rectangular housing with output shafts. Check for manufacturer markings (e.g., Maxon EC 45, Faulhaber 2232, or Pittman GM9236) stamped on the motor casing or gearbox flange. If labels are worn, measure dimensions: common motor diameters range from 22–50mm, while gearboxes add 10–30mm length depending on reduction ratio (e.g., 4:1 to 64:1). Note wire colors exiting the motor–brushed DC motors use two wires (red/black), brushless variants require three (often blue, yellow, black) for phase connections.
Refer to the schematic’s legend for standardized symbols: motors appear as circles with an “M” or “⚙” icon, gearboxes as adjacent rectangles with internal diagonal lines indicating gear teeth. Cross-reference with technical specifications–manufacturers like Parvalux or Bodine provide datasheets listing torque (Nm), RPM, and voltage (12V, 24V) directly on the housing. For unlabeled units, use a multimeter to test resistance: brushed motors typically show 0.5–10Ω, brushless units present near-infinite resistance between phases.
Gearbox Identification Guide
| Type | Visual Clues | Typical Ratios | Noise Profile |
|---|---|---|---|
| Spur (Helical) | Straight or angled teeth, aluminum housing | 3:1–20:1 | Moderate hum |
| Planetary | Compact, concentric rings, steel casing | 4:1–64:1 | Low whine |
| Worm | Cylindrical with threaded shaft, bronze gears | 10:1–50:1 | Minimal ( |
When labeling, group motor-gearbox pairs with dashed lines and annotate key specifications. For planetary units, highlight the sun gear (input) and ring gear (output) with arrows showing rotation direction–clockwise (CW) or counterclockwise (CCW). Include notes on backlash (Mobil SHC 007 for high-torque applications). If the schematic lacks detail, scan QR codes embedded in modern components or search serial numbers in manufacturer databases like Motovario’s Drivetec portal.
For complex assemblies, split the schematic into layers: power lines (thick red/black), signal wires (thin blue/orange), and ground connections (striped green). Use cross-hatching to denote torque-limiting clutches or magnetic brakes–common in high-load systems. Verify gearbox mounting orientation (flange-mounted vs. shaft-mounted) and confirm compatibility with motor shaft diameters (4mm, 6mm, or 8mm). Always double-check polarity labels: reversed leads in brushed motors will spin opposite the intended direction, risking mechanical interference.
Electrical Wiring Assembly: Detailed Circuit Guide
Disconnect the battery terminals before handling any wire connections to prevent short circuits. Label each connector with masking tape–identify the controller interface (joystick module), motor leads (brushless DC pairs), and power input (24V/36V feed)–to avoid misalignment during reassembly. Use a multimeter set to continuity mode to verify each connection point before securing with crimp terminals.
Connect the throttle signal wire (typically green or blue) to the control board’s labeled SIG port, ensuring the ground (black) and power (red) wires align with corresponding ports. For dual-motor systems, route identical color pairs to both actuators–crossing leads will cause erratic motion or burnout. Secure terminal blocks with dielectric grease to prevent corrosion, then test each joint at 1.5x rated amperage using a load tester.
Inspect the fuse holder (15A–30A rating) inline with the main power feed–replace blown fuses only after confirming no downstream shorts exist. Reattach the battery last, verifying voltage output matches the system specs (e.g., 24V ± 0.5V for lithium packs). Recheck all connections with the wheels elevated to confirm unobstructed rotation before ground testing.
