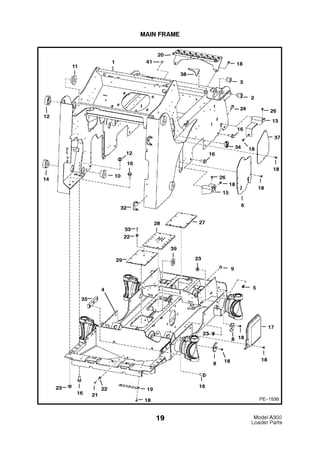

Start with the official manufacturer’s technical manual for the model–this document includes exploded views for all major assemblies. Search for section numbers matching the hydraulic pump, undercarriage, or engine components, as these areas frequently require servicing. If the manual is unavailable, use the serial number stamped on the machine’s frame to filter compatible schematics on third-party supplier sites. Avoid generic illustrations; verify part codes against the equipment’s original build sheet for accuracy.
For aftermarket replacements, cross-reference OEM part numbers with direct substitutes from vendors like IronPlanet or EquipmentShare. Pay attention to torque specifications and material grades–using incorrect fasteners or seals can lead to premature wear or failure. Keep a printed copy of critical system layouts near the work area to minimize downtime during reassembly. Always test hydraulic circuits with a pressure gauge before finalizing repairs to detect leaks or misalignments.
Undercarriage components demand precise measurement tools; track tension, roller wear, and sprocket engagement must align within 2mm tolerances. Replace worn shoes in full sets to maintain balanced load distribution. For electrical systems, trace wiring harnesses with a multimeter–corrosion or frayed insulation often disrupts sensor feedback. Keep spare hydraulic filters and fuel separators on hand, as clogged systems reduce efficiency by up to 30%.
When ordering structural parts like booms or attachment mounts, confirm thickness and weld specifications; deviations compromise load capacity. Use dealer portals for warranty-covered items, but compare pricing–some suppliers offer identical components at 40% lower cost. Store frequently serviced items (seals, belts, hoses) in climate-controlled environments to prevent degradation. Document all replacements in a maintenance log to track wear patterns and anticipate future replacements.
How to Locate Essential Components on Your Compact Loader: A Field-Ready Manual
Start by securing the official service schematic from the manufacturer’s portal–filter results by serial number range matching your unit’s model year. Print or download a high-resolution PDF to avoid glare on a tablet screen; critical labels like hydraulic line connectors (e.g., #8 on plate C) often fade under direct sunlight. Mark each section with a color-coded highlighter: red for engine internals, blue for undercarriage, and yellow for electrical harness tie-ins. Cross-reference every annotated line with the physical location during daily walk-around inspections to expedite troubleshooting.
Identify the swing-out radiator panel first–it grants access to the fuel filter (#45) and coolant reservoir (#12) without removing the cab. For track tension adjustments, measure from the idler wheel center to the top roller axis; a variance beyond 38–42 mm indicates worn pads needing replacement. Keep a magnetic tray within reach to secure bolts from the pivot arms–commonly misplaced during disassembly–and note their thread size (M12x1.75) to avoid stripping during reassembly.
Use a borescope to inspect the hydraulic pump (#23) housing for metal shavings; clean the screen filter every 50 operating hours to prevent cavitation. Replace the air pre-cleaner (#3) at the first sign of dust buildup–local dealers stock aftermarket alternatives costing 18–22 USD, but verify OEM compatibility with the intake manifold gasket (#19). When swapping the final drive motors, apply Loctite 243 to mounting bolts and torque to 110 Nm to prevent loosening under vibration.
Label every removed component with masking tape and a permanent marker, noting orientation (e.g., “Left side, 3rd tooth, facing out”). Store small parts like washers and seals in a divided tackle box sorted by size; use silicone grease on rubber grommets to extend longevity. For electrical diagnostics, connect a multimeter directly to the main relay (#7) terminals–readings below 12.4V suggest alternator failure. Keep a spare ECM fuse (#30A) in the glove compartment; corrosion on the harness near the rear axle often mimics more serious failures.
Accessing Manufacturer-Sourced Schematics for Compact Loaders
The primary source for factory-approved breakdowns is the official equipment portal. Visit Bobcat’s dedicated support section and enter the exact model identifier. The system will generate an interactive visual guide, including numbered callouts, OEM codes, and tolerances–critical for verifying compatibility with replacements. Filters allow narrowing results by assembly group, such as hydraulic circuits or undercarriage components, ensuring precise identification of required components.
- Locate the serial number plate on the machine’s frame or engine compartment to avoid mismatching revisions.
- Download the PDF manual for offline reference–these files embed meta-data like torque specifications and fluid types.
- Check regional subdomains (e.g.,
bobcat.eu) for localized part numbering nuances.
Verified Third-Party Aggregators
Specialized online repositories like PartsTree or Jack’s Small Engines cross-reference OEM schematics with aftermarket equivalents. Their databases often include user-submitted annotations highlighting common wear points–eg, quick-attach mounting plates or track tensioners–that may not be obvious in static diagrams. Use their VIN decoder tools to confirm sub-model variants (like telematics-equipped units) before ordering.
- Compare pricing across platforms: some list both new and remanufactured items, with core return options.
- Enable browser plugins that overlay exploded views on retail listings for instant verification.
- Prioritize suppliers offering 360° rotating visuals–these reveal hidden linkages not visible in flat renders.
Technical forums such as Heavy Equipment Forums host threads where operators share scans of rare shop manual segments. While unstructured, these often contain hand-annotated clarifications for ambiguous callouts–eg, differentiating between seal kits for identical-looking cylinders. Search for threads tagged with the loader’s engine family (e.g., “Kubota V2403”) to uncover supplementary documentation not indexed elsewhere.
Essential Elements Highlighted in Compact Track Loader Hydraulic Schematics
Locate the main hydraulic pump first–positioned near the engine’s output shaft, it typically delivers 20–25 GPM at 3,000 PSI. Verify its model number against service manual specifications; mismatches indicate wear or incorrect replacements. Check inlet strainers for debris; clogged filters reduce flow by 15–20%, accelerating component failure.
The directional control valve routes fluid to lift arms, tracks, and attachments. Examine spool tolerances with a micrometer–clearances exceeding 0.002 inches cause performance lag. Replace springs if tension drops below 25 lbs; weakened springs lead to sluggish response during multi-function operations. Note solenoid engagement noise; silent or irregular clicks signal electrical faults requiring voltage checks.
Relief valves protect the system by capping pressure at 3,500 PSI. Test using a pressure gauge connected to the test port–values below 3,200 PSI indicate valve seat erosion or spring fatigue. Replace immediately if failed; overpressure risks hose bursts, typically occurring at 4,200 PSI. Clean valve bodies with non-abrasive cloth to avoid scoring.
High-flow auxiliary circuits require priority flow dividers for attachments like trenchers. Inspect for oil weeping along seals–minor leaks can drop flow rates by 8–10 GPM, reducing attachment efficiency. Compare measured flow output (GPM) against rated values; deviations point to internal wear. Use OEM seals during rebuilds; third-party seals often lack temperature resistance, failing at 240°F.
Coolant and Filtration Critical Points
The hydraulic cooler maintains fluid below 180°F. Bypass effects start at 200°F, degrading viscosity. Flush coolers annually with solvent to remove sludge buildup–clogged fins reduce cooling efficiency by 30%. Replace filters every 500 operating hours; contaminated filters introduce particles larger than 10 microns, damaging pumps. Sample fluid quarterly; ISO cleanliness code should not exceed 19/16.
Interpreting Compact Track Loader Engine Schematics for Maintenance
Locate the engine assembly section first–typically marked “Powerplant” or “Prime Mover” near the front of the manual. Identify the numbered callouts corresponding to subcomponents: the fuel injection system (lines 40-55), turbocharger assembly (70-85), and cooling module (90-110). Cross-reference these numbers with the corresponding labels in the legend–misidentification of the oil cooler (item 93) versus the radiator (item 92) can lead to incorrect disassembly. Note that shaded areas in the layout indicate internal or concealed components, while solid lines demarcate visible or serviceable parts.
Key Reference Points for Component Isolation
| Section | Item Range | Critical Components | Verification Method |
|---|---|---|---|
| Fuel System | 40-55 | Injection pump, fuel filter housing | Check for flow direction arrows; reverse installation voids pressure calibration |
| Air Intake | 70-85 | Turbo inlet, intercooler piping | Inspect clamp torque specs (25-30 Nm); over-tightening cracks housing |
| Cooling | 90-110 | Thermostat housing, water pump impeller | Verify gasket alignment before sealing; misalignment causing leaks won’t show until operational temps |
Trace each line back to the source–hydraulic pathways (red), electrical wires (yellow), and fuel lines (black)–using colored overlays if provided. For multi-layer views, toggle between exploded and collapsed states in digital manuals to confirm spatial relationships; physical layouts may omit overlaps present in sectional cuts. Prioritize disassembly order by working outward from high-wear items (filters, belts) toward durable structures (block, heads) to avoid rework.
