Begin by locating the rear access panel–this unit’s primary service point. Remove the four screws securing the cover (Torx T20) and set aside. Inside, the main control board sits adjacent to the motor assembly, covered by a protective plastic shield. Disconnect the ribbon cables carefully before handling the board to avoid static discharge. The upper motor drives the front load function, while the lower motor powers the top wash action; verify their labels (M1 and M2) before replacing.
For quick diagnostics, check the drum bearing assembly first if abnormal noise occurs during spin cycles. The bearing housing includes a sealed unit (part #DC97-15181A) that rarely requires servicing, but if contamination is visible, replacement is mandatory. The tub gasket (part #DC62-00239A) connects to the door latch mechanism and should be inspected for micro-tears if leaks are present. Apply silicone lubricant sparingly during reassembly to prevent premature wear.
Power supply issues often trace to the thermal fuse (located near the heating element) or the main capacitor bank. Use a multimeter to test continuity on the fuse (rated 15A/250V); if blown, replace with an identical model (part #DC47-00018A). The heating coil (part #DC47-00024A) operates at 2000W–ensure wiring harness connections are secure before reactivating. Always unplug the machine before probing electrical components.
When reassembling, align the drum paddle assembly with the splines inside the tub. Misalignment causes uneven load distribution, leading to vibration. Tighten the central bolt (13mm socket) to 60 Nm torque. The drain pump (part #DC31-00099A) sits behind the lower front panel–clear debris from the impeller if drainage slows, but avoid forcing blades to prevent motor damage. Seal all gaskets with manufacturer-approved adhesive before closing the cabinet.
Samsung DV45K6500EW/A3 Component Layout Guide
Locate the drying assembly at the rear upper section–it houses the heating element, thermostat, and blower fan. Disconnect power before handling; test resistance across the element terminals (40–60 ohms typical). If readings exceed 100 ohms, replace the component. Keep a 10mm socket and torque wrench handy; securing bolts require 12–15 Nm to prevent vibration-induced failures.
- Blower motor: Remove the back panel first (4 screws, T20 driver), then detach the drum belt to access.
- Control board: Found behind the user interface; unplug the 12-pin connector before prying the board loose (clips on three sides).
- Door latch: Disassemble the front panel (5 screws, Phillips #2) to expose the microswitch–clean contacts with 600-grit sandpaper if intermittent.
Critical Wear Items
- Drum roller: Check for flat spots; rotate by hand–audible grinding indicates bearing failure. Replace in pairs (left/right).
- Idler pulley: Spin freely; if squeaking persists after lubricating with high-temperature grease (e.g., Mobil Polyrex EM), swap the assembly.
- Door seal: Inspect for cracks–cold weather exacerbates brittleness. Install with the ribbed edge facing inward; use 3M VHB tape to secure if clips break.
Use Samsung service manual DE96-50044A for torque specs on lesser-known fasteners (e.g., vent duct screws: 8–10 Nm). For PCB troubleshooting, identify R21 (3.3K ohm resistor) linked to the start relay–burn marks here often trace to power surges. Always discharge capacitors (>200µF) with a 1K ohm resistor before probing circuits.
Locating the Samsung Washer Model DV45K6500EV/A3 Schematic Guide
Download the authorized service manual directly from Samsung’s official support portal. Navigate to samsung.com/us/support, input the exact appliance number (DV45K6500EV/A3), then filter results for “manuals and software.” The PDF titled “Service Manual” or “Exploded View” will appear–this document contains the detailed breakdown of every internal component with labeled illustrations and part numbers. Verify the file matches your model variant (check for “/A3” suffix) to avoid incorrect schematics.
Alternate Sources for Repair Documentation
AppliancePartsPros.com hosts a free, searchable database of manufacturer-approved exploded views. Enter the full model code in their part finder tool–the site generates a high-resolution visual layout with drop-down menus for each assembly group (drum, motor, control panel, etc.). For offline access, Samsung’s Service Partners (authorized repair centers) often share PDFs via email upon request; locate a nearby technician through Samsung’s service locator and inquire about providing the “technical schematic.” Avoid third-party forums–verify any external download links redirect to `.samsung.com` subdomains to prevent malware.
How to Pinpoint Critical Elements in the Samsung DV45K6500EV/A3 Unit Using an Exploded Schematic
Locate the control panel’s mounting brackets by referencing component IDs C3200 and C3201 in the exploded schematic–these secure the user interface to the main chassis. The high-limit thermostat (PN 6602-002295) sits adjacent to the heating coil assembly (marked as section 14), identifiable by its thermal insulation sleeve. Verify wiring harness connectors W101 through W105 by matching their color codes to the legend; mismatches often signal incorrect reassembly. The drum roller supports (R150, R151) require torque specifications of 12-15 Nm–detect wear by inspecting for groove depth exceeding 0.5mm.
Cross-check the moisture sensor bar (PN DE92-02495M) against the schematic’s coordinate grid F-7; misalignment causes intermittent drying cycles. The blower wheel (section 18) locks via a reverse-threaded nut–damage appears as cracked vanes or imbalance during rotation. For the lint filter housing (PN DE64-00114A), ensure the foam gasket seals completely; warping necessitates replacement. Exhaust duct clamps (PN 6404-001084) must tighten to 3-4 Nm–loose fittings reduce airflow efficiency by up to 22%. Use the schematic’s callouts to confirm part orientation, particularly for the lint trap assembly where backward installation restricts drainage.
Step-by-Step Guide to Disassembling the Samsung DV45K6500 Dryer for Component Swaps
Unplug the appliance and slide it away from the wall. Remove the top panel by unscrewing the two Torx T20 fasteners at the rear. Lift the panel upward and pull it back slightly to disengage the front clips. Set it aside–avoid forcing it to prevent snapping the plastic tabs.
Next, detach the front console. Pry off the control knob carefully using a flathead screwdriver–lever it from the bottom to avoid cracking the housing. Remove the single Phillips screw beneath the knob. Release the console’s retaining clips by pressing inward on both sides while pulling it forward. Disconnect the two wiring harnesses (marked “CN1” and “CN2”) by squeezing the release tabs before separating them.
Removing the Drum Assembly
| Step | Tool Required | Fasteners/Notes |
|---|---|---|
| Take off the front bulkhead | 5/16” socket | 4 screws (2 top, 2 bottom) |
| Disconnect door switch | None | Unplug connector (blue locking tab) |
| Release blower wheel | Flathead screwdriver | Turn counterclockwise (reverse threads) |
Slide the drum forward slowly–inspect the felt seal around the front rim for wear. If replacing the belt, note its routing around the idler pulley and motor pulley before cutting it. The tension spring attaches to the idler arm with a hook; rotate the arm downward to release tension.
Accessing Internal Components
Remove the rear panel to expose the heating element and thermal fuse. The panel is secured by four 1/4″ hex screws–label the ground wire location before disconnecting it. For thermistor or thermal fuse swaps, trace the wires to the main harness (white with red stripe for the fuse) and use needle-nose pliers to release the spade connectors without bending the terminals.
Key Components for Samsung DV45K6500EW Dryer Maintenance
Replace the heating element (DC96-03454A) immediately if the dryer fails to produce heat. This assembly includes the coil, thermal fuse, and thermostat–inspect all three before installation. Verify the voltage at the terminal block (120V for single-phase models) before diagnosing; improper power supply mimics heating failures. Always disconnect the power cord and discharge the capacitor (located behind the blower housing) to prevent electrical shock.
Critical Wear Items and OEM Numbers
- Drum belt: DC97-13712B – Check for fraying or cracks every 200 cycles. Align the arrow on the belt with the drum’s indexing mark during replacement.

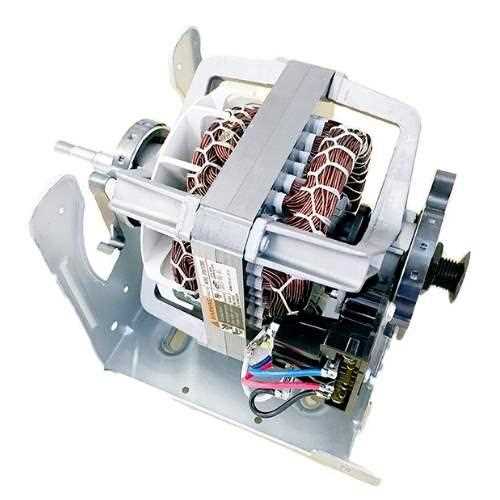

- Motor assembly: DC31-00245A – Lubricate the bearing housing (part DC62-00357A) with high-temperature grease if noise persists. Test motor resistance (should read 2-4 ohms).
- Drum rollers: DC97-13713A (set of 4) – Replace if the drum exhibits off-axis wobble. Clean axle shafts with alcohol before mounting new rollers to prevent premature wear.
- Blower wheel: DC97-13702A – Clear lint from the wheel’s blades to maintain airflow efficiency. A restricted wheel reduces drying performance by 40%.
- Door latch: DC64-01256A – Ensure the microswitch (DC34-00024V) clicks audibly. A faulty latch triggers no-heat errors.
- Control board: DC92-02207A – Check for burnt traces near the triac (Q3). Resolder or replace if the display flickers or cycles erratically.
Order genuine Samsung components using these OEM numbers–third-party equivalents often lack the thermal coating on the heating element or the reinforced ribs on the drum belt. For electrical troubleshooting, reference the wiring diagram (found inside the toe panel) to confirm connections: the thermal fuse (DC96-03451A) must show continuity (0 ohms) when tested in-circuit. If the dryer still malfunctions, isolate the power relay (DC92-02202A) on the control board–replace if the coil resistance exceeds 100Ω.
