Installing or repairing a security assembly requires precise identification of each element. Begin by locating the strike plate–the metal rectangle screwed into the frame where the bolt engages. Misalignment here often causes loose fits, so ensure screws penetrate the framing stud, not just the trim. The latch bolt extends when the handle turns; if sticky, apply graphite powder (never oil) to the internal mortise cylinder.
Examine the spindle–the square rod linking interior and exterior handles. Worn spindles create sloppy operation; lengths vary by model (commonly 2.375″ or 2.75″). For privacy variants, the inside thumbturn connects to a cam that retracts the latch. Rotate it fully to test engagement; binding indicates a bent cam or misaligned chassis.
The rose (decorative plate) often conceals critical screws securing the assembly to the slab. Remove it first to access mounting hardware. Behind every handle sits a driver–a flat metal bar transferring motion to the latch. Stripped drivers require replacement; compare shaft diameter (typically 8mm or 5/16″) before sourcing parts.

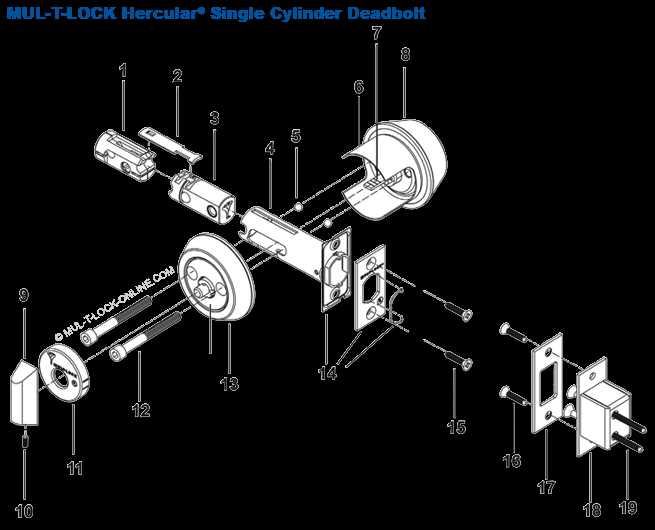

Deadbolt assemblies add a throw bolt (usually 1″ extended) and a separate strike box. Inspect the tailpiece–the thin metal arm linking cylinder to bolt. Bent tailpieces cause failure to retract; straighten carefully with pliers or replace if cracked. For keyless units, the keypad housing houses circuit boards; static discharge during installation can fry components–ground yourself first.
Understanding Security Hardware Component Breakdowns
Inspect the latch assembly first–it’s the core failure point in most entry mechanisms. A standard 1″ backset requires a deadlatch (not just a deadbolt) to resist forced entry. If replacing, match the strike plate thickness to your jamb’s material: 0.060″ for steel, 0.110″ for solid wood. Avoid universal strike plates–they compromise security by leaving gaps.
Key Internal Elements
- Spindle: 5/16″ square stock for residential; 3/8″ for commercial-grade. Confirm length–should extend 1/2″ beyond the rose on both sides.
- Cylinder: KW1 keyway fits Schlage, SC1 fits Kwikset. Avoid rekeyable cylinders under 6 pins–they’re pick-prone. Test torque resistance: standard is 2.5 Nm; premium models handle 4 Nm.
- Rose: Choose solid brass (not plated) for exterior use–plated roses corrode within 2 years in humid climates. Verify thread diameter: 20 TPI for most US brands, metric threads indicate European origins.
Trim often fails before mechanical components. Exterior handles should be ANSI Grade 2 certified (250-lb pull strength) or higher. For slider tracks, use only nylon-coated rollers–steel rollers grind away the track within 18 months. Lubricate with dry graphite; oil attracts dust and accelerates wear.
Mounting requirements dictate longevity. Screw length: minimum 1.5″ for wood, 1″ for metal studs. Use hardened #12 screws–standard drywall screws shear under 80 lbs of force. For glass installations, sandwich the escutcheon between rubber gaskets to prevent stress fractures. Never assume pre-drilled holes match–verify centers at 2.375″ or 2.75″ for US models.
- Measure the backset before ordering: 2-3/8″ or 2-3/4″ are standard, but 5″ options exist for custom builds.
- Check handing–left/right/inactive/active levers must align with your swing direction. Flip the latch tail if reversed; don’t force misaligned components.
- Test the clutch mechanism on entry handles–premium models disengage under 5 lbs of torque; budget options require 8+ lbs, creating a safety hazard.
For smart integrations, bypass the built-in relocker–it degrades within 3 years. Instead, install a secondary 9V backup battery directly to the microcontroller. Wireless modules demand minimal latency (
Key Elements of a Security Mechanism: What to Look For

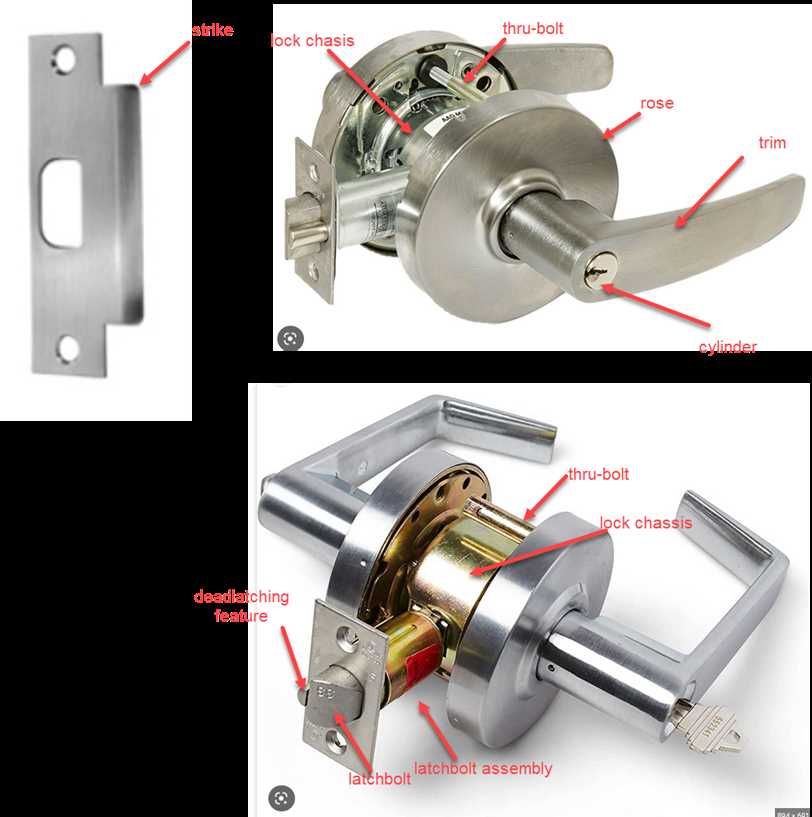

Begin inspection by locating the latch assembly–the horizontal bolt extending from the edge of the frame. This component slides into the strike plate when engaged and is the primary barrier preventing forced entry. Verify its condition: corrosion, warping, or misalignment often signal the need for replacement. The bolt should retract smoothly under rotational force from the inside handle or key cylinder without excessive resistance.
The cylinder housing sits flush within the outer escutcheon and houses the tumblers. Examine the keyway for debris–accumulated grime can jam pins, causing failure. If turning the key feels gritty, disassemble the unit and clean each pin with a dry cloth coated in graphite powder. Avoid lubricants like WD-40; they attract dust and accelerate wear. For high-security models, check for anti-drill plates–thin metal discs behind the face cap that deter tampering.
Internal Linkages and Their Functions
Trace the spindle connecting the handles–it transmits torque to the latch mechanism. A common failure point is stripped threads where the handle screw mates to the spindle. If handles spin freely without engaging the latch, the spindle may be sheared or improperly seated. The rose plate–the decorative trim behind the handle–secures the assembly to the slab. Ensure screws are tightened evenly; uneven pressure can misalign the bolt and prevent proper retraction.
The strike reinforcement is often overlooked. This metal box mounted on the jamb receives the latch and must withstand repeated impact. Inspect for cracked or bent edges–these compromise security by allowing prying tools to bypass the lock. For older frames, consider upgrading to a heavy-duty strike with longer screws that anchor into the studs instead of just the trim.
High-security variants include auxiliary deadbolts–a secondary bolt operated separately from the primary latch. Test the throw distance: it should extend at least 1 inch into the jamb. If it fails to fully engage, adjust the strike plate position or replace the internal actuator spring. Some mechanisms integrate an anti-slam feature; verify it activates by holding the inner handle while closing the slab to ensure the latch retracts and reinstates automatically.
Electronic hybrids add a solenoid or motorized actuator to automate bolt movement. Listen for a faint hum when using the keypad or fob–no sound may indicate a blown fuse or drained battery. Check the battery compartment: alkaline cells degrade faster in extreme temperatures, while lithium-ion packs offer longer lifespan but require proprietary chargers. For keyless models, inspect the keypad membrane for cracks; moisture ingress corrode circuits and trigger false inputs.

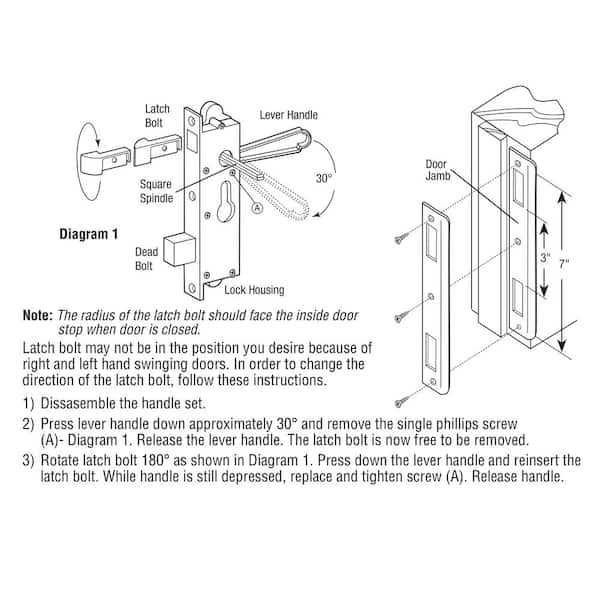

Step-by-Step Assembly of a Mortise Mechanism with Visual Guides
Begin by aligning the latch bolt with the pre-drilled edge bore, ensuring the angled face points outward. Secure it with two 1.5-inch screws through the provided strike plate holes–torque to 12-15 Nm to prevent misalignment. Next, insert the deadbolt into the upper cavity, verifying the throw extends fully (minimum 23mm) before fastening. Use a 3mm hex key to tighten the set screw on the bolt’s side, stopping when resistance increases sharply; overtightening risks damaging the internal cam.
Critical Alignment Checks
| Component | Measurement (mm) | Tool Required | Common Error |
|---|---|---|---|
| Latch backset | 60 or 70 (±0.5) | Vernier caliper | Bolt protrusion |
| Deadbolt throw | ≥23 | Steel rule | Incomplete retraction |
| Strike plate gap | ≤3 | Feeler gauge | Binding on closure |
Position the exterior lever mechanism by sliding the spindle through the rose, then attach the interior side in reverse order. Confirm both handles turn freely (≤2kg force) using a spring scale–excess resistance indicates improper spindle engagement. For cylinders with thumbturns, ensure the tailpiece aligns perpendicular to the mortise case before securing the retaining clip; rotate 90° to test functionality before finalizing screws.
Test the assembled unit on a flat surface first: retract both bolts fully, then release–listen for a single, crisp *click* (dual clicks suggest misaligned springs). Install into the prepared pocket, shimming the case with 0.5mm brass washers if side-to-side play exceeds 1mm. Connect the trim plate using No. 8 pan-head screws, countersinking slightly to avoid interferance with the escutcheon. Verify operation by cycling the handles five times consecutively without lubrication–initial stiffness is normal but should diminish after the third cycle.
Identifying Mechanical Breakdowns in Security Hardware Through Visible Wear
If the latch bolt fails to retract smoothly when the handle turns, inspect the spindle hole for cracks or excessive play. A misaligned square spindle creates friction that accelerates wearing down of internal channels, often leaving copper-colored filings near the entry point. Replace any spindle with more than 0.3 mm of rotational slack–measured with calipers–before the entire assembly locks unpredictably.
Deadbolt misalignment often manifests as resistance when engaging the strike plate. Check for polished brass or steel marks along the bolt’s beveled edge; these indicate repeated forced cycling. If the gap between the bolt and strike exceeds 3 mm when locked, recalibrate the strike with a 3 mm offset shim rather than forcing realignment, which can shear the internal cam mechanism.
Loose trim rosettes typically reveal themselves through audible clicks during operation. Tighten mounting screws to 1.2 Nm torque; overtightening risks cracking the rose plate, especially on composite materials. If screws no longer hold due to stripped threads, apply a thread-locking adhesive with shear strength exceeding 15 N·m to prevent rotation during daily use.
Worn-out latch springs lead to inconsistent self-latching. Look for rust-colored streaks along the spring coils–corrosion reduces elastic memory. Replace any spring showing more than 20% loss in compression force compared to OEM specifications, measured by a spring tension gauge set to 5 N increments.
Key cylinder wobble signals a failing retaining clip or cracked housing. If the cylinder rotates more than 5° without activating the bolt, disassemble and inspect the clip for deformation–most clips snap under 12 N·m pressure. Use a clip with a transversely oriented retaining tab if replacement is needed to prevent recurrence.
Examine strike plates for deformation after forced entries–even microscopic bending alters alignment. Replace any plate where the bolt sits more than 0.5 mm off-center when retracted. Pre-drill pilot holes for strike screws using a 2.5 mm bit to prevent wood splitting, especially on hardwood jambs.
