Start by identifying the exact component you need before ordering. The combustion chamber assembly–part #SPX3310N–includes the gas orifice, ignition electrode, and flame sensor. Verify its condition first, as failure here often mimics clogged filters or faulty valves. Use a multimeter to test the sensor’s resistance; readings between 50–200 Ω confirm functionality. If outside this range, replace it immediately to avoid inconsistent heating cycles.
Inspect the pressure switch tubing next, especially the internal diaphragm. Small cracks or moisture buildup inside the line disrupt proper pressure readings, triggering false error codes like “LF” or “PS”. Disconnect the tubing at both ends–heater port and switch–and blow compressed air through it to clear debris. Replace the tubing entirely if brittleness or leaks are present. The correct replacement diameter is 4 mm; generic tubing may not seal properly, causing repeat failures.
Examine the control board connections for corrosion or loose wiring. Terminal points for the display interface, relay, and transformer outputs are prone to oxidation, especially in high-humidity locations. Use contact cleaner (CRC 05103) on pins before reattaching connectors–never force them. For the power supply module, check the 24V transformer output with a voltmeter; a drop below 22V indicates imminent failure, requiring replacement of part #SPX4000ST.
Check the heat exchanger for scaling or soot buildup, which reduces efficiency by up to 30%. Remove the front access panel and visually inspect flue passages; white powdery deposits signal excessive scaling, requiring a descaling treatment with muriatic acid (5% solution, circulated for 2 hours). For soot removal, use a stiff bristle brush–never wire wool–to avoid damaging the stainless steel fins. Reassemble seals with high-temperature silicone gasket maker (Permatex 80050) to prevent future leaks.
When sourcing components, cross-reference serial number breaks. Early production units (serial prefixes C07–E12) use a different thermal fuse (part #SPX4000TF-N) than later models (E13–present, #SPX4000TF-R). Mismatched parts will either fail to fit or trigger safety locks. Always verify compatibility with the manufacturer’s parts lookup tool–enter the full serial number to filter options correctly.
Understanding Your Pool Heater’s Component Layout: A Hands-On Reference
Locate the combustion chamber (item #H400-200SP) near the base–this is where the igniter (part #H400-205R) interacts with the burner tray. Before disassembly, disconnect power and shut off gas supply valves at the unit’s rear. Use a 5/16-inch socket to remove the access panel screws, then store them in a magnetic tray to prevent loss; these fasteners are prone to stripping if over-tightened during reassembly.
Key assemblies to inspect next:
- Flame sensor (rod-style, #H400-210R): Positioned perpendicular to the burner, extending into the flame zone. Clean with 600-grit emery cloth if corrosion is present–oxide buildup causes false error codes (E04).
- Heat exchanger coil (copper, #H400-300SP): Check for scale at the inlet/outlet ports. Descaling requires a 1:1 white vinegar solution, circulated for 15 minutes at 120°F, followed by flushing with clean water until pH neutralizes.

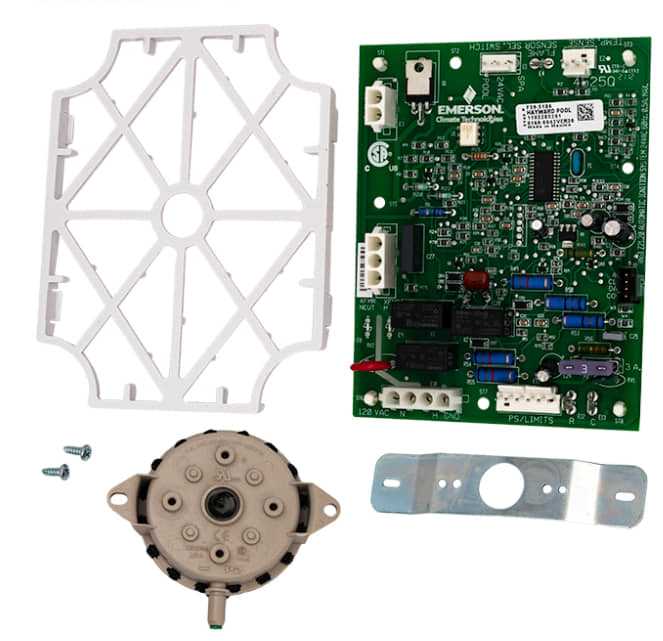

- Control board (#H400-500R): Mounted vertically behind the display panel. Toggle the reset button only after verifying 24VAC at the transformer secondary–voltage fluctuations damage microprocessors irreparably.
Replacement gaskets (#H400-110SP) must be installed with silicone-free lubricant to prevent degradation. During reassembly, torque the combustion chamber bolts to 12-15 ft-lbs in a cross-pattern sequence. The pressure switch (#H400-220R) activates at 1.5″ WC; test with a handheld manometer before finalizing repairs. Store seals in original packaging until use to prevent deformation from ambient moisture.
Troubleshooting Common Layout-Related Issues
Error code E05 indicates restricted airflow–inspect the blower wheel (#H400-400R) for debris accumulation, typically leaf fragments blocking the impeller blades. Remove the intake grille (8 Phillips screws) and vacuum the wheel housing; lubricate bearings with SAE 20 non-detergent oil if rotation is sluggish. For persistent E03 faults, check the thermal fuse (#H400-250R) continuity with a multimeter–replace if resistance exceeds 0.5 ohms. Always verify CPVC plumbing fittings at the water inlet/outlet for hairline fractures before assuming internal failures.
Finding the Authorized Exploded View for Your Pool Heater Model
Download the schematic directly from the manufacturer’s web portal by searching for the product code listed on the unit’s identification plate. The exploded view file is typically available under “Technical Documentation” or “Service Manuals” in PDF format, ensuring precise component names and reference numbers for each piece.
Locate the breakdown illustrations by cross-referencing the serial number stamped on the heater’s housing. Serial numbers starting with “H” followed by four digits correspond to specific revisions–match this exactly to avoid incorrect replacement pieces. The official portal often splits schematics by revision, so verify the last two digits before procurement.
Alternative Sources for Schematic Verification
Check distributor websites approved by the original equipment maker, such as Leslie’s Pool Supplies or Inyo Pools, which host scanned copies of revision-specific breakdowns. These platforms may include annotations highlighting common wear items–thermocouples, ignition controls, or pressure switches–that require frequent servicing.
Forge direct contact with the customer support team through their online chat or phone hotline, quoting the exact model variant and revision number. Support representatives can email high-resolution schematics with callouts for hard-to-identify elements like O-rings, gaskets, or burner assemblies, often omitted in generic diagrams.
When physical inspection of the heater reveals concealed fittings or unmarked fasteners, compare the observed layout with the schematic’s numbered callouts. Components like the gas valve or heat exchanger often have proprietary threading–use the exploded view to confirm compatibility before ordering substitutes to prevent installation errors.
Replacing Common Pool Heater Components: Step-by-Step
Turn off all power sources at the breaker before servicing the unit. Verify voltage absence with a multimeter at the control panel terminals. Label wires during disassembly to simplify reassembly–use masking tape and a marker to note connections.
To replace the thermal fuse, locate it adjacent to the heat exchanger–follow the high-limit switch wiring. Remove the retaining clip with needle-nose pliers, then slide the old fuse out. Insert the new component, ensuring proper alignment with the sensor probe facing inward; refasten the clip securely.
The ignition control module failure often manifests as erratic flame patterns or delayed ignition. Disconnect the gas valve connection first, then unthread the two mounting screws on the burner housing. Release the wiring harness by pressing the locking tab–avoid tugging wires. Install the new module by reversing steps, torquing screws to 5 in-lbs.
For pressure switch issues, start by checking the venting system for obstructions–clean the intake and exhaust ports with compressed air. Remove the switch by detaching the tubing and electrical connector, noting orientation. Test continuity with a multimeter; replace if resistance exceeds 1 ohm. Reattach tubing without kinking–use thread sealant on fittings to prevent leaks.
When swapping the heat exchanger, drain the unit completely–open the drain plug at the base. Remove the outer jacket panels after unfastening the 12 Torx screws. Disconnect plumbing unions carefully to avoid cross-threading–use two wrenches to prevent pipe damage. Slide out the exchanger, inspecting gasket surfaces for corrosion; apply fresh silicone gasket material before reassembly.
Gas valve replacement requires shutting off the gas supply at the main valve. Disconnect the pilot and main burner tubes with a flare wrench–mark positions to ensure correct reinstallation. Remove the valve mounting bolts, then lift out the assembly. Install the new valve with a new diaphragm gasket, torquing bolts in a cross pattern to 10 ft-lbs to prevent uneven sealing.
Blower motor failures typically stem from seized bearings or burnt windings. Access the motor by removing the fan blade–hold the shaft with locking pliers to prevent rotation while loosening the set screw. Disconnect the capacitor leads, noting polarity. Install the new motor, aligning the mounting bracket precisely–misalignment causes excessive vibration. Reconnect leads with heat-shrink tubing for insulation.
Reassemble components in reverse order, verifying all seals and gaskets. Pressure-test plumbing connections before restoring power–fill the unit and check for leaks at joints. Restore gas supply last, purging air from lines by cycling the unit several times. Monitor flame pattern and pressure readings during initial operation to confirm proper function.
How to Source Reliable Replacement Components for Pool Heater Models
Start with verified third-party manufacturers specializing in heating equipment for aquatic systems. Brands like Pentair, Raypak, and Sta-Rite produce compatible heat exchangers, ignition control modules, and pressure switches designed to integrate seamlessly with comparable heater units. Check technical specifications against OEM documentation to confirm voltage, BTU output, and port sizes–mismatches can lead to inefficient operation or safety hazards.
Key Components to Replace with Aftermarket Solutions
- Thermal sensors: Look for models with stainless steel probes and adjustable set points. Omega Engineering and Dwyer Instruments offer alternatives with ±1% accuracy, matching factory tolerances.
- Gas valves: Honeywell and White-Rodgers produce universal solenoid valves with 3/4″ NPT threads, compatible with ANSI Z21.13 standards–verify maximum inlet pressure (typically 8–10 WC for residential units).
- Ignition assemblies: Replace defective spark electrodes with ceramic-coated rods from Fireye or Fenwal, designed for 10,000+ ignition cycles. Ensure gap distance matches the original (usually 0.125″).
- Combustion chambers: Aftermarket stainless steel chambers from APCOM or Universal Heater Parts often feature thicker 22-gauge walls, improving durability while meeting EPA emissions requirements.
Prioritize suppliers that provide detailed cross-reference guides. For example, PoolSupplyWorld’s catalog includes part numbers for 400-series heaters, allowing direct comparison with OEM IDs. Always confirm the return policy–some vendors offer 30-day guarantees on electrical components, reducing risk if compatibility issues arise.
Test replacements systematically. After installing a gas valve, use a manometer to confirm inlet pressure stabilizes within 5–7 WC during startup. For ignition modules, monitor spark consistency over multiple cycles–erratic firing may indicate poor grounding or mismatched voltage (most require 24V AC). Keep multimeter readings handy to troubleshoot wiring conflicts.
Consider upgrades during replacement. High-efficiency burners with dual-port designs (available from Lochinvar) can improve thermal transfer by 12–15%, reducing runtime costs. For control boards, opt for models with expanded diagnostics–aftermarket variants from Intermatic include LCD displays showing fault codes, simplifying future maintenance.
