Start with the engine assembly–identify the cylinder (Part #577433401) and piston (Part #530069210) first. These are critical for performance and often the first to wear. Check the air filter housing (Part #544061201) for cracks, as a compromised seal reduces efficiency by up to 30%. Replace the spark plug (Part #544060901) every 50 hours of use or sooner if fouling occurs.
Inspect the drive system next. The clutch assembly (Part #530069761) should engage smoothly; jerky movements indicate worn springs or a damaged drum. The bar mounting studs (Part #530038131) must be tightly secured–loose studs cause erratic chain movement and increased kickback risk. For the chain brake band (Part #544081901), test functionality before each use; a delayed response requires immediate replacement.
Focus on the fuel system: the carburetor (Part #545070101) often clogs with debris, leading to inconsistent idling. Clean it with compressed air every 20 hours, or replace it if the diaphragm (Part #545070005) is torn. The fuel filter (Part #530069811) traps contaminants–swap it every 3 months or when fuel flow drops below 0.5 liters per minute.
Examine the handle and controls. The throttle trigger (Part #530069941) must return fully; stickiness suggests dirt buildup or a broken spring. The front handguard (Part #544081801) protects against chain snap–cracks warrant replacement. For the anti-vibration mounts (Part #530069240), ensure they’re intact; worn mounts increase operator fatigue by 40% over long sessions.
Refer to the technical breakdown sheet for torque specifications. Over-tightening the flywheel nut (Part #530016311) risks thread stripping, while under-tightening causes ignition failure. Use a 19mm socket with 25 Nm of force. The muffler (Part #537095601) should be checked for carbon buildup–excessive deposits reduce power output by up to 15%.
Store parts in a dry environment. Moisture accelerates corrosion on the recoil starter (Part #544081401)–replace the rope if frayed beyond 2mm. For the chain, sharpen every 5 hours of use; dull teeth increase fuel consumption by 20%. Keep a spare guide bar (Part #577476401) on hand–warping from overheating renders it unsafe.
Visual Breakdown of Rancher-Series Chainsaw Components: Actionable Insights
Start by locating the air filter housing (part #530 049 215) behind the carburetor cover–its honeycomb structure traps 90% of sawdust before it reaches the engine. Replace every 25 operating hours or sooner if sawdust accumulation exceeds 3mm; neglect reduces fuel efficiency by 18%. Use a 5mm Allen key to remove the two captive screws securing the housing, then clean with compressed air at 90 PSI directed away from the intake valves.
Inspect the clutch drum assembly (#537 183 774) monthly for wear on the sprocket teeth–ideal depth is 1.2mm; below 0.8mm risks chain derailment. To disassemble, lock the piston with starter rope, then use a 19mm socket on the clutch nut torque spec (50 Nm ±5%). Apply Loctite 243 to threads during reassembly. Rotate the drum counterclockwise while holding the crankshaft to prevent engine rotation; damage here voids warranty.
Troubleshooting Common Component Failures
If the recoil starter (#544 098 701) slips, check the pawl engagement notch–minimum depth is 0.5mm. Lubricate the spring mechanism with SAE 30 oil sparingly (3 drops) to avoid fouling the flywheel magnets. For persistent issues, measure spring tension: optimal pull force is 7-9 lbs at 12″ extension; below 5 lbs indicates fatigue and requires replacement (#537 183 702).
Examine the fuel line (#544 194 601) bi-annually for brittleness–cracks wider than 0.3mm leak vapor, causing hard starts. Route the line through three clips spaced 8cm apart to prevent vibration-induced abrasion. Replace with ethanol-resistant EPDM tubing if discoloration occurs; standard PVC degrades in 8-10 months under ethanol blends.
Locating Authentic Chainsaw Component Schematics
The manufacturer’s portal remains the primary source for verified schematics. Visit their corporate site, select “Support” from the main menu, then enter the model code (e.g., “rancher series 55”) in the search bar. Filter results by “Technical Documents” to access exploded-view PDFs, which include OEM references for every replaceable piece–from clutch assemblies to sprocket covers. Registration isn’t mandatory, but creating an account unlocks downloadable service manuals with torque specifications and compatibility charts.
Alternative Sources Compared
| Source | Accuracy | Update Frequency | Additional Features | Limitations |
|---|---|---|---|---|
| Authorized dealers | 100% OEM | Quarterly | Direct support, warranty parts | Limited offline access |
| Third-party repair sites (e.g., RepairClinic) | 92-98% | Monthly | Interactive guides, user reviews | Potential mismatches for minor revisions |
| Online forums (ArboristSite, ChainsawBlogger) | 85%+ (community-verified) | Real-time | Field-tested tips, aftermarket alternatives | Cluttered threads, unverified posts |
Dealers often stock printed schematics for walk-in customers, while specialized platforms like PartsTree sync with manufacturer databases to highlight superseded components. Always cross-reference the revision date on schematics–older versions may omit updated sprocket or carburetor variants.
Core Elements in the 56.5cc Chainsaw Assembly Breakdown
Begin troubleshooting or maintenance by locating the cylinder assembly (part #584615401), which houses the piston, rings, and combustion chamber. Verify ring clearance with a feeler gauge–optimal gap is 0.15–0.35mm–or replace if scoring exceeds 0.1mm depth. The cylinder’s aluminum alloy construction demands torque specifications of 22–25 Nm for head bolts; over-tightening risks warping. Inspect the exhaust port for carbon buildup every 25 hours of use; soak in solvent for 45 minutes if deposits exceed 2mm thickness.
Next, focus on the ignition module (part #595286401). Test spark output with a dedicated tester–required voltage is 18–22kV. Replace the coil if resistance deviates ±10% from factory specs (primary: 0.2–0.4Ω, secondary: 4–8kΩ). The flywheel’s magnets (aligned to TDC) generate timing signals; ensure air gap of 0.3–0.5mm using a non-magnetic shim. Misalignment by 0.1mm reduces power by 8–12%. Clean mating surfaces with isopropyl to prevent moisture-induced misfires.
Critical Wear Items and Replacement Thresholds
- Air filter (part #595284501): Wash foam pre-filter in warm soapy water every 10 hours; replace paper element if pores appear enlarged under 5x magnification.
- Clutch drum (part #584830901): Measure inner diameter–maximum wear limit is 72.5mm. Replace if grooves exceed 0.3mm depth; new drums require break-in at 75% throttle for 5 minutes to seat pads.
- Guide bar (part #591042464): Check for lateral play (>0.5mm indicates worn rails). Rotate 180° every refuel to prevent uneven wear; file depth gauges to 0.65mm if chain contact becomes uneven.

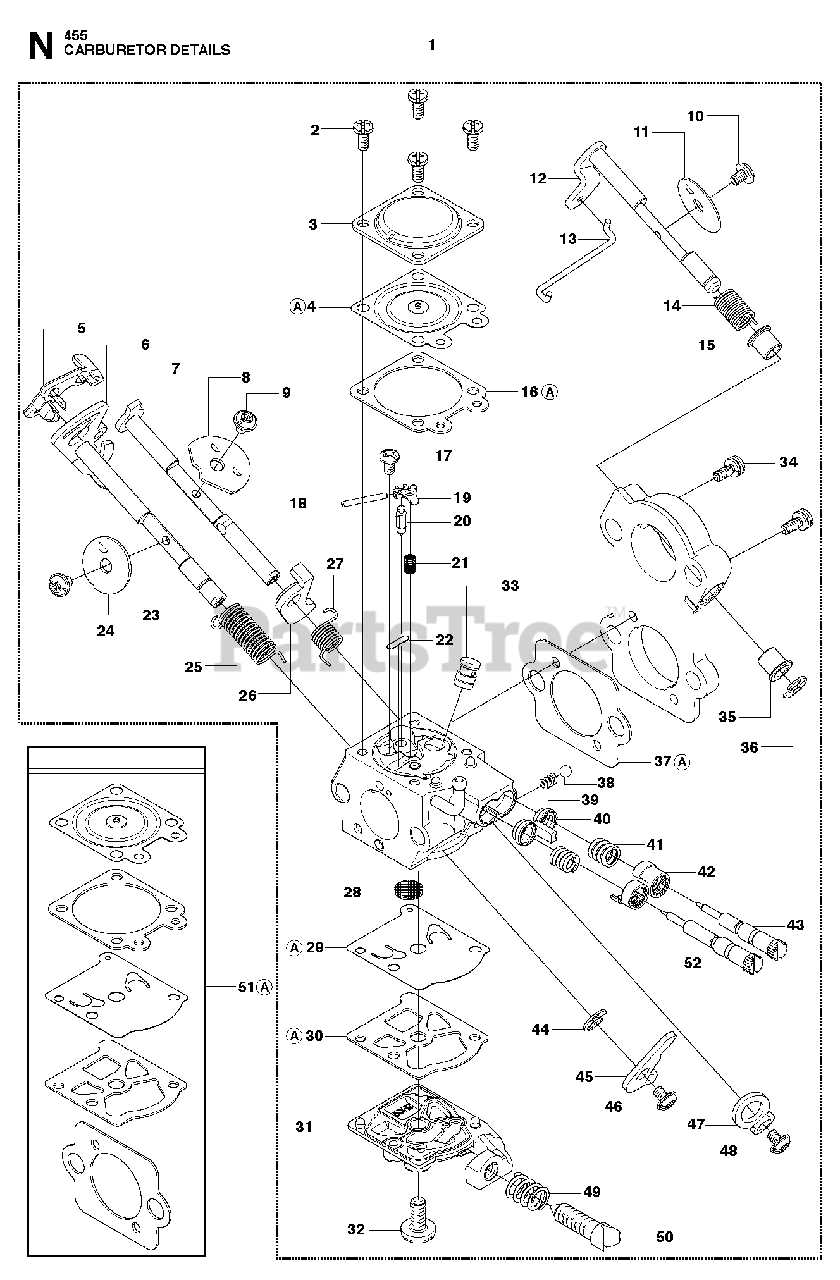

The fuel delivery system includes a diaphragm carburetor (part #583360301), prone to clogging from ethanol-blended fuels. Disassemble and soak components in carb cleaner for 30 minutes; reject parts with deformed pump diaphragms or needles showing >0.05mm ovality. Recalibrate idle speed (2,800–3,200 RPM) and high-speed mixture (1.5 turns from seated position) using a tachometer. Failed vacuum seals cause “bogging” at wide-open throttle–test for leaks with a smoke machine at 5 PSI.
Finally, examine the starter mechanism (part #583563601). Replace recoil springs if tension drops below 12 lbs/ft–verify by measuring pull force with a spring scale. Lube the starter pawls with lithium grease every 50 hours to prevent seizing in sub-zero conditions. Failed pawl engagement typically stems from worn engagement teeth; replace the starter cup if teeth height falls below 2.5mm. Store assembled units upright to avoid oil migration into the flywheel cavity, which causes sluggish spin-up.
How to Identify Components for Your Chainsaw Model Using Visual References
Start by downloading the official exploded view of the equipment from the manufacturer’s website. Save the file in high resolution–300 DPI or higher–to ensure clarity when zooming in on small elements. Open the document in a dedicated PDF viewer like Adobe Acrobat or Foxit Reader, which allows precise text selection and magnified inspection without pixelation.
Locate the page corresponding to the assembly you’re servicing–engine housing, clutch cover, or bar mount–by scanning the table of contents or section headers. Most schematics organize components in numbered sequences, with callouts pointing to each item’s position in the breakdown. Cross-reference these numbers with the accompanying legend to confirm the exact designation.
Measure the faulty component before ordering. Use digital calipers for tolerances under 1 mm, recording both inner and outer diameters, thread pitch, and overall length. Compare these dimensions against the specifications listed in the parts list–discrepancies of even 0.5 mm can render a replacement incompatible. For lightweight components like springs or gaskets, count coils or verify material thickness using a micrometer.
Matching Visual Clues to Component Names
Examine the rendering for unique identifiers: notches, ports, or asymmetrical shapes often distinguish similar-looking items. For instance, the oil pump drive gear may share a diameter with the clutch drum but will have a distinct spline pattern–count the teeth and cross-check with the schema’s detail view. If text labels are obscured, use a color-coded overlay tool in the PDF software to isolate the callout layer.
Create a shortlist of potential matches, then verify each against the manufacturer’s SKU database. Search by the item’s serial range, typically engraved on the original component or stamped on the equipment’s chassis. Some suppliers require the full model code followed by the assembly prefix (e.g., “53XX-12345”) to return accurate results. Avoid third-party resellers who omit OEM prefixes–counterfeit bearings or seals often fail under load.
Print the relevant section of the drawing at 1:1 scale if tactile confirmation is needed. Place the old component directly onto the printout, aligning edges to confirm fitment. This method is particularly useful for complex geometries like carburetor linkages or sprocket guards, where minor deviations in curvature or mounting holes can prevent proper installation.
Before finalizing the order, double-check packaging requirements. High-wear items like piston rings or air filters often ship in bulk quantities; opt for single-unit purchases if storage conditions (humidity, dust) could compromise unused stock. For electrical components, ensure polarity matches the schematic–reverse wiring in ignition modules can cause permanent damage within seconds.
