Begin by securing the official service manual for your specific model. Most manufacturers provide downloadable PDFs on their support sites–input the exact model number to avoid mismatches. If unavailable, check third-party repair databases like AppliancePartsPros or Sears PartsDirect, where exploded views of internal assemblies are searchable. These schematics typically break down the unit into sub-sections: compressor housing, evaporator coils, fan motors, thermostats, and door seals.
Before disassembly, unplug the unit and allow trapped refrigerant to stabilize for at least 30 minutes. Wear protective gloves–sharp metal edges and residual oils from condensers can cause irritation. Use a quarter-inch ratcheting screwdriver and a torx T20 driver for most fasteners; larger industrial models may require a socket set up to 10mm. Keep small screws organized: label plastic bags with removable tape marking the extraction point (e.g., “rear panel lower left corner”).
Focus on high-failure zones first: condenser coils at the rear, often clogged with dust and pet hair, reduce efficiency by 15-20%. Clean with a stiff-bristle brush and vacuum–avoid compressed air, which can embed debris deeper. Evaporator fan blades accumulate frost; defrost by reversing polarity or using a hairdryer on low heat. Door gaskets degrade over time–test with a dollar bill: slide it between the seal and frame; if it doesn’t grip with resistance, replace the gasket to prevent temperature fluctuations.
For electronic control boards, reference the wiring harness layout in the schematic. Color-coded wires denote function: black (ground), red (power), yellow (defrost cycle). Cross-check connections with a multimeter–set to 20V DC–probing voltage at the control panel while simulating door switches or temperature adjustments. If readings deviate by more than ±5%, suspect faulty relays or corroded terminals.
Sealed systems (compressors, capillary tubes) should not be modified unless certified. Refrigerant leaks appear as oily residue near joints; use a UV dye kit for detection. Recharging requires EPA 608 certification–attempts without proper tools risk damaging the unit or personal injury from high-pressure gases. Always vent the workspace to avoid asphyxiation hazards from inert refrigerant byproducts.
How to Read Technical Schematics for Cooling Units
Locate the model number sticker–typically affixed to the interior sidewall near the top or along the door frame–before attempting repairs. Cross-reference this identifier with the manufacturer’s official breakdown of components on their support portal. Third-party resources often omit critical updates, leading to mismatched fixes that void warranties or damage systems further. Stick to sanctioned schematics where symbols like dashed lines indicate electrical wiring paths, while solid arrows denote coolant flow or mechanical linkages.
Identify sub-assemblies by examining color-coded sections within the visual guide. Evaporator coils, compressors, and thermostats each occupy distinct zones, usually grouped left to right or top to bottom based on internal routing. A red-highlighted area signals high-voltage areas requiring power disconnection prior to handling, whereas grey-shaded components denote sealed sections not meant for DIY service. Misreading this layout risks personal injury or premature wear from incorrect reassembly sequences.
Trace circuit paths methodically by following numbered callouts connected to annotated legends beneath the main illustration. Each terminal should match its corresponding label–confusing TB2 with TB3 on a capacitor bank, for instance, can fry control boards if power is restored while connections are reversed. Use a multimeter set to continuity mode to verify each step instead of relying solely on the schematic’s diagram accuracy, as some revisions lag behind production adjustments.
Dispose of obsolete diagrams older than 24 months; newer cooling cycles incorporate variable-speed motors and adaptive defrost timers invisible in earlier versions. Download the latest PDF directly from the supplier’s website rather than relying on cached search engine results that often return expired documentation. Print a scaled version on tamper-proof paper to prevent smudges during service–a minor oversight like grease stains can obscure critical junction points during a midnight troubleshooting session.
Store digital schematics offline on a ruggedized flash drive formatted in exFAT for compatibility across devices; cloud-based versions may update silently, altering vital details between login sessions without warning. Mirror physical copies inside a sealable binder segregated by subsystem–evaporators, compressors, fans–to speed retrieval during emergencies. Avoid marking directly on these copies; use removable adhesive tabs to flag areas needing attention instead, preserving clarity for future diagnostics.
Where to Locate Authentic Repair Schematics for Your Cooling Appliance Online
Begin your search on the brand’s primary support portal at electroluxgroup.com/customer-care. Select your region, then filter by product category–domestic cooling units–and model number. The site hosts downloadable PDF manuals featuring exploded-view illustrations for nearly all current and discontinued series, including exact component numbers and torque specifications for fasteners.
For discontinued models manufactured before 2010, head to sparesHub.eu. Their archive spans European markets and offers interactive schematics that let you hover over components to reveal part codes, compatibility notes, and inventory status across authorized distributors. Filter results by serial number prefix to eliminate guesswork.
If schematics aren’t available on the main sites, check manuals.plus. Their repository aggregates thousands of scanned service guides, including older models like the ER8899BX and S87400. Use the search bar with the exact model code stamped on your unit’s compliance plate–found inside the left-hand cabinet wall or beneath the crisper drawers–to bypass irrelevant results.
Local dealer portals often host exclusive schematics for regional variants. In North America, visit appliancepartspros.com and enter your model code; their database generates a visual breakdown with individual prices, multi-angle images, and customer reviews detailing installation quirks. Australian users should bookmark appliancesonline.com.au, which lists compatible alternatives for imported models.
When official sources yield nothing, try fixya.com. While primarily a troubleshooting forum, it crowdsources repair experiences, often linking to uploads of rare schematics shared by technicians. Search using your model’s full alphanumeric code–post-2015 units typically follow the format “EHE****X”–and filter by the “Guides” tab for direct attachments.
For immediate access without downloads, use YouTube’s search function with your model code plus keywords like “disassembly guide” or “exploded view.” Certified repair channels like “RepairClinic” and “PartSelect” overlay schematics onto step-by-step teardown videos, labeling each component as it’s removed.
Always cross-reference schematic details with the serial tag on your unit. Production runs occasionally receive silent revisions–small changes like thermal fuse upgrades–visible only in the precise version of the repair manual tied to your build date. If discrepancies arise, contact the brand’s live chat with the product’s 15-digit EAN code ready; agents can push exact schematics directly to your email within hours.
Locating Key Components in Your Cooling Appliance Manual

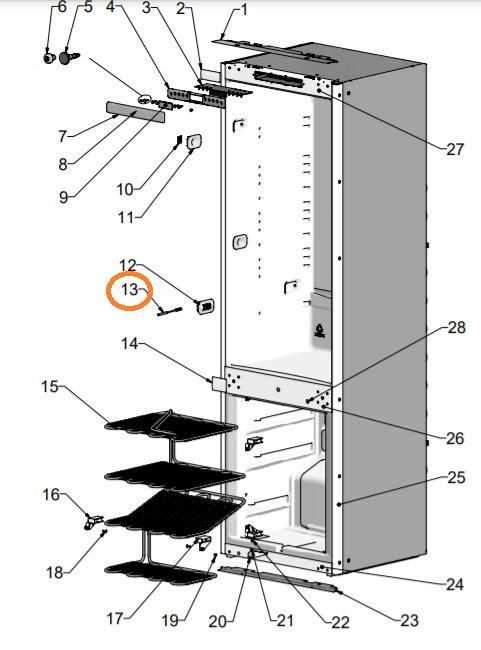

Begin by opening the user guide to the exploded view section, typically found under “Component Breakdown” or “Assembly Details.” Check the page corners–manufacturers often highlight this area with a tab or color-coded edge. If the guide lacks tabs, scan for headings mentioning “internal structure” or “replaceable elements” to find the right illustration.
Trace the evaporator fan with your finger along the back wall schematic. It’s usually marked as a circular object with curved lines indicating airflow, positioned near the cooling coils. If the coils appear labeled as “condenser” or “frost coils,” the fan sits directly above them in most models built after 2015.
To spot the defrost heater, follow the thin, elongated shape running parallel to the coils. The diagram annotates it as “heater strip” or “defrost element,” occasionally pairing it with a thermostat displayed as a small, rounded box adjacent to the heater. Older schematics might depict it as a wavy line, while newer ones use a zigzag pattern.
Identify the start relay by locating the compressor–shown as a black or gray cylinder at the base. The relay attaches to its side, drawn as a rectangular block with wires extending toward the motor. Some illustrations simplify it to a small square labeled “PTC” or “overload protector,” but it’s always linked to the compressor’s wiring harness.
Locate the door seal by finding the thick, rubberized outline framing the inner compartment’s edges. The guide may label it “gasket” or “magnetic strip,” sometimes exaggerating its thickness for clarity. If the seal appears detached in the drawing, check the opposite page for installation arrows pointing toward the door’s hinge side.
The control board sits behind the rear panel, depicted as a green or white rectangle with multiple small circles (terminals) or lines (connections). Schematics for smart models include a separate module labeled “display PCB” or “main PCB,” usually positioned above or beside the board. If wires converge into a single cluster, the board lies at that junction.
Water filters appear as cylindrical objects with an inlet and outlet tube, often placed near the top shelf or base grille. Diagrams mark them “carbon filter” or “ice maker filter,” sometimes including a partial cutaway to show internal mesh. If the filter lacks labels, follow the water line from the dispenser–it connects directly to the filter’s housing.
For precise identification, cross-reference part numbers shown next to each element. Printed near components in bold or italics, these strings (e.g., “242015502” for a thermistor) match the labels on official repair kits. If the number’s obscured, check the appendix for a “Parts Catalog” or “Numerical Index” to confirm.
