Begin by identifying the model year of your machine–serial numbers are typically stamped on a metal plate beneath the seat or along the frame. Cross-reference this with the manufacturer’s official schematic, which groups components by assembly zones: cutting deck, drive system, and engine block. Avoid relying on third-party reverse-engineered charts; these often mislabel gears, pulleys, or electrical connectors, leading to installation errors.
For the 42-inch deck, focus on blade height spacers (part #490-208-M008), belt tensioners (#712-0444A), and spindles–these fail most frequently under load. Replace all three spindles simultaneously, even if only one shows wear; uneven wear patterns will warp the deck within 50 operating hours. Use a torque wrench set to 55 ft-lbs when reinstalling spindle bolts to prevent thread stripping.
Consult the exploded view document released for your specific serial range–early 2015–2019 units feature a heavier gauge idler arm (#712-0444D) compared to post-2020 models. Ignoring these variations risks improper belt routing, causing premature engagement failure. Download the PDF from the equipment provider’s parts portal; search by the 14-digit product code found on the original product sticker.
Order components in complete kits rather than individual pieces–bearings, seals, and hardware kits for the transmission case (kit #490-403-M019) include all necessary gaskets, which are brittle and crack when removed. Skip aftermarket filters; OEM fuel filters (#792-05096) are calibrated for the 4-cycle Kohler engine’s micron tolerance and prevent varnish buildup in the carburetor.
Essential Breakdown for Maintaining Your 42-Inch Rider: A No-Nonsense Reference
Replace the mower deck belt every 100 hours of operation–earlier if cracks appear. Use OEM belt #754-04250 (42-inch deck) to avoid premature wear. Store the belt indoors, away from moisture, to extend its lifespan by 30%.
Track the serial number location (left rear frame, near the engine mount) before ordering components. Match the first five digits to determine the production year: 14xxxx (2014), 15xxxx (2015), etc. This prevents compatibility errors with replacement decks, pulleys, or spindles.
Critical Wear Components: Intervals and Replacements
| Component | Usage Interval | Replacement Part Number | Signs of Failure |
|---|---|---|---|
| Deck blades | 25–50 hours | 954-04200 (set of 3) | Uneven cuts, nicks, visible bending |
| Air filter | 50 hours | 490-850-0008 (paper) / 490-230-0003 (foam) | Reduced engine power, excessive vibration |
| Fuel filter | 100 hours | 496-027-0011 | Hard starts, stalling at high RPM |
| Spindle assembly | 200–300 hours | 734-04201 (left) / 734-04202 (right) | Excessive vibration, blade wobble |
Lubricate the PTO clutch bearing (part #687-0226) with lithium grease every 50 hours. Remove the clutch cover, apply a pea-sized amount, and rotate the pulley by hand to distribute evenly. Over-greasing causes slippage.
Adjust the deck height only when cold. Loosen the locknut on the adjustment lever (part #757-0720) and align the indicator with the desired notch–never force it. Misalignment shears the lift rod within 20 hours.
Troubleshooting Common Failures
If the cutting unit vibrates excessively, inspect the blade adapter (part #618-04346) for hairline cracks. Replace if cracked–do not weld. Check blade balance by hanging each blade horizontally on a nail; a properly balanced one will stay level.
For engine surging, drain fuel and clean the carburetor bowl (part #790-137-336) with compressed air. Reinstall the bowl gasket (part #738-05193) to prevent vacuum leaks. If surging persists, replace the fuel line (part #530-09290).
Store the unit with the fuel tank empty or treated with stabilizer. Run the engine for 5 minutes after adding stabilizer to circulate it through the system. This prevents gummed fuel filters and clogged jets after winter storage.
Locating Genuine Schematic PDFs for Your Riding Mower Model
Begin your search on the manufacturer’s main support portal. Enter the exact model designation–HT42” or TB42” cut deck–in the search bar to filter for verified documentation. The site hosts downloadable PDFs for all primary assemblies, including engine breakdowns, deck components, and transmission schematics, labeled with part codes matching the serial number plate on your unit.
The official platform categorizes schematics by subassembly rather than bundling everything into one file. Look under “Deck & Blade Assembly” for spindle housing layouts, “Drive System” for transaxle wiring, and “Engine Group” for carburetor diagrams. Each PDF opens with a thumbnail preview to confirm relevance before downloading.
For offline access, authorized dealers maintain digital archives of schematics. Contact a service center listed on the manufacturer’s site, specifying your serial number–most will email the exact PDF within hours. Avoid third-party hosts; they often strip part codes or miss critical revision updates.
Exploded-view diagrams for discontinued cutting decks are archived in legacy sections of the support portal. Use the advanced search filter “Include Discontinued Models” to surface older PDFs. These files retain hyperlinked part numbers leading directly to inventory status and pricing.
Serial number-specific diagrams are embedded in the online parts lookup tool. Input your full serial tag–usually stamped on the frame near the right rear tire–to generate a personalized schematic. The tool overlays part availability with color-coded indicators: green for in-stock, yellow for backorder, and red for discontinued.
Corporate social media accounts occasionally post direct links to updated PDFs. Check pinned tweets or Facebook highlights for bulk downloads–these frequently bundle multiple schematics into a single ZIP for easier storage and printing.
Service bulletins, accessible through dealer logins, sometimes include revised diagrams not yet posted publicly. Request access through a registered retailer; they can forward bulletins containing CAD-style layouts with tolerances and torque specs omitted from consumer-facing PDFs.
For immediate needs, download the mobile app designed for technicians. It caches the latest schematics offline and include interactive layers–tap any component to reveal OEM part numbers, compatible alternatives, and 3D rotations for complex assemblies like steering linkages.
Step-by-Step Breakdown of the 42-Inch Cutting Deck Assembly
Begin by securing the mandrel assemblies–the spindle housings that anchor the blades. Each mandrel on this model includes a bearing case, pulley, and spindle shaft; verify their alignment before tightening the mounting bolts to 45 ft-lbs. Misalignment here causes excessive vibration and premature blade wear. Use a torque wrench for consistency; hand-tightening risks loosening under operation.
The deck shell, a 12-gauge steel stamping, forms the structural base. Inspect the reinforcement ribs along the underside–these distribute cutting stress and prevent flex. If replacing, ensure the new shell matches the four mounting tabs that align with the mower’s frame. A single misaligned tab alters blade height by up to 0.25 inches, compromising cut quality.
Locate the belt idler pulleys–three in total–positioned to maintain tension on the drive belt. The primary idler (near the front) requires a spring-loaded arm for automatic tension adjustment. Lubricate the pulley bearings annually with high-temperature grease (NLGI #2) to prevent seizing. Skipping this step accelerates belt fraying, especially under wet grass conditions.
The anti-scalp wheels (two on this deck) attach via adjustable rods threaded into the shell. Set their height to 0.5 inches above the blade tip–this prevents gouging while allowing slight terrain following. Remove and clean the wheels every 25 hours of use; debris buildup in the threads jams adjustments, forcing uneven cutting. Replace if the wheel tread wears below 70% of its original diameter.
Install the discharge chute last. The deflector flap (if included) should pivot freely without touching the blade. Test the flap by manually rotating the blades–clearance should remain 0.125 inches minimum to avoid snagging. Secure the chute with self-tapping screws (not bolts) to prevent loosening from vibration. A loose chute redirects clippings unpredictably, creating uncut patches.
Check the blade overlap by measuring from the center of one blade tip to the adjacent blade’s center–optimum spacing is 21 inches. Deviations beyond ±0.5 inches cause striping or scalping. Replace blades if the cutting edge wears below 2.5mm thick or exhibits curl at the tips, which reduces lift and dispersal efficiency. Balance blades using a blade balancer before reinstalling; an imbalance of just 5 grams generates enough vibration to crack the spindle housing over time.

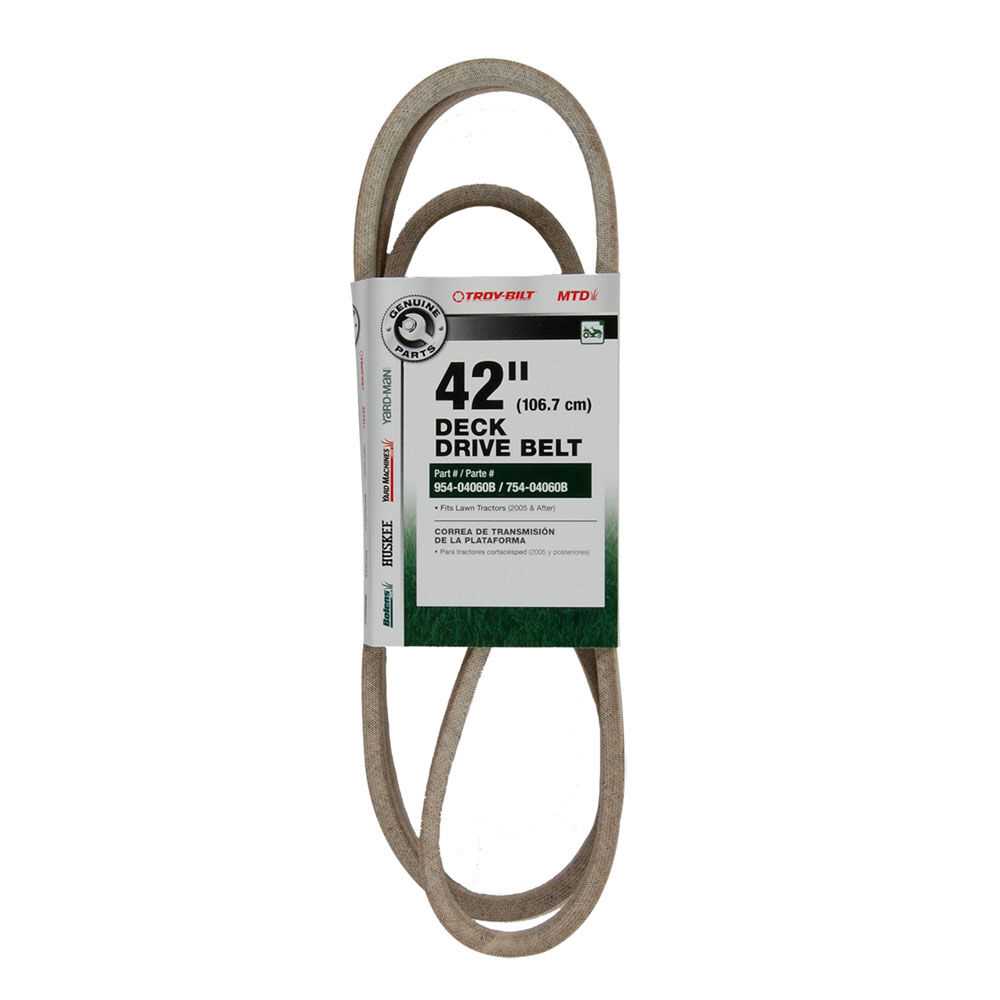

The drive belt (typically a 5/8-inch Kevlar-reinforced V-belt) routes over the engine pulley, idler pulleys, and mandrel pulleys. Route it according to the belt path diagram stamped on the deck shell. Tension should allow 0.5-inch deflection mid-span when pressed–over-tensioning stretches the belt, while under-tensioning causes slippage. Replace if cracks appear or if the belt edges fray beyond 1/8 inch.
How to Locate and Purchase Key Components for Your 42-Inch Riding Mower
Begin by checking the model number on the chassis plate, usually found beneath the seat or near the engine. This number ensures compatibility when sourcing blades, belts, or filters. For the 42-inch deck, common wear items include cutting edges (OEM #731-07360), spindle assemblies (OEM #942-0740), and drive belts (OEM #754-0452A). Compare these against the exploded views in the service manual to verify dimensions–blades should measure 21 inches from tip to tip, while belts must match the original pulley groove width.
Use the dealer locator tool on the manufacturer’s site to find authorized suppliers. Independent retailers often list compatible alternatives under different brand names, such as MTD Gold or Cub Cadet equivalents. For example, a replacement deck belt may appear as “Yard Machines 42-inch drive belt” (part #954-04178). Always cross-reference these with your machine’s serial number to avoid mismatches.
- Air filter: Replace every 25 hours of use or annually. The foam pre-filter (OEM #794-0107) and paper element (OEM #792-0747) are sold as a kit. Do not clean the paper element–install a new one to prevent engine damage.

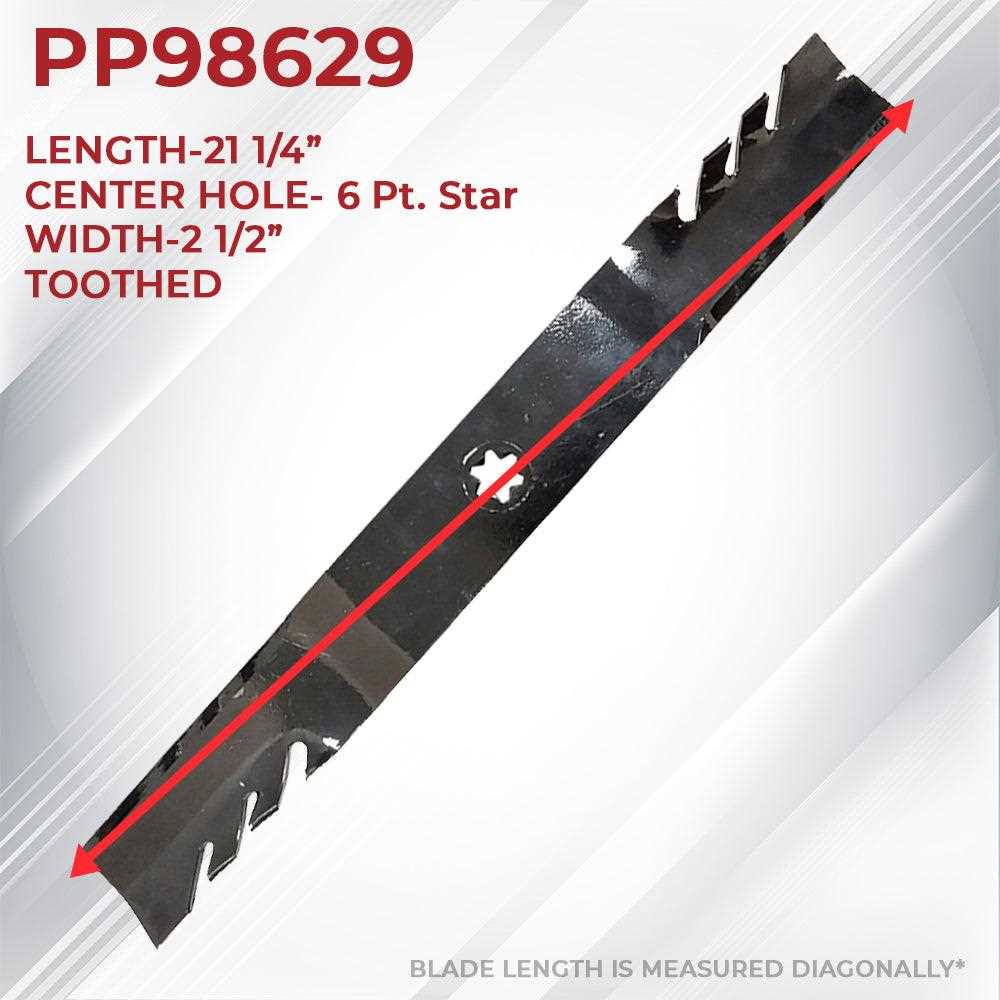

- Blades: Sharpen or replace when cutting performance declines. High-lift blades (OEM #731-07360) are critical for bagging; mulching blades (OEM #731-1640) require a different deck configuration. Torque to 45–55 ft-lbs.
- Spark plug:
Champion RC12YC (gap: 0.030 inches) typically fits. Replace every 100 hours. If fouling occurs, check fuel mixture or air intake.
Order directly from the manufacturer’s parts website using the “shop by category” filter. Input your model’s prefix (e.g., “13”) to narrow results. Third-party marketplaces may offer faster shipping but verify seller ratings–look for companies with at least 98% positive feedback. Avoid listings without photos of the actual part; counterfeit components often lack OEM markings like part numbers or material codes.
Troubleshooting Before Replacing
If the mower vibrates excessively, inspect blade balance with a magnetic balancer. Uneven wear on belts suggests a misaligned pulley–check tension with a spring scale (ideal: 45–55 lbs). Stripped deck wheels (common on rough terrain) can be swapped for reinforced nylon replacements (aftermarket #F725-04316).
- Drain fuel before storing for winter. Empty the tank or add stabilizer.
- Lubricate pivot points (steering column, deck lift linkages) with marine-grade grease.
- Remove blades and coat with rust inhibitor if storing outdoors.
For hard-to-find items like transmission mount bushings (OEM #941-0619), contact a salvage yard specializing in outdoor power equipment. Provide the year of manufacture–pre-2015 models may use discontinued components. When in doubt, consult a local small-engine mechanic; some shops keep bins of used parts organized by machine type.
