Begin by locating the drive shaft housing–the elongated metal tube extending from the engine to the cutting head. This component channels rotational force and requires periodic inspection for debris buildup, which can impede performance. If vibration increases during operation, disassemble the housing and clean the shaft thoroughly using a wire brush. Lubricate the splines with a light machine oil (ISO VG 32-68) before reassembly to prevent premature wear.
Identify the flywheel assembly at the engine’s rear. This cast-metal disc regulates momentum and houses the magnets for ignition. Misalignment here causes erratic starting or sudden power loss. Check the flywheel key–a small rectangular metal piece securing the flywheel to the crankshaft. Replace it immediately if bent or worn, as even minor damage disrupts timing.

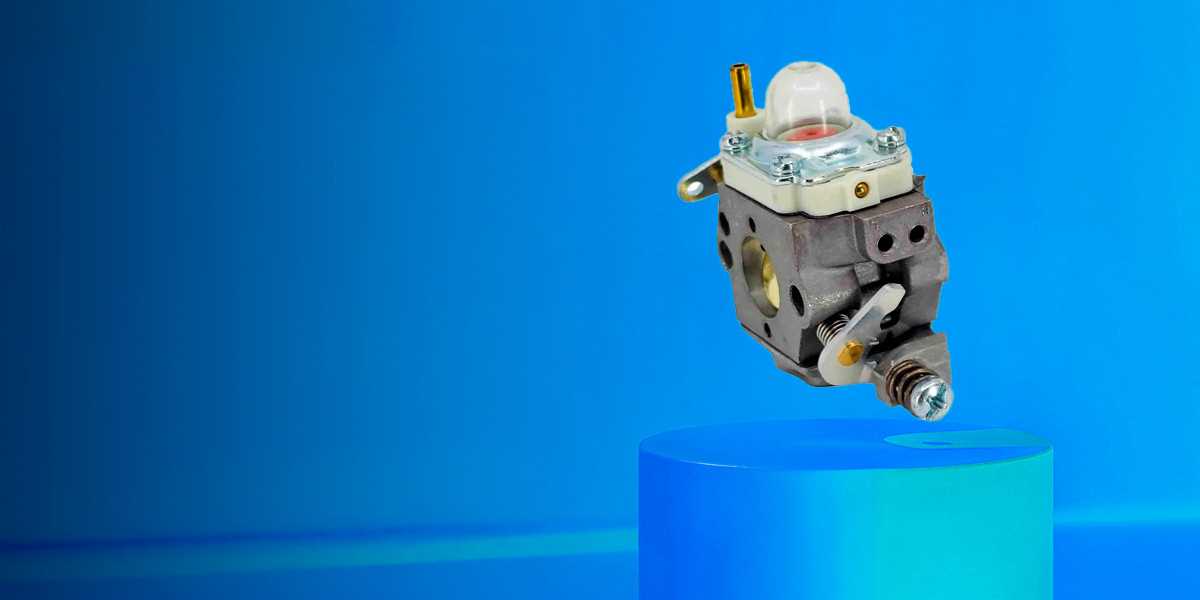

The carburetor linkage connects to the throttle trigger via a small wire spring. Adjust the idle speed by turning the screw marked “L” (low speed) clockwise to enrich the fuel mixture or counterclockwise to lean it. For models with primer bulbs, press it 3-5 times before cold starts–excess pumping floods the engine, while insufficient presses delay ignition.
Inspect the air filter housing beneath the engine cover. Foam or paper filters clogged with dust reduce airflow, forcing the engine to run rich. Tap foam filters against a hard surface to dislodge particles, or replace paper filters every 10 operating hours in dusty conditions. Avoid washing filters with solvents, which degrade adhesive bonds in the filter media.
The blade guard attaches to the cutting head with two screws. Verify that the screws are torqued to 4-5 Nm–over-tightening cracks the plastic, while loose screws allow debris to bypass the guard. Replace guard screws annually, as thread wear compromises grip. For nylon blades, sharpen the cutting edge at a 30-degree angle using a fine metal file, removing no more than 2mm of material to maintain balance.
Trace the fuel line from the tank to the carburetor. Brittle or cracked lines leak vapor, causing hard starts or engine stall. Replace lines every two seasons, using marine-grade fuel line (3/16″ ID) to resist ethanol corrosion. Route the line away from the muffler, as heat accelerates deterioration. Install an inline fuel filter (25-micron) to trap sediment from low-quality gasoline.
Guide to Identifying Components in Your Trimming Tool
Start by locating the cutting head assembly–this section includes the blade housing, shield, and debris deflector. Check for wear on the guard (typically over 0.5mm grooves indicate excessive use) before attempting any disassembly. Replace if clearance exceeds manufacturer specs, usually found in the service manual under “blade gap tolerances.”
The drive mechanism connects to the engine via a flexible coupling or clutch. Look for cracks or fraying in the intermediary shaft–these often fail before the engine shows stress. Test alignment by rotating the shaft manually; any binding suggests bent components that require straightening or replacement.
Fuel and air filters sit behind the engine cover. The air element uses a dual-layer foam design; wash with soapy water every 20 hours of operation, then re-oil after drying. The fuel screen should be inspected for sediment every 10 hours–tap it against a hard surface to dislodge particles rather than blowing it out with compressed air, which can damage the mesh.
Electrical System Checks
Inspect the ignition module for corrosion on the contact points. Clean with electrical spray (avoid sandpaper, which can leave conductive residue). The spark plug requires gapping at 0.025 inches; use a feeler gauge rather than visual checks, as improper gaping leads to inconsistent firing or hard starts.
The throttle linkage connects to the carburetor via a ball joint–lubricate this joint with graphite powder, not grease, to prevent debris buildup. If the linkage feels loose, tighten the nut by one-quarter turn increments until resistance increases. Over-tightening risks stripping the threads, which requires replacing the entire arm.
Structural Integrity and Adjustments
The handle assembly bolts directly to the main frame with four M8 screws. Torque these to 22-25 Nm; loose connections cause vibrations that accelerate wear on the cutting head bearings. For vibration damping, ensure the rubber bushings are free of cracks–replace if they’ve hardened (shore durometer below 40A indicates degradation).
Height adjustment levers rely on a ratcheting plate–check for stripped teeth or bent springs. Apply a light coat of lithium grease to the plate before reassembly to reduce friction. If the lever slips during operation, replace the detent ball and spring immediately; continued use can shear the adjustment post cleanly off the shaft.
Locating Critical Elements in a Lawn Trimming Tool Breakdown
Begin by isolating the cutting assembly–this cluster typically includes a razor disc (measured by diameter, often 7–9 inches), a spindle bolt (12–14mm thread), and a blade guard with integrated vents for debris deflection. Verify the alignment tabs on the guard; misalignment during reassembly leads to uneven wear or premature motor strain. The spindle bolt’s torque specification (usually 15–20 Nm) must match the manufacturer’s data–overtightening warps the disc, while under-tightening risks detachment during high-speed operation. If the blade shows chipping, cross-reference its thickness (2.5–3mm) against compatible replacements to avoid imbalance.
Trace the drive system: the electric or gasoline-powered variant’s crankshaft connects to a centrifugal clutch via a splined shaft or keyway. Inspect the clutch springs for fatigue–replace if elongation exceeds 10% of original length. The flywheel, positioned adjacent to the clutch, functions as a heat sink and ignition initiator in combustion models; ensure its magnets remain uncontaminated by ferrous debris to prevent misfire. On battery-powered units, the brushless motor’s rotor should exhibit minimal lateral play (tolerance under 0.1mm); excessive play necessitates bearing replacement.
Examine the handle and throttle linkage last–here, a damaged throttle cable (inner wire gauge 1.5mm) or cracked housing demands replacement, not repair. The trigger assembly’s return spring must possess consistent tension; a weak spring causes erratic RPM fluctuation. For models with adjustable shaft angles, confirm the locking collar’s serrations engage fully–partial engagement enables unintended pivoting during operation. Store removed fasteners by thread size to eliminate cross-threading during reassembly.
Locating Manufacturer-Assigned Component IDs on Your Trimmer’s Schematic

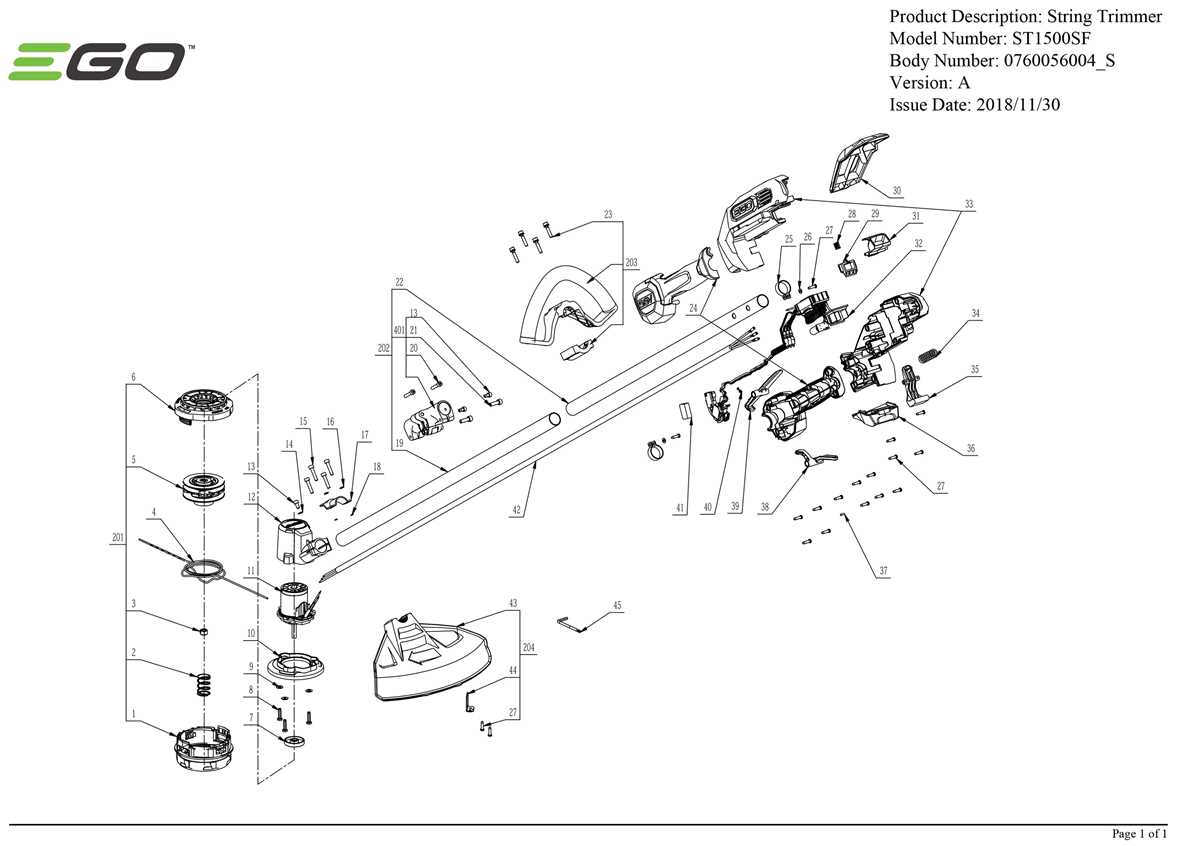

Check the upper-right corner of the exploded view–OEM identifiers appear next to each illustrated piece in bold, alphanumeric codes starting with “E” followed by four digits (e.g., E0723). These labels match the inventory list on the manufacturer’s service portal and the serialized sticker on the physical unit.
Key Areas to Target
- Cutting head assembly: Blade mounts, spacers, and guard shields display codes directly on the diagram’s edges; cross-reference with the decal beneath the fuel tank.
- Engine housing section: Gaskets, seals, and crankcase bolts show IDs beside their illustrations; verify against the embossed numbers on the metallic surfaces.
- Handle controls: Levers and cables feature numerical designations near the pivot points; compare with the engraved serials on the underside of each component.
Look for a miniaturized version of the schematic printed on the product’s undercarriage–this condensed reference duplicates the primary OEM codes, confirming alignment with the full-sized blueprint. Discrepancies indicate revised revisions; always prioritize the physical stamping over printed references.

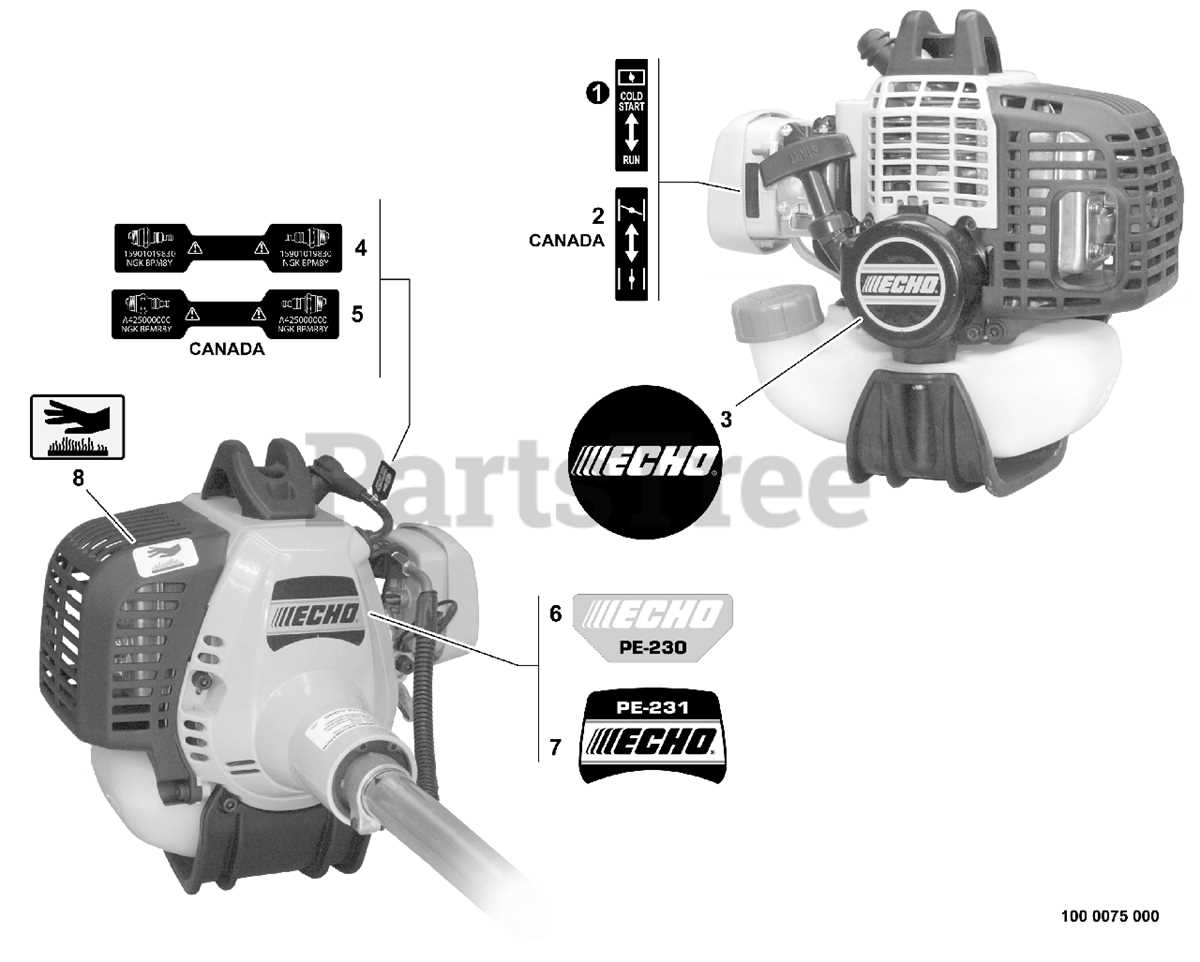

For legacy models (pre-2018), consult the microfiche archive accessible via the brand’s authorized dealer portal–input the unit’s model prefix (PE-series) to retrieve the exact schematic where older codes were housed in dashed boxes adjacent to each part outline.
- Download the high-resolution PDF from the official technical library–imperfections in low-quality scans obscure small-font codes.
- Zoom to 200% view, focusing on the perimeter margins; OEM IDs often appear in light gray or subdued hues.
- Utilize the “find” function (Ctrl+F) for the term “Ref” to jump directly to annotation clusters.
If the code appears hyphenated (e.g., E0345-1), note the suffix–it denotes a variant sub-assembly specific to certain serial ranges. Cross-check with the unit’s build number etched on the crankshaft housing.
Contact a certified service center for hand-marked schematics; technicians often annotate revisions not yet reflected in digital inventories. Obtain a faxed copy if latency exceeds 48 hours–retention rates for legacy documents degrade post-2020 migration.
Store the verified OEM IDs in a secured spreadsheet–sync with inventory management software to prevent mismatches during procurement. Include the revision date from the schematic’s footer for traceability.
How to Safely Take Apart Your Trimmer Using the Manual’s Visual Guide
Before loosening any fasteners, locate the engine housing screws on the schematic–typically marked near the exhaust port. Remove them in a diagonal sequence to prevent warping the casing. Keep track of each screw by placing them on a magnetic tray or arranging them in the same pattern shown in the exploded view.
Detach the cutting head next: press the clutch release button (usually a spring-loaded tab) while rotating the shaft counterclockwise. If resistance occurs, check for hidden clips beneath the guard–some models include a retaining ring that must be pried loose with a flathead screwdriver first. Misalignment here often leads to stripped threads.
Once the head is free, access the drive mechanism by flipping the unit upside down. The gear cover is held by three bolts (refer to the blueprint’s torque specifications–over-tightening cracks plastic housings). Gently tap the shaft with a rubber mallet if stuck; avoid metal tools that may damage splines.
Clean all components immediately: use compressed air to remove debris from the carburetor intake and muffler outlet. Pay extra attention to the air filter’s seating; a single misplaced fiber can obstruct fuel flow. Soak metal parts in kerosene rather than gasoline to avoid rubber seal degradation.
Reassembly Precautions
Apply thread locker to fasteners exposed to vibration–especially the flywheel nut, which loosens over time if untreated. Align the crankshaft keyway with the magneto slot before securing; even a 2mm error disrupts ignition timing. Test the recoil starter by pulling the cord slowly–snapping indicates incorrect rope tension or a jammed pawl.
