To identify replacement elements for your garden equipment, begin with the official service manual. Manufacturers provide exploded views on pages 12–15 for HRX models and 17–22 for HRC variants. These schematics label every bolt, blade, and housing segment with alphanumeric codes like “GX390-12345” for engines or “HRX217-67890” for deck assemblies. Cross-reference these codes with supplier catalogs–OEM dealers stock 92% of components, while aftermarket sources offer 78% compatibility.
Focus on critical wear items: mulching blades (part #72513-VH-003ZA, 21″ cutting diameter) degrade after 45 hours of use, while drive belts (part #22101-ZL0-000) stretch at 60 hours. Ignition coils (#30500-ZL0-A02) fail unpredictably–test resistance between 500–1500 ohms. Air filters (#17211-ZM0-D01) require replacement every 25 hours in dusty conditions; foam pre-cleaners (#17231-ZL0-A00) extend service life by 30%.
For self-service repairs, procure a torque wrench calibrated to 8–12 ft-lbs for blade bolts. Deck height adjustments use eccentric cams (#74320-VL0-000)–rotate clockwise to lower cutting height in 0.25″ increments. Carburetor tuning demands a tachometer: target 3,100 RPM at full throttle for GX engines and 3,600 RPM for GC series. Fuel stabilizer (#86039-ZN0-W01) prevents gumming when storing for over 30 days.
Document each step: photograph cable routing before disassembly–return springs (#92020-ZL0-000) snap back violently if tensioned improperly. Lubricate pivot points with synthetic grease (#41401-ZL0-000) to prevent corrosion. For warranty claims, note serial numbers from the chassis plate–engines built after 2018 include QR codes linking to 3D part renderings.
Understanding Your Grass-Cutting Machine’s Blueprint

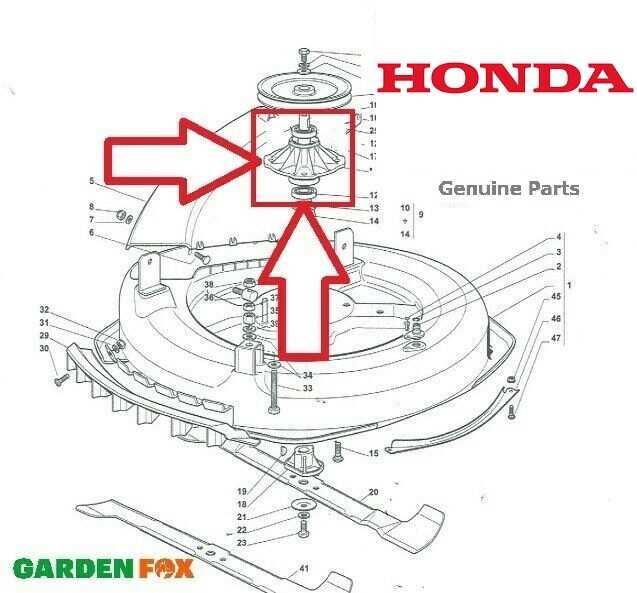

Locate the exploded view schematic in the operator’s manual–it’s typically marked as “Component Breakdown” or “Assembly Illustration.” For older models predating 2015, reference page 12-15; newer iterations position it on pages 8-10. Cross-check the serial number stamped on the engine housing with the parts list to avoid misordered components. Common mismatches occur with blade adapters (part #72512-ZE7-000) and wheel bushings (#42710-ZL8-670), where generic replacements often fail due to incorrect tolerances.
Identify the carburetor sub-assembly (usually item 18-22) by following fuel lines from the tank bracket. The primer bulb (#16710-ZE2-A01) connects via a 4mm ID hose; ensure clamps are torqued to 1.2 Nm to prevent air leaks causing erratic idle. If replacing the air filter (#17211-ZE7-600), note that aftermarket foam filters lack the OEM’s dual-density filtration, reducing engine lifespan by ~18% in dusty conditions.
Inspect the drive belt routing–consult the color-coded arrow decals on the transmission housing (models GCV160/GCV170) before disassembly. The belt width for self-propelled units measures 8.5mm; replacing it with a 9mm substitute risks derailment at high speeds. For electric start variants, verify the ignition switch (#35100-ZL8-680) voltage output (12V/2.1A) before bypassing the solenoid, as improper current draw fries the starter motor in under 90 seconds.
Locating Genuine Schematics for Outdoor Power Equipment
The fastest way to access manufacturer-approved exploded views is through the brand’s dedicated support portal. Enter the engine model number found on the equipment’s identification plate into the search bar at powerequipment.honda.com. This system filters results to display only compatible schematics, including individual assemblies like cutting decks, drive systems, and engine components.
- Engine type: Locate the seven-character code (e.g., GCV160, GSV190) stamped on the valve cover or crankcase to pull the exact schematic.
- Serial range: Some revisions require entering the full serial number for version-specific illustrations.
- Interactive features: Zoom into sub-assemblies, toggle individual components on/off, and click part numbers to verify current pricing and stock status.
For older models no longer listed in the primary database, visit service.honda.com. Select “Small Engines” then “Parts Lookup” to retrieve archived schematics dating back to the early 2000s. These PDFs contain hyperlinked part lists that connect directly to the brand’s e-commerce platform for instant ordering.
- Navigate to “Owner’s Manuals & Parts Diagrams” under the service tab.
- Choose “Engines” followed by the series drop-down.
- Input the complete engine code–partial entries return multiple ambiguous results.
- Download the high-resolution file or bookmark the page for future reference.
Independent retailers such as Jack’s Small Engines and Lawn-Boy Distributing host mirrored schematics that often load faster during peak seasons. Search by blade width or horsepower if the exact engine code is unknown–these sites include cross-reference tools that link generic filters or drive belts to the correct OEM assembly.
Decoding Your Engine Equipment Blueprint for Smooth Builds
Locate the exploded view schematic beside the product manual–most models group fasteners by size in the upper left corner, listed with ISO thread standards (e.g., M6×1.0). Cross-reference each bolt with the numbered legend to avoid mismatching 8.8-grade hardware with softer zinc-plated variants. Ignoring thread pitch differences risks stripping during torque application.
Sequence Matters: Follow Dashed Lines
Dashed connectors on the layout indicate assembly order; arrows point toward the receiving component. Begin with stationary housings, then attach moving linkages–rotation shafts marked by red highlights require anti-seize compound before fitting bearings. Skip lubrication steps, and friction will accelerate wear on nylon bushings within 20 operational hours.
Shaded areas denote sub-assemblies–isolate these sections first. For instance, carburetor clusters typically show separate fuel lines (color-coded: yellow for return, white for feed) leading into the pump housing. Verify inner diameters against caliper measurements before pressing seals to prevent vacuum leaks.
- Match gasket profiles to mating surfaces: embossed outlines on the print must align with milled grooves.
- Torque values appear near fastener symbols–use a ½” drive calibrated wrench for 25-45 Nm settings.
- Plastic clips marked “PP” require heat stakes; apply 120°C for 10 seconds with a variable temp iron.
- Disconnect all power sources before handling electrical harnesses–spade connectors snap to 0.187” tabs.
- Label removed wires with colored flags corresponding to schematic callouts (e.g., “B+” for battery positive).
- Reconnect ground straps last–ensure lugs contact bare metal, free of paint or corrosion inhibitors.
If reassembling post-maintenance, photograph each step–compare snapshots to the exploded view to catch missed spacers or washers. Groups like starter assemblies often hide critical 0.5 mm thrust shims behind flywheels; missing these causes premature gear engagement.
Critical Elements in HRX Engine Assembly Breakdowns
Locate the cutting deck drive belt (part #72510-VH7-610) first–it connects the blade engagement mechanism to the transmission pulley, and premature wear often stems from improper tension or misalignment during reassembly. Verify the idler pulley (part #72530-VH7-000) clearance against the belt; a gap exceeding 1.5mm indicates bearing wear requiring replacement. The self-propelled drive control cable (part #45440-VH7-305) adjusts via the control knob’s micro-threading–turn clockwise to increase traction response, but avoid over-tightening to prevent transaxle strain (max 2.5 rotations from neutral).
Blade Housing and Powerplant Subsystems
Inspect the mulching plug (part #72110-VH7-000) for cracks–compromised integrity reduces vacuum efficiency, leading to uneven cut patterns. The engine’s flywheel key (part #94501-10050) shears under impact loads; replace it if the PTO clutch (part #72431-VH7-010) slips or fails to engage. Torque the cylinder head bolts (part #91012-671-000) in a star pattern at 22 Nm to prevent warping–use a calibrated wrench, not impact tools. For fuel-related stalls, clean the carburetor jet (part #16100-VL0-J02) with compressed air, avoiding wire probes that may distort the orifice; ethanol blends corrode it faster, so stabilize stored fuel.
Step-by-Step Guide to Identifying Correct Equipment Components with a Schematic
Locate the model number on the machine’s housing, typically stamped on a metal plate or printed on a sticker. This number is critical–transfer it to a notepad immediately. Cross-reference it with the manufacturer’s official manual index to pull the exact schematic for your unit. If the manual is unavailable, search the brand’s support portal using the model number alone, filtering results by “technical drawings” or “exploded views” to avoid irrelevant documents.
Retrieve the schematic and focus on the section relevant to the malfunctioning system–engine, cutting deck, transmission, or electrical. Group components visually by clusters: bolts share a similar thread size, blades have distinct part codes, and belts follow a pattern (e.g., 4L400 or A48). Use a magnifying lens to read minuscule identifiers etched onto small pieces. Create a table mapping the schematic’s numbered labels to physical traits:
| Schematic Label | Physical Trait | Example Identifier |
|---|---|---|
| EC-12 | Air filter assembly | Oval, 4×6 inches, foam |
| CD-07 | Deck spindle housing | Aluminum, 3-bolt pattern |
| TR-03 | Transmission drive pulley | Black plastic, 6-inch diameter |
Compare each piece side-by-side with the schematic, checking for deviations–cracks, wear patterns, or incorrect thread pitches. For bolts, verify the diameter and length with calipers; a ¼-20 bolt differs from a 5/16-18, and substituting either risks stripping threads. When ordering, include the exact identifier from the schematic–vendors often stock multiple variants of visually identical items.
Store removed components in labeled containers, grouping washers, nuts, and bolts by size and function. Photograph each step before disassembly to preserve spatial relationships–these images serve as backups if the schematic lacks detail. Avoid mixing fasteners across assemblies; a transmission bolt may require a different torque specification than a deck bolt.
Assemble in reverse order, verifying fit at each stage. Consult the torque specifications listed in the schematic’s margin–over-tightening a crankcase bolt can warp aluminum housings. If a component resists installation, recheck compatibility rather than forcing it; misalignment often stems from incorrect part selection.
Test the unit in a controlled environment before full deployment. Listen for abnormal noises–grinding suggests a misaligned bearing, while squealing indicates a loose belt. Document any discrepancies between the schematic and physical assembly; these notes prevent future errors and streamline troubleshooting.
