Start by locating the pump assembly–typically secured near the motor housing with three bolts. If your unit fails to build pressure, check the reed valves first; these thin metal flaps often accumulate carbon deposits or warp over time. Replace them in pairs to maintain balanced airflow. The pressure switch, usually positioned on the top or side panel, should be tested with a multimeter at 240V (or 120V for smaller models); readings outside 12-15 ohms indicate failure.
Inspect the piston rings next. A compromised ring will reduce compression efficiency, evidenced by excessive oil consumption or blue exhaust fumes. For 2-4 gallon tanks, the head gasket–sandwiched between the cylinder and head–must be torqued to 12-15 ft-lbs in a cross pattern to prevent leaks. Larger 20-30 gallon units require 20 ft-lbs. Always use proprietary OEM gaskets; aftermarket alternatives often lack the proper thickness tolerances.
Drain valves on horizontal tanks should be tampered with care. Corrosion buildup inside the tank necessitates partial disassembly–remove the pressure switch and cylinder assembly first. Use a borescope to inspect internal rust without drilling additional holes. For vertical tanks, the safety valve (set to 125-135 psi) should be replaced every 3-5 years regardless of operation frequency. Calibration tools require a test stand certified to ANSI B19.3 standards.
To service the unloader valve, remove the pressure switch cover and depress the valve pin manually while the system is powered but not running. A stuck pin will prevent the motor from starting under load. Lubricate with PTFE-based grease–never standard motor oil, which degrades seals. Bearings in the flywheel assembly last 8,000-10,000 operation hours; replacement kits include bearing pullers specific to shaft diameters (typically 15mm or 20mm).
Understanding Your Pneumatic Tool Component Layout
Locate the pressure switch assembly first–it’s typically mounted near the motor housing, identifiable by its black or silver rectangular casing with electrical terminals. If your unit fails to start, check for loose wiring connections here before disassembling other sections. Replace the switch if corrosion is visible on the contacts, using part number 432-789 for models C2002-WS and similar variants.
Inspect the piston cylinder head gasket for wear if the machine loses compression. Remove the cylinder cover (held by four bolts) to access the gasket; compare its thickness against a new one (part #654-123). Uneven wear patterns indicate misalignment–realign the piston rod by adjusting the connecting rod bolt torque to 15 ft-lbs. Apply thread locker to prevent loosening.
Clean or replace the inlet filter element every 50 operational hours to maintain airflow efficiency. For most 6-gallon vertical tanks, the filter sits behind a metal mesh cap near the intake valve. Blow out debris with compressed nitrogen or wash reusable filters in mild detergent, ensuring complete drying before reinstallation. Avoid petroleum-based solvents, which degrade the filter membrane.
Verify the check valve’s functionality if the tank fails to hold pressure. The brass valve body attaches to the tank’s discharge port; remove it with a 17mm wrench and inspect the spring-loaded disc for pitting. Lubricate the disc with PTFE grease (not standard oil) during reassembly, and test for leaks using soapy water–bubbles indicate a faulty seal requiring replacement (part #876-321).
Critical Elements Found in Hydraulic Pump System Schematics
Begin by locating the pressure switch, typically positioned near the motor housing. This component regulates tank pressure, activating or deactivating the pump at preset PSI thresholds–commonly 90 PSI (cut-in) and 125 PSI (cut-out). Check the switch’s electrical contacts for corrosion or pitting, as faulty connections lead to erratic pump behavior. Replace if continuity tests fail or if the switch fails to engage within the specified pressure range.
Motor Assembly and Power Transmission
The induction motor drives the piston via a belt-and-pulley system, often featuring a 120V or 240V configuration. Inspect the flywheel’s alignment with the motor shaft–misalignment causes excessive vibration and premature bearing wear. Lubricate the crankshaft bearings every 500 operational hours using SAE 20 non-detergent oil. The connecting rod’s wrist pin should move freely; seize-up indicates insufficient lubrication or debris ingress, necessitating disassembly and cleaning with mineral spirits.
Tank check valves, usually brass or steel, prevent reverse airflow when the pump cycles off. A defective valve allows pressure leakage, extending runtime and overheating the motor. Test by pressurizing the tank, then spraying soapy water on the valve–bubbles confirm failure. Replace with an OEM-specified component to ensure compatibility with the tank’s thread pitch (typically NPT 1/4″ or 3/8″).
Gauges, while non-critical, are diagnostic tools requiring periodic validation. A faulty gauge skews pressure readings, leading to over-pressurization or inadequate tool performance. Calibrate by comparing readings against a master gauge during a pressure cycle. For analog gauges, gently tap the face to verify needle stability–erratic movement signals internal corrosion or a damaged Bourdon tube, warranting replacement.
Air Filtration and Regulation Modules
The intake filter silences pump noise and prevents dust ingestion, extending the piston’s lifespan. Replace the filter element every 200 hours or when visibly clogged–restricted airflow forces the motor to work harder, reducing efficiency by up to 30%. Downstream, the regulator adjusts output pressure for tools, often adjustable between 0-150 PSI. A malfunctioning regulator may deliver inconsistent flow; disassemble and clean the internal piston and spring with compressed air, avoiding harsh solvents that degrade rubber seals.
Safety valves act as fail-safes, venting excess pressure if the switch malfunctions. Test monthly by pulling the ring–audible air release confirms functionality. Never modify or obstruct these valves; tampering voids certification and risks tank rupture. For oiled pumps, monitor the sight glass–low oil levels below the “Add” mark require top-up with ISO 68 compressor oil. Synthetic blends resist oxidation better than mineral oils in high-temperature environments.
How to Interpret a Component Schematic for Pneumatic Tools
Locate the motor assembly first. On most schematics, this section clusters near the base, marked with identifiers like M-1 or MTR-A. Verify the voltage rating–common variants include 120V, 240V, and 460V–against the decal on the pump housing. Mismatched values indicate potential wiring errors or outdated documentation.
Examine the pressure switch next. Typically positioned above the tank valve, this element controls cut-in and cut-out points. Look for labels like PS-200 or SW-1, then cross-reference with the manual’s calibration chart. Factory settings usually read 90–125 PSI, but industrial models may range higher–adjustments require a precision screwdriver.
Uncovering Subcomponents
Trace the unloader valve from the pump head. Found adjacent to the pressure regulator, this small brass fitting (UV-5) releases trapped air during shut-off. If absent or clogged, restart cycles extend, causing overheating. Clean with compressed nitrogen or replace using a ¼” flare wrench.
Assess the belt-driven mechanism by identifying pulley ratios. Most residential units use a 2:1 setup, while commercial variants favor 3:1. Measure the flywheel diameter and compare it to the crankshaft pulley–any deviation suggests wear or improper re-assembly. Re-tension belts to ½ inch deflection under thumb pressure.
Verification Shortcuts

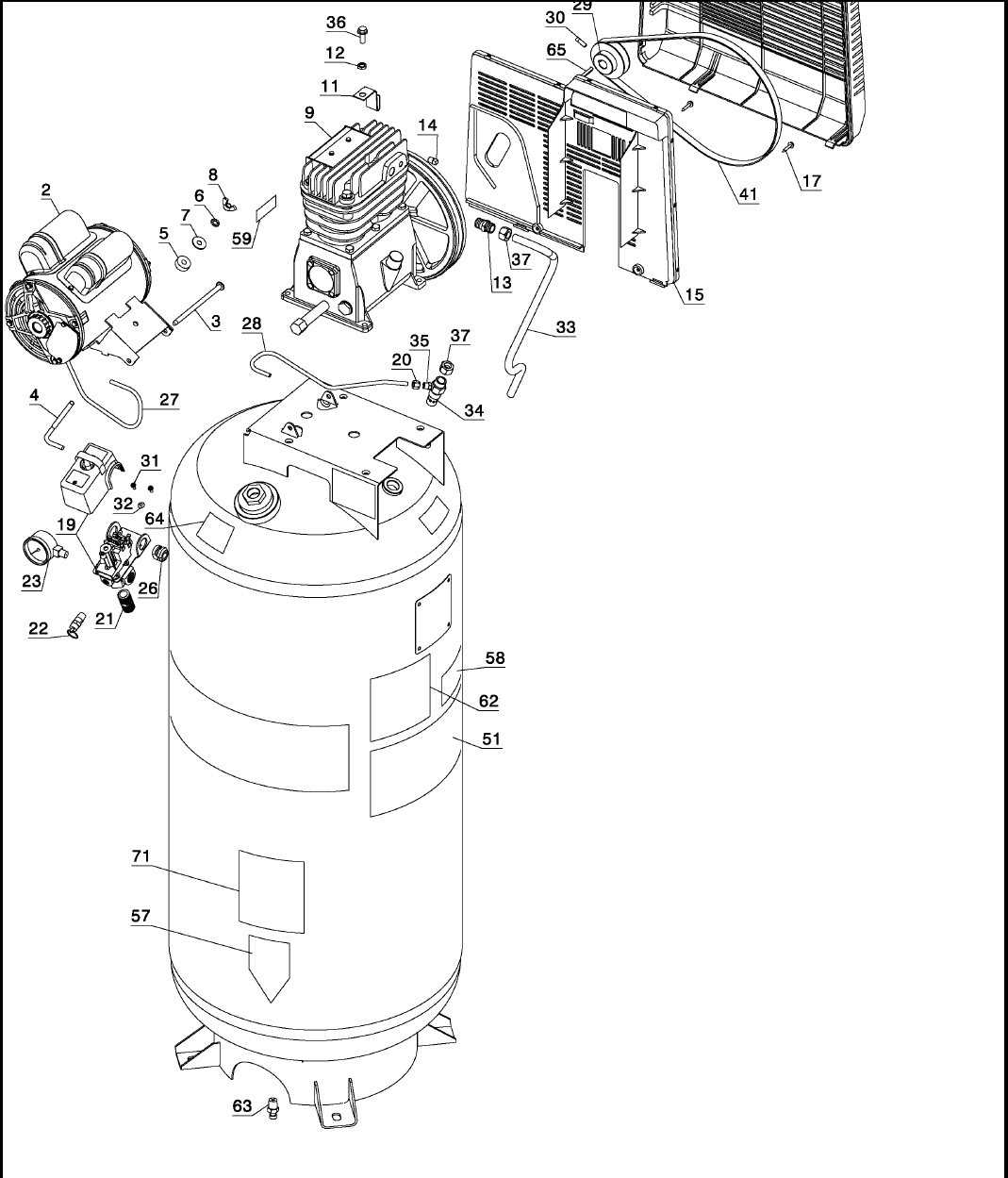

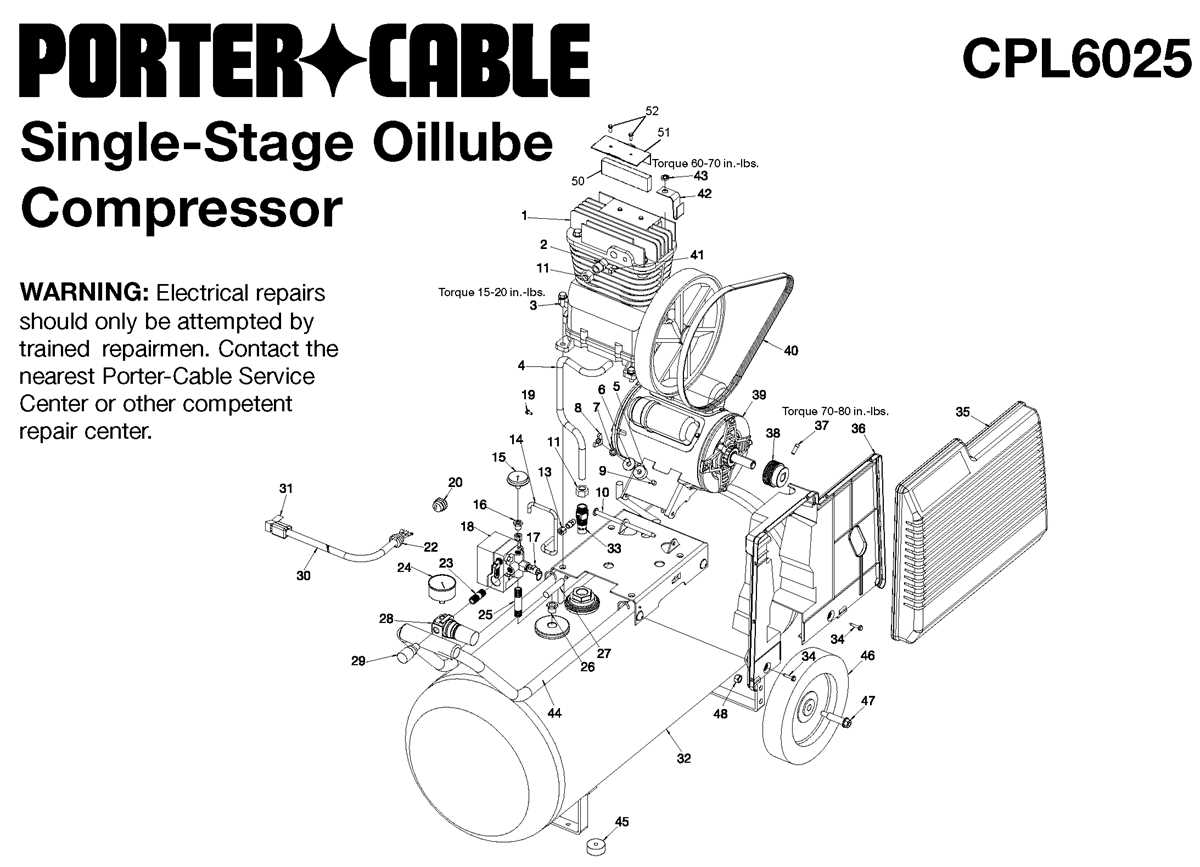

Use an exploded view to confirm filter placement. The inlet screen (F-3) sits upstream of the pump intake, often inside a cylindrical canister. Swap annually or sooner if debris is visible. For sealed systems, check the oil fill cap–synthetic blends like ISO 100 reduce carbon buildup versus mineral-based alternatives.
Key Components to Repair or Upgrade in Your Pneumatic Machine
Start with the pressure switch, typically found near the motor housing or tank base. Models like the C2002 or OFP01 rely on this part to regulate power cycles–replace it if the unit fails to start or runs continuously. Look for OEM replacements (e.g., part #PXC010) to avoid compatibility issues, though third-party alternatives (e.g., Airtrol or Square D) work if voltage and amperage match.
| Component | Typical Location | Failure Signs | OEM Part # |
|---|---|---|---|
| Check valve | Between pump and tank inlet | Air leaks, slow pressure build | VXC007 |
| Piston rings | Inside pump cylinder | Excessive oil in output, reduced CFM | RXC022 (kit) |
| Discharge tube | Pump head assembly | Whistling noise, overheating | TXC015 |
Tank drain valves corrode or clog over time–locate them at the tank’s lowest point. Brass models (e.g., XLC003) resist rust better than steel but may seize if not operated weekly. For vertical tanks, ensure the valve clears moisture fully; horizontal tanks need a 45° downward angle to prevent sediment buildup. If the original fitting strips, thread adapters (e.g., ¼” NPT to ⅜” hose barb) restore function without welding.
Belts stretch or snap on older oilless units like the VX502. Inspect the pulley alignment first–misalignment accelerates wear. Replace with a Gates A68 or Continental HTD belt (match the tooth profile and length; e.g., 380mm effective length for most 6-gallon tanks). Tension should deflect ½” under moderate thumb pressure; overtightening burns bearings (look for part #BXC019).
Safety relief valves (e.g., part #SXC012) protect against overpressure–test annually by pulling the ring with the tank at 90% of cut-out pressure. If it fails to reseat, replace immediately; never plug or tamper with it. For oil-lubricated models, sight glasses (OEM #JXC008) fog or crack–position the new one vertically to monitor oil levels accurately, using Teflon tape on threads to prevent leaks.
