Start by examining the hull structure–the backbone of any ocean-going craft. The keel runs along the bottom, acting as a stabilizer and primary support. Above it, ribs or frames curve upward, forming the skeleton. Planks are nailed or pegged to these frames, creating the outer shell. For maximum durability, overlapping methods like clinker build were common in Northern Europe, while Mediterranean designs favored carvel planking–smoother but requiring precise joinery.
Focus next on the rigging arrangement. The lower masts–main, foremast, and mizzen–are stepped into the keel for stability. Topmasts extend vertically, secured by caps and supported by shrouds (lateral ropes) and stays (fore-and-aft tension lines). Yards, horizontal spars, hold the sails, which came in three primary types: square (for downwind sailing), lateen (triangular, allowing sharp turns), and fore-and-aft (versatile but less powerful). Each rope–from sheets (controlling sail angles) to halyards (raising sails)–serves a precise function; misalignment risks structural failure at sea.
The deck layout dictates crew efficiency. A raised poop deck at the stern provided visibility for the helmsman, while the quarterdeck housed officers. Below, the gun deck (if armed) held cannons on slide-mounted carriages, with gunports sealed tight in rough weather. Storage compartments–hold for provisions, bread room for dried goods, and powder magazine (isolated for safety)–maximized limited space. Scuppers (drains) prevented water buildup, and gratings (ventilated floors) reduced rot risk.
For accurate reconstruction, prioritize material sourcing. Oak dominated European vessels for its strength, while cedar and pine were lighter alternatives. Fastenings ranged from wooden trunnels (pegs) to iron spikes–latter resisted rot but could corrode. Pitch and tar waterproofed seams, with caulking (hemp fibers soaked in tar) sealing gaps. Treenails (trunnels) lasted longer than nails but required skilled carpentry. Avoid modern synthetic replacements; even minor anachronisms compromise historical integrity.
Safety hinged on redundant systems. Bilge pumps counteracted flooding, operated by hand or treadmill. Auxiliary rudders (sternsheets) served as backups if the main tiller snapped. Lifelines along the yards prevented falls, and catheads (forward projections) stabilized anchors. The capstan, a vertical winch, raised anchors or heavy loads–geared versions amplified human effort. For rigging repairs, spare ropes, marlinspike tools, and seizing twine were stowed in accessible lockers.
Navigation aids included a binnacle (compass housing) on the quarterdeck and hourglasses for timing watches. Traverse boards marked course and speed hourly, while lead lines measured depth. Flags conveyed signals; a linstock lit fuses for cannons. Even minor components–deadlights (glass ports), chainsplates (anchoring shrouds), deadeyes (rope tensioners)–played critical roles. Overlooking these details renders a model functionally flawed, no matter its aesthetic fidelity.
The Anatomy of a Vessel from the Golden Age of Maritime Raiders

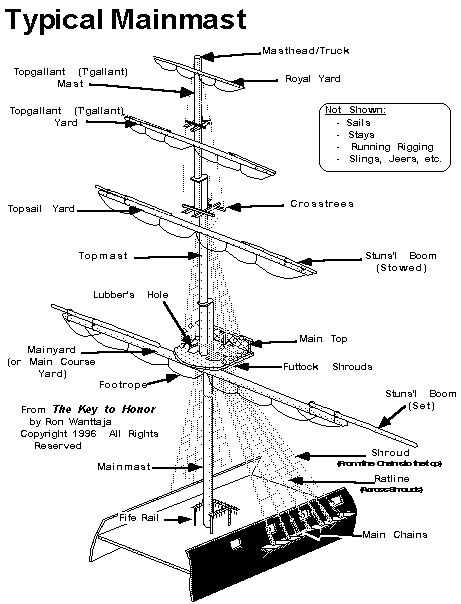

Begin by identifying the mainmast–the tallest vertical spar from bow to stern. This central pillar supports the primary sail rigging and often features a crow’s nest at its summit, ideal for spotting approaching vessels or landmasses up to 20 nautical miles away in clear conditions. Modern reconstructions frequently underestimate its height; original designs extended 30 to 40 meters above the deck, requiring reinforced shrouds and multiple backstays to withstand gale-force winds.
Hull Components Critical for Speed and Durability
- Keel: A structural backbone running along the bottom, typically crafted from single ironwood beams. This component prevents lateral drift and absorbs stress when navigating shallow reefs–a common hazard in Caribbean and West African trading routes. Replaceable false keels, often overlooked in blueprints, allowed crews to repair damage without dry-docking.
- Planking: Overlapping oak or teak planks, fastened with treenails (wooden pegs) and reinforced with tarred hemp caulking. Avoid using pitch alone; a mixture of pine resin, beeswax, and crushed seashells provided superior waterproofing. Thickness varied: 5–8 cm below the waterline, tapering to 2–3 cm near the gunwales to reduce weight.
- Transom: The flat stern section, erroneously omitted in many scaled reproductions. Original designs incorporated ornate carvings–serpents, mermaids, or naval symbols–to intimidate rivals. Structural integrity relied on mortise-and-tenon joints, not nails, to prevent splitting under cannon recoil.
Prioritize the gun deck layout when analyzing rigging efficiency. Contrary to popular depictions, fewer than 20% of marauding vessels carried more than 20 cannons. Heavy armament (e.g., 24-pounders) required:
- A reinforced laminated deck, typically double-layered with alternating grain directions to absorb impact.
- Iron ringbolts embedded in the beams to secure gun tackles.
- Limber holes drilled through the frames to prevent water pooling, which could destabilize powder stores.
On smaller craft, swivel guns mounted on the quarterdeck rails provided maneuverability without sacrificing firepower.
Rigging systems separated mere transports from elite raiding crafts. The fore-and-aft rig, though common in merchant ships, was a liability in combat. Instead, focus on:
- Square sails on the mainmast and foremast: These provided superior speed downwind but required a crew of at least 20 to handle lines in heavy weather.
- Jibs and staysails: Lightweight triangular sails that improved upwind tacking–a critical advantage when chasing prey or evading naval blockades.
- Futtock shrouds: Diagonal rope supports connecting the lower and upper rigging. Original designs used four strands of Russian hemp, waxed with fish oil to resist rot. Synthetic replacements fail under UV exposure within 18 months.
Disregard decorative knots; functional whipping on rope ends reduced fraying by 60% compared to untreated lines.
Lessons from Salvaged Wrecks
Study the Vasa (1628) and Queen Anne’s Revenge (1718) for structural insights. Key takeaways:
Critical Framework Elements of a Sailing Vessel from the Golden Age of Seafaring
Prioritize the integrity of the keel–this backbone bears the entire load and dictates stability. A well-preserved oak keel, ideally 18–24 inches thick, prevents hogging (permanent upward curvature) under stress. Reinforce with iron bolts at intervals of 2–3 feet, especially at joints where the stem and sternpost meet. Neglecting this component risks catastrophic failure in heavy seas, as witnessed in the 1715 Spanish treasure fleet, where weakened keels snapped under hurricane forces. Pair the keel with a false keel (sacrificial layer) to absorb grounding damage, a common hazard in shallow Caribbean waters.
Bilge pumps demand constant attention–opt for brass or copper systems to resist corrosion. Hand-operated models require at least two crew per shift to maintain a flow rate of 20–30 gallons per minute; electric pumps, though rarer, achieve 50 GPM but drain batteries rapidly. Larger vessels like galleons use multiple pump wells, staggered fore and aft to handle flooding. Rotate pump handles every 30 minutes to prevent fatigue; a failed pump means swift swamping, as proven by the loss of the *Whydah* in 1717. Store spare leather gaskets and flints, as impromptu repairs are inevitable.
How to Distinguish and Mark Canvas on a Maritime Raider
Begin by examining the rig’s shape and position relative to the hull. The largest and most prominent sail, the *main course*, anchors to the vessel’s central mast–often a squarer cut for windward propulsion. Fore-and-aft sails, like the *staysail* or *jib*, stretch between masts or from bowsprit to foremast, identifiable by their triangular silhouette. Measure the aspect ratio: square canvas (*topsails*, *royals*) tend toward width over height, while fore-and-aft types (*gaff*, *spanker*) favor elongation. Note the reef points–horizontal ropes along the sail’s surface–for quick visual differentiation from smooth, reef-free studdingsails.
Label each piece using its nautical term written in waterproof ink at the tack (lower corner), clew (after corner), or head (upper edge), depending on exposure to wear. Use *mainsail* for the lowest square canvas on the mainmast, *foresail* for its counterpart on the foremast, and *mizzen* for the aftmost rig on the mizzenmast. Triangular headsails include the *fore staysail* (between foremast and bowsprit) and *main staysail* (between main and foremasts). Record dimensions in feet: square sails list width first (e.g., 40′ x 28′ for a topgallant), fore-and-aft types cite luff length (e.g., 18′ luff for a jib).
Detailed Breakdown of a Marauder Vessel’s Underbody Construction
Begin reinforcing the keel with inverted triangular ribs every 1.2 meters–this spacing prevents hogging while maintaining structural integrity in heavy seas. Oak frames, typically 20–25 cm thick, should taper toward the bow to reduce drag without sacrificing strength. Copper or lead sheathing, applied below the waterline, deters teredo worms and barnacles, extending operational longevity by up to 40%. Avoid pitch-based coatings; they degrade rapidly in tropical climates.
The planking layout demands staggered scarf joints, no longer than 30 cm per seam, to distribute stress evenly. Carvel planking (edge-to-edge) outperforms clinker in speed-focused designs, though it requires tighter caulking with tarred hemp fibers hammered to a 5 mm depth. For vessels exceeding 30 meters, introduce a secondary layer of diagonal planking at 45-degree angles to the primary hull–this doubles impact resistance during ramming maneuvers.
| Hull Zone | Material | Thickness (cm) | Reinforcement Frequency |
|---|---|---|---|
| Keel | White oak | 30–40 | Every 1.2 m |
| Waterline belt | Teak | 8–12 | Continuous layer |
| Bilge strakes | Elm or pine | 6–8 | Alternating frames |
Bilge strakes–critical for weight distribution–should use lighter woods like elm or pine to lower the vessel’s center of gravity. Position them just above the turn of the bilge, where stress concentrations occur during rolling. A false keel (5–8 cm thick) slotted beneath the main keel provides sacrificial protection against grounding; replace it after each major voyage. For ballast, opt for iron ingots stacked in the lowest hold–sand or stone shifts unpredictably in storms, risking instability.
Ventilation shafts, 10–15 cm in diameter, must pierce the hull above the orlop deck to prevent rot in the lower compartments. Seal them with brass grates to deter rats while allowing airflow. Rudder design separates efficient raiders from sluggish vessels: a balanced rudder (where the pivot sits forward of the leading edge) reduces steering force by 60%, but requires a stronger tiller arm. The sternpost should be a single oak timber, bolted to the keel with 2.5 cm diameter iron spikes, spaced every 20 cm.
Waterproofing the hull interior demands three coats of linseed oil mixed with pine tar at a 3:1 ratio, applied hot. Focus on seams and bulkheads–substandard sealing leads to chronic dampness, accelerating fungal growth in stored powder and provisions. For tropical deployments, add a fourth layer infused with crushed glass to repel marine borers. Inspect the hull annually: probe for soft spots with a 6 mm awl; any penetration deeper than 2 cm signals compromised timber requiring immediate replacement.
