Start by locating the engine compartment layout–your first reference point for most repairs. The air intake system sits near the fender, directly connected to the throttle body via a flexible duct. Disconnecting the mass airflow sensor requires releasing a single clip; forcing it risks damaging the wire harness. For the cooling system, note the upper radiator hose’s 90-degree bend; replacing it demands a clamp tool with a 5/16-inch jaw.
Transmission fluid checks differ from older models. The dipstick tube includes a marking for “COLD” and “HOT,” but never rely on the cold reading alone. Idle the engine until the temp gauge stabilizes at the midpoint, then verify levels. If towing frequently, upgrade to a synthetic blend with a viscosity index of 75W-90–stock fluids degrade faster under sustained loads.
The exhaust manifold gasket failure is a recurring weak spot. Symptoms include a loud ticking noise above 2,500 RPM. Replace it with a multi-layer steel gasket; avoid graphite-coated options, as they corrode prematurely in high-heat cycles. The passenger-side manifold bolts require a swivel socket extension–standard ratchets won’t clear the firewall obstruction.
Electrical troubleshooting begins with the fuse box under the dash. Label A-7 controls the power windows; A-12 governs the trailer brake controller. Use a multimeter with a minimum 10-megohm impedance–cheaper models skew readings on sensitive circuits. The alternator wiring harness includes a fusible link; if voltage drops below 12.4V after charging, test this link before replacing the alternator.
Suspension components demand precise torque specs. The lower control arm bushings should be tightened to 148 ft-lbs with the vehicle at curb height–deviations cause premature wear. For lifted applications, swap the stock torsion bars for adjustable units; mark the original position before removal to avoid alignment issues. The rear leaf springs settle over time–measure eye-to-eye length before assuming sag. A 0.5-inch reduction indicates 30% lifespan depletion.
Locating Reliable Schematics for Full-Size Pickup Components
Start with the manufacturer’s official service manual–rarely available online for free, but critical for pinpointing exact engine bay layouts, suspension linkages, and electrical harness placements. Independent platforms like ALLDATA or Mitchell1 offer paid subscriptions for OEM-grade blueprints, including torque specs and fluid capacities for transmissions, transfer cases, and differentials. Avoid generic “repair guides” sold on marketplaces; they often omit revisions for auxiliary components like air suspension compressors or trailer brake controllers.
Common Pitfalls When Sourcing Visual Breakdowns

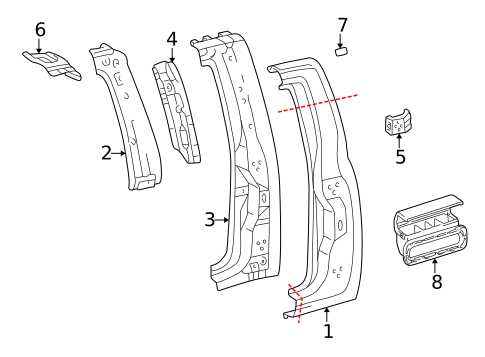

Third-party websites frequently recycle outdated PDFs, missing late-model revisions for emissions systems or hybrid drive modules. For body panels–especially hoods, fenders, and tailgates–verify compatibility against VIN-decoded components, as mid-year updates altered mounting points. Bulkhead connectors for wiring looms change between crew cab and double cab configurations; mismatched diagrams risk incorrect fuse assignments or short circuits during headlight or power window replacements.
Salvage yards provide direct access to disassembled units, but inspect mounting brackets and drivetrain housings for corrosion or fatigue cracks–especially on rear leaf springs or front crossmembers. Online forums like TundraSolutions or YotaTech host user-uploaded schematics for trims with factory superchargers or aftermarket lift kits, but cross-reference critical measurements like driveshaft angles or CV joint spacing before committing to modifications.
Essential Tools for Cross-Referencing Schematics
Use a digital caliper to measure fastener threads on exhaust manifolds, axle shafts, or transfer case bolts–dimensions often conflict between public diagrams and physical hardware. A multimeter helps trace sensor circuits on powertrain control modules, particularly for upstream oxygen sensors or throttle position actuators. For cabin components (HVAC ducting, door latch mechanisms), remove trim panels to photograph internal linkages firsthand–many DIY tutorials omit cabin air filter housing diagrams entirely.
Finding Key Engine Bay Elements in Your Full-Size Pickup
Start by identifying the coolant reservoir on the driver’s side near the firewall–it’s a translucent white plastic tank marked with “MAX” and “MIN” lines. Directly behind it sits the brake master cylinder, mounted atop the brake booster, with its black plastic cap and metal housing. The air intake system connects to the throttle body on the passenger side, where the mass airflow sensor wires into the intake tube just past the air filter box.
- Trace the serpentine belt from the crankshaft pulley (bottom-center) to the alternator (top-left), power steering pump (center-left), and A/C compressor (bottom-right).
- Locate the ignition coils on the valve cover–each coil sits on a spark plug well, secured by a single bolt.
- Find the oil dipstick and filler cap on the passenger side under the intake manifold; the dipstick has a yellow handle.
Check the fuse block under the hood on the driver’s side–it’s a black plastic box with a removable lid labeled for high-amperage circuits like cooling fans and headlights. The windshield washer fluid tank sits beside it, a small blue-capped reservoir. The battery is positioned in the front-right corner, with a plastic cover over its terminals; the positive terminal connects to a red fuse link before branching to the alternator and starter.

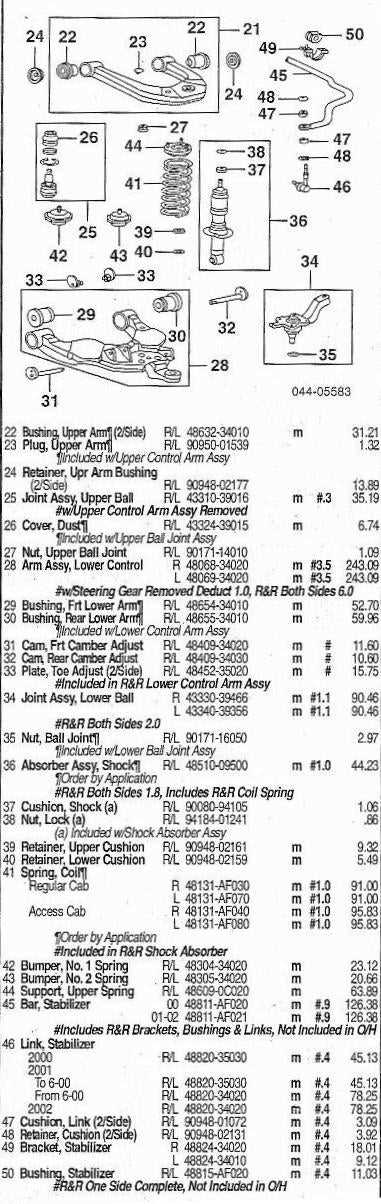

Step-by-Step Guide to Locating and Replacing Suspension Components on Your Full-Size Pickup
Begin with a visual inspection underneath the front axle area. Look for the upper and lower control arms–stamped steel assemblies connecting the wheel hub to the frame. The upper arm measures approximately 12 inches in length, while the lower arm spans nearly 24 inches. Note the ball joints at each end; these spherical bearings allow pivoting motion and should move smoothly without play. If resistance or grinding is felt during manual rotation, replacement is necessary.
Locate the coil springs, positioned between the lower control arm and the frame. These heavy-duty springs, rated for 1,200–1,500 lbs/inch, feature a distinct tapered design. Count the active coils–typically seven with a diameter of 6.5 inches–and check for cracks or sagging. Measure the free height: new springs measure 16.7 inches; anything under 15.5 inches indicates fatigue. Installation requires a spring compressor due to 1,800–2,200 lbs of stored energy.
The sway bar links connect the sway bar to the lower control arms via rubber bushings. Identify them by their 8 mm threaded studs and polyurethane or rubber pivot bushings. Inspect for torn bushings or loose mounting; worn links produce a clunking noise during turns. Replace in pairs–mismatched links create uneven handling. Torque specifications: 43 ft-lbs for the frame-side nut, 74 ft-lbs for the lower arm nut.
| Component | OEM Part Number | Replacement Interval (Miles) | Wear Indicators |
|---|---|---|---|
| Upper control arm | 48068-0C010 | 80,000–100,000 | Ball joint play > 0.04″, bushing cracks |
| Lower control arm | 48069-0C020 | 90,000–120,000 | Bushing delamination, rust-through |
| Coil spring | 48231-35030 | 100,000–150,000 | Height loss > 0.5″, visible corrosion |
Shock absorbers attach to the lower control arm via a 14 mm bolt and to the frame with a 17 mm bolt. Inspect for fluid leaks at the rod seal–minor dampness is acceptable, but drips indicate failure. Test rebound by compressing the shock by hand; it should extend slowly. If it bounces rapidly, internal valving is compromised. Rear shocks share similar mounting but use a longer 22-inch body.
Bushings require special tools for removal. The lower control arm bushings use a 2.5-inch outer diameter press-fit design. Heat the component with a propane torch to expand the metal, then drive out the old bushing using a 40-ton shop press and appropriatesized adapters. Apply liquid soap to lubricate the new bushing before installation. Avoid pounding–this distorts the mounting tab holes, causing premature failure.
Verify alignment after installation. Camber should range between -0.5° to +0.5°, caster +2.5° ± 0.5°, and toe 0.1° in or out. Use an aftermarket alignment rack with adjustable turn plates to accommodate the 9,800 lbsGVWR. Failure to align properly results in uneven tire wear and wandering at highway speeds.
For rear suspension, focus on the leaf springs and shackles. Each leaf pack contains nine leaves–inspect for cracked or separated leaves. Replace individual leaves if cracks exceed 2 inches in length or if interleaf spacing exceeds 0.06 inches. Shackle bushings should pivot freely; seized bushings cause axle binding during articulation. Torque U-bolt nuts to 90 ft-lbs and retorque after 500 miles.
Locating Exhaust Component Schematics for Your Full-Size Pickup
Download official documentation directly from the manufacturer’s technical portal. For the third-generation V8 model, visit Toyota’s Tech Info and search by VIN or engine code (1GR-FE/2UZ-FE). Subscription costs $20 for 48-hour access or $120 annually, covering all emissions and exhaust piping layouts.
Check these alternate sources if manufacturer files are unavailable:
- AutoZone Repair Guides: Free after creating an account. Navigate to “Repair Help” > “Vehicle Select” > “Exhaust & Emissions.” Includes torque specs for flanges and hanger brackets.
- RockAuto: Under “Exhaust & Muffler,” select year/make/engine, then click the camera icon beside any OEM part number to view exploded views.
- YouTube Teardowns: Search “[year] [make] exhaust remove” – channels like *EricTheCarGuy* and *South Main Auto* often overlay component labels during disassembly.
- Forums: TundraSolutions.com has sticky threads with member-uploaded schematics. Look for “Exhaust Diagram PDF” in the threads from late 2018.
- Dealer Service Manual CD: Part number RM1050U (revised edition from mid-2007). Often sold on eBay for $40–$70; includes CAT converter flow charts for LEV-rated models.
