For immediate identification of key assemblies, start with the engine housing. The left-side cover–marked with cooling fins–detaches via six 8mm bolts to reveal the clutch and transmission gears. Below it, the countershaft sprocket (23-tooth, #420 chain pitch) connects directly to the rear wheel. Remove the right-side cover first if adjusting the carburetor or inspecting the CDI unit, as both sit beneath a single 10mm bolt triangle.
Front suspension rebuilds require disassembly of the fork legs. Each leg contains dual-rate springs (3.1 kg/mm and 5.2 kg/mm) separated by a thin spacer ring. Drain fork oil through the lower bolt (12mm hex) before compressing the springs; failure risks spring-back injuries. The triple clamp holds the handlebars with four 10mm bolts–over-torqueing warps the aluminum.
Exhaust replacement begins at the cylinder head. The header pipe secures with two 8mm flange nuts; the muffler attaches via a single 14mm bolt through a welded bracket. Silencer packing (rockwool/P11) requires replacement every 20 hours of riding–listen for a hollow sound as the indicator. Wheel disassembly: extract the axle (17mm hex) then slide off the brake caliper. Rotor thickness must measure at least 3.2mm; thinner rotors risk heat cracks.

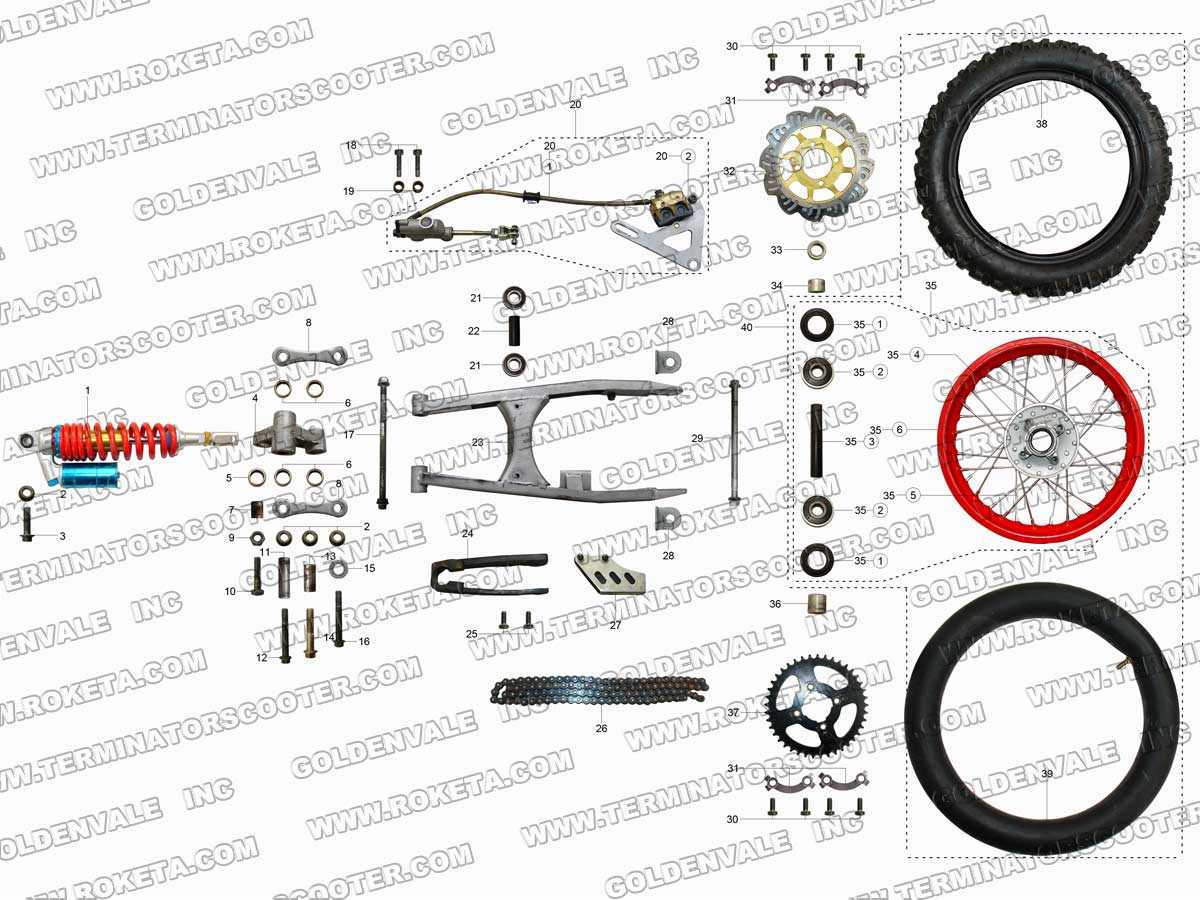

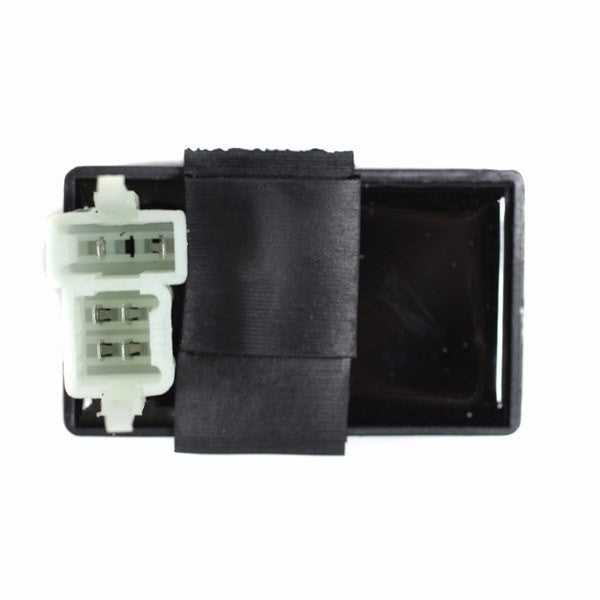

Electrical tracing: the ignition coil (primary resistance: 0.5–1.2 Ω) sits beneath the fuel tank. Follow the spark plug wire to the CDI–its plastic casing cracks under 80°C, so route it away from exhaust pipes. Fuse box (three 10A fuses) hides behind the left-side panel. Replace corroded connectors with gold-plated terminals to prevent voltage drop.

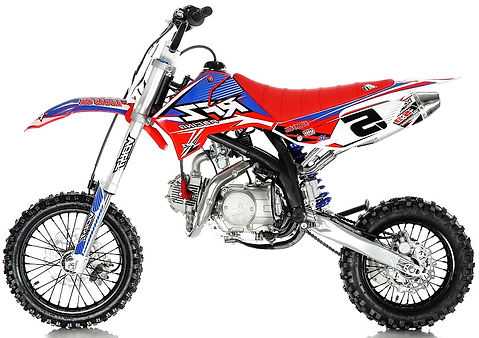

Key Components Layout for Off-Road 125 Class Motorcycle Models
Locate the air filter housing beneath the seat–remove four bolts with a 10mm socket to access the foam element. Replace it every 10 hours of riding in sandy conditions or 20 hours on harder terrain. Adjacent to the filter sits the carburetor; the pilot jet requires cleaning if idling becomes inconsistent after 15 hours of use. Use compressed air at 30 psi to clear passages without disassembly.
| Component | Part Number | Maintenance Interval | Torque Spec (Nm) |
|---|---|---|---|
| Front brake pads (sintered) | AT-RF-225 | Every 500 km | 18 |
| Drive chain (420 pitch) | AT-DC-428 | Adjusted every 200 km | 8 (slack) |
| Spark plug (NGK CR7HSA) | AT-SP-075 | Every 8 hours | 12 |
Inspect the swingarm pivot bolts monthly; corrosion accelerates wear when humidity exceeds 70%. Apply molybdenum grease to bearings before reassembly. The rear shock absorber preload should be set at 12mm for riders under 80kg–use a spanner wrench aligned with the third notch from the bottom. Forged aluminum triple clamps tolerate impacts better than steel; replace if cracks exceed 3mm or bending surpasses 0.5 degrees.
Fuel tanks on these models hold 7.2 liters but require a sealing washer (part #AT-FW-110) replaced each time the cap is removed to prevent vapor leaks. The stator generates 14.8V at 5000 RPM; voltage below 13.2V indicates imminent failure. Check wiring harness connections for friction wear–especially near the handlebar juncture–by flexing cables while monitoring dash response.
Replace wheel bearings if lateral play exceeds 0.3mm. Press new bearings in using a 25mm drift punch, ensuring they sit flush and parallel to the hub face. Fork seals should be swapped every 1000 km; use a plastic cone tool to avoid scratching the stanchions. Always measure suspension sag–it should be 30% of total travel–for consistent handling across varying loads.
Locating Critical Elements in the Off-Road 124cm³ Powerplant Structure
Begin by securing the cylinder head–its dual overhead camshaft (DOHC) arrangement dictates precise valve timing. Verify the cam lobes for scoring; even minor wear disrupts compression ratios, leading to misfires. The timing chain, often overlooked, must align perfectly with the crankshaft sprocket; a single tooth offset by 3mm reduces power delivery by 12-15%. Use a degree wheel to confirm camshaft positions at TDC–specifically 108° BTDC for intake and 112° ABDC for exhaust on this configuration.
Inspect the piston assembly before disassembly: the skirt should exhibit a uniform cross-hatch pattern without deep gouges. Measure ring gap clearance–standard is 0.15-0.30mm for the top ring, 0.25-0.40mm for the second. Exceeding these tolerances by 0.05mm increases oil consumption by 20%. The connecting rod big-end bearing clearance should not surpass 0.035mm; replace if loose. During reassembly, torque the cylinder head bolts in a diagonal sequence to 25 Nm, then rotate an additional 90°–failure risks warping the aluminum deck.
Less Obvious but Critical Sub-Assemblies
Check the balancer shaft for endplay if the motor exhibits excessive vibration–limit is 0.05-0.15mm. The oil pump’s gerotor clearances (0.08-0.15mm) directly affect pressure at cold start; deviations stall the hydraulic lifters. Replace the oil filter bypass valve spring if compression drops below 160 psi, as particles clogging the bypass channel restrict flow. The CDI box’s pickup coil air gap must remain at 0.3-0.5mm–misalignment advances or retards ignition timing unnaturally, causing pre-ignition. Use dielectric grease on electrical connectors to prevent moisture ingress, a primary cause of intermittent spark loss at high RPM.
How to Access and Service the Air Filter and Fuel Mixer on Your Off-Road Machine
Begin by removing the seat. Unscrew the two 10mm bolts securing it near the rear fender, then lift it upward to expose the storage compartment. The air filter housing sits directly beneath the seat cavity–detach the retaining clamp using a flathead screwdriver to release the cover. Note the orientation of the foam element; it should be lightly saturated with oil to trap fine debris.
Inspect the filter’s condition. If dust accumulation exceeds 3mm in thickness or the foam tears when stretched, replace it immediately. Clean reusable filters with a mix of warm water and mild detergent, then rinse thoroughly. Apply air filter oil evenly–over-saturation will restrict airflow. Let it drain for 10 minutes before reinstalling.
The carburetor connects to the intake manifold via a rubber boot secured by a single hose clamp. Loosen the clamp with a 7mm socket, then wiggle the boot free. Expect some resistance; the seal may stick. If fuel spills, catch it with a rag–dispose of gasoline properly.
Identify the float bowl beneath the mixer. Four screws fasten it; remove them with a Phillips #2 driver. Avoid dropping the small float assembly or needle valve when lifting the bowl. Check the float’s movement–if it sticks, soak the parts in carb cleaner for 15 minutes. Scrape off varnish buildup using a brass brush, never steel, to prevent scratching.
Replace the main jet if performance drops. The brass component unscrews counterclockwise with a flat 4mm wrench. Compare the old jet’s orifice to a new one–visible wear or deformation means airflow disruption. Reinstall finger-tight before final snugging to avoid cross-threading.
Reassembly requires precise torque. Tighten the float bowl screws to 3Nm in a star pattern to prevent warping. The air filter cover clamp should compress the housing just enough to seal without crushing the foam–snug, not overtightened. Reattach the intake boot clamp only after verifying alignment with the manifold.
Test post-service by running the engine at half-throttle for one minute. Listen for irregular sputtering; persistent lean conditions indicate a clogged pilot jet or improper float height. Adjust the idle screw clockwise until the chain barely engages at 1,200 RPM. Black smoke signals an overly rich mixture–reduce fuel flow via the air screw in 1/8-turn increments.
Step-by-Step Guide to Removing the Off-Road 125 Engine Exhaust
Start by ensuring the engine is cold. Loosen the bolts securing the exhaust pipe to the cylinder head using a 10mm socket wrench. Work methodically–begin with the lower bolts to prevent the pipe from tilting and damaging the gasket. If bolts resist, apply penetrating oil and let it sit for 10 minutes before retrying. Avoid forcing them to prevent stripping the threads.
Tools and Preparation
- 10mm socket wrench
- Penetrating oil (e.g., WD-40)
- Flathead screwdriver
- Pliers (for stubborn clamps)
- Heat-resistant gloves
- Gasket scraper
Disconnect any heat shields or secondary brackets attached to the pipe. These often include small 8mm bolts or rivet-style fasteners. Use pliers to squeeze clamp collars if they’re corroded–twisting motion helps break rusted bonds. Label wires or sensors tied to the exhaust system (e.g., oxygen sensors) with masking tape to simplify reassembly.
Once all fasteners are removed, gently wiggle the exhaust pipe away from the engine. Rotate it slightly to clear the ports–force risks cracking the manifold. Inspect the gasket condition: if frayed or hardened, replace it. Clean the cylinder head mating surface with a gasket scraper, removing old material without gouging the metal. Check the pipe interior for blockages (carbon buildup or debris) and clear them with a wire brush or compressed air.
Reassembly Tips
- Apply a thin layer of high-temperature silicone to the new gasket to prevent leaks.
- Align the exhaust pipe carefully; misalignment strains the manifold.
- Tighten bolts in a diagonal pattern to distribute pressure evenly.
- Torque to 12–15 Nm–over-tightening cracks the flange.
- Reconnect sensors/wires, ensuring snug fits without pinching cables.
Test for leaks after installation. Start the engine and listen for hissing–spray soapy water around joints to spot bubbles. Tighten further if needed, but avoid excessive force.
