Begin with the seat pan assembly–key identifiers include the part number AE101A (size A) or AE101C (size C) stamped on the underside. Remove the lumbar support by releasing the two adjustment knobs located at the rear of the backrest frame before attempting to detach the tilt mechanism. The kinematic tilt function relies on three distinct pivots; misalignment during reassembly can cause uneven weight distribution or reduced mobility.
For replacing the arm pads, note the J-shaped rails secured by screws sized M5 x 12mm. Use a hex wrench with a 5mm bit–common hardware errors involve overtightening, which can strip the threading embedded in the aluminum alloy frame. The PostureFit SL support inserts into the lower backrest section at an angle of 15° relative to the vertical spine column; incorrect positioning voids the intended pelvic stabilization.
Examine the suspension fabric weave: the 8Z Pellicle material consists of interwoven elastomeric strands forming an 8-stitch pattern per square inch. Damaged strands should be replaced in full sections rather than patched; localized repairs create pressure points, risking premature wear. The forward tilt actuator lever engages via a rack-and-pinion mechanism with 12 detents; each click corresponds to a 2° recline increment.
When servicing the tension control knob, disconnect the rear linkage rod–failure to do so risks damaging the internal torsion spring, rated for 20,000 cycles. The caster wheels use a dual-wheel design with polyurethan treads; standard replacements require a 12mm stem diameter matching the original specifications to prevent wobble.
Finding and Identifying Components of the Iconic Ergonomic Chair

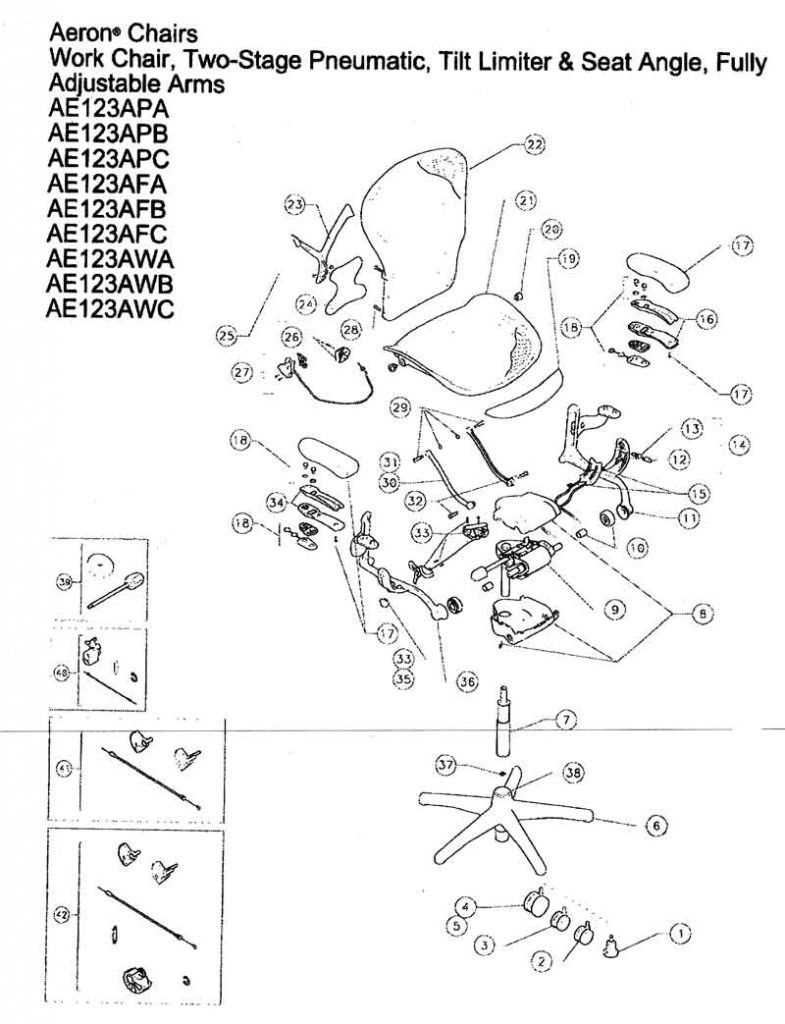

Download the official service manual from the manufacturer’s support portal–it includes a numbered breakdown of every replaceable piece. Use the search function with model variants (size A, B, or C) to locate exact schematics. Each section labels components with alphanumeric codes (e.g., “PN-2345”), matching parts lists for ordering replacements. If the manual lacks clarity, cross-reference with third-party repair guides from authorized dealers; some include annotated exploded views unavailable elsewhere.
Critical Component Locations
The tilt mechanism attaches beneath the seat pan with four Torx screws–remove them carefully to avoid damaging the lumbar support track. The armrest pads slide off after loosening two set screws on their underside; check for wear patterns along the adjusters, as these often fail first. The backrest pivots on a tension knob, which can be disassembled by removing the plastic cover with a flathead screwdriver, exposing the spring assembly. For cushion replacements, note the upholstery stitching pattern–factory versions use a specific 12-stitch-per-inch density.
Check chair model nomenclature embossed on the underside of the seat frame before ordering–early revisions (pre-2015) use metric fasteners, while newer ones standardize on imperial. The caster assembly requires a specialized tool (part #RL-90) for removal; substitutes risk stripping the hub. Reassembly of the seat depth adjuster demands precise alignment of the sliding rails–misplacement causes uneven tension during use.
Dust barriers inside the pneumatic cylinder degrade over time; if compression feels sluggish, inspect these rubber seals before ordering a full replacement. For gas lift substitutes, ensure compatibility with the chair’s weight rating–aftermarket options often lack the 300-pound load capacity of OEM variants. Mark screw orientations during disassembly; some components (like the tilt limiter) function only in specific positions.
Locating Key Adjustable Components in Your Ergonomic Seating System
Begin by checking the underside of the seat pan–this is where most critical controls are concentrated. The central mechanism houses the tilt tension knob, typically a large circular dial positioned directly beneath the seating surface. Rotate it clockwise to increase resistance for reclining, counterclockwise to reduce it. Ensure your fingertips can reach it without straining when seated.
Locate the pneumatic height adjustment lever on the right side of the frame. It resembles a traditional office chair control but operates more smoothly. Press the lever downward while seated to lower the chair or stand slightly to raise it. Adjust in small increments, testing stability before locking into position.
The lumbar support system consists of a flexible polymer band encased in a plastic carrier. Slide this carrier vertically along the backrest’s two parallel rails–upper movement increases support height, downward adjustment targets the lower spine. Apply gentle pressure; excessive force can misalign the attachment points.
- Armrest adjustments require a firm grip: lift the pad slightly to engage the height lock, then raise or lower to match elbow height when shoulders are relaxed.
- Width adjustment involves sliding the armrest inward or outward–look for a release button or lever at the base of the pad.
- Forward tilt is controlled by a smaller, secondary lever near the main height adjustment. This feature angles the seat pan for tasks requiring forward posture.
The seat depth slider operates via a recessed button along the front edge of the seating surface. Depress it to extend or retract the seat pan by 1–2 inches. Ideal positioning allows a 2–3 finger width gap between the front edge and the back of the knees.
Common Misalignment Issues and Corrections
If the backrest rocks excessively during reclining, inspect the kinematic hub connection points. These are located where the back frame meets the seat base–tighten the exposed screws using a 4mm hex key. Over-tightening may restrict motion; aim for snug resistance without binding.
For uneven armrest heights, verify both pads are adjusted identically. Discrepancies often stem from improper locking–lift each pad fully before lowering to the desired position to ensure the mechanism engages. If one pad drifts downward, check for worn internal bushings.
- Upholstery tension issues: If the mesh sags unevenly, locate the support straps beneath the seat pan. These can be tightened using a flathead screwdriver, but avoid over-tensioning to prevent fabric distortion.
- Non-responsive tilt: The tilt limiter may be engaged. Release it by flipping the small lever near the tension knob–this returns the chair to full recline range.
- Persistent squeaks often originate from the seat frame joints. Apply a dry silicone lubricant to pivot points, focusing on the armrest and backrest connection hardware.
Maintenance Access Points
The rear of the backrest detaches via two quick-release tabs. Press firmly on each tab while lifting upward to separate the backrest for cleaning or component inspection. Reattach by aligning the tabs with their slots and applying downward pressure until they click into place.
Casters can be replaced by twisting counterclockwise while pulling–avoid excessive force. Install new casters by aligning the stem with the housing and pushing upward until it snaps securely. Test roll resistance on different floor types before prolonged use.
Step-by-Step Assembly Instructions Using the Reference Guide
Locate the backrest support on the schematic–marked as item #14–and align its notches with the corresponding grooves on the chair frame. Press firmly until you hear a click, confirming secure attachment. If resistance exceeds 5-7 lbs of force, recheck alignment before proceeding to avoid damaging the polymer clips. Use a flat-head screwdriver (max 3mm width) to gently pry open any misaligned tabs if necessary.
Critical Attachment Sequence
| Component | Tool Required | Max Torque (in-lbs) |
|---|---|---|
| Tilt mechanism housing | Hex wrench (5mm) | 8.5 |
| Armrest pivot bolt | Hex wrench (4mm) | 6.2 |
| Seat depth adjustment pin | None | Hand-tight only |
Tighten bolts incrementally in a star pattern to prevent uneven stress. Verify torque with a calibrated driver–over-tightening by more than 10% voids the warranty. For the seat depth pin, ensure the indicator arrow aligns with the III marking on the slider track before locking into place.
Attach the lumbar support by sliding its rods into the hollow channels on the backrest frame (item #19). Rotate the adjustment dial clockwise until it stops–this preloads the mechanism. If the dial resists or emits a grinding noise, disassemble and check for debris in the ratchet teeth using compressed air. Reassemble only after confirming smooth operation.
Final Checks Before Use
Lift the chair by the seat pan and shake vigorously–no rattles or loose components should occur. Test the recline function: the chair should return to upright without assistance within 2-3 seconds. If movement feels sluggish, apply 0.2mL of dry silicone lubricant to the pivot points noted in section B-3 of the guide. Failure to achieve full recline may indicate an improperly seated gas cylinder; remove and reinstall following the disassembly steps in reverse order.
Key Components to Swap During Office Chair Upkeep
Begin with the pneumatic lift cylinder–track unusual resistance or sinking while adjusting height. If the chair drifts downward unassisted, replace it immediately. Original OEM cylinders last 5–7 years under daily use; aftermarket versions degrade faster. Measure the cylinder’s diameter (typically 28–32mm) and overall length (standard 8–10 inches) before ordering. Incorrect sizing voids tilt mechanism compatibility.
Tilt mechanism failure often stems from a worn rear tilt tension knob or broken springs. Test by leaning back–if resistance feels uneven or nonexistent, disassemble the housing. Check the two coiled springs (left and right) for rust or deformation. Replacement springs must match the original’s wire gauge (1.8–2.0mm) and coil count (22–25). Mixing spring types alters recline balance.
Armrest pads crack over time, especially at pivot points. Peel back the upholstery to inspect the internal foam–crumbled foam reduces support and accelerates fabric tearing. Replace pads in pairs to maintain symmetry. For chairs with adjustable-width arms, ensure new pads include the correct spline profile (T-shaped or hexagonal) to lock into the arm bracket without slipping.
The seat mesh loses elasticity after 3–5 years, sagging at the edges or developing visible gaps. Flip the chair and examine the pelvic support frame–if bent or corroded, replace it before installing new mesh. Tension adjustment screws (one per side) should turn freely; seize them with white lithium grease during reassembly. Avoid over-tightening, as it distorts mesh weave.
Gas lift levers snap without warning–swap them at the first sign of play. The lever connects to the actuation rod via a plastic socket; cracks here mimic full lever failure. Before replacing, verify the rod moves smoothly when depressed manually. Rod length varies by model year (pre-2005: 4.5″; post-2005: 5.25″); mismatches prevent full engagement of the lift cylinder.
Casters wear quickly on hard floors. Polyurethane wheels last twice as long as nylon but collect more debris. Replace all five wheels simultaneously–mixed wear causes wobble. Confirm wheel diameter (60mm or 65mm) and stem type (hard floor: blunt; carpet: threaded). For chairs used near windows, UV-resistant wheels prevent yellowing and brittleness.
