Locate the engine assembly schematic on page 12 of the official service manual–this is the most reliable reference for identifying all internal and external elements of your heavy-duty clearing tool. The left-side housing panel detaches with a T25 torx bit, exposing the flywheel, ignition coil, and recoil starter. Each component is labeled with a three-digit code (e.g., 786-452 for the carburetor cover) corresponding to the manufacturer’s replaceable item list.
For precision repairs, use a calibrated torque wrench when reassembling the crankcase–over-tightening the M8 bolts by even 1.5 Nm can warp the sealing surface, leading to oil leaks. The fuel line routing diagram on page 28 specifies hose lengths: 250 mm for the primer bulb inlet and 380 mm for the carburetor return line. Incorrect lengths cause airlocks, visible as erratic idle or stalling after warm-up.
The blade clutch assembly (part set 304-780) requires periodic inspection–measure the friction pad thickness with a micrometer; replace if less than 1.2 mm. The spring tension adjustment (page 44) dictates engagement speed: a worn spring increases the delay by 800–1,200 RPM, reducing cutting efficiency by 18–22%. Always verify the spark gap (0.5–0.6 mm) before reinstalling the ignition module–gaps outside this range cause misfires under load.
When sourcing replacements, cross-reference the serial number stamped on the crankcase housing–later models (post-2019) integrate a redesigned air filter housing (910-311) with a one-way valve to prevent debris ingress. Earlier versions lack this feature, requiring more frequent filter cleanings (every 8 operating hours vs. 15 hours for the updated design). Always apply manufacturer-specified grease (PN 333-010) to the gearbox output shaft–standard lithium-based lubricants degrade within 40 hours under high torque conditions.
Practical Guide to Replacement Components for Professional Chainsaws
Locate the air filter housing by removing the top cover–typically secured with two screws near the handle. Clean or replace the filter every 10 operating hours if working in dusty conditions; clogged filters reduce engine efficiency by up to 30%. Use compressed air or warm soapy water, ensuring complete drying before reinstallation.
Inspect the spark plug every 50 hours of use. A fouled plug, identifiable by black carbon deposits or a cracked insulator, causes hard starting and misfires. Gap should measure 0.5 mm; adjust with a feeler gauge if necessary. Replace plugs showing wear–original equipment manufacturers (OEM) parts cost $4–$8, while aftermarket options like NGK BPMR7A often underperform in cold climates.
Critical System Breakdown by Service Intervals
| Component | Inspection Frequency | Common Failure Signs | OEM Part Number | Aftermarket Alternative |
|---|---|---|---|---|
| Drive sprocket | Every 20 hours | Excessive chain vibration, worn teeth | 1123 640 2002 | Oregon 38-023 (compatible, 12% shorter lifespan) |
| Bar rails | Every 10 hours | Uneven wear, damaged groove | 3005 000 4012 (20-inch) | None (avoid aftermarket–warping risk) |
| Fuel filter | Every 50 hours | Difficulty starting, fuel starvation | 1118 120 1000 | Husqvarna 531309624 (identical specs) |
Adjust the carburetor using the three screws marked “L” (low speed), “H” (high speed), and “LA” (idle). Turn screws clockwise to lean the mixture (counter-clockwise to enrich) in 1/8-turn increments. Start with factory settings: L = 1 turn out, H = 3/4 turn out. Use a tachometer–idle should hold steady at 2,800 RPM (±200). Incorrect tuning damages pistons within 5–10 hours of operation.

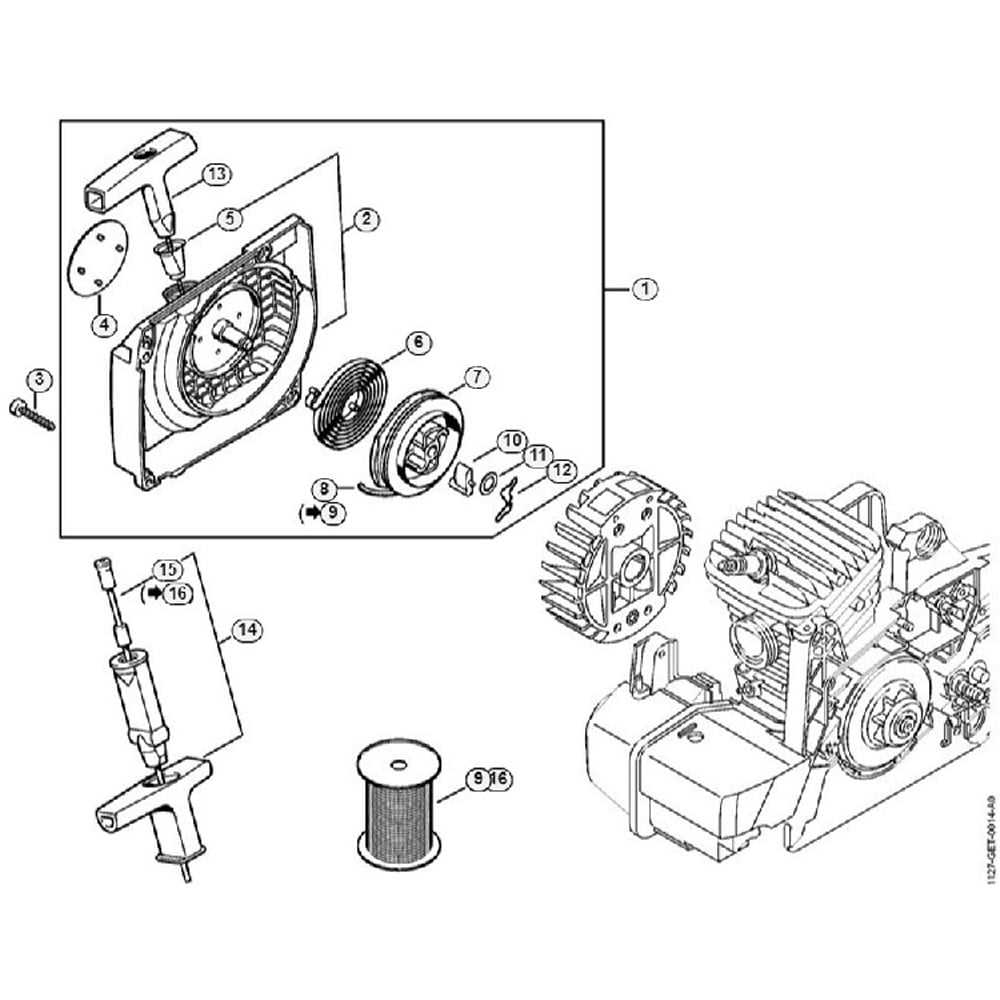

Replace the recoil starter assembly if the rope retracts sluggishly or the pulley cracks. Disassemble by removing the four screws on the flywheel cover; note the spring tension before loosening. Lubricate the spring with grease designed for high-RPM applications (e.g., Klüberplex EM 45-152). Aftermarket pulleys often lack the nylon coating found in OEM parts, increasing wear on the rope.
Tool-Specific Repair Kit
Keep these items on hand to avoid downtime: 1) 4mm hex wrench (for cover screws), 2) spark plug socket (21mm), 3) depth gauge for chain sharpening (0.63mm/.025″), 4) bar groove cleaner (metal scraper), 5) compression tester (readings below 90 PSI indicate worn rings). Cost: $45–$70 total; saves $120+ in labor per repair.
Store the equipment with the fuel tank empty or use stabilizer if storing longer than 30 days. Ethanol-blended fuels degrade rubber components (e.g., primer bulb, fuel lines) within 60 days. Replace deteriorated lines immediately–failure causes air leaks, leading to erratic performance or engine lockup. Use Tyfocor L or similar glycol-based stabilizer at a 1:50 ratio for winter storage.
How to Locate Genuine Equipment Schematics for Your Power Tool Online
Begin with the manufacturer’s primary web portal. For models like the MS 271 or MS 362, navigate to the “Support” or “Product Resources” section. Here, you’ll find an interactive exploded-view tool–filter by series and model number to pull up exact assemblies. The portal updates these files quarterly, so check back if your model isn’t listed immediately. Bookmark the direct URL to bypass the homepage each time.
If the official site’s interface feels cumbersome, third-party retailers often mirror these schematics. Search for “[model code] + exploded diagram PDF” on platforms like eReplacementParts or RepairClinic. These sites compress the original drawings into downloadable PDFs, which load faster than the manufacturer’s interactive viewer. Verify the retailer’s authenticity by confirming they list OEM (Original Equipment Manufacturer) numbers next to each item–aftermarket sellers sometimes alter these.
- Type the exact model code (e.g., MS 291 C-BE) into the retailer’s search bar–generic terms like “chainsaw” return hundreds of irrelevant results.
- Look for schematics labeled “Parts List” or “Assembly Breakdown”–these include component names, quantities, and occasionally torque specs.
- Avoid diagrams missing OEM numbers; they’re either incomplete or adapted from aftermarket knockoffs.
For older units (pre-2015), dig into archived dealer manuals. A handful of dedicated forums host user-uploaded scans–search “[model code] + schematic + archive” on Arboristsite or ChainsawBikeBuilders. These threads often link to Dropbox or Google Drive folders containing raw files. Cross-reference the upload date with your tool’s production year to avoid mismatched revisions. Note that forum links expire; download files immediately.
Offline Alternatives When Online Sources Fail
If internet access is limited, visit an authorized service center. Technicians there keep physical binders of printed schematics, organized by model. Call ahead to confirm they stock your specific series–some centers only retain diagrams for current-year units. Ask for a “parts kit manual”, which bundles the schematic with a printed catalog. Some centers charge a nominal fee for copies, but this is cheaper than ordering a full workshop manual.
Another option: reach out to former dealers via eBay. Some retired shops liquidate their inventory, including physical copies of schematics. Filter eBay listings by “Manual” and “Parts Diagram”, then message sellers to ask if they have the exact model. Specify you need the dealer-edition–user manuals lack the granular detail found in exploded views. Payment is fast, and most sellers ship within 24 hours.
- Locate the model’s production date (stamped on the housing) to match to the correct schematic revision.
- Compare the downloaded file’s file size–authentic schematics range from 1MB to 5MB; anything smaller is likely truncated.
- Print critical pages single-sided to add handwritten notes during repairs.
How to Pinpoint Critical Elements in Your Chainsaw’s Exploded Schematic

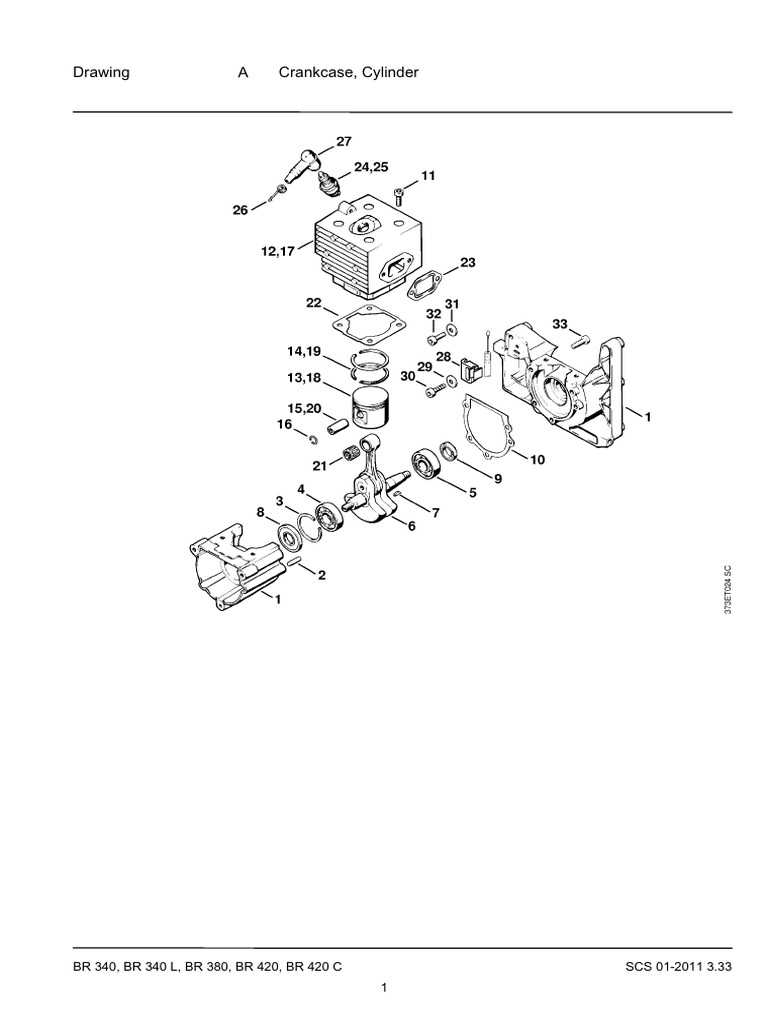

Locate the engine assembly first–it’s typically at the top of the schematic, marked as the largest cluster of components. Look for the crankcase and cylinder, often numbered sequentially (e.g., 1-10). The crankshaft (item 3 or 4) usually connects to the flywheel (item 5), identifiable by its toothed edge.
Trace the fuel system by finding the carburetor–it’s a compact, rectangular block with attached hoses. Adjacent to it, you’ll see the fuel filter (a small cylindrical part) and the fuel line connectors (often color-coded). The primer bulb, if present, is a soft rubber dome near the carburetor.
Identify the ignition module by its wiring harness and spark plug boot. The spark plug itself is a standalone item (e.g., item 15) with a ceramic insulator. The ignition coil, if separate, sits near the flywheel with a thin wire leading to the spark plug.
Examine the bar and chain drive section. The clutch drum (a circular part with teeth) attaches to the drive sprocket (often item 20). The guide bar is shown as a long, flat component with mounting holes, while the chain is a series of linked segments with cutting teeth.

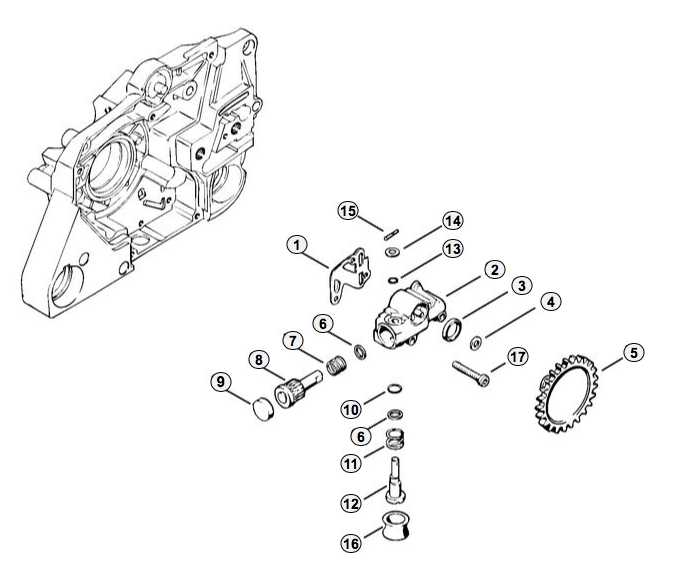

Find the oil pump near the clutch drum–it’s a small, round housing with inlet and outlet ports. The oil reservoir cap and filter (if applicable) are labeled separately, usually with a bolt or threaded design.
Check the air filtration system. The air filter housing is a box-like structure with a foam or paper element inside. Some models show a pre-cleaner (a mesh screen) as a secondary layer.
Note the handle and throttle assembly. The main handle is a solid grip, while the throttle trigger (with spring) connects via a linkage to the carburetor. The throttle lockout (a small lever) prevents accidental engagement.
Scan for fasteners last–screws, bolts, and washers are scattered but grouped by size. Use the legend to match thread diameters (e.g., M6, M8) to their respective locations, ensuring proper torque upon reassembly.
