Start by identifying the exact assembly section needing repair. The engine cover (part #M135299) lifts off without tools, revealing the drive belt system. Check tension on belt #M127692–replace if worn to less than 3mm at peak wear points. For electrical faults, trace the main wiring harness (#LV20410) from the ignition module to the fuse block, verifying continuity with a multimeter set to 200 ohms.

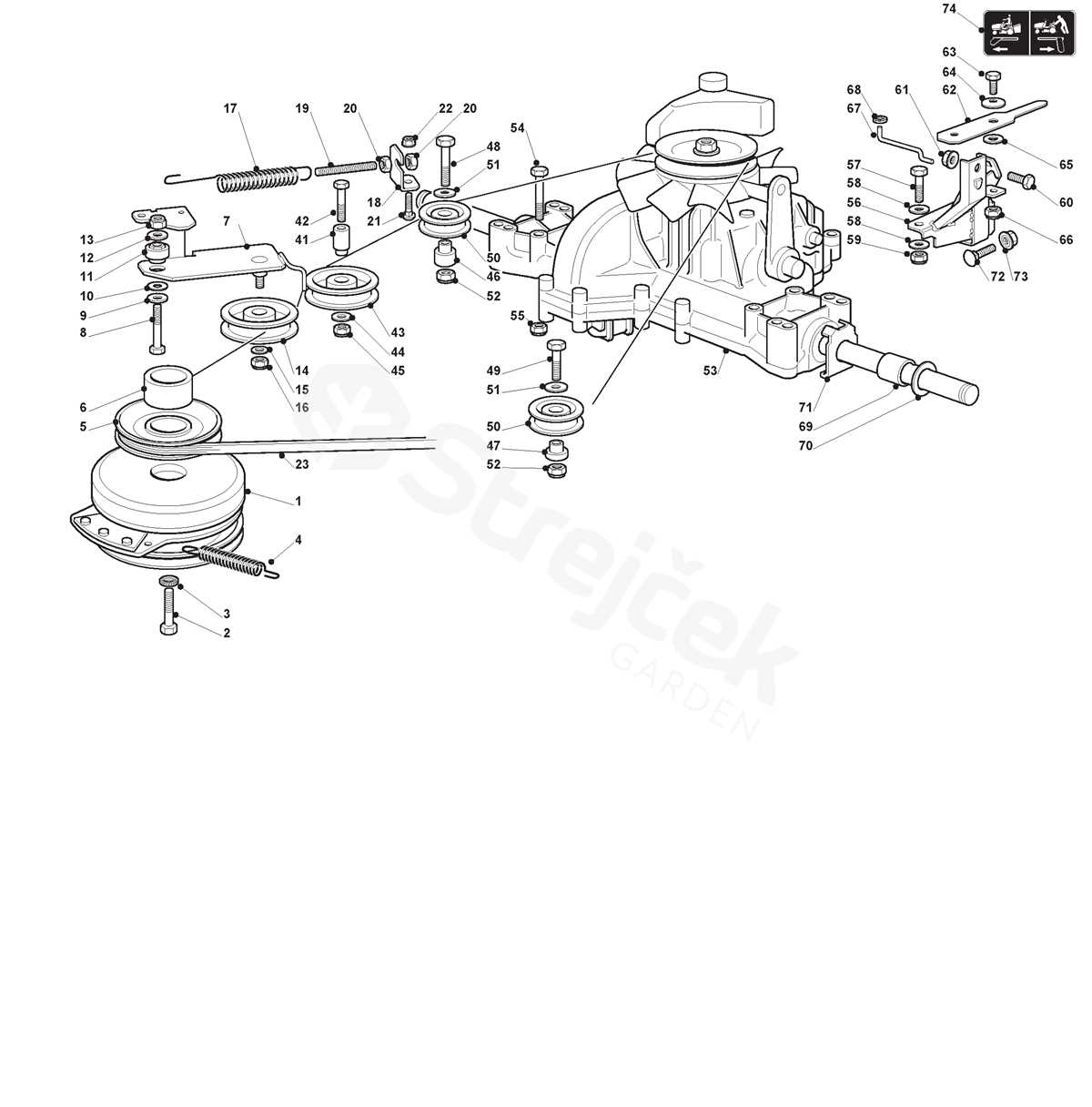

Transmission issues typically stem from hydrostatic fluid leaks. Drain the reservoir using drain plug #MTD25, flush with type-F ATF, then refill to the upper dipstick mark. If forward motion fails, inspect drive pulley #M125696 for stripped splines–rotate manually while observing engagement with pulley #M125697. Replace both if alignment exceeds 0.5mm lateral play.
Deck adjustments require removing blade mandrel assemblies (#M135338). Measure spindle height–ideal clearance is 4.75mm (±0.25mm) from deck base. Lubricate PTO clutch bearing (#M119166) with NLGI #2 lithium grease every 50 hours, applying precisely 5g via grease fitting #M119167. For noisy operation, focus on idler pulleys (#M125698)–replace if rotational drag exceeds 0.8Nm.
Access comprehensive schematics through OEM portal #TECH432, filtering by serial number (found on the transaxle housing). Cross-reference exploded views with aftermarket kit #XP-1234 for cost-effective alternatives–ensure compatibility with SAE J201 specifications. Document all removals using circuit tester #FLUKE-114 before disassembly to avoid miswire scenarios during reassembly.
Manufacturer’s Model L135 Component Breakdown: A Focused Handbook
Start repairs by locating the engine assembly–labelled “Kohler Command CV20” in official schematics–at the rear frame. The air filter housing sits atop, secured with a single rubber-sealed lid; pry open gently to avoid tearing the pleated media.
Hydraulic lines connect beneath the mower deck midsection; trace each hose from the pump to its valve block using a bright torch. Marker tags help distinguish lift, drive, and blade circuits–yellow denotes pressure, blue signals return flow.
Identify deck pulleys by diameter: 3-inch drives primary spindle, 2-inch tensioners snap into adjustable mounts. Tension springs stretch horizontally; replace if free length exceeds 4.5 inches without load.
Steering linkage pivots around ball joints hidden behind front wheels. Apply lithium grease directly into the zerk fittings–small brass nipples flush with black plastic caps–every fifty operational hours.

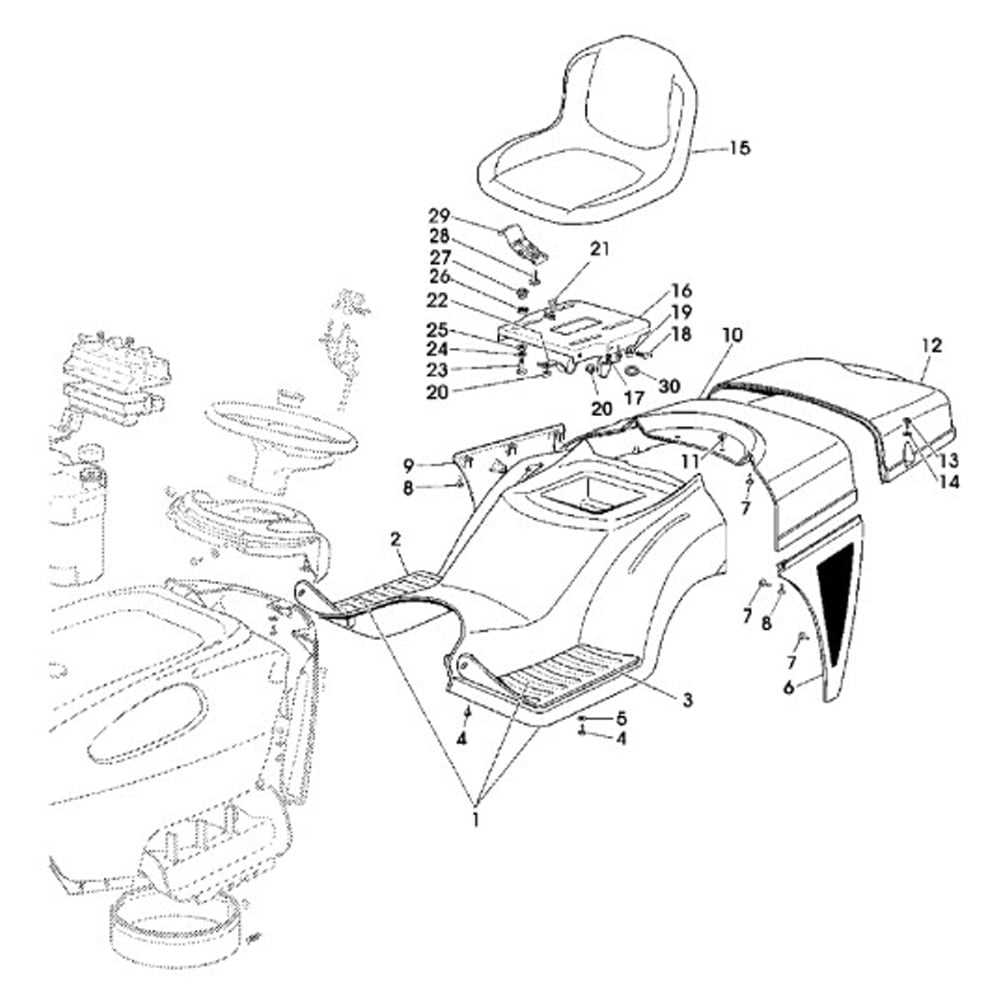

The electrical wiring harness runs beneath the seat pan; damaged sheathing requires splicing with shrink tubing, never electrical tape. Battery negative connects to frame ground near rear axle.
Fuel filter replacement involves shutting off the valve below the fuel cap, then draining residual gasoline into an approved container. Spin-on filters turn counterclockwise during removal.
Blade sharpening should maintain forty-degree bevels; uneven edges create vibration detectable by hand through handlebars at half throttle.
Locating Authorized Schematics for the LA135 Tractor Online
Access the manufacturer’s primary resource at Deere’s official replacement components portal. Filter by equipment category–select “Riding Lawn Equipment” then choose model LA135. Each assembly breakdown appears in an interactive viewer with exploded views, part numbers, and direct purchase links. Users must register a free account but gain unrestricted access to the most current schematics, updated whenever engineering revisions occur.
The Parts Catalog offers an alternative route; input LA135 in the search bar to pull up factory-approved diagrams without account registration. Zooming tools allow detailed inspection of every fastener, housing, and linkage. For offline use, downloadable PDFs store seamlessly on tablets or phones–ideal for mechanics working outside network coverage. Avoid unverified third-party sites; factory diagrams ensure compatibility and accuracy.
Local dealer websites often mirror these schematics with added regional pricing and availability. Visit Canada’s portal or UK’s version for geographically tailored results. Bookmarking shortcuts speeds future lookups, eliminating repeated navigation through menus.
Step-by-Step Guide to Identifying Garden Tractor Engine Components
Locate the air cleaner assembly at the front-right side near the engine’s intake. Remove the wing nut or clip securing the filter cover, then extract the foam or paper element. Inspect for debris–clean with compressed air or replace if clogged. Reinstall the element, ensuring a snug seal to prevent unfiltered air from entering the combustion chamber. Misfires or poor acceleration often stem from a compromised filter.
Trace the fuel line from the tank to the carburetor on the engine’s left side. Identify the fuel pump (if equipped) by a small diaphragm housing with two hose connections. Disconnect the intake hose and check for fuel flow–blockages here cause sputtering or failure to start. Replace cracked hoses immediately; ethanol-blended fuels degrade rubber faster than standard gasoline. Below the carburetor, note the throttle linkage–ensure it moves freely without binding.
| Component | Location | Failure Symptoms | Inspection Method |
|---|---|---|---|
| Spark Plug | Top of cylinder head, accessible via rubber boot | Hard starting, rough idle, misfires | Gap test (0.030″), check for carbon fouling |
| Crankcase Breather | Valve cover, connected via hose to air intake | Oil leaks, excessive smoke | Remove hose, inspect for oil sludge |
| Coil | Left side near flywheel, bolted to engine block | No spark, intermittent ignition | Multimeter test (5–15 kΩ resistance) |
Examine the cooling fins on the cylinder head and block–accumulated dirt reduces heat dissipation, leading to overheating. Use a stiff-bristle brush or compressed air to clear debris from between fins. Avoid water, which can force grime deeper. Check the flywheel’s cooling fan blades for cracks; even minor damage disrupts airflow efficiency. If the engine runs hotter than usual, prioritize this area before investigating thermostats or oil levels.
Disconnect the battery before servicing electrical components. Probe the starter solenoid’s two large terminals with a multimeter–readings below 12.4V indicate a weak battery or corroded cables. Clean cable ends with a wire brush, then tighten connections. For alternators, measure voltage at the battery with the engine running (should read 13.5–14.5V). Overcharging (>15V) overheats batteries, while undercharging (
Key Wear Components for the LA135 Cutting Assembly

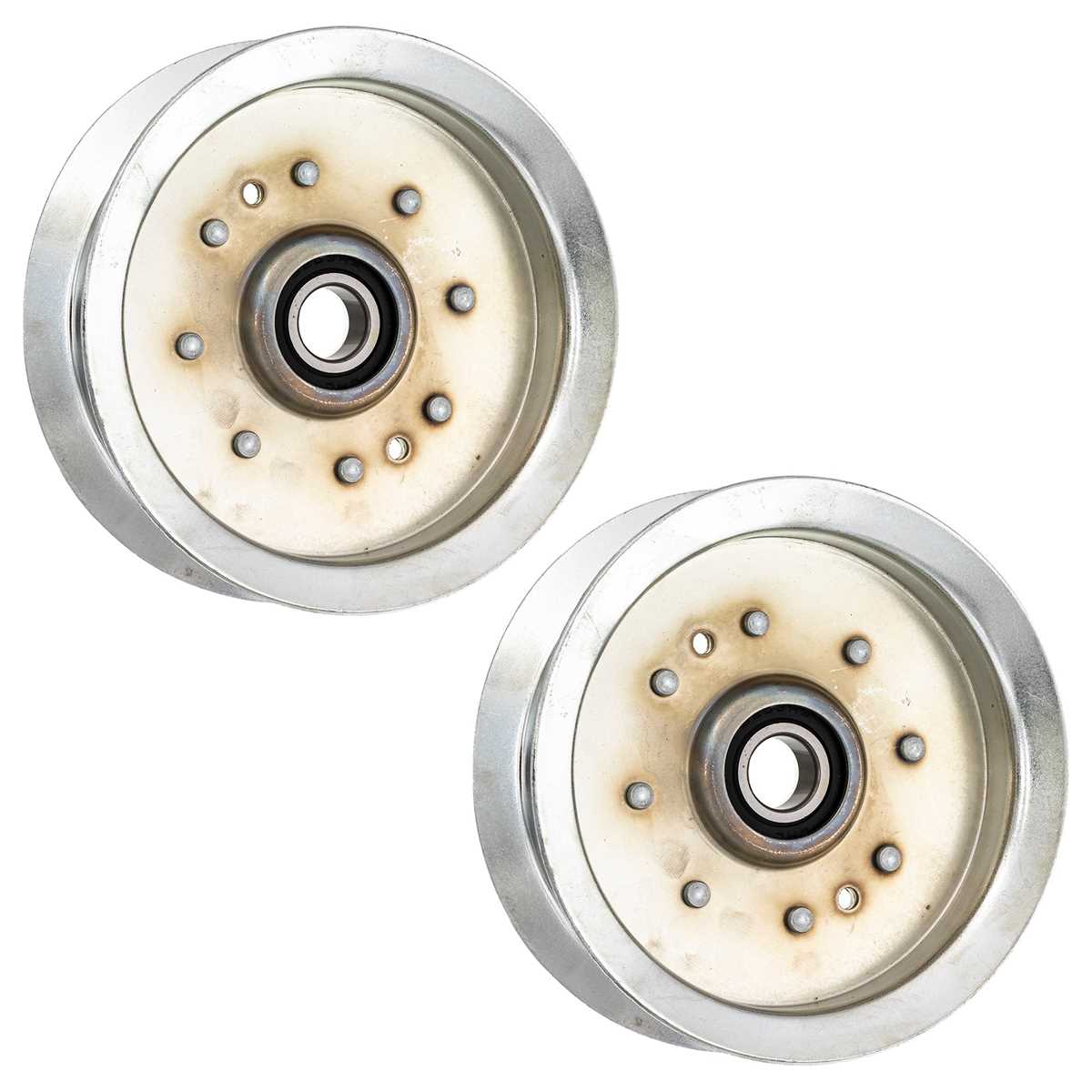

Replace the mulching blades (GX20074) every 50–75 operating hours or immediately if nicks, bends, or excessive wear are visible–uneven cutting or scalping signals blade failure. For belt-driven models, inspect the deck drive belt (M144997) every 25 hours; cracks or fraying reduce torque transfer, stalling the blades. Install a new belt if it stretches beyond 1/4″ slack. The idler pulley (M109421) lasts 150–200 hours but should be swapped sooner if it squeals or wobbles, as a seized pulley risks belt snap. Check spindle assemblies (M126199) for play every 100 hours; excessive vibration or rattling indicates worn bearings–replace the entire spindle to avoid costly deck damage.
- GX20074 blades (2 per side, reverse-thread LH)
- M144997 V-belt (deck drive)
- M109421 idler pulley (spring-loaded)
- M126199 spindle assemblies (includes bearings)
- M107152 mandrel sheave (if cracked)
- M131968 anti-scalp wheels (adjustable height)
- M116021 deck washers (prevents bolt loosening)
How to Use a Schematic for Mower Blade and Drive Belt Upkeep
Locate the exploded view drawing for your tractor’s cutting deck before disassembly. Identify each bolt, spacer, and pulley labeled with a reference number–cross-check these against the component list to confirm materials (e.g., grade-8 fasteners for blade mounts). Measure blade thickness at three points: edges and center; replace if readings dip below 0.187 inches (4.75 mm) to maintain cutting efficiency and balance.
Trace the belt’s path in the schematic before removal. Note idler pulleys’ spring tension direction; incorrect reinstallation angles cause premature wear or slippage. Use a torque wrench for drive pulley nuts–35 ft-lbs (47 Nm) prevents hub distortion. For poly-v belts, align ribs with pulley grooves within 0.040 inches (1 mm) to avoid edge fraying; misalignment by 1/16 inch reduces lifespan by 30%.
Adjustments and Wear Checks
Inspect belt ridges under direct light–replace if cracks exceed 1/8 inch (3 mm) or if backing shows glazing. Clean pulleys with denatured alcohol; residue buildup increases slippage risk by 25%. For blades, use a magnetic angle gauge: 30° tilt for standard cuts, 45° for heavy grass. Re-torque blade bolts after 2 hours of runtime to counteract settling.
Compare old and new components side-by-side during installation. Verify blade adapters’ keyway alignment–offset by even 0.020 inches (0.5 mm) risks shearing during operation. For belts, stretch the new one against the old to confirm length; variations over 1/8 inch indicate incorrect part numbers. Test deck engagement with a vacuum gauge: readings below 5 inHg signal loose belt or pulley misalignment.
Store removed hardware in labeled containers. Tag blades with orientation (left/right, front/rear) and note shim quantities–reassembling without exact counts risks clearance issues. Lubricate spindle housings with lithium grease rated for 10,000 rpm; overpacking traps debris and overheats bearings.
