Start by locating the drive coupling beneath the jar base–this connects the motor shaft to the blade assembly. In models released after 2018, it’s a hexagonal plastic piece, while earlier versions use a metal spline. If blending produces unusual grinding noises, inspect this part first; wear often causes slippage. Replace with part #HB-7892 for plastic couplings or #HB-4561 for metal variants.
The blade unit consists of four components: stainless-steel blades, a rubber gasket, a threaded base, and a locking ring. Remove the jar from the base, invert it, and twist counterclockwise to detach the blade assembly. Post-cleaning, ensure the gasket sits flush–misalignment leads to leaks. Use a toothpick to clear residue from the threading before reattachment. Avoid over-tightening; hand torque is sufficient.
For speed control issues, check the resistor bank on the base’s underside. Access it by removing the four Phillips screws securing the bottom plate. Three resistors (R101, R102, R103) correspond to low, medium, and high settings. Test continuity with a multimeter: if readings exceed 10% variance, replace the entire board (#HB-2345). Heat damage often appears as darkened solder points or swollen capacitors.
Jar cracks require immediate replacement–microfractures propagate under pressure. Plastic models (e.g., 51101) use #HB-1234, while glass jars (52210) need #HB-5678. Match the capacity: 40 oz jars won’t fit 60 oz bases. For sealing rings, opt for silicone (#HB-8910) over rubber (#HB-3456) for longer durability, especially with acidic mixtures.

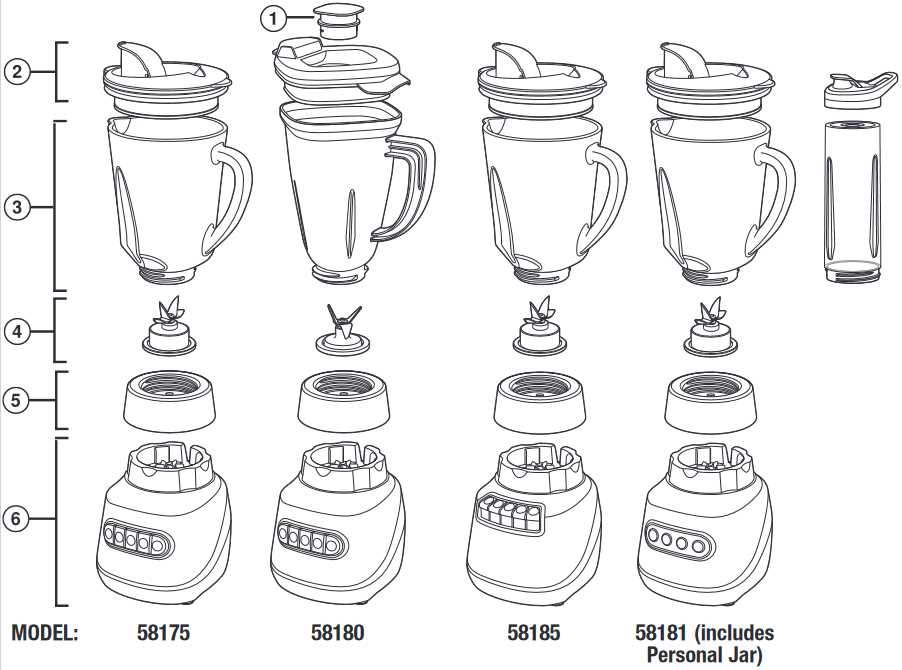

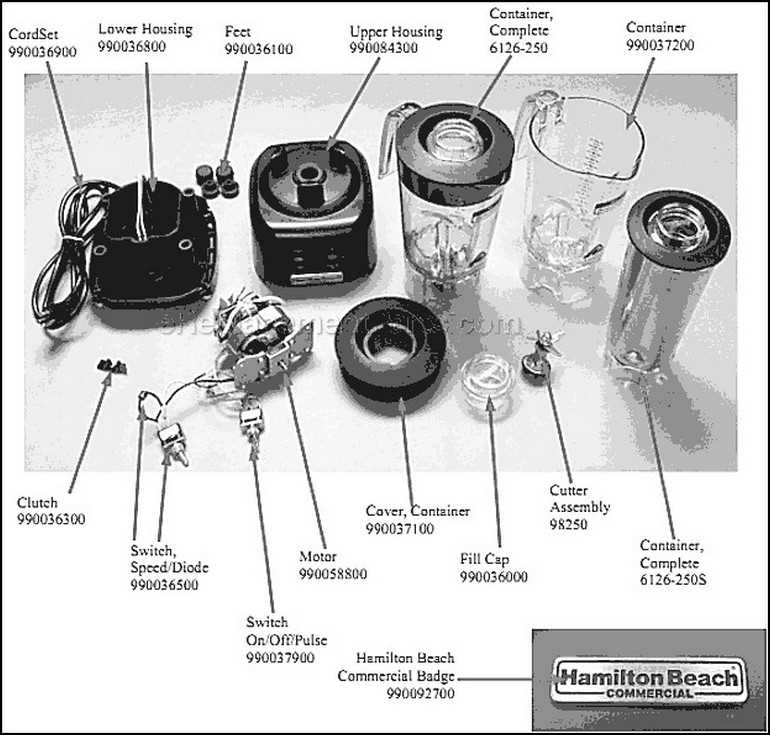

Understanding Your Mixer’s Component Layout
Locate the motor housing beneath the pitcher base–it’s secured by three screws. Remove them using a Torx T10 driver to access the coupling assembly. If the device fails to activate, check the rubber coupling first: cracks or wear indicate replacement is needed. The coupling connects the motor shaft to the blade assembly, so even minor damage disrupts operation.
Examine the gasket sealing the jar’s lid. A warped or brittle gasket prevents proper suction, causing leaks during pulsing. Replace it immediately if gaps or stiffness are visible. The gasket’s groove should fit snugly against the jar’s rim; misalignment leads to inconsistent blending.
- Base plate: Contains the power switch and speed controls. Test continuity with a multimeter if the unit doesn’t respond–failed switches often require soldering or replacement.
- Blade assembly: Includes four stainless steel blades. Sharpness degrades over time; dull blades struggle with ice or fibrous ingredients. Remove the jar’s base nut with a wrench to inspect.
- Pitcher collar: The threaded ring securing the jar to the base. Cross-threading strips the plastic; ensure alignment before tightening.
Dismantle the drive socket by prying off the plastic cover with a flathead screwdriver. Beneath it, the drive stud threads onto the motor shaft–if stripped, the entire motor unit may need replacing. Lubricate the stud with food-grade silicone grease during reassembly to reduce friction.
For models with a tamper, verify the plastic rod’s integrity. Cracks near the base compromise pressure, risking blade jams or motor strain. The tamper’s fit should allow smooth vertical movement without resistance.
Identify the thermal fuse clipped to the motor winding–its failure cuts power as a safety measure. Bypass it temporarily to test, but never operate without it long-term. Replace with an identical fuse (typically 10A, 250V) to restore function.
- Unplug the appliance before disassembly.
- Label wires when detaching the speed control board.
- Clean residue from jar threads with isopropyl alcohol.
- Avoid overtightening the blade assembly–it cracks the jar’s base.
- Store replacement components in a dry, cool environment to prevent degradation.
Finding the Authorized Product Component Guide for Your Appliance
Visit the manufacturer’s primary website and navigate to the support section–this is the only reliable source for accurate schematics. Search for your model number directly, entering the full series identifier found on the underside or rear label. Official documentation will categorize components by assembly groups, often separating motor housing, blade assemblies, and pitcher attachments for clarity.
Model-Specific Documentation Variations
Some product lines offer exploded-view PDFs under “Service Manuals,” while others restrict access to online interactive tools. Models released after 2020 typically include a clickable parts list with item numbers linked to purchase options. If no direct link appears, filter search results by “repair” or “disassembly” to locate supplemental guides not listed under basic model queries.
Third-party retailers sometimes host mirrors of official diagrams, but cross-reference these with the manufacturer’s version to avoid mislabeled or outdated representations. Authentic guides will include trademark symbols, precise measurements, and torque specifications–details rarely present in unofficial copies.
For discontinued models, check archive sections or reach out to customer support with the model and serial number. Representatives may provide direct access to legacy documents not visible through standard searches. Avoid community forums claiming to have internal schematics; these often omit safety mechanisms or misalign components.
Printed manuals shipped with the unit usually contain a condensed version of the breakdown–refer to page numbers listed under “replacement components” for quick reference. Digital copies expand this with hyperlinks to OEM suppliers, reducing searches for compatible alternatives.
Locating Key Wearable Components Using Your Appliance’s Serial Code
Check the base plate or underside of the motor housing–most serial codes follow a format like “HB-XXXX” or “BL-XXYY”. The first two digits after the prefix often indicate the series, while the last two denote minor revisions. Series 53 and 54 use a clutch assembly with a 12-tooth gear; Series 65 and above switch to a 15-tooth design, incompatible with earlier versions.
For models ending in 01-15 (e.g., BL-6501), the coupling stem features a square drive. Later revisions (16-30) integrate a star-shaped socket requiring an updated drive shaft. Mismatched components cause slippage or failure to engage. Verify the stem’s shape before ordering–replacements are labeled “square shaft” or “star drive” accordingly.
Gasket sealing collars differ by build year. Early units (pre-2018) use black rubber O-rings, later replaced with silicone-coated variants. Measure the inner diameter: 42mm fits most jars, while 48mm applies to oversized containers. Note that 2020+ models omit the external retaining ring, relying on an internal snap-fit mechanism–attempting to reuse older jar designs will result in leaks.
- BL-53XX: Replaceable lid plug is nylon (#304-1070). Cracks develop along the hinge groove after 18 months of daily use.
- BL-61YY: Stainless steel blades (#332-600) dull at a rate of 0.3mm/100 cycles–sharpening extends life by 40% before irreparable chipping occurs.
- BL-72ZZ: Motor brushes (#803-25) degrade unevenly. Left brush wears 22% faster due to torque distribution; swap sides every 50 hours to equalize wear.
Jar capacity is coded into the serial suffix. “A” denotes 40oz standard; “B” indicates 64oz commercial-grade. Mixed use risks motor overload on smaller units–the 40oz maxes at 3.2 amps, while 64oz requires 4.7 amps. Check the manual’s wiring diagram before cross-compatibility attempts; reversing polarity voids the warranty and risks short-circuiting the control board.
Speed selector switches follow two layouts: rotary dials on analog models (“BL-5X”), membrane buttons (“BL-6X+”). Rotary assemblies fail when oxide builds on contacts–clean with isopropyl alcohol and a 0.5mm fiber brush. Membrane units need full replacement (#910-XXXX) when buttons stick or exhibit delayed response; no repair kits exist due to layered circuit construction.
- Remove the base cover by unscrewing the six Torx T10 bolts–hidden screws are beneath the rubber feet on Series 70+.
- Trace wiring harness connections back to the PCB; identify the failed component (e.g., capacitor C5 swollen, diode D7 darkened).
- Desolder with a 60W iron and replace using exact ratings (+/-5%). Incorrect values cause immediate heating or underpowered operation.
Post-2019 units incorporate overload sensors (#AS-12). Triggering disables the motor for 90 seconds–no reset button exists. Unplug, wait four minutes, then restore power. Persistent tripping indicates blade obstruction (grind 1 cup ice to clear) or worn bearings. Bearing replacement (#BRG-48) requires press tools; improper installation leads to premature failure via misalignment.
How to Interpret a Kitchen Appliance Schematic for Putting It Together
Locate the exploded view at the top of the document–this is your primary reference. Each numbered component corresponds to a label in the accompanying list, detailing its function and placement. Start with the base unit (typically the motor housing) and work upward, matching screws, gaskets, and blades to their assigned positions. Cross-reference the torque specifications in a separate table if provided; overtightening can warp plastic threads or crack seals. For models with detachable pitchers, note the orientation markers (often arrows or notches) to prevent leaks or misalignment during operation.
| Component Type | Key Identification Tips | Common Mistakes |
|---|---|---|
| Gaskets (seals) | Check for directional grooves; some must face inward toward the liquid | Ignoring wear–replace if brittle or misshapen |
| Blade assembly | Align splines with motor shaft before securing; listen for a click | Forcing rotation without alignment strips threads |
| Drive coupling | Press-fit until flush–no gaps should remain | Leaving it loose causes vibration during high speeds |
Label colors matter: red typically denotes high-temperature components, blue indicates plastic parts prone to stress cracks, and black marks metal hardware. If the schematic uses dotted lines, these trace internal pathways for wiring or airflow–never route cables through moving parts. For units with variable speed dials, verify the resistance values printed near the control board; mismatches suggest a faulty potentiometer. Always test-fit moving assemblies (like lid locks) before final tightening to ensure full range of motion.
