For precise identification of internal mechanisms, use the reference guide provided in the manufacturer’s technical manual–specifically the breakdown showing tension arms, bead loosening assemblies, and locking clamps. Each element should be cross-referenced with calibration values listed in Section 4.2 to prevent misalignment during reassembly.
Replacement of worn mount/demount heads requires verifying torque specifications for securing bolts–typically 45-55 Nm–to avoid stripping threads. The pneumatic cylinder connecting tubes often develop micro-fractures; inspect these using pressurized air tests before proceeding with repairs. If leaks persist, replace O-rings with nitrile equivalents rated for 100 PSI minimum.
Faulty motor units frequently stem from corroded brush contacts or burnt windings–test with a multimeter set to resistance mode (expect readings between 0.5-2 ohms). For gearbox issues, disassemble the reduction unit and examine teeth wear: excessive pitting indicates lubrication failure; apply lithium-based grease compliant with ISO 6743-9 after cleaning.
The turntable’s rotating jaws must engage evenly–check for lateral play using a dial indicator (tolerance: ≤0.3mm). If alignment fails, adjust the guide rails by turning the eccentric bushings in 1/8-turn increments. Damaged foot pedal switches are best replaced with original pushbuttons; third-party alternatives rarely meet activation force requirements.
Schematic Breakdown for Wheel Service Equipment Components
Identify the clamping assembly first–it typically includes jaws, a turntable ring, and a self-centering mechanism. Replaceable grip inserts should be checked every 200 service cycles; wear beyond 0.5mm reduces accuracy. Verify the mounting head’s hydraulic pressure settings–optimum ranges are 60-80 psi for passenger units and 90-110 psi for light trucks. Always cross-reference torque values: 7-9 Nm for hex bolts on lateral arms.
Airspring tension determines bead-release reliability. Adjust via the regulating valve behind the pneumatics panel–too loose risks uneven seating, too tight distorts wheel rims. Lubricate sliding rails with lithium-based grease monthly; neglect causes jamming at angles above 45°. Below is a quick reference for common wear points:
| Location | Inspection Frequency | Critical Measurement |
|---|---|---|
| Bead breaker blade | 150 cycles | Edge thickness <2mm |
| Swing arm bushings | 250 cycles | Radial play <0.3mm |
| Duckhead rollers | Every job | Surface grooves <1mm deep |
Electrical Troubleshooting Steps
If the motor fails to engage, check the main fuse rated 250V/10A–blown elements indicate overload. Test solenoid continuity with a multimeter; readings below 20 Ω require replacement. Control boards often accumulate static–power off for 30 seconds to reset error codes. Use dielectric compound on wire connectors every 6 months to prevent oxidation, especially in humid climates.
Locating Critical Elements in Wheel Service Equipment
Begin by inspecting the clamping mechanism–the foundation of any mounting machine. Verify the condition of the jaws, ensuring they grip uniformly without distortion. Misaligned or worn jaws cause bead damage during rim installation; replace if gaps exceed 0.5mm. Check the hydraulic cylinder for fluid leaks at seals; even minor seepage reduces clamping force by 15-20%. Use torque specifications from the manufacturer’s manual–typically 80-100 Nm for secure locking.
- Bead breaker arm: Test pivot points for smooth articulation; lubricate with lithium grease every 50 cycles to prevent binding.
- Turntable motor: Monitor for unusual noise or overheating; temperatures above 70°C signal potential gearbox failure.
- Demounter blade: Inspect edge sharpness–dull blades increase sidewall stress by 30%. Replace if radius exceeds 0.2mm.

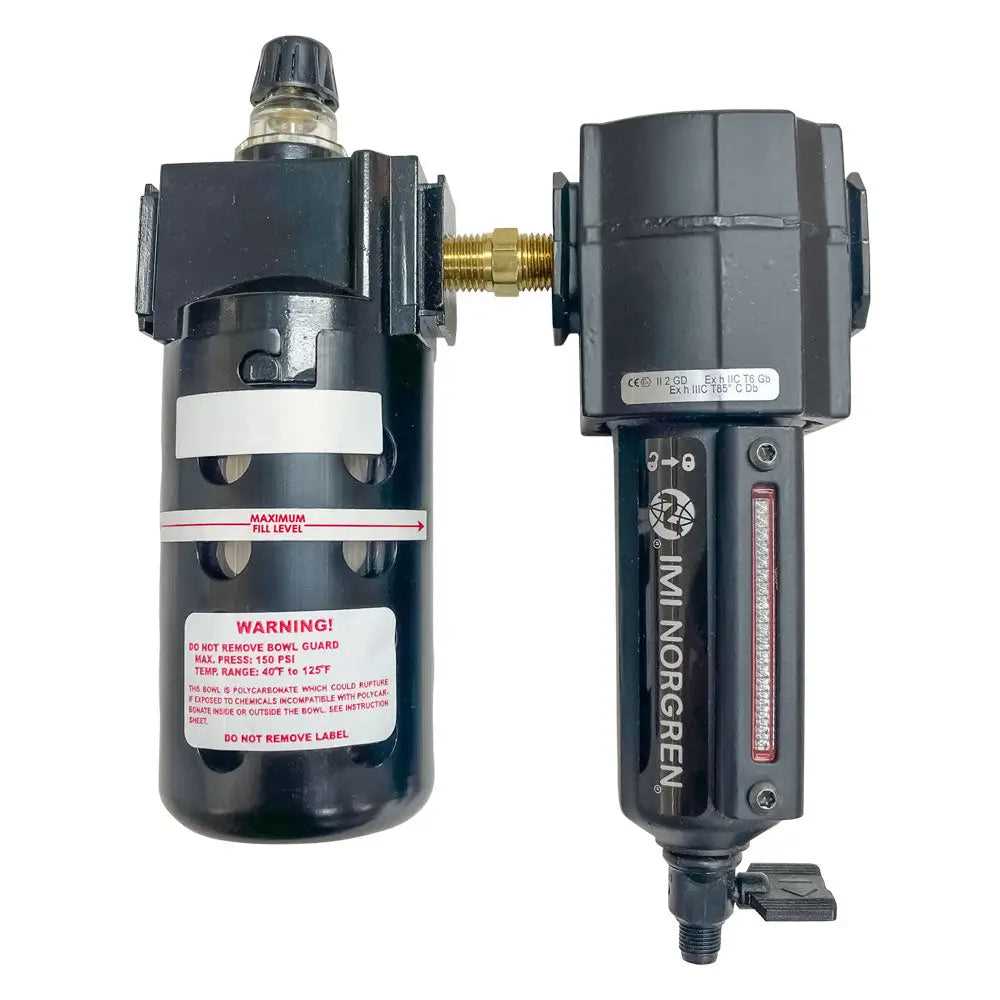

- Air pressure regulator: Calibrate to 8-10 bar; deviations disrupt bead ejection sequences.
- Control valves: Clean pilot ports quarterly; debris clogs cause erratic demounting movements.
How to Identify Components Using the Illustrated Breakdown
Locate the reference number adjacent to each element in the visual schematic–these IDs correspond directly to the inventory list printed on the reverse side or accompanying documentation. Cross-reference the number with the description column to confirm functionality; mismatches often indicate worn or substituted units.
Begin with the assembly’s core: the rotational hub. On most schematics, it is depicted at the center, encircled by clamping arms or rollers. Follow the arrows marking force distribution–these guide you toward locking mechanisms, torque sensors, and support braces, arranged clockwise starting from the upper right quadrant.
Inspect smaller components clustered near the base: pneumatic lines, release valves, and mounting brackets. Schematics usually render these in dashed or dotted lines; verify orientation by aligning with adjacent anchor points or pre-drilled holes on the frame.
For hydraulic units, trace fluid pathways–highlighted in bold shading–to pinpoint leaks or pressure regulators. Each junction should align with labeled ports; deviations may signal corrosion or incorrect reassembly.
Electrical modules appear as block diagrams with terminal markings; match these to wiring harness connections using the color-coded legend. Test continuity before installation to isolate faults quickly.
Typical Failure Zones in Wheel Service Equipment and Corresponding Spare Components
Inspect the clamping jaws every 50 cycles for micro-cracks near the mounting holes–these propagate from stress concentrations created by repeated radial loads. Replace jaws if cracks exceed 2 mm; hardened steel variants (HRC 58-62) last 30-40% longer than standard 4140 alloy. Keep spare locking pins with a 0.5° taper angle; self-lubricating bronze bushings prevent galling but require biannual greasing with molybdenum disulfide paste.
The bead breaker blade edge dulls after ~120 sidewall separations–measure thickness weekly; discard when it drops below 3.2 mm. Carbon steel blades corrode faster in humid shops; opt for chromium-plated tools (micro-hardness HV 800-950) stored in climate-controlled cabinets to prevent rust-pitting. Replace worn pivot bushes in the blade arm mechanism if lateral play exceeds 0.3 mm; polyurethane sleeves outlast nylon 6 by resisting hydraulic fluid absorption.
Rotary turntables develop flat spots on support rollers after 8,000 rotations–realign if runout surpasses 0.15 mm. Replace rollers with precision-ground cylindrical alternatives (tolerance ±0.02 mm) and ensure torque wrench calibration monthly to prevent overloading the helical reduction gears. Hydraulic hoses carrying 21 MPa pressure should be swapped at first sign of weepage; use spiral-wire reinforced variants with 6 mm bore for higher flow consistency during quick-release cycles.
Identifying Equipment Component OEM Codes for Exact Replacement
Locate the serial plate on the machine frame–typically stamped on the rear or side panel–to find the original numeric identifiers. Cross-reference these digits with the manufacturer’s illustrated manual under the “Replacement Key” section, which groups each item by category (clamps, bead rollers, turntables) against factory-assigned values. Verify the seven-character prefix matches; discrepancies often signal mismatched revisions.
Compare mounting holes, thread pitch, and shaft diameter before ordering. Clamp assemblies often share sizes but differ in bolt spacing–measure center-to-center distances in millimeters. Most bead loosening arms list OEM codes ending in “-AR” (adjustable roller) or “-BR” (ball-bearing variant); confusion here risks improper tension calibration.
For pneumatic actuators, note both the port configuration and stroke length. Dual-action cylinders carry suffixes indicating 3/8″ or 1/2″ NPT ports; mixing these disrupts air flow. Electronic components like proximity sensors include the last three characters on their label–swap only identical sequences to maintain software compatibility.
Keep records of supplier part numbers mapped to OEM equivalents. Distributors frequently substitute stock codes without altering function; a spreadsheet pairing “Vendor SKU → Factory Designation” streamlines future orders. Avoid third-party equivalents unless explicitly validated in the official cross-reference guide.
Test fitment immediately upon receipt. Rotate bead breakers by hand–grinding suggests misalignment–while hydraulic release valves should click at factory-set PSI values. Document anomalies with timestamped photographs to expedite warranty claims or exchanges.
