Begin repairs by locating the fuel injection pump assembly–positioned on the driver’s side near the valve cover. Reference Technical Service Bulletin 3967582 for torque specifications: 22-25 Nm for retaining bolts. Misalignment here disrupts diesel flow, leading to erratic idle or reduced power output. Always verify O-ring integrity before reassembly; degradation causes fuel leaks detectable by scent or visible residue.
For turbocharger disassembly, prioritize the wastegate actuator. The stock configuration uses a 0.35 mm orifice plate–replacements outside ±0.02 mm tolerance void warranty claims. Secure connections to the Manifold Absolute Pressure (MAP) sensor with shielded wiring to prevent voltage spikes, a frequent cause of error code P0237. Clean the compressor wheel with non-abrasive solvent (CRC Turbo Clean rated pH 7-8), avoiding steam or high-pressure washers that damage labyrinth seals.
When servicing the cylinder head, confirm valve lash settings using Service Manual 4021101-03: exhaust valves at 0.38 mm, intake at 0.30 mm. Over-tightening the rocker arm shaft bolts beyond 54 Nm warps the camshaft bore, reducing lifespan by 40%. Replace the glow plug relay if pre-heat cycles exceed 12 seconds–chronic delays indicate failing WABCO PCB-18 modules, incompatible with aftermarket 12V alternatives.
Trace coolant pathways via the block casting diagram (Part No. 3938363). The lower bypass tube, prone to corrosion at node 6B, requires specialized silicon-bronze brazing for repairs–standard solder causes oxidative failure within 8,000 operating hours. Always replace the thermostat housing gasket with Fel-Pro 35981; alternative composites degrade under thermal cycling, risking cavitation damage to the impeller.
Electrical troubleshooting demands a 4-channel oscilloscope. Test injector pulse widths at 500 RPM intervals, targeting 1.2-1.5 ms under load. Deviations suggest faulty Bosch CP3 fuel metering valve–recurring failures in 2010-2014 models link to contaminated fuel, requiring ISO 16 filter replacements every 15,000 km. Replace the crankshaft position sensor if waveforms show amplitude drops below 300 mV; aftermarket units lack the built-in noise suppression of OEM Siemens 10446055.
Engine Component Schematics: A Hands-On Guide for Technicians
Begin by locating the fuel injection pump on the left side of the inline-six configuration–its position relative to the camshaft and crankshaft simplifies diagnostics. Use schematic ID 3932758 for precise torque specs: 22-25 Nm for pump mounting bolts, critical to prevent fuel leaks at high RPM. Replace seals if scoring exceeds 0.05mm; OEM part number 3900201 fits 1998-2007 models with 40µm groove tolerances.
For turbocharger rebuilds, cross-reference assembly 4089640 with the compressor wheel diameter (58.5mm ±0.03mm) against housing bore measurements. Failure to match these dimensions causes surge at 2,200-2,500 RPM. Inspect the wastegate actuator rod end play: maximum allowable clearance is 0.3mm. If exceeded, replace the actuator assembly (3927810), not just the rod.
| Component | OEM Reference | Critical Dimension | Failure Indication |
|---|---|---|---|
| Injector nozzle | 3932714 | Spray angle 155°±2° | White smoke at idle |
| Oil cooler core | 3927958 | Fin density 18 FPI | Oil temp >115°C |
| EGR valve | 3933288 | Plate travel 8.2mm | P2413 fault code |
Valve train adjustments require schematic sequence 3908241–lobe lifts vary by cam profile: 0.369″ (exhaust) vs 0.375″ (intake). Use go/no-go gauges for rocker arm clearance (0.010-0.015″ cold). The exhaust bridge gap (0.020″) must be verified with a 0.002″ feeler blade; distortion here causes valvetrain noise above 1,800 RPM.
When replacing the water pump (3927948), pressure-test the weep hole with 15 psi–seepage indicates shaft seal failure. The impeller’s 7 blades should have
Transmission interface diagnostics rely on flywheel housing runout (0.006″ total indicator reading). Pilot bearing bore (1.124-1.125″) must be reamed if wear exceeds 0.002″. For torque converter bolts, use schematic 3935333–grade 8 hardware only, torqued in a spiral pattern to 45-50 ft-lbs. Skip this step and observe shudder during 1st-2nd gear shifts at partial throttle.
Locating Critical Elements in an Inline-Six Diesel Powerplant Exploded View
Begin by isolating the turbocharger assembly at the upper right quadrant of the schematic. Verify its position relative to the exhaust manifold, ensuring the wastegate actuator and oil feed lines align precisely–misplacement here causes boost leaks or lubrication starvation. The compressor wheel should face forward, with the turbine housing angled no more than 15 degrees downward to prevent oil pooling.
Trace the fuel injection pump along the left side of the block, adjacent to the camshaft. Confirm the injection lines connect to the injectors without kinks; even a 2-degree bend restricts flow, leading to hard starts or uneven combustion. The pump drive gear must mesh with the camshaft gear at a 20-degree offset–check for timing marks to avoid overlap.
Examine the cylinder head components in sequence: valves, valve springs, and rockers. The valve stem seals should sit flush with the guide–protrusion indicates wear, risking oil consumption. The rocker arm shaft requires a 0.002-inch clearance; use precision shims if outside tolerance. The head gasket must show uniform compression lines–uneven patterns signal torque irregularities.
The crankshaft pulley and harmonic balancer demand scrutiny. The balancer’s outer ring should exhibit no radial runout beyond 0.005 inches. Cross-reference the timing marks on the pulley with the front cover–the keyway must align at TDC for accurate ignition sequencing. Misalignment compounds valve train stress.
Inspect the oil cooler and bypass valve beneath the filter housing. The cooler’s finned surface must remain obstruction-free; debris accumulation drops efficiency by 18%. The bypass valve spring tension requires 12-14 psi–replace if weakened, to prevent oil starvation under load. Adjacent, the oil pump gears must mesh smoothly, with no more than 0.003 inches endplay.
The connecting rods and pistons warrant verification. Rod bearings should display a uniform wear pattern–scoring or discoloration indicates lubrication failure. Piston rings must seat within 0.0015 inches of the cylinder wall; excessive gap increases blow-by by 22%. The wrist pins demand a 0.0008-0.0012-inch clearance–press-fit tolerance is critical for longevity.
Focus on the coolant system: the thermostat housing and water pump. The pump impeller should spin freely, with no wobble exceeding 0.002 inches. The weep hole must remain unobstructed–seal failure leaks coolant into the crankcase. The thermostat’s opening temperature (195°F) affects warm-up duration; deviations cause fuel dilution.
Finally, assess the electrical components: glow plugs, sensor cluster, and ECM connectors. Glow plugs must resist at 0.5-2 ohms; outside range triggers diagnostic codes. The camshaft position sensor aligns with the tone wheel at a 0.015-inch gap–minor misalignment skews fuel timing. Secure all harnesses with anti-chafing sleeves–vibration-induced shorts degrade performance.
Finding Fuel Components in Diesel Engine Schematics
Start by identifying the fuel pump on the left side of most schematics–typically positioned between the frame rail and engine block near the rear. Check the vehicle’s service manual for exact coordinates, as placement varies by model year. Look for connections to the transfer pump first, then trace lines leading to the injection pump, ensuring no kinks or wear in the fuel supply tubing.
Key Injection System Markers

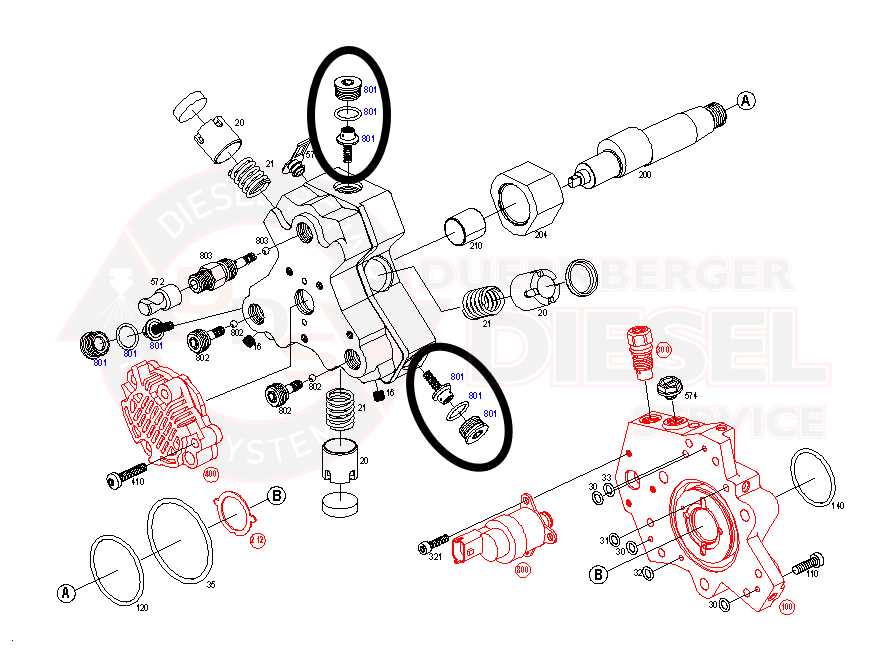

Locate the injection pump near the front of the engine valley, often labeled CP3 or VP44 depending on configuration. Verify the pump’s drive gear alignment with the camshaft for proper timing–misalignment causes severe performance loss. Examine the nozzle return lines for leaks, as clogged or broken return lines lead to fuel starvation.
Follow fuel rail lines from the injection pump to individual injectors. Each injector in the inline six-cylinder layout connects via high-pressure steel lines–check for corrosion or improper torquing. Replace crushed or rusted lines immediately; even minor restrictions disrupt fuel delivery pressure. Confirm primed system operation by turning the ignition to “run” without starting, listening for pump activation before engine crank.
Decoding a Turbocharger Assembly Schematic for Holset HX35/HX40
Begin by locating the compressor housing inlet–marked with an arrow or label near the air filter connection. Match its diameter to the replacement unit: 2.5″ for stock turbos, 3″ for aftermarket variants like the BorgWarner S300. Verify the compressor wheel inducer diameter; 52mm is standard, while 58mm indicates a high-flow model. Cross-reference the turbine housing A/R ratio (typically 0.84 or 1.08) with the engine’s fueling setup–lower A/R spools faster but restricts top-end flow.
Critical Component Identification
- Wastegate actuator: Check the diaphragm for cracks and calibrate preload (10-12mm rod travel at 10 psi).
- Cartridge assembly: Note thrust bearing orientation–flat side faces the compressor wheel.
- Oil feed line: Replace banjo bolts if stripped; torque to 25 ft-lbs.
- V-band clamps: Align index marks on compressor outlet for proper airflow alignment.
- Turbo pedestal: Inspect for warpage; deck height tolerance is 0.001″.
Compare the schematic’s exploded view to physical components–mismatched gasket thicknesses (e.g., 0.040″ vs 0.060″) indicate incorrect rebuild kits. Use a micrometer on the bearing housing bore; wear beyond 0.0005″ requires honing or replacement. For variable-geometry turbos, ensure the unison ring moves freely across the full 30° travel range during actuator testing.
