Start by identifying the upper and lower receivers–these two halves form the core of the rifle. The upper houses the bolt carrier group (BCG), charging handle, and barrel, while the lower contains the fire control group (FCG), buffer system, and magazine well. Ensure proper alignment when mating them, as misassembly can cause malfunctions or damage.
Examine the barrel assembly next: match its twist rate (1:7, 1:8, or 1:9) to your ammunition choice–heavier rounds (e.g., 77gr) require a tighter twist for stability. The gas block and tube must be correctly positioned and secured; over-tightening the gas block screws can deform the barrel or disrupt gas flow. Use a torque wrench (30-40 in-lbs) for precision.
The bolt carrier group demands careful inspection. Check the gas rings’ alignment–if rotated unevenly, they’ll wear prematurely. The cam pin should move freely but not rattle; excessive play indicates replacement. Lubricate the BCG with mil-spec grease (CLP or equivalent) sparingly–over-lubrication attracts carbon buildup.
For the trigger assembly, aftermarket parts like a drop-in single-stage trigger (3-4 lbs pull weight) improve accuracy but require precise installation. Align the hammer reset springs before securing the trigger guard; a misaligned spring can cause light strikes or failures to reset. Test fire in semi-auto mode first to verify smooth operation.
Reference a labeled schematic from manufacturers like Colt, Daniel Defense, or Brownells–these break down each subassembly with torque specs and sequencing. Cross-check your work against the schematic after installation to confirm all components (pistol grip, buffer tube, handguard) are seated properly. A missing roll pin in the lower receiver, for example, risks catastrophic failure during cycling.
Understanding the AR-15 Assembly Schematic
Begin by identifying the upper and lower receivers–the core structural components. The lower houses the trigger group, magazine well, and buffer tube, while the upper contains the bolt carrier group (BCG), charging handle, and barrel interface. Use a reference chart with labeled callouts to cross-check each section against a physical firearm, as misalignment during reassembly can cause malfunctions.
- Bolt carrier group: Disassemble by removing the firing pin retaining pin, firing pin, and cam pin. Inspect for carbon buildup on the gas rings–replace if grooves exceed 0.005 inches deep.
- Barrel nut: Torque specifications range from 30-80 ft-lbs (check manufacturer guidelines). Over-tightening risks thread damage; under-tightening leads to excessive play.
- Gas system: Carbine-length (7″), mid-length (9″), and rifle-length (12″) configurations affect recoil impulse. Verify the gas block’s alignment with the gas port (1-2 mm offset tolerance).
Critical Inspection Points
Focus on these areas during maintenance or upgrades:
- Extractors: Replace springs every 5,000 rounds or if brass shows uneven scrape marks.
- Buffer weight: Standard H buffers (3.8 oz) suit most builds; H2 (4.6 oz) or H3 (5.4 oz) reduce recoil for suppressed setups.
- Handguard free-float tubes: Ensure no contact with the barrel–vibrations during firing degrade accuracy.

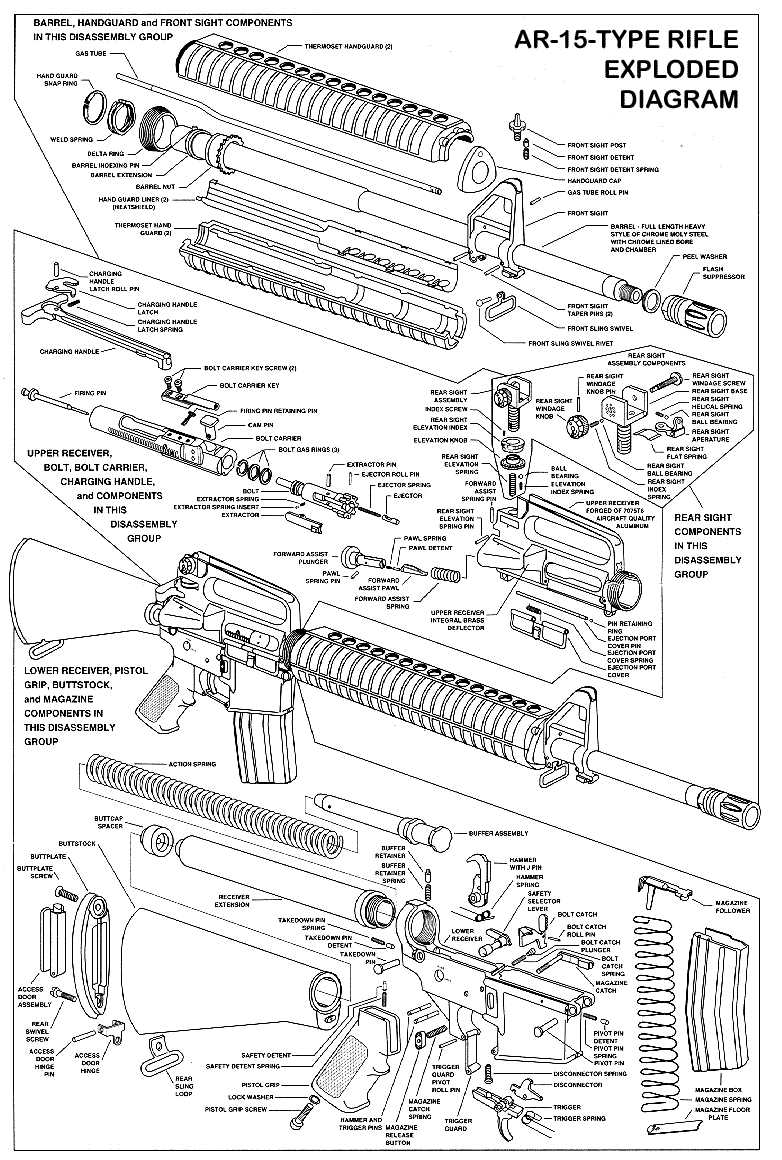

For troubleshooting, compare your build to a standardized exploded view. Common failures–failure to feed, stovepipes–often stem from incorrect gas port sizing or buffer weight mismatches. Keep a torque wrench calibrated to ±2% for consistent assembly; loose components risk damage to the receiver threads or BCG rails.
Key Components of an AR-15 Upper Receiver Assembly
Start with a forged 7075-T6 aluminum upper to ensure durability under high-pressure loads–cheaper alloys risk stress fractures after 5,000+ rounds. Match the mil-spec feed ramps on both the upper and barrel extension to prevent feeding jams, especially with high-capacity magazines. A poorly matched ramp angle can increase malfunction rates by 30% in rapid-fire sequences.
The barrel demands precision: a 1:7 twist rate stabilizes 62gr projectiles, while a 1:8 twist balances lighter 55gr rounds. Chrome-lined or nitride-treated bores resist corrosion and extend barrel life to 15,000-20,000 rounds, compared to 5,000-8,000 for untreated steel. Mid-length gas systems reduce recoil impulse by 12% over carbine-length, improving follow-up shot accuracy.
Install a low-profile gas block with precise .750″ diameter to prevent concentricity shifts–even a 0.005″ misalignment degrades group sizes by 1 MOA at 100 yards. A adjustable gas block compensates for suppressor use or subsonic loads, reducing bolt carrier bounce. Pair it with a nitride-coated gas tube; stainless steel versions corrode faster under sustained fire.
The handguard should support free-float design with at least 13″ mounting space for accessories–rail systems like M-LOK allow heat dissipation 22% faster than Picatinny, reducing barrel harmonics distortion. Aluminum handguards weigh 10-14 oz less than polymer but conduct heat; carbon fiber models cut weight further while insulating better, ideal for extended training sessions.
A bolt carrier group (BCG) with Carpenter 158 steel bolt and phosphate coating withstands 20,000+ rounds without cracking. Ensure the extractor spring has an O-ring or rubber insert to maintain tension–standard springs lose 15% grip pressure after 3,000 rounds, increasing failure-to-eject rates. The firing pin retaining pin must sit flush; protruding edges batter the hammer during cycling.
Select a muzzle device tuned to your load: a .223 Wylde chambered barrel paired with a three-port compensator reduces recoil by 38% over a standard A2 flash hider. Crush washers should measure .058″ thick to align threads correctly–over-tightening warps the device, sending shots off-axis. For suppressed setups, a climb-resistant brake minimizes gas blowback into the receiver.

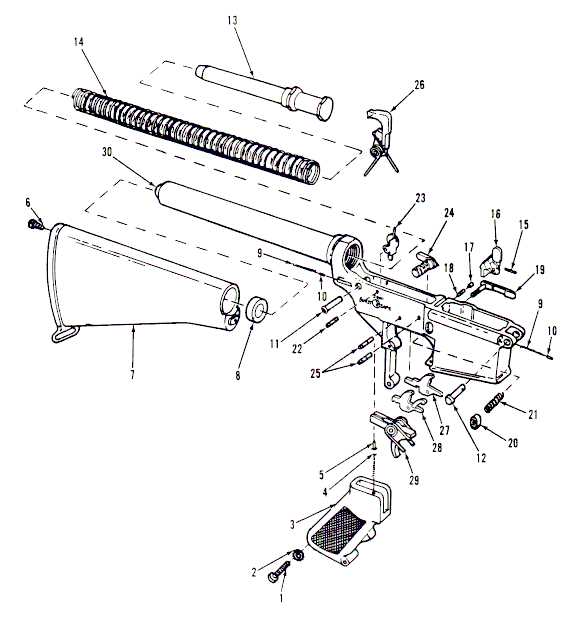

Step-by-Step Breakdown of the AR-15 Lower Receiver Components
Begin assembly by securing the trigger group into the lower receiver’s milled pocket before installing any adjacent hardware. Verify the hammer spring (COLOR CODE: MIL-SPEC black oxide) is seated properly against the rear takedown pin lug–misalignment here causes inconsistent reset. For precision builds, upgrade to a Geissele Super Semi-Automatic Enhanced (SSA-E) trigger (pull weight: 3.5 lbs) to eliminate creep under rapid fire. Torque the pivot pin to 25 in-lbs using a torque wrench; overtightening warps polymer buffer tubes.
- Lower Receiver Extension (Buffer Tube): Press-fit Type III hard-coat anodized tube (7075-T6 aluminum) at 90° to the buffer retainer channel. Use a Brownells Action Block to prevent deformation. Install the buffer detent (spring-loaded ball, ø 0.125″) before threading the castle nut; failure risks ejection port bolt catch engagement issues.
- Fire Control Housing: Insert the disconnector (MIM 4140 steel) into the hammer slot, ensuring the hook engages the trigger sear edge. Stake the selector lever (MIL-SPEC 9310 steel) pivot at 180° for full-auto resemblance builds–check local compliance laws.
- Magazine Catch Assembly: Thread the catch body 11 turns into the left-side housing; overtightening strips threads. Pair with a Lancer L5-AWM magazine (transparent polymer) for rapid visual round counts during competition.
Critical Tolerances and Error Prevention
Measure the trigger pin holes (ø 0.154 ±0.0005″) with a bore gauge–out-of-spec pins cause double-feeds. Apply Militec-1 lubricant to the bolt catch plunger (ø 0.093″) before insertion; dry assembly increases wear on the takedown detent. For polymer lowers, reinforce the pistol grip screw boss with a KE Arms Helix Insert kit (thread pitch: 1/4″-28) to prevent cracking under recoil. Final inspection must include function-checking the safety selector through all positions with a loaded dummy round to verify clearance between the hammer and bolt carrier.
How to Match AR-15 Barrel and Handguard for Optimal Performance
Select a free-float handguard with a length 0.5–1.0 inch shorter than the barrel’s gas system to prevent interference while allowing rail real estate for accessories. For a 16″ carbine-length barrel, a 15″ handguard ensures clearance for the gas block; 20″ rifles benefit from an 18.5″ or 19″ model to avoid muzzle device clashes. Always verify diameter compatibility: most aftermarket barrels (0.750″–0.936″) pair with M-LOK or KeyMod handguards using proprietary barrel nuts, while mil-spec (1.148″ OD) requires matching clamshell mounts. Use a torque wrench to tighten the barrel nut to 30–80 ft-lbs–exceeding this risks pinching the gas tube or warping the receiver threads.
Critical Measurements for Fitment
| Barrel Length (in) | Gas System | Recommended Handguard Length (in) | Min. Rail Gap (in) |
|---|---|---|---|
| 10.3 | Pistol | 9–9.5 | 0.4 |
| 14.5 | Carbine | 13.5–14 | 0.5 |
| 16 | Carbine | 15 | 0.6 |
| 18 | Mid-length | 16.5–17 | 0.7 |
| 20 | Rifle | 18.5–19 | 1.0 |
Prioritize weight distribution: a 16″ barrel with a 15″ ultralight handguard (4–6 oz) reduces front-heavy sway, while a heavy-profile 20″ match barrel (24–32 oz) pairs better with a 12–16 oz rail for balance. For suppressed use, ensure the handguard extends at least 0.25″ past the suppressor mounting threads to avoid blast interference with the rail. Aluminum handguards conduct heat faster than polymer–opt for polymer with thermal breaks if prolonged full-auto or rapid semi-auto fire is anticipated. Always dry-fit the assembly before final installation: misaligned gas ports or oversized handguard bores can bind the tube, causing cycling failures.
