Begin troubleshooting or repairs by locating the torsion spring assembly. This coiled mechanism controls counterbalance–critical for smooth operation. Typical residential units use single-spring systems rated for 10,000–20,000 cycles; industrial setups often employ dual springs for heavier loads. Verify spring diameter (usually 1.75″ or 2″) before ordering replacements.
The track system consists of vertical, horizontal, and curved sections–each requiring precise alignment (±1/8″). Misaligned tracks cause derailment; check for bends using a straightedge. Rollers (steel or nylon) attach to the panel frame via hinges–opt for nylon in high-moisture environments to prevent rust. Standard roller diameter is 2″; larger diameters (3″) improve stability for wider openings.
Lifting cables attach to bottom brackets and run through pulleys on the spring shaft. Use galvanized aircraft cable (typically 3/16″ diameter) for corrosion resistance. Replace frayed cables immediately–tensioned cables under load can snap with deadly force. The operator motor (chain, belt, or screw drive) mounts to the header; ensure 120V or 240V power supply matches the unit’s requirements.
Safety sensors must align within ±6″ of the floor. Test monthly by waving an obstruction between sensors–the opener should reverse within 2 seconds. Weatherstripping along the bottom edge prevents debris intrusion; replace cracked seals to maintain insulation. For sectional units, lubricate hinges and rollers with silicone spray every 6 months–avoid petroleum-based products that attract dust.

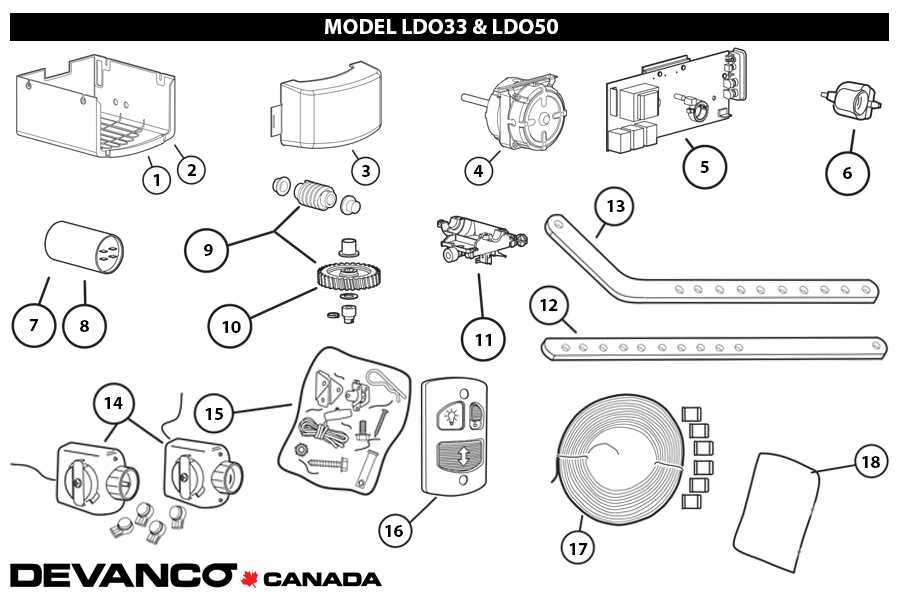

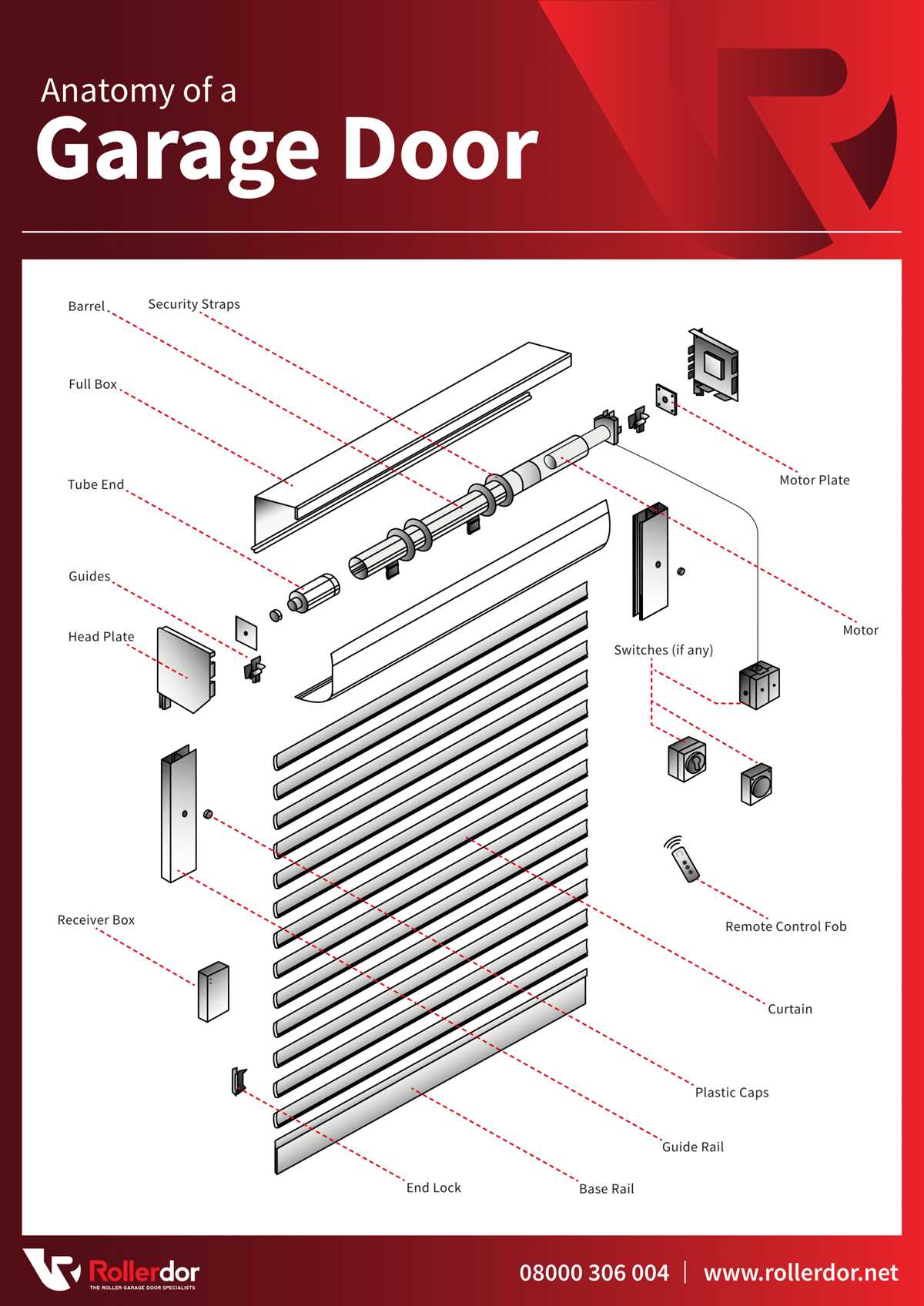

Visual Breakdown of Automatic Entryway Components
Begin by locating the counterbalance assembly–typically a torsion spring system mounted above the opening. Verify the spring’s winding direction (clockwise for right-hand wind) and measure its wire diameter: 0.250″–0.375″ for residential units, 0.400″–0.500″ for commercial. Incorrect sizing reduces cycle life by 60%.
Inspect the lifting cables next–7×19 aircraft-grade strands with a minimum 3/16″ diameter. Check for fraying within 6″ of the drum; replace immediately if single strands separate. Tension should equal ~15% of the total weight when fully extended; use a fish scale for precise calibration.
Drive Mechanism Essentials
Focus on the operator rail: T-slot or C-channel aluminum extrusions with a 2.5″–3.5″ internal width. Align the carriage plate with the rail’s centerline–misalignment causes binding and premature wear on nylon rollers. Lubricate the chain/belt sprockets with dry PTFE spray every 3 months; avoid petroleum-based products to prevent dust accumulation.
The motor housing contains a 120V/240V capacitor-start induction motor (½–1.5 HP). Test capacitance with a multimeter–values should match ±10% of the label rating. Replace if bulging or leaking; a failed capacitor drops torque by 40% and causes erratic movement.
Safety and Structural Elements
Examine the photoelectric sensors: infrared LEDs with a 5 mm gap tolerance. Clean lenses weekly with isopropyl alcohol; dust reduces detection range by 30%. Verify alignment with a laser level–misalignment triggers false obstruction warnings.
Assess the vertical tracks: 14-gauge galvanized steel, 2″–3″ depth. Check for dents >1 mm; straighten immediately to prevent derailment. Secure brackets with ¼” lag screws at 24″ intervals–loose attachments increase noise by 15 dB.
For sectional panels, confirm hinge spacing: residential models use 12–16 hinges per side, commercial 20–24. Replace bent hinges (>5° misalignment) to avoid panel warping. Apply lithium grease to pivot points during seasonal adjustments–reduces friction by 25%.
Document each component’s condition in a spreadsheet with columns for part number, wear rating (1–5), and replacement date. Maintain a 30% stock of critical spares: springs, cables, sensors. Order duplicates of custom dies if panel thickness exceeds 2″.
Critical Elements Shown in a Typical Overhead Entry System Outline
Start by locating the tracks–vertical and horizontal rails that guide the panel’s movement. These must align precisely to prevent misalignment; even a 2mm deviation can cause binding. Check the rollers nestled within the tracks; nylon-coated options outlast steel but require occasional lubrication with silicone spray to reduce noise.
Torsion springs sit above the opening, counterbalancing the panel’s weight. These high-tension components demand caution–never adjust them without a winding bar, as improper handling risks injury. Extension springs, found on budget models, stretch along the sides but offer less durability. Replace any spring showing rust or gaps between coils immediately.
The lifting cable connects to the bottom bracket and runs through the pulley system. Inspect it for fraying every six months; a snapped cable can lead to sudden closure, damaging vehicles or worse. Opt for aircraft-grade stranded wire if replacing, as it resists corrosion better than standard steel versions.
Examine the hinges between sections–these pivot points endure constant stress. Steel hinges last longer than plastic but add weight; ensure screws are tightened to 25–30 ft-lbs torque to prevent loosening. Look for warping, especially near the bottom section where moisture accumulates.
The weather seal runs along the bottom edge, blocking drafts and debris. Replace rubber seals annually; brittle or cracked material loses effectiveness. For harsh climates, consider a brush seal instead–it better resists temperature fluctuations but requires trimming to fit.
An often-overlooked component is the reinforcement strut, a metal bar running horizontally across wide panels. Without it, larger entries sag over time. Verify that mounting brackets are spaced no more than 24 inches apart to distribute weight evenly. Use galvanized hardware to deter rust in humid environments.

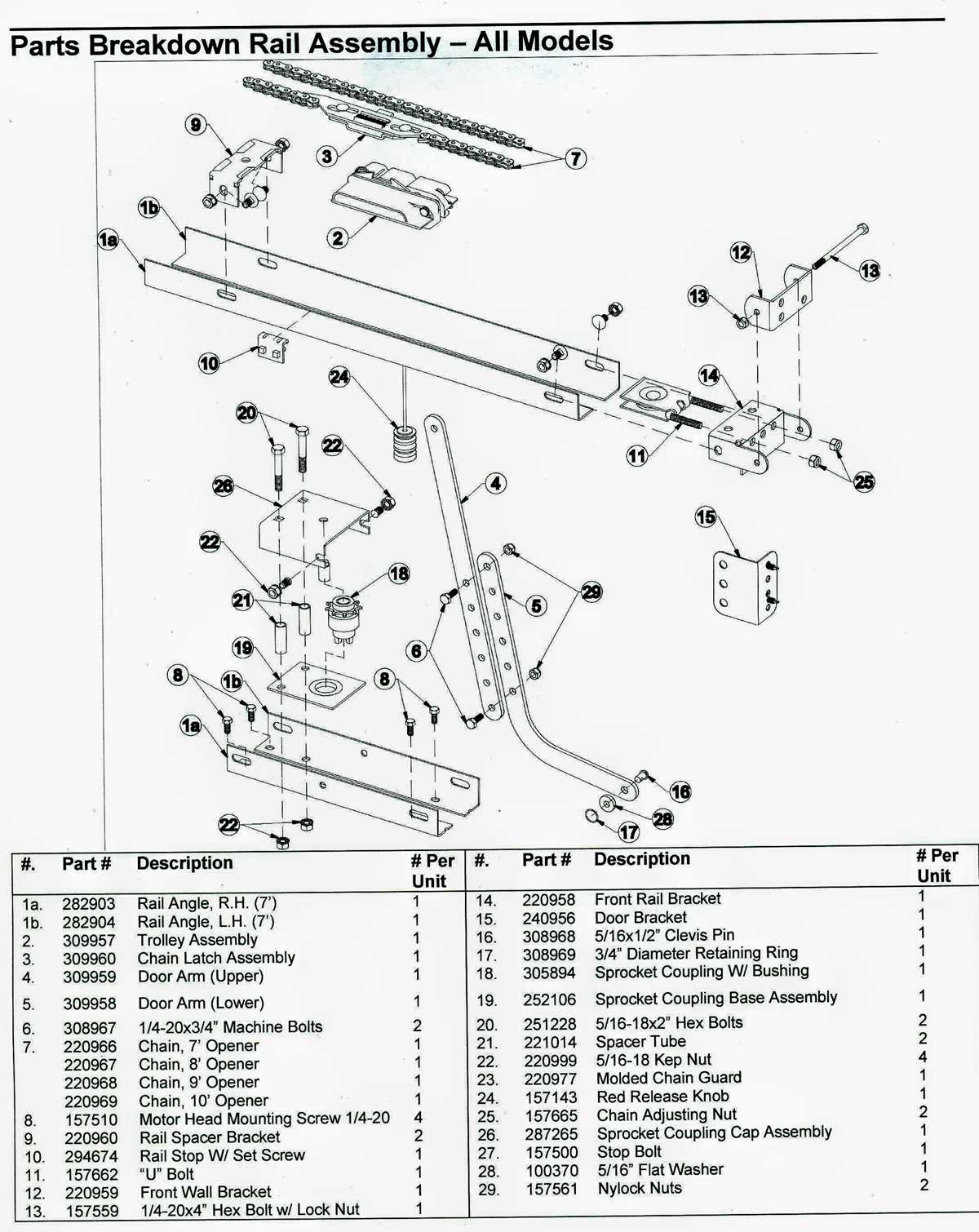

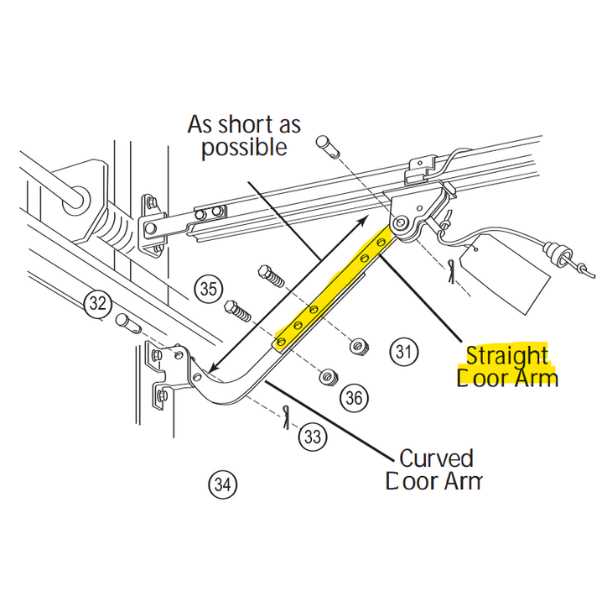

Check the operator arm if automated–the metal rod linking the motor to the panel must attach securely to the top section. Misalignment here causes erratic movement or strain on the opener. Ensure all connection points are greased lightly but avoid over-lubrication, which attracts dirt.
Finally, inspect the safety sensors–the infrared beams near the base that halt closure if obstructed. Keep lenses clean and aligned; even dust buildup can trigger false stops. Test monthly by waving a broomstick through the beam during closure; the panel should reverse within two seconds.
How to Identify and Label Rail Systems, Wheels, and Joints on Construction Schematics
Measure the vertical and horizontal rails first–label them VR-1 (vertical, left), VR-2 (vertical, right), and HR-1 (horizontal, top) in the schematic’s right margin. Use a consistent scaling factor (e.g., 1:20) for all dimensions, marking endpoints with x– and y-coordinates relative to the reference corner, typically the bottom-left junction of the frame.
Spot rollers by their circular cutouts–each should align with a specific rail segment. Assign identifiers like WL-1 (wheel, left, position 1) through WL-4, following the assembly’s sequential order. Indicate their diameter (e.g., 75 mm) next to the symbol and include a small arrow pointing in the direction of travel if movement is unidirectional.
Hinges appear as paired semicircles or angular symbols at pivot points. Differentiate them by type: JN-1 (butt joint, full motion), JN-2 (continuous hinge, limited angle), or JN-3 (lift-style, dual-axis). Add a dashed line connecting the pivot centers to clarify range of motion, labeling the maximum swing angle (e.g., 120°) in degrees.
Color-code components for faster reference: red (#FF3333) for rails, blue (#3333FF) for wheels, and green (#33FF33) for joints. Embed a legend in the schematic’s bottom-left corner, listing abbreviations, colors, and material codes (e.g., AL for aluminum, ST for steel). Ensure the legend occupies no more than 5% of the total drawing area.
Verify alignment by overlaying a grid with 100 mm spacing. Wheels must sit exactly 3 mm from rail edges; highlight discrepancies in yellow (#FFFF00) with a tolerance note (±0.5 mm). For angled rails, calculate slope gradients and annotate them as percentages (e.g., 3% incline).
Export the final schematic in vector format (SVG) for scalability. Include layer separations: one for structural elements, another for annotations, and a third for hidden lines. Name layers descriptively (Structural_Rails, Labels_Wheels) to streamline revisions.
Diagnosing Failures with a Component Guide
Check the torsion spring’s wire gauge first–if it’s below 0.25″ for standard residential units, expect premature breakage. Replace springs in pairs, even if only one fails, to maintain balanced torque. Misalignment here accelerates wear on cables and drums.
Inspect the track rollers for flat spots or excessive wobble. PVC rollers last 5-7 years under normal use; steel variants may endure 10+ years but corrode faster in coastal areas. Clean tracks monthly with a dry cloth–dirt buildup increases friction by up to 40%.
Test the opener’s gear teeth with a flashlight: worn plastic gears strip easily under load. If teeth are rounded or missing, replace the entire gear assembly–partial repairs risk chain or belt slippage. Lubricate metal gears with lithium grease, not WD-40, to avoid attracting dust.
Quick-Replace Components
| Component | Failure Signs | Service Life | Tools Needed |
|---|---|---|---|
| Bearings | Squeaking, resistance | 8-12 years | Socket wrench, bearing puller |
| Hinges | Rust, misalignment | 10+ years | Screwdriver, rust remover |
| Safety sensors | Flickering LED, beeping | 5-8 years | Multimeter, wire strippers |
Examine the cable fraying near the bottom bracket–replace if strands exceed 3 visible breaks. Use only aircraft-grade galvanized cables; cheaper alternatives stretch under tension, causing uneven operation. Secure cables to drums with set screws, not zip ties, to prevent slippage.
For belt-driven openers, check the belt’s teeth for cracking or glazing. A new belt should sit flush against the drive pulley; if it rides high, the pulley’s teeth are worn. Replace both simultaneously–mismatched parts reduce lifespan by 30%.
Electrical Checks
Measure sensor voltage at the opener terminals–below 12V indicates a faulty transformer. If sensors register 24V but fail to align, clean lenses with isopropyl alcohol; oxidation distorts signals. Replace sensors if cleaning doesn’t restore the LED’s steady glow.
Listen for relay clicks in the control box–repeated cycling suggests a stuck limit switch. Adjust the down limit screw clockwise in 1/8″ increments until the mechanism stops cleanly. Over-tightening breaks the gearbox housing; mark the original position before adjustments.
