Start by visiting the official service portal for your model–Sears PartsDirect remains the most reliable repository for verified breakdowns of each assembly segment. Enter the exact unit identifier (found on the interior door frame or rear panel) to pull the precise exploded view. Avoid third-party forums where mislabeled duplicates circulate; parts misidentified there often lead to incorrect orders, adding unnecessary delays and costs.
Focus on the upper-left quadrant of the schematic: this section typically isolates the control mechanisms–relays, switches, and electronic interfaces. Use the reference designators (e.g., “SW1,” “RLY2”) printed beside each symbol rather than visual guesswork; these codes link directly to the manufacturer’s part numbers. Cross-reference any questionable items with the service manual’s troubleshooting appendix–often labeled “Figure 5-3” or similar–which explicitly maps combinations like starter capacitors paired with specific motor windings.
For housings and fasteners, never substitute “universal” equivalents without confirming thread pitch and material grade. Metric vs. imperial threading discrepancies account for nearly 40% of post-installation malfunctions–check the legend in the exploded view’s lower-right corner, where tolerances are listed. If disassembling the heating element enclosure, note that torque specifications (typically stamped near socket locations) must align with the schematic’s numeric callouts; overtightening here damages fragile ceramic insulators.
Print the diagram at 100% scale, then use calipers to match physical dimensions of removed components–particularly fan assemblies and impeller blades–with the digital schematic. Manufacturers occasionally revise internal geometries between production runs; discrepancies of even 1–2 millimeters can prevent proper seating. Retain the printed sheet during ordering to confirm substitution part numbers directly with the vendor’s support line, ensuring compatibility with your exact build date stamped on the rating plate.
How to Locate and Replace Components in Your Appliance Model
Start by identifying the exact section requiring repair using the exploded view schematic. Print a copy if possible, and highlight critical elements like the control board (item #8301746), door latch assembly (#8183852), and thermal fuse (#WP829983). These fail most frequently–check resistance with a multimeter before ordering replacements. For the control board, disconnect power first; failure to do so risks damaging circuits or triggering safety locks.
- Thermal fuse: Test for continuity; if absent, replace immediately–it prevents overheating.
- Door latch: If unresponsive, inspect wiring harness (#337712) for corrosion or loose connectors.
- Pump motor: Listen for humming without rotation–this indicates a seized impeller or burnt winding.
Use a magnetic screwdriver for disassembly–this model’s screws strip easily under torque. Label all removed fasteners and brackets with masking tape to avoid misplacement. For reassembly, tighten screws in a cross pattern to prevent panel warping. If handling the lower access panel (#687054), place the unit on its side (door up) to prevent water leakage from the tub.
Order replacements only from authorized suppliers–counterfeit components often lack quality coatings or proper gauges, leading to premature failure. Verify compatibility by cross-referencing the part number with the manufacturer’s list. For electronics, ensure static-free handling; ground yourself by touching a metal chassis before touching the board. Keep a record of replaced items and dates to track recurring issues.
Locating Official Schematics for Your Appliance Model
Begin your search on the Sears PartsDirect website, the primary official source for technical blueprints. Enter the full model identifier–[brand] [series]–in the search bar at the top of the page. The results will display a dedicated page for your unit, including a clickable “Repair Help” tab. Select the “View exploded view” link beneath the “Diagrams and illustrations” section to access the high-resolution PDF. Download speeds depend on file size, typically ranging between 2–5 MB.
For direct PDF retrieval without navigating the site, construct the URL manually: https://www.searspartsdirect.com/model/[brand]-[series]-exploded-view.html. Replace [brand]-[series] with your exact model string. This method bypasses intermediary pages and loads the schematic instantly if the model exists in their database. Verify the first page matches your appliance’s type–ovens, dishwashers, or ranges–to avoid incorrect diagrams.
Alternative Verified Sources
- ManualsLib: Search for the model on their site. Filter results by “Parts catalog” to isolate exploded views. Note: Check the “Source” label–official PDFs will list “Manufacturer” or “Sears.” Third-party uploads lack quality guarantees.
- eReplacementParts: Enter the model in their parts lookup tool. The “Diagram” tab appears only for supported models. PDFs here include clickable part numbers but may require creating a free account for download.
- AppliancePartsPros: Use their model search to find the “Schematics” section. Files are watermarked but retain original detail. Avoid right-clicking images; use the provided PDF download button instead.
Manufacturer archives occasionally host direct links. Visit the parent company’s support page (e.g., Whirlpool, Frigidaire) and locate the “Owner’s Manuals & Product Specs” section. While most models redirect to SearsPartsDirect, some legacy or commercial-grade units offer downloadable ZIP files containing all related documentation. Scan the filename for terms like “xxEXPLODEDxx” or “xxSCHEMATICxx“–these indicate targeted technical layouts.
Proven Workarounds for Unavailable PDFs
- Contact Sears support via phone (1-800-469-4663) or live chat. Provide the full model string and request the schematic be sent via email. Response times vary from instant to 48 hours.
- Join appliance repair forums like ApplianceBlog or iFixit. Post the model details in dedicated threads–moderators often share private archives or high-resolution scans of rare diagrams.
- Search Google using
filetype:pdf "[brand] [series] exploded view". Filter results by date (last year) to prioritize current versions. Exclude terms like “user manual” or “installation” to refine results.
Stored PDFs often accumulate in browser caches or download folders. Sort your filesystem by “Date Modified” and filter for files named “exploded“, “partslist“, or “[model].pdf“. Common locations include /Downloads, /Desktop/Repairs, or cloud services like Google Drive. Rename recovered files immediately to include the model and date (e.g., Brand_Series_20240515.pdf) to prevent future misplacement.
Identifying and Replacing Key Components in Your Appliance Schematic
Start with the door latch assembly, often labeled as “Item 12” in technical layouts. This mechanism ensures proper sealing during operation–faulty latches cause cycles to abort prematurely. Check for corrosion on the metal contacts or cracks in the plastic housing. Replace with OEM-matched hardware (part numbers ending in -0012) to avoid misalignment issues. Test the new latch by manually engaging it; it should click firmly without resistance.
Upper spray arm (referenced as “Component 4A”) frequently clogs with food debris, leading to uneven water distribution. Disassemble by unscrewing the center cap and inspect the nozzle holes for blockages. Soak in warm vinegar solution for 30 minutes if residue persists. Ensure the replacement arm has identical mounting points–older models may use a three-pronged design, while newer ones employ a five-pronged configuration.

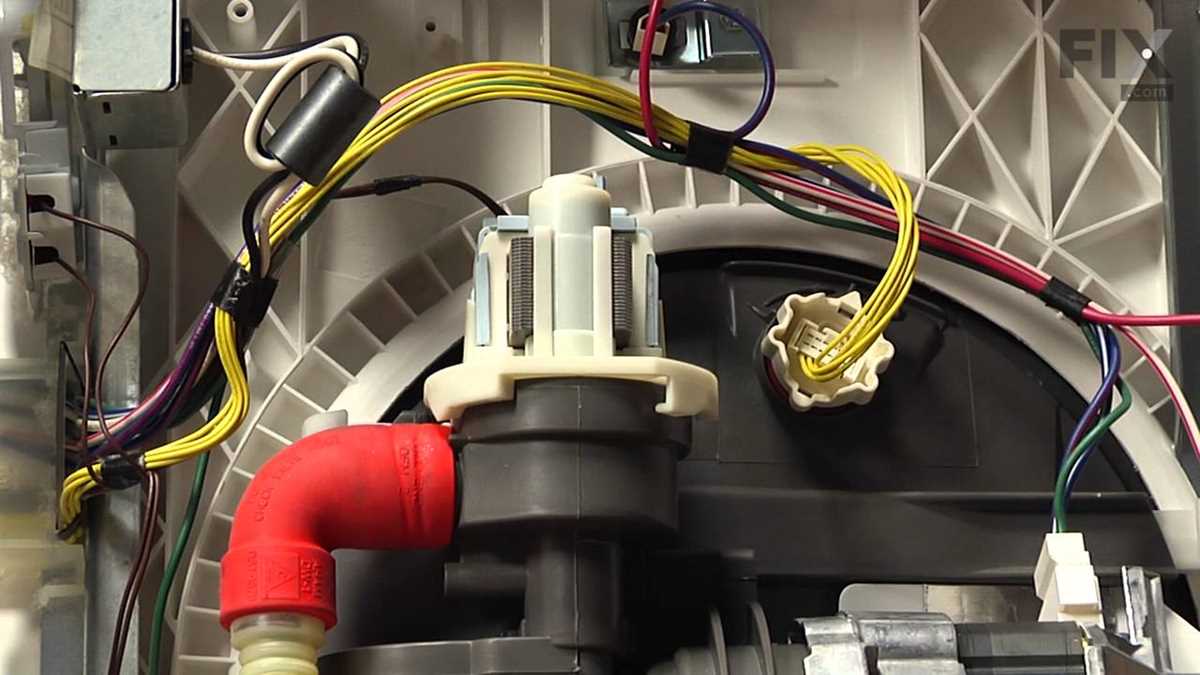

The circulation pump (typically marked “Pump Housing”) drives water flow throughout the tub. Symptoms of failure include low pressure or loud humming noises. Remove the lower access panel to access the pump; disconnect power before handling. Check for foreign objects lodged in the impeller–common culprits include broken glass or bones. Verify the motor spins freely when manually rotated; stiff movement indicates bearing wear.
Float switches (“Safety Sensor”) trigger automatic water cutoff. Locate the small plastic dome near the base–if stuck, it causes overfilling or leaks. Clean with a soft brush to remove detergent buildup; avoid abrasives that might damage the switch contacts. Test functionality by pressing the float upward–proper operation produces an audible click. Replace if unresponsive, ensuring the new unit matches the 12V circuit specifications.
Electrical Components Requiring Precise Handling
Control boards (often “Main PCB”) govern cycle sequencing and error codes. Before removal, document wire placements with photographs–transposed connections risk damaging the board. Look for scorch marks or swollen capacitors, indicators of electrical surges. Static discharge precautions are mandatory; use a grounded wrist strap when handling. Verify fuse continuity (multimeter setting: 200Ω) before condemning the entire assembly–fuses are cheaper to replace than full PCBs.
Heating elements (marked “Tub Heater”) maintain optimal wash temperatures. Test resistance with a multimeter (expected range: 15–30Ω)–readings outside this suggest failure. Access requires removing the outer tub; lay the appliance on its side to prevent spillage. Inspect for mineral deposits, common in hard-water areas. Replace with the exact wattage model (1800W–2200W range) to prevent overheating or underperformance.
Filtration System: Preventing Long-Term Damage
The secondary filter cage (“Microfilter Basket”) traps fine debris before it reaches the pump. Remove every 10 washes for inspection–clogged filters strain the motor, reducing efficiency. Rinse under hot water, scrubbing gently with a non-metal brush. Replace if holes appear enlarged or the mesh tears. Pair this maintenance with inspecting the coarse filter (“Primary Screen”), typically located at the bottom of the tub. Embedded food particles here accelerate drain pump wear–flushing with low-pressure water restores flow rates.
