Start by locating the model number on your equipment–typically engraved on a metal plate near the engine deck or beneath the operator’s seat. Use this number to pull up the official manufacturer’s schematics. Third-party manuals often omit critical tolerances or updated revisions, so always cross-reference with the OEM document for hydrostatic pumps, spindle assemblies, and deck belts.
Identify high-wear components first: replace blade spindles every 200 hours if operating in rocky terrain, regardless of visible damage. Check hydro pump seals before disassembly–leaks here mimic drive train failure, leading to unnecessary replacements. For cutting decks wider than 52 inches, upgrade to heavy-duty pulleys and idler arms to prevent premature belt slippage.
Label every bolt and bracket removed during inspection–use resealable bags and marker notation matching the diagram’s grid reference (e.g., “A3 – spindle lock nut”). Store these in a partitioned tray to avoid re-assembly errors. When sourcing replacements, prioritize vendors offering same-day shipping for critical components like lift linkages and control arms–downtime costs average $180 per hour for landscaping crews.
Test-fit new parts before finalizing installation. Verify torque specifications: spindles require 70-90 ft-lbs, while deck tension bolts need 35-50 ft-lbs. Ignoring these leads to stripped threads or warped housings within 80 operating hours. Always calibrate tire pressure post-maintenance–uneven PSI accelerates uneven wear on rear casters, reducing steering precision by 40%.
Mastering Your Mower’s Component Layout
Start by locating the engine schematic in your owner’s manual–most models split this into a left-side view and a right-side view, each labeled with numeric or alphanumeric codes. Cross-reference these codes with the corresponding exploded view, typically found in the appendix or on the manufacturer’s support portal as a downloadable PDF. For example, deck spindles (often marked 45-60 on older L-series units) will show their relation to pulleys and idler arms, helping you trace the drive belt path before disassembly.
Identify wear-prone assemblies like control arms and hydrostatic transmissions first; these appear in sectional drawings with arrows indicating fastener torque specs (e.g., 40 ft-lbs for trunnion bolts on Pro-Turn Z models). Compare the illustrations to your actual equipment–hydraulic lines and cooling fins are frequently misaligned in diagrams due to perspective, so verify routing by following coolant hoses from the radiator to the pump housing before removal. Keep a torque wrench pre-set to the values shown to avoid stripping.
Use colored highlighters on printed schematics to mark circuits: red for fuel, blue for electrical, yellow for PTO engagement, and green for steering linkages. This accelerates troubleshooting–if blade engagement fails, trace the yellow path from the PTO switch to the clutch solenoid, then check continuity with a multimeter, referencing wire gauge and connector type (usually Deutsch DT series). Replace any corroded terminals with heat-shrink butt connectors rated for 16-14 AWG to prevent voltage drop.
For deck components, focus on the spindle assembly–most diagrams group bearings, seals, and washers in a single callout (e.g., “Spindle Kit 991-0031”), but a true exploded view separates them into individual parts. Measure shaft diameters before ordering replacements; 1-1/8” splined shafts require different bearing sets than smooth 1” shafts. Store removed bearings with their original spacers to maintain preload specs when reassembling.
Always photograph your machine from multiple angles before disassembly, then label each photo with the closest diagram view number. Upload these to a tablet and zoom in–this reveals hidden details like relief valve locations on the hydraulic block or the orientation of tab washers on wheel hubs. Recheck all fasteners against the parts list torque chart before operation; even non-critical bolts (e.g., deck skirt mounts) can loosen and interfere with blade clearance.
Finding Key Motor Elements in Your Mower’s Schematic
Begin by identifying the model number stamped on the frame near the rear wheel or under the seat–this number unlocks the correct exploded view. Most manufacturers group motor components near the top center of the illustration, with air filters, carburetors, and spark plugs marked by standardized symbols (e.g., circular icons for pulleys, rectangular for housings). If the layout splits across multiple pages, cross-reference the item’s alphanumeric label (like “E-12” or “VF3”) listed in the parts index.
- Oil dipsticks sit adjacent to the crankcase, usually tagged with red or yellow arrows in schematics–verify thread direction (clockwise or left-hand) before removal.
- Fuel pumps appear downstream of the tank, often depicted as a small block with inlet/outlet lines–trace these lines to confirm they’re unobstructed.
- Ignition coils are mounted on or near the flywheel cover; look for a black or gray box connected to two thick wires.
Engine mounts are typically rigid brackets under the motor base, secured with 10mm or 12mm bolts–rotate the schematic 180° if the perspective is reversed. Cooling fins and shrouds are clustered on the left side, requiring frequent cleaning; schematics show them as layered contours with directional airflow arrows. For serial-number-specific variances, compare multiple years’ layouts side-by-side–some suppliers relocate the alternator from right to left in mid-production runs.

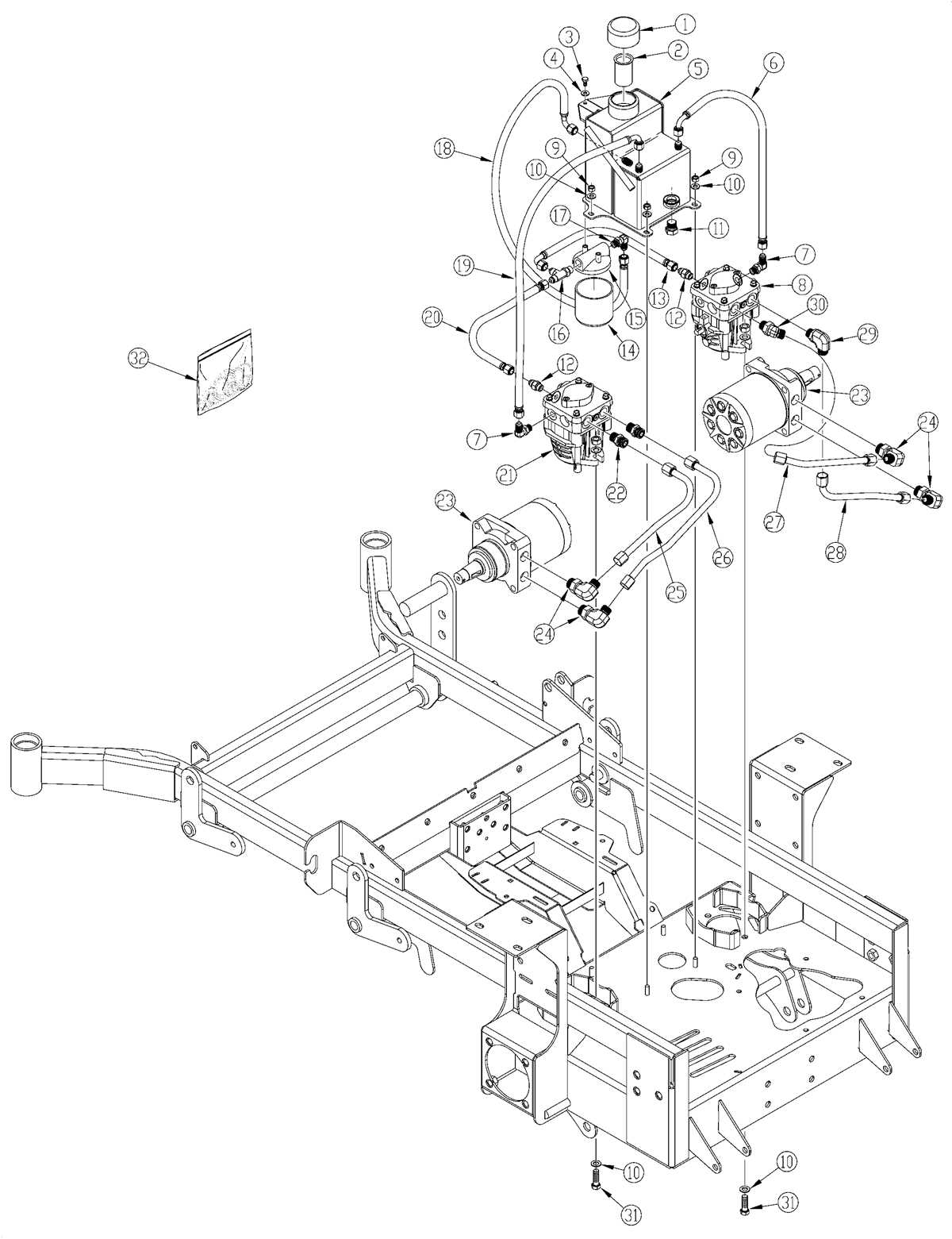

Locating and Swapping Motion Transmission Components with Manufacturer Schematics
Begin by isolating the right-side wheel assembly–most commercial-cutting machines label this housing SW-45B or similar. Detach the deck linkage first to prevent accidental blade engagement; torque specs for these bolts rarely exceed 35 ft-lbs. Refer to the exploded view page marked “Drive Train” (usually sheet 3A) to confirm the precise hydrostatic pump bracket position; a common mistake is swapping the upper and lower brackets, leading to misaligned pulleys.
For transaxle removal, drain the transmission fluid using the 3/8″ plug at the base–expect approximately 2.1 quarts of SAE 20W-50. Disconnect the neutral switch wire harness via the quick-release connector, then remove the four 14mm mounting bolts. The schematic will highlight a small locator pin on the frame; ensure this pin slots into the transaxle’s corresponding hole during reinstallation to prevent gear grinding. Replace the output shaft seals if fluid leakage exceeds 10ml over 50 operating hours.
Critical Wear Points by Operating Hours
| Component | First Inspection (Hours) | Replacement Interval (Hours) | Failure Signs |
|---|---|---|---|

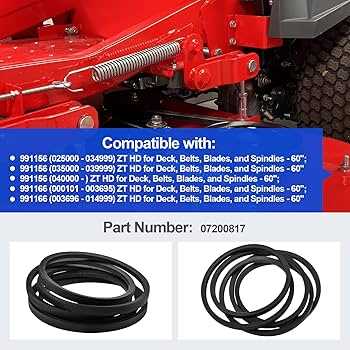

| Drive Belt (Keyless Poly-V) | 100 | 300–400 | Squealing when turning, shiny wear marks |
| Spindle Bearings | 150 | 500 | Rough idle vibration, play >0.5mm |
| Hydro Pump Splines | 200 | 600 | Slow acceleration, cavitation noise |
When servicing the idler pulley assembly, note two distinct tension springs: the primary spring (0.25″ wire gauge) controls belt slack, while the smaller secondary spring (.187″ gauge) prevents blade engagement during deck raises. Replace both springs if stretch exceeds 5% of original length. The schematic’s callouts include color-coding–green for hardware grade 8, yellow for zinc-plated; mismatch here risks fasteners seizing at operating temperatures above 212°F.
Reinstall any removed linkages starting with the deck-lift arms; grease zerks marked “NLGI #2” require lithium-based compound. Torque the wheel nuts in a cross pattern to 70 ft-lbs–overtorquing distorts brake rotor alignment, causing uneven pad wear. Verify hydrostatic engagement by raising the rear wheels, rotating one tire forward–if the opposite tire turns backward, the bypass valve is likely stuck; clean with carb cleaner spray before disassembly.
Locating Cutting Chamber Components in Schematic Blueprints
Access the official manufacturer’s resource portal by entering the model number etched on the machine frame into the search function. Most modern equipment schematics categorize assemblies under “Blade Housing” or “Undercarriage Assemblies,” often listed numerically by sub-group.
Identify the component section by matching the exploded view labels to the physical wear points–belt pulleys, spindle casings, or anti-scalp wheels–typically numbered sequentially. Cross-reference these numbers with the legend for material specifications and torque values.
Download high-resolution PDF versions to zoom into micro-labels on idler arms or deck hangers, ensuring no detail like spring clips or baffle plates is overlooked. Save files by serial number for offline reference during repairs.
For older models, consult printed manual addendums where short-run production changes were documented. The factory revisions often highlight modified pulley ratios or reinforced wear strips not visible in standard diagrams.
Use vector-based schematics to isolate single components: select “Isolate Layer” in compatible viewers to hide adjacent assemblies, focusing only on drive tensioners or side discharge chutes. Export these selections for shop floor use.
Compare multiple years of schematics if dealing with rare wear items. Mid-model-year updates frequently altered reinforcement bracket designs or spindle housing thickness, leaving earlier versions unsupported by suppliers.
Mark key fasteners with paint before disassembly, then verify their part codes against the exploded view. Bolt lengths and nylon-lock variations often differ invisibly between adjacent revisions.
Bookmark annotated schematics in browser folders by functional area–belts, spindles, or deck lifts–to accelerate future reference without re-searching. Combine with photographic notes for rapid troubleshooting.
