Start by locating the model number stamped on the housing. Most residential cutting assemblies have this identifier near the discharge chute or under the side panels. If it’s worn, check the operator’s manual or search online using keywords like “model plate location [brand name].” Without this number, identifying replacements becomes guesswork–third-party catalogs often group components by series rather than exact matches, leading to compatibility issues.
Focus on critical wear items first: blades, spindles, and belts. Measure the blade length–many aftermarket options advertise “universal fit” but ignore slight variations in mounting hole spacing or thickness. For spindles, note the shaft diameter and bearing type (sealed vs. unsealed). A mismatched belt won’t last; compare the cross-section profile (A, B, or Z) and length in inches–even a 1-inch difference reduces tension properly. Skipping this step voids warranties and risks premature failure.

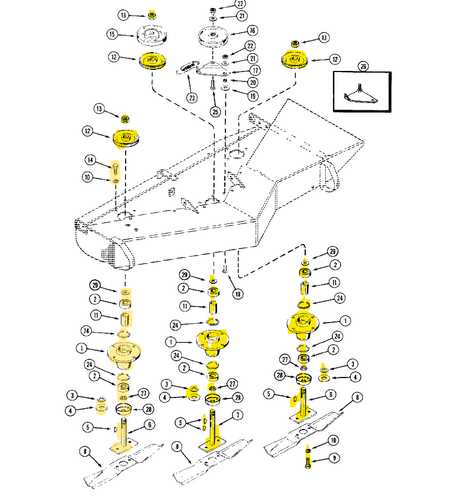

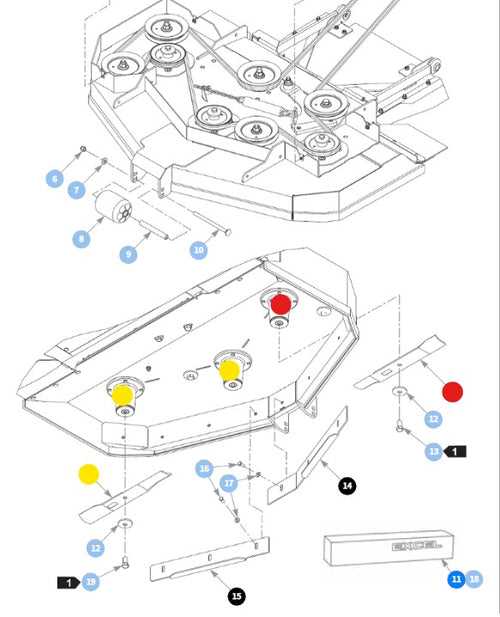

Use exploded-view schematics published by the manufacturer. Avoid generic websites scraping images without context. Official sources label parts with OEM numbers (e.g., “A123456”) and include torque specs for reassembly. If ordering online, filter by “exact match” rather than “compatible with“–some sellers substitute cheaper materials like plastic pulleys for metal ones. Print or save the diagram; color-coding helps track installation sequence for bolts and washers during reassembly.
Inspect the deck shell for bends or rust. Minor dents warp blade alignment but can be temporarily fixed with a rubber mallet. For rust, use a wire brush to assess severity–surface corrosion cleans up with naval jelly, but pitting deeper than 1/16″ weakens structural integrity. Replace damaged shells rather than reinforcing them; epoxy and fiberglass repairs fail under vibration. When ordering, specify whether the deck is stamped steel or cast aluminum–material weight affects balance and durability.
Before finalizing any purchase, verify the seller’s return policy. Some components, like height adjustment brackets, vary subtly between model years. Confirm the shipping origin–domestic warehouses reduce delays, while overseas suppliers often list incorrect lead times. For urgent repairs, prioritize local dealers carrying inventory; online marketplaces may take 7–14 days for delivery, even with expedited shipping.
Breaking Down Your Cutting Assembly Blueprint
Start by locating the spindle housing at the center of each blade module–marked as item 12 in most manuals. Misalignment here causes uneven grass height and premature belt wear. Check the retaining bolts (typically 1/2-inch hex) every 25 hours of operation; torque to 45-50 ft-lbs to prevent loosening from vibration.
Belt tensioners (reference #18) require adjustment if slippage occurs. Use a spring scale to measure deflection–3/8 to 1/2 inch under 10 lbs of force is optimal. Replace belts showing cracks wider than 1/16 inch or fraying around pulley contact zones. Poly-V belts last 30-40% longer than standard V-belts but cost 15% more upfront.
Pivot points on the lift arms (#24) accumulate debris faster than other zones. Clean with a wire brush before applying high-temperature grease (NLGI #2). Failure here leads to stiff operation and inaccurate height settings. For adjustable models, verify linkage rods (#31) aren’t bent–tolerances tighter than 0.030 inches cause binding.
Anti-scalp wheels (#5) should spin freely without wobble. Replace if tread depth falls below 1/4 inch or if cracks appear near the rim. Mounting brackets (#7) often corrode first; powder-coated versions last 2-3x longer than zinc-plated steel. Check wheel alignment by drawing a straight line across all contact points–misaligned wheels create striping patterns.
Debris deflectors (#42) protect belts but reduce airflow when clogged. Remove and rinse monthly using a 1500 PSI pressure washer aimed sideways–not directly at seams. For sloped terrain, upgrade to polycarbonate shields that weigh 40% less than steel and resist cracking from impacts.
Pulleys (#15) with worn grooves accelerate belt wear. Measure groove depth with calipers–replace if 0.060 inches or deeper. Idler pulleys should rotate with of runout; use a dial indicator for verification. Aluminum pulleys dissipate heat better than plastic versions but require periodic zinc oxide coating to prevent oxidation.
Foreign object damage prevention starts with blade timing. On multi-blade systems, offset cutting edges by 1/2 inch to distribute load. Check blade balance–hang horizontally on a nail; imbalance shows as a downward tilt. Sharpen edges to a 45-degree angle every 8-10 hours of runtime using a CBN grinding wheel for hardened steel blades.
Finding and Recognizing Core Elements on Your Cutting Unit Blueprint
Start by tracing the spindle assemblies–critical for blade rotation–positioned beneath the housing. These are typically marked with bold outlines or arrows pointing to their placement. Each assembly includes a pulley, bearings, and mounting bolts, often numbered (e.g., #12-#15) on the schematic. Verify their alignment with the drive belt path; misidentification risks operational failure.
Next, focus on the idler pulleys–smaller wheels guiding the belt. These appear as circular components with diagonal hatching in diagrams, labeled near their tension springs. One tensioner pulley (usually near the center) maintains belt tightness; its location is critical for proper engagement. Incorrect tension leads to slippage or premature wear.
Locate the anti-scalp rollers–round, adjustable wheels at the edges of the frame. These prevent blade contact with uneven terrain and are depicted as solid circles with vertical stripes. Measurements in the plan often show their height adjustment range (e.g., 1–4 inches), essential for cutting precision.
The belt routing path demands careful study. Follow the dashed or solid arrows indicating the belt’s loop around pulleys, the engine crankshaft, and the PTO clutch. A common error involves reversing the belt direction, which voids functionality. Cross-reference the path with the numbered legend to avoid assembly mistakes.
Finally, check the discharge chute and baffle plates. These direct clippings and control airflow, shown as angular or curved sections in the layout. Incorrectly positioned plates disrupt mulching or bagging. Ensure the chute’s release mechanism (clip or lever) aligns with the diagram’s specifications.
Guide to Systematic Breakdown of a Cutting Assembly Using Schematic Reference
Disconnect the spark plug wire immediately to eliminate risk of accidental ignition. Secure the lead away from the engine housing using a zip tie to prevent interference during disassembly.
Identify the discharge chute on the schematic–marked with a unique identifier, typically “Ch-4” or similar. Rotate the locking knobs counterclockwise until loose, then slide the chute outward along its guides. Set aside on a clean, flat surface.
Removing the Cutting Blades
Wedge a block of wood between the blade and the frame to prevent rotation. Fit a 15/16″ socket to the spindle bolt and turn clockwise–most models are reverse-threaded. Lift the blade free, noting the orientation of washers and spacers; these must be reinstalled in the exact sequence.
- Inspect the blade edge for nicks or warping exceeding 0.5mm.
- Measure spindle run-out with a dial indicator; tolerance should not exceed 0.010″.
- Replace the flange bearings if lateral play is detectable.
Trace the belt path on the schematic–highlighted in red or dashed lines. Release tension by rotating the idler pulley arm clockwise until the belt slackens. Slip the belt off the pulleys, noting any fraying at contact points; replace if fibers are exposed.
Detaching the Frame Components
Locate the frame-to-shaft brackets on the schematic–usually numbered “Br-2A” and “Br-2B”. Remove the three hex bolts per bracket using a 9/16″ wrench. Tap the bracket lightly with a rubber mallet to break any corrosion bond; lift away without prying to avoid bending.
Disengage the wiring harness connectors at the motor junction. Use needle-nose pliers to depress the locking tab before pulling straight out–do not twist or force. Label each connector with masking tape corresponding to the schematic symbols to ensure correct reassembly.
Store all components in separate labeled bins. Use a small brush to remove debris from crevices, then apply a light coat of lithium grease to spindle shafts before reassembly to prevent seizing.
Key Replacement Components for Your Cutting Assembly and Locating Them in Schematics
Prioritize inspecting the blade spindles every 50 operating hours–these endure the highest stress and often require replacement before other elements. Refer to the schematic section labeled “Cutting Unit Mechanicals” (typically Position 12-15 in exploded views) to identify the spindle housing, bearings, and mounting bolts. Spindles with sealed bearings (common in models post-2018) last longer but demand proper torque specs (usually 45-55 ft-lbs) during reinstallation to prevent premature wear.
Belt tensioners and idler pulleys wear unevenly; check for cracked or glazed surfaces and listen for squealing during operation. These appear in the “Drive Train” segment (Position 8-11) of diagrams, often adjacent to the main deck belt. Replace both components simultaneously if either shows damage–mixing old and new parts accelerates degradation. For pulleys, note diameter variations: 2.5″ (standard) vs. 3″ (heavy-duty), as mismatches cause tracking issues.
Critical Blade-Related Components
| Component | Diagram Position Range | Lifespan (Hrs) | Failure Indicators |
|---|---|---|---|
| Cutting Blades | 1-4 | 25-100 | Dull edges, nicks, or curvature warping |
| Blade Adapter Kits | 5-7 | 300-500 | Stripped bolt holes, cracked metal sleeves |
| Anti-Scalp Rollers | 16-19 | 150-200 | Flat spots, debris accumulation |
Anti-scalp rollers (Position 16-19) rotate independently; grease the bushings quarterly using NLGI #2 lithium complex. Frozen rollers cause uneven cutting heights and increase belt drag–replace if rotation isn’t smooth by hand. For mulching units, verify the chute door seals (Position 20-22)–compromised seals reduce vacuum efficiency by up to 40%, leading to clumping.
Deck shells themselves rarely fail but inspect weld points near belt tensioners and blade spindle mounts for hairline cracks. Repairs involve MIG welding 70S-6 wire (0.030″) followed by rust-proofing with POR-15. Note that plastic deck shells (common in narrow models) require composite-specific epoxy for repairs; standard welding destroys the material.
Discharge chutes and baffles (Position 23-28) corrode rapidly in humid climates–upgrade to polymer-coated variants if replacements exceed $80. For bagging systems, replace the upper chute liner at first sign of thinning; worn liners reduce airflow, causing clogged passages and uneven clipping distribution. Always cross-reference part numbers with the date code on the assembly sticker–variants differ even within identical model years.
If replacing bolts, prioritize grade-5 or better hardware (visible markings on bolt heads). Common failures occur at the pivot points (Position 30-35 for compact units) due to insufficient thread locking compound. Use Loctite 243 on bolts torque-rated below 70 ft-lbs and Loctite 271 for those exceeding it. Always discard bolt washers after removal–they conform to the surface and lose load distribution if reused.
Supplier Notes for Sourcing Components
Manufacturer-direct schematics include assembly numbers (e.g., “781234C”) critical for ordering–third-party suppliers often mislabel “equivalent” parts lacking OEM heat-treating. RockAuto and Jack’s Small Engines provide cross-reference tools for aftermarket components, but verify shaft diameters and keyway positions. For rare elements like deck lift cables (Position 40-45), measure free length and outer sheath diameter–stock replacements rarely exceed $25 despite inflated dealer quotes.
