For reliable operation under load, inspect the gypsy assembly every 200 hours. Check for wear on the chain contact surfaces–grooves deeper than 2mm require machining or replacement. Verify the engagement teeth on the wildcat; misalignment by even 0.5° will cause chain jamming.
Examine the brake band for glaze or contamination–clean with isopropyl alcohol, then apply graphite-based lubricant sparingly. Replace bands showing cracks wider than 1mm or thickness loss beyond 30% of original specs. Tension should allow smooth, controlled lowering at 0.3 m/s without slippage.
The motor coupling tolerates no more than 0.05mm radial play–any excess accelerates bearing failure. Grease Zerk fittings every 50 cycles with NLGI #2 grease; over-greasing purges seals and draws contaminants. Check solenoid contacts for pitting–file lightly if roughness exceeds 0.2mm, or replace if arcing has created pits.
Align the shaft housing to +0/-0.1mm concentricity with the bow roller. Misalignment causes rapid bearing wear–detectable by a rise in operating temperature above 60°C. Replace seals if hydraulic fluid consumption exceeds 10ml per 100 operating hours.
Store the assembly dry, capped, and coated with soluble oil when idle longer than 14 days–corrosion forms within 48 hours in saline environments. Use only manufacturer-spec bolts for reassembly; grade mismatch reduces load capacity by up to 40%.
Understanding Anchor Handling Mechanism Blueprints
Always verify the manufacturer’s official schematics before disassembly–generic third-party illustrations often omit critical tolerances for components like the solenoid housing or pawl engagement angles. For instance, Lewmar’s Series 3000 vertical capstan includes a 4.5 mm spindle flange diversion not depicted in most user-uploaded charts, which can lead to improper reassembly if overlooked. Cross-reference the exploded view with the part numbers stamped on each element; discrepancies between the printed guide and physical stamps indicate potential counterfeit or outdated replacements. Store digital copies of the blueprint in a vector format (e.g., SVG) to maintain scaling precision when printing or zooming for on-site repairs.
Key Component Location and Compatibility Matrix
| Element | Lewmar Vertical (e.g., V5) | Maxwell RC Series | Quick Hector | Torque Spec (Nm) | Material Grade |
|---|---|---|---|---|---|
| Gypsy drum | Ref. #LW-D200 | Ref. #MX-G40 | Ref. #QK-H35 | 18-22 | Marine-grade 316L |
| Clutch cone | Ref. #LW-C15 | Ref. #MX-C25 | Ref. #QK-C20 | 12-15 | Forged bronze |
| Motor flange gasket | Ref. #LW-FG8 | Ref. #MX-FG12 | Ref. #QK-FG10 | N/A (seal) | Nitrile 70 Shore A |
| Pawl spring | Ref. #LW-PS3 | Ref. #MX-PS4 | Ref. #QK-PS2 | 1.2-1.8 | Hardened stainless steel |
Inspect the worm gear under magnification post-installation–hairline fractures in the 45-tooth variant used in Maxwell’s RC10 models often propagate at the root radius near the keyway, particularly under sustained loads exceeding 2,500 kg. If replacing the brake band, apply Loctite 243 sparingly to the threads but avoid contact with the friction surface; residual adhesive alters the coefficient of drag, causing premature slippage. For horizontal mechanisms like the Quick Hector 700, note that the motor bracket alignment jig (P/N QK-JIG-700) must be used–manual alignment risks misaligning the helical coupling, reducing service life by up to 30%. Always recalibrate the end-of-chain sensor after any adjustment to the tensioner plate; incorrect settings may trigger false alarms or fail to engage the auto-stop function.

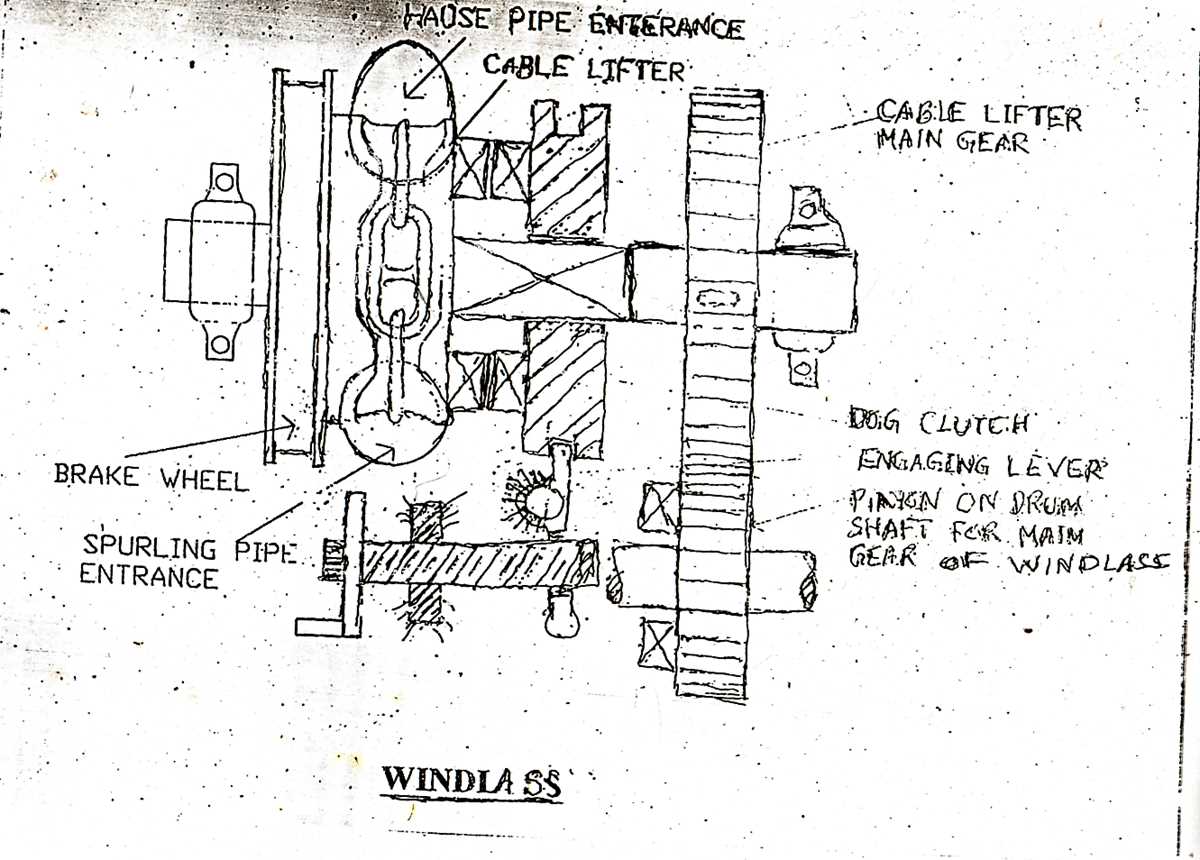

Critical Elements in a Marine Anchor Gear Disassembly Illustration
Begin inspection with the gypsy–the drum-shaped component engaging the chain. Verify the wildcat teeth profile for wear, particularly on the faces where chain links make contact. Replace if grooves exceed 1.5mm depth or if tooth edges show visible rounding. Most failures occur here due to improper chain sizing or neglected maintenance.
- Chain stopper plate–check bolt torque (45-55 Nm) and plate integrity. Corrosion here often goes unnoticed until catastrophic slippage occurs.
- Housing seals–inspect for hardening or cracking; replace every 3,000 operating hours regardless of appearance. Use only nitrile rubber compounds rated for -40°C to +120°C.
- Solenoid valve–test electrical connections with a multimeter (0.5-2 ohms resistance). Clean contacts with isopropyl alcohol; oxidation here causes intermittent operation.
Examine the brake assembly next: the friction surfaces of both band and drum should appear uniformly smooth, without scoring or glazing. Measure brake band thickness–minimum 5mm remaining material is required for safe operation. Apply molybdenum disulfide grease sparingly during reassembly to prevent corrosion, but avoid excessive lubrication that could contaminate the braking surface.
Focus on the reduction gearbox last. Drain old lubricant, then inspect gear teeth for pitting or abnormal wear patterns. Refill with 80W-90 marine-grade gear oil, ensuring the level reaches the midpoint on the dipstick. For vertical models, pay extra attention to the thrust bearing condition–any axial play exceeding 0.1mm warrants immediate replacement to prevent damage to the internal shaft alignment.
How to Pinpoint Faulty Anchor Handling Components Using a Blueprint
Locate the schematic and compare each labeled element against the physical gear. Start with the solenoid–visually inspect for corrosion, pitting, or discoloration on the contact surfaces. Measure voltage at the terminals during activation: readings below 11.5V DC indicate internal resistance or coil degradation. Replace if resistance exceeds 5 ohms when tested with a multimeter.
Examine the gypsy for uneven wear patterns. Grooves deeper than 1.5mm suggest excessive chain abrasion; rotate the component 180 degrees if possible. Check the clutch mechanism: engage and disengage while listening for grinding–high-pitched squeals confirm worn bearings or insufficient grease. Clean the pawl assembly; debris larger than 0.3mm can prevent proper latching.
Motor and Gearbox Assessment
Disconnect the motor and spin the shaft manually. Stiff rotation or grating noises point to damaged gears or seized bearings. Remove the gearbox cover–inspect the worm gear teeth for chips or flats. Use calipers to measure tooth thickness: deviations greater than 0.2mm from specifications necessitate replacement. Verify alignment by tracing the drive shaft path in the schematic against the actual assembly.
Test the thermal protector by running the unit until it cuts out. If reset takes longer than 3 minutes, the overload switch may be faulty. Compare the fuse rating in the diagram with the installed fuse: mismatches explain chronic overheating. Check wiring harness connections against the blueprint–loose crimps or frayed insulation often cause intermittent failures.
Inspect the chain stripper for bent prongs or misalignment. Gaps between the stripper and gypsy exceeding 2mm allow chain jams. Lubricate the pivot points with marine-grade grease; dried lubricant prevents smooth operation. Verify the brake functions by engaging it mid-cycle–slippage indicates worn brake pads or misadjusted tension.
Review the hydraulic system schematic if applicable. Look for leaks at fittings; fluid droplets under the pump housing suggest seal failure. Monitor pressure with a gauge during activation–drops below 800 psi confirm internal wear. Replace hoses if outer layers show cracks or bulges, even if internal damage isn’t visible.
Final Validation Steps
Cross-reference every inspected component with the blueprint’s torque specifications. Fasteners loosened by vibration often mimic other faults–retighten all mounting bolts to the exact values listed. Run a full duty-cycle test after repairs, recording amp draw: spikes above 20% of rated current reveal hidden issues. Document discrepancies between the schematic and real-world condition for future reference.

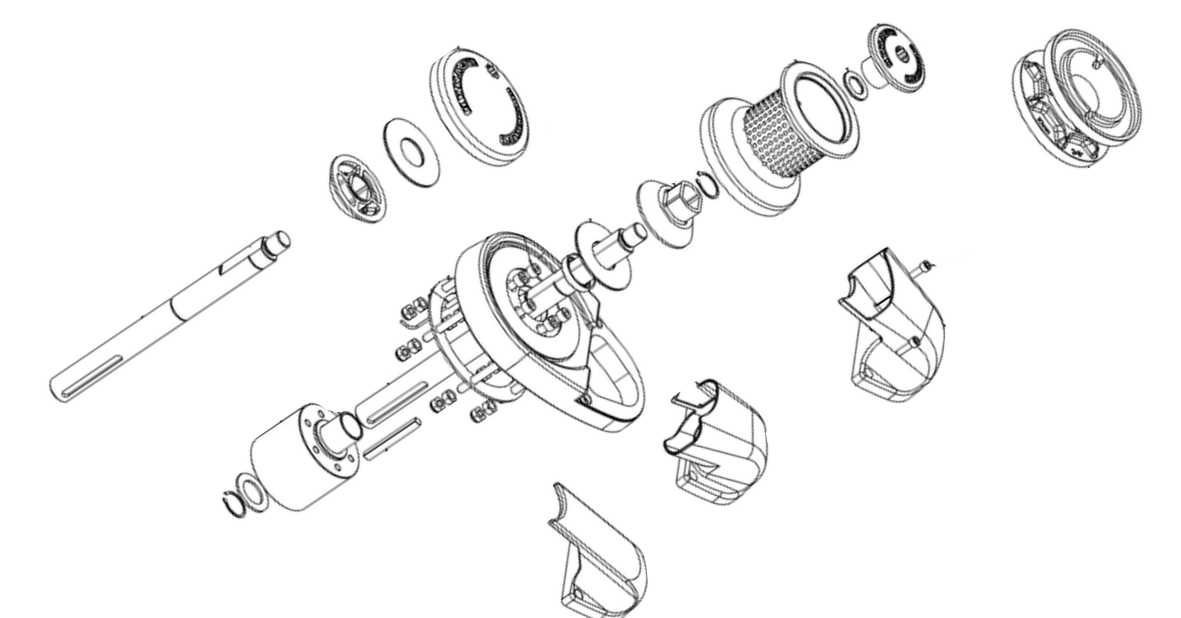

Use the diagram’s exploded view to reassemble. Mismatched parts or incorrect positioning will recreate failures even after repair. Confirm all safety switches–like the chain counter or emergency stop–align with their blueprint locations. Test every function twice at varying loads to ensure reliability.
Step-by-Step Guide to Disassembling a Marine Anchor Handling Mechanism for Inspection
Before beginning, ensure the power supply is disconnected and the device is secured on a stable surface. Remove the solenoid cover by unscrewing the four retaining bolts (M8 x 25mm) using a 13mm socket. Note the orientation of the solenoid wires–mark them with tape if necessary–to avoid misalignment during reassembly. Next, detach the motor housing by loosening the six hex screws (M6 x 20mm) with a 5mm Allen key. Lift the housing carefully to expose the gear train; a thin layer of marine-grade grease may indicate normal operation, while excessive buildup or metal shavings suggest wear.
Inspect the main shaft for corrosion or pitting–use a micrometer to measure diameters at three points (top, middle, base) against manufacturer specs (typically ±0.02mm tolerance). If play exceeds 0.5mm, replace the shaft or bearings. To access the planetary gears, remove the retaining ring (Circlip pliers required) and slide out the gear assembly. Check teeth for chips or uneven wear; even minor damage compromises torque transfer. Clean all components with isopropyl alcohol and a lint-free cloth–avoid compressed air near seals to prevent displacement. Reassemble in reverse order, applying fresh lubricant (NLGI Grade 2) to gears and bearings.
