Replace worn seals or cartridges before leaks worsen. Most brass-bodied valve mechanisms use standard O-rings–locate size markings on the old ring (typically 3/16″ or 1/4″) and match replacements exactly. Avoid universal kits; they often include excess pieces that won’t fit. Store disassembled components in order to prevent cross-threading during reassembly.
Inspect the spout swivel joint first. A corroded bearing race inside will squeak when rotated. Remove the retaining clip with needle-nose pliers, then pry out the race–clean with a wire brush and apply silicone grease before reinserting. If threads strip, tap new grooves using a #8-32 die. Keep tension consistent to avoid cracking the housing.
Lever handles hide the adjusting ring behind a decorative cap. Pop the cap with a flathead screwdriver, then turn the ring clockwise to tighten, counterclockwise to loosen. Over-tightening crushes nylon washers–test friction after each quarter turn. If resistance increases suddenly, back off slightly to prevent binding.

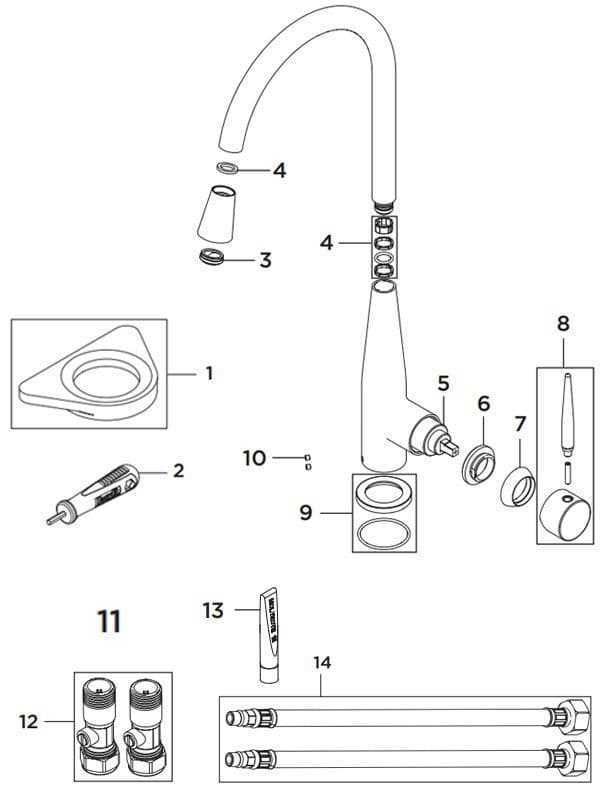

Scan the exploded view for part numbers etched on brass bodies. Cross-reference these numbers against manufacturer bulletins–older models frequently omit non-critical washers from user manuals, yet these small pieces fail before major seals degrade. Order spares in bulk; suppliers often discontinue less-common sizes without notice.
Installation torque matters. Brass threads deform above 25 ft-lbs. Use a calibrated torque wrench, not pliers or adjustable wrenches–they slip and round edges. Hand-tighten first, then finalize with short, controlled turns. Lubricate threads with pipe joint compound only; never tape on moving joints, as residue clogs aerators.
Understanding Your Single-Handle Sink Component Layout
Begin by locating the aerator assembly–the most frequent maintenance point. Remove it using pliers wrapped in masking tape to avoid scratches, then inspect for mineral deposits. Soak in white vinegar for 20 minutes if buildup is visible. Replace the rubber washer inside if leaks persist after cleaning.
For valve cartridges, consult your model’s service sheet (usually stamped beneath the spout). The 910-0300 variant requires a 3/8-inch socket wrench; newer 9500 series use a T15 Torx bit. Always shut off water supply lines at the shutoff valves under the sink before disassembly to prevent flooding.
Spray heads often detach by rotating counterclockwise. Check the diverter mechanism–if water flows weakly, flush the hose by submerging it in a bowl of warm water while toggling the spray function. Replace the hose if kinks or cracks appear; standard replacements fit 3/8-inch MPT threads.
Common Replacement Components and Specifications
- Cartridge seals: Silicone O-rings (part #015-1040), measure 0.75″ ID for leak repairs near the handle base.
- Spout swivel seals: Two nylon washers (#015-1070) sit beneath the spout; lubricate with food-safe silicone grease during reinstallation.
- Supply lines: Braided stainless steel (3/8″ compression x 1/2″ MIP) should not exceed 36″ length to avoid pressure drops.
Align the new cartridge by orienting the flat-sided tab toward the front of the sink. Misalignment causes erratic temperature control. Tighten the retaining nut to 15-20 ft-lbs–over-torquing cracks ceramic discs. Test water flow by turning the handle from cold to hot in 10-degree increments before securing the escutcheon plate.
- Disconnect the sprayer hose by unscrewing the coupling nut under the countertop–counter-rotate the hose while stabilizing the fitting.
- Replace corroded brass quick-connect fittings with lead-free alternatives (compliant with NSF/ANSI 61).
- Inspect the mounting gasket between the countertop and deck plate; a torn gasket allows water to seep below, causing mold.
Troubleshooting Without Full Disassembly
If the handle feels loose, the adjusting ring (item #015-1090) beneath may need tightening–access it by removing the decorative cap. For dripping pull-down models, the weighted check valve (located inside the spout’s neck) often dislodges; reinsert it lever-side up. Always cross-reference your serial number with the manufacturer’s parts list–batch variations exist between 2018 and 2023 production runs.
How to Pinpoint Key Components in Your Sink’s Plumbing Fixture
Begin by locating the spout assembly–the curved or straight pipe delivering water. Check for a removable aerator at its tip; this small mesh screen often clogs with sediment and requires unscrewing with pliers, wrapping the jaws in tape to avoid scratches. If water flow weakens, the aerator is the first suspect before disassembling other internal mechanisms.
The valve cartridge sits beneath the handle and controls water temperature and flow. Signs of failure include leaks around the base or inconsistent pressure. Before replacement, shut off water supply lines under the sink–these are typically small braided hoses connected to shutoff valves. Label hot and cold lines if multiple fixtures share the same plumbing to avoid cross-connection during reinstallation.
Inspect the mounting nut securing the fixture to the countertop. Corrosion or loosening here causes wobbling or leaks beneath the sink. Use an adjustable wrench to tighten it, but avoid overtightening–excessive force can crack porcelain or damage seals. For single-hole installations, the nut may be paired with a weighted base plate, which adds stability and conceals extra holes in the counter.
Identify the spray head and hose if your setup includes a pull-down or side spray. The hose connects via a diverter valve, which redirects water flow when the sprayer is activated. If the sprayer fails to retract or water leaks from the spout when using it, the diverter or hose may be damaged. Disconnect the hose at the base by unscrewing the retaining clip or nut, then inspect for kinks, tears, or mineral buildup.
Examine seals and O-rings around all moving joints and connections. These rubber components degrade over time, leading to slow drips or reduced water pressure. Replace them with exact matches–generic replacements often fail prematurely. Store small parts in a labeled container during repairs to prevent misplacement, and apply silicone grease to new seals to extend their lifespan.
Where to Locate Genuine Brand Repair Schematics Digitally
Begin with the manufacturer’s primary web portal. The official site for the plumbing fixture line hosts an exhaustive database of exploded views, technical schematics, and component lists–all organized by model series and release year. Look for a dedicated “Support” or “Product Resources” section; this area typically houses downloadable PDF files that detail every replaceable element, complete with part numbers and installation notes. For immediate access, use the search function with your fixture’s exact model identifier–usually stamped beneath the spout or on the base plate–to filter results precisely.
Comparison of Online Sources for Repair Documentation
| Source | Accessibility | Accuracy | Depth of Detail | Additional Tools |
|---|---|---|---|---|
| Brand’s official portal | Direct, model-specific | Verified | Full assemblies, torque specs | 3D renderings, video guides |
| Authorized distributors | Requires retailer login | Moderately reliable | Basic component breakdowns | Purchase links, bulk ordering |
| Specialized plumbing forums | Public, community-driven | Variable–user-uploaded | Inconsistent, often incomplete | DIY tips, troubleshooting threads |
| Third-party repair sites | Open, keyword-searchable | Unverified | Generic templates, not model-matched | Generic tutorials, unrelated ads |
For models discontinued after 2015, check the “Legacy Products” subsection within the official portal or contact customer service with the serial number–archived schematics are often retrievable upon request. Hardware platforms like Amazon or Home Depot may list compatible components, but cross-reference part numbers with the original documentation to avoid mismatches.
Step-by-Step Guide to Disassembling a Single-Handle Sink Control
Turn off the water supply valves beneath the sink first–clockwise rotation shuts them. If valves are absent, close the main water shutoff. Open the control handle to release pressure, catching residual water in a container. Remove the decorative cap at the base of the spout or handle with a flathead screwdriver, exposing the mounting screw. Loosen it using a hex key or screwdriver (check screw type beforehand–typically 3/32″ hex or Phillips). Lift the handle upward to detach it from the valve stem.
Detach the spout next: grip the base firmly and twist counterclockwise if threaded; if secured by a retaining clip, pry it off with needle-nose pliers. For models with a pull-down sprayer, disconnect the hose from the weight or housing beneath the deck–compress the quick-connect fitting with pliers while pulling the hose free. Remove the valve cartridge by unscrewing the retaining nut with adjustable pliers (cushion jaws with a rag to prevent scratches). Should the cartridge resist, tap it gently with a rubber mallet or apply penetrating oil. Inspect the O-rings and seals inside the valve housing; replace if brittle or cracked. Reverse steps for reassembly, ensuring all components align before tightening.
Identifying Compatible Hardware with Brand-Specific Schematics
Start by isolating the model number etched on the underside of the fixture, typically near the base or along the supply lines. Compare this alphanumeric code directly to the exploded view illustrations–most manufacturers list component IDs adjacent to each piece. If the number is partially worn, cross-reference the visible digits with online databases that catalog legacy and discontinued units.
Focus on the assembly’s core mechanics: valve cartridges, O-rings, and spout seals. These elements follow predictable sizing conventions–metric or imperial–depending on the brand’s origin. A 40mm cartridge from a 2018 series rarely deviates from its successor, but verify the groove count and spline configuration to prevent mismatches that cause leaks or handle misalignment.
When sourcing washers or aerators, measure the existing piece’s outer diameter and thread pitch using calipers. Standard aerators often adopt a 15/16″-27 or M22x1 metric thread, but niche variants exist. Replace corroded brass connectors with identical-length supply hoses; even a 1/4″ discrepancy can create tension or gaps in the installation.
For handles, note whether the stem requires a flat, square, or splined connection. Counterfeit or generic alternatives may fit loosely, leading to stripped internals. Check torque specifications–some stem nuts demand 8-10 Nm, while others fracture under the same force. Include a thread-locking compound if the original assembly used one to prevent loosening over time.
Inspect the spout’s swivel mechanism. If the diagram indicates a bearing race or retaining clip, ensure the replacement matches material thickness. Stainless steel bearings outlast nylon, but require periodic greasing; silicone-based lubricants degrade slower than petroleum-based ones under high-temperature water cycles.
Use the schematic’s numbered bill of materials to vet sellers. Compare lot numbers–some batches share visual similarities but differ in thread depth or gasket composition. Request close-up photos of the actual product, not stock images, to verify finishing techniques like chrome plating uniformity, which affects longevity under hard water conditions.
Keep the original gaskets and seals until the new components prove functional. Install the fixture dry to confirm no leaks occur before securing it permanently–this isolates faulty parts without damaging cabinets or countertops. If issues persist, recheck the exploded view for overlooked clips or springs; smaller components are frequently the root cause of operational failures.
