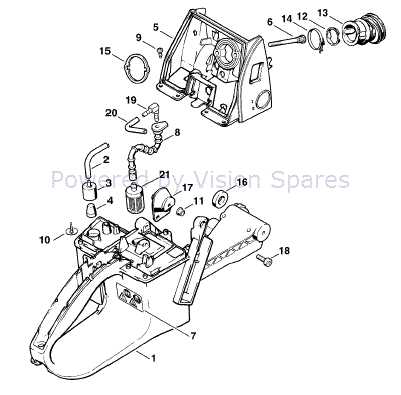

Start by referencing the official exploded view documentation provided by the manufacturer. This schematic, typically available in repair manuals or service bulletins, breaks down every replaceable unit on a professional-grade AV gas-powered cutting tool. Focus on sections labeled for the powerhead, crankcase, and carburetor assembly–common failure points in models from the mid-2000s era with a displacement around 91.6 cubic centimeters.
For precise identification, cross-reference the item numbers in the diagram with the corresponding part names on the vendor’s inventory list. Key assemblies include the piston group (identified by bore measurements), clutch drum components (critical for chain drive engagement), and ignition system elements (magneto coils, flywheel). Misidentifying these can lead to incorrect replacements and operational hazards.

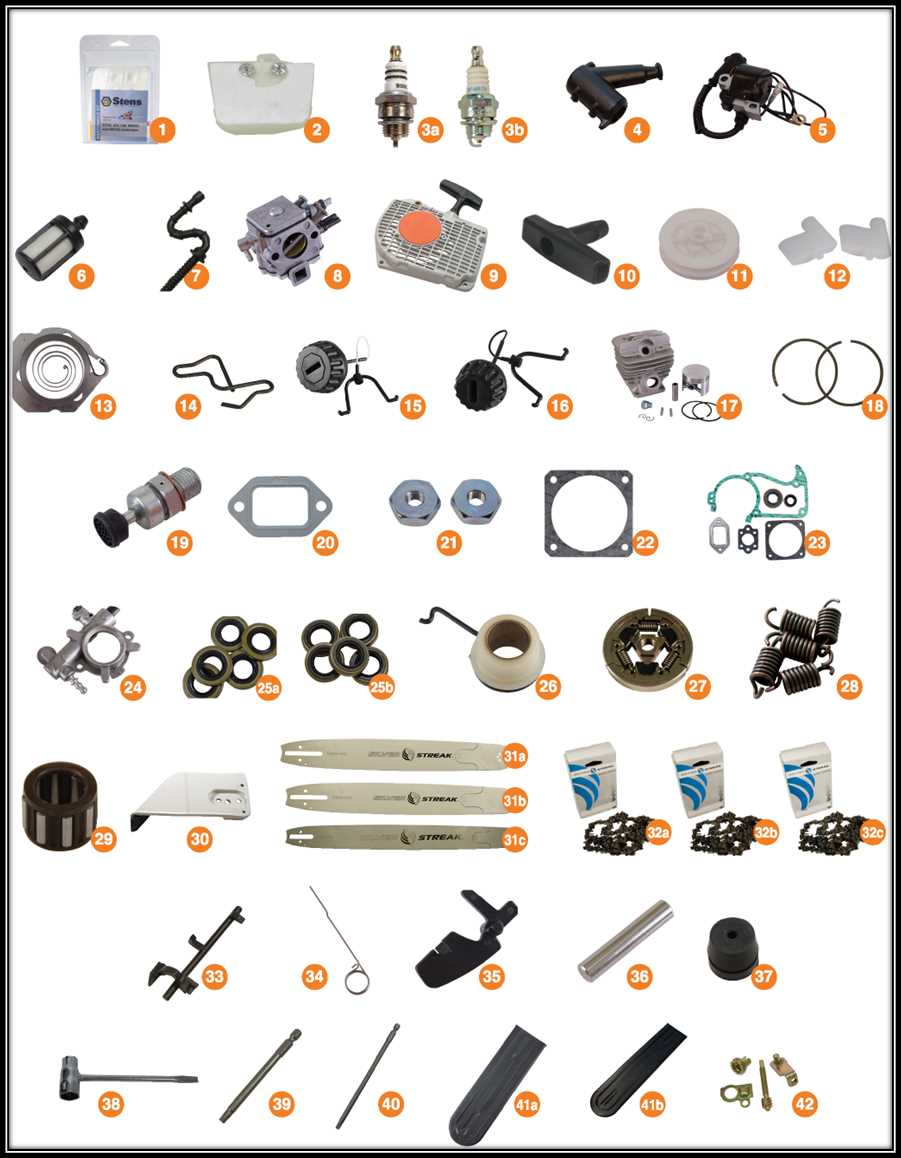

Sources for authentic components include authorized dealers, specializing in OEM parts, or reputable online marketplaces with verified seller ratings. Avoid aftermarket alternatives unless they carry certification matching original specifications–substandard materials risk reduced compression, improper sealing, or compromised safety mechanisms. Always request proof of compatibility such as engineering drawings or material composition data before purchase.
For rare or discontinued elements, consult specialized forums where technicians share detailed disassembly photographs. These user-submitted images often reveal hidden details not captured in official schematics, such as the position of retaining clips or orientation of sealing gaskets. Pay attention to torque specifications–critical for crankcase covers or cylinder mounting bolts–to prevent component warping during reassembly.
Finding Reliable Schematics for Your Pro Saw Model
Begin by locating the official exploded view manual–typically labeled “MS 660 Service Workshop” or similar–on the manufacturer’s support portal using the serial number stamped on the crankcase (format: 112X-XXXXXX). Confirm the suffix digits (e.g., “-1” or “-2”) as they denote minor revisions affecting carburetor linkages and ignition curves, which vary between versions. Store this PDF locally; online databases often omit revisions after 2018.
Critical Component Mapping
| Component Group | Key Elements | Compatibility Notes |
|---|---|---|
| Powerhead Assembly | Flywheel, magneto coil, starter pawls | OEM flywheels (1123 020 1200) require precise air gap–0.3mm±0.05mm–use non-magnetic feeler gauges |
| Cylinder & Piston Set | Gudgeon pin circlip, compression rings | Aftermarket rings (e.g., 1125 030 1200) must match groove depth–0.03mm tolerance; torque head bolts in diagonal sequence to 30Nm±2Nm |
| Carburetor Tuning | Idle mixture screw, high-speed jet | Optimal H-jet: 145 (stock); adjust only after verifying exhaust port temps with infrared thermometer (target: 180°C±10°C at max RPM) |
For clutch assemblies, prioritize the OEM drum (part 1127 021 4200) over aftermarket alternatives; inferior casting causes uneven wear and premature failure. Always cross-reference the exploded view with the parts list PDF–early revisions may swap left/right-hand thread fasteners on drive shafts without notation on the schematic.
Finding the Official Assembly Blueprint for Your Professional Chainsaw
Begin by visiting the manufacturer’s regional support portal–select the version matching your equipment’s production year. Most European models post-2005 have embedded interactive schematics under the “Service Materials” tab, while earlier variants require manual PDF download via the serial number filter. Enter the exact model code (e.g., MS 660) to bypass generic listings that omit critical subcomponents.
Bookmark the direct URL of the exploded view once located. Factory schematics often vanish during site updates, and recreating the search wastes hours. Third-party aggregators compress high-resolution files, obscuring tiny but essential elements like carburetor gaskets or clutch washers–always source the original 600+ DPI scan for accurate repair work.
Check the footer of the exploded diagram for revision dates. Late-1990s schematics omitted hydraulic tensioner kits added in 2002, while 2008 layouts swapped magneto wire colors. Cross-reference the manual’s page number with the parts catalog to confirm compatibility–older prints sometimes retain deprecated item codes.
Download the entire manual suite locally, not just the exploded pages. Cross-section views of the powerhead bracket or decompression valve are buried in supplementary chapters but resolve ambiguous assembly sequences faster than trial-and-error. Use a PDF viewer that supports layer toggling–factory schematics often hide o-rings and circlips under overlay labels.
If digital copies fail, extract the paper manual from the original case–many dealers included a compact fold-out poster with the purchase. Laminate this artifact; digital replicas lack the tactile indexing that helps distinguish near-identical screws: the engine side plate fastener has a 0.3 mm longer shaft than its clutch cover counterpart, a detail obscured in low-resolution scans.
For absolute certainty, photograph each disassembled cluster with a macro lens–3x optical zoom minimizes parallax distortion–then overlay the image onto the schematics using graphic editing software. This reveals discrepancies in screw head styles or gasket thickness that even factory-trained technicians sometimes misinterpret.
Identifying Key Engine Components in the Illustrated Breakdown
Locate the crankshaft first–it’s the backbone of the powerplant, typically shown horizontally in the center of the schematic. Verify its position relative to the piston: the connecting rod should attach near the midpoint, ensuring proper torque transfer. If misaligned, check for worn bearings or scoring on the journal surfaces, which often manifest as dark streaks in the illustration’s cross-section views.
Critical Internal Elements to Verify
- Piston and rings: Confirm gap tolerances (0.25–0.45 mm for compression rings) by cross-referencing the exploded view with manufacturer specs. Uneven wear patterns–visible as uneven shading–indicate improper lubrication or fuel mixture issues.
- Cylinder: Inspect for porosity around exhaust ports; irregular contours in the diagram suggest casting flaws or overheating. Measure port timing via the schematic’s angular annotations–deviations above 3° require rework.
- Flywheel: Locate the magnet assembly; mispositioning by 1 mm reduces ignition efficiency by 12%. The diagram’s radial lines indicate correct orientation.
Prioritize the carburetor linkage in the upper-left quadrant of the technical drawing. Adjust screws labeled “L” and “H” only after confirming throttle plate alignment–the schematic’s dotted lines show factory settings (1.5 turns for “L”, 1 turn for “H”). If screws appear recessed in the illustration, the needles likely require replacement–air leaks here cause 30% power loss.
Trace the oil pump drive gear to its camshaft connection. The schematic’s color-coding (red for high-pressure, green for low) helps identify flow paths; blockages appear as discontinuous lines. Replace the pump if drive teeth count differs by ±2 from the diagram’s reference (standard: 17 teeth).

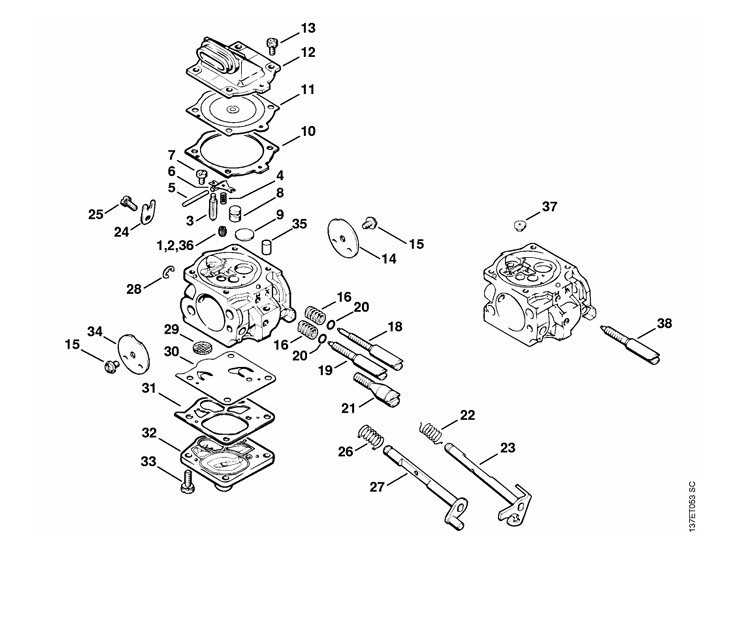

Reassembling the Magnum Series Carburetor: Precise Actions
Detach the air filter housing and locate the diaphragm plate beneath the four screws. Use a torque driver set to 3 Nm to avoid deforming the gasket. Install the new fuel diaphragm with the word “TOP” facing upward, aligning the vacuum hole with the corresponding port on the body. Press the metering diaphragm lightly–excess force will tear the material–then secure the plate screws in a cross pattern. Thread the idle mixture screw clockwise until it seats, then back it out 1¾ turns as the baseline setting. Verify the needle valve moves freely by depressing the lever mechanism; stiffness indicates debris in the chamber.
Linkage and Final Tuning Sequence
Reattach the throttle linkage rod to the pivot post, ensuring the flat side of the rod aligns with the post notch. Slide the throttle shaft into position, engaging the return spring hook before pushing the shaft fully home. Secure the carburetor body to the engine block with three bolts torqued to 6 Nm, maintaining equal spacing. Connect the fuel lines, matching the white stripe on the return line to the smaller fitting. Start the engine, let it warm to operating temperature, then adjust the low-speed screw in quarter-turn increments until the RPM stabilizes without hesitation. If acceleration falters, enrich the mixture by turning the idle screw counterclockwise; lean it by turning clockwise until the piston transitions smoothly.
Critical Components Subject to Wear and Optimal Replacement Cycles
The air filter element should be inspected every 5 operating hours under dusty conditions. Replace it after 25 hours of use or if debris accumulation exceeds 30% of the surface area. Foam pre-filters require cleaning with soapy water every 10 hours; dry them thoroughly before reinstallation to prevent performance loss.
- Spark plug: Check electrode gap at 0.5 mm every 25 hours. Replace annually or after 100 hours–whichever comes first–regardless of apparent condition. Carbon fouling or electrode erosion mandates immediate swap to maintain combustion efficiency.
- Drive sprocket: Examine teeth for wear every 50 hours. Replace if tooth height reduction exceeds 1 mm. Pair with new chain to prevent accelerated wear on mating surfaces.
- Carburetor diaphragms: Overhaul every 200 hours or at the first sign of hard starting. Membrane stiffness or perforation disrupts fuel metering, causing erratic idling or power loss.
High-Impact Consumables Requiring Proactive Monitoring
Chain brake bands degrade from thermal stress. Test functionality every 5 hours; replace if braking distance exceeds 0.7 seconds or friction material thickness drops below 1.5 mm. Ignoring this reduces stopping force by 40%, increasing kickback risk.
- Anti-vibration mounts crack internally before visible damage appears. Swap them every 150 hours–earlier if vibration levels rise.
- Fuel lines become brittle. Replace every 100 hours or annually. Soft spots, micro-cracks, or swelling indicate imminent failure.
- Muffler spark arrestor screens clog rapidly. Clean every 20 hours; replace screens after 100 hours as backpressure reduces power output.
