Replace the cutting deck immediately if the blade mount shows cracks or excessive wear–failure risks catastrophic imbalance at high RPMs. Manufacturers specify torque limits for blade bolts at 18–22 ft-lbs; exceeding this strips threads in the aluminum housing. The drive belt on models with self-propulsion typically fails after 150–200 hours of use–inspect for fraying every 30 hours. Battery contacts corrode quickly in humid climates; clean terminals with isopropyl alcohol (90%+ concentration) and apply dielectric grease monthly.
Locate the motor assembly plate beneath the grass collection bin–three T-25 screws secure it. Remove debris from the cooling fins monthly to prevent overheating; compressed air at 60 PSI works best. Handle the safety micro-switch near the discharge chute carefully–bending the actuator arm even 0.5mm disrupts blade brake engagement. For gearbox issues, note the oil capacity: 4.5 oz of SAE 85W-140 synthetic lubricant (check fill plug torque: 12 in-lbs).
Inspect the rear roller for embedded stones–rotate it manually to detect grinding sensations. If the self-propulsion drive cable stretches, adjust tension at the rear mount (1/4-inch slack maximum). The mulching plug’s rubber seal often tears; replace parts #532387678 if gaps exceed 1mm. For wiring harness faults, prioritize continuity tests on the orange (battery +) and black (ground) leads–resistance should remain below 0.5 ohms.
Disassemble the front-wheel axle only if play exceeds 0.04 inches–shim kits solve misalignment faster than axle replacement. The cutting height selector uses detents stamped into steel; lubricate contact points with PTFE spray to prevent sticking. Chute rotation mechanisms fail first at the plastic gears–apply cyanoacrylate to cracked teeth rather than replacing the entire unit. Always verify the spark arrestor screen (if equipped) is free of carbon buildup–clean it after every 50 hours with a brass wire brush.

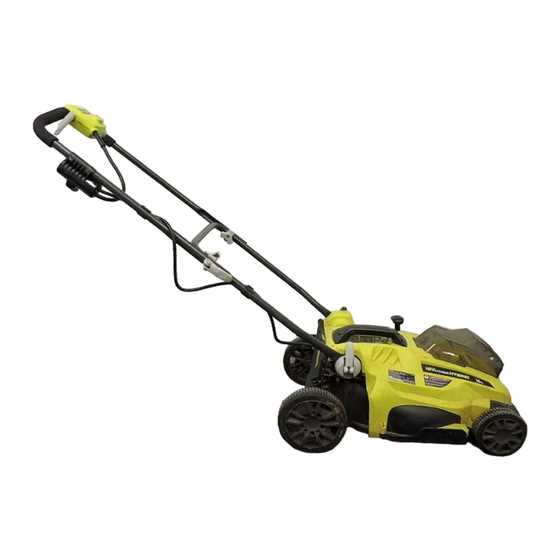

How to Identify Components in Your Battery-Powered Grass Cutter

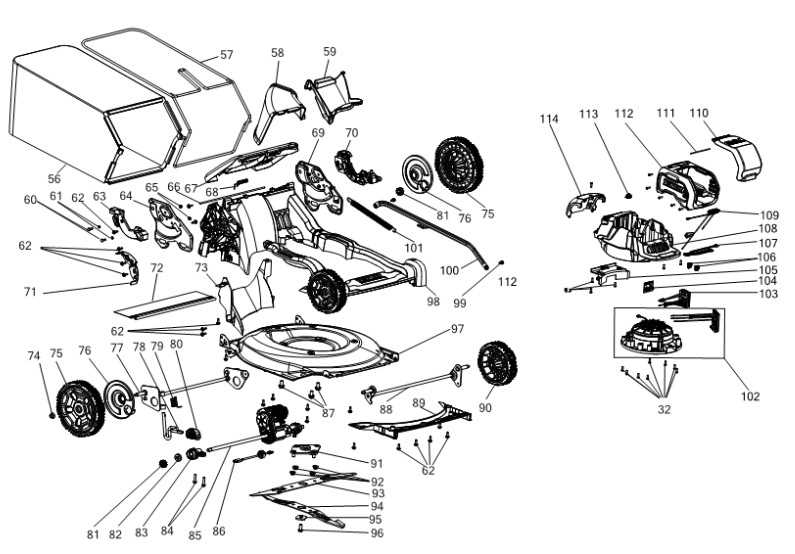

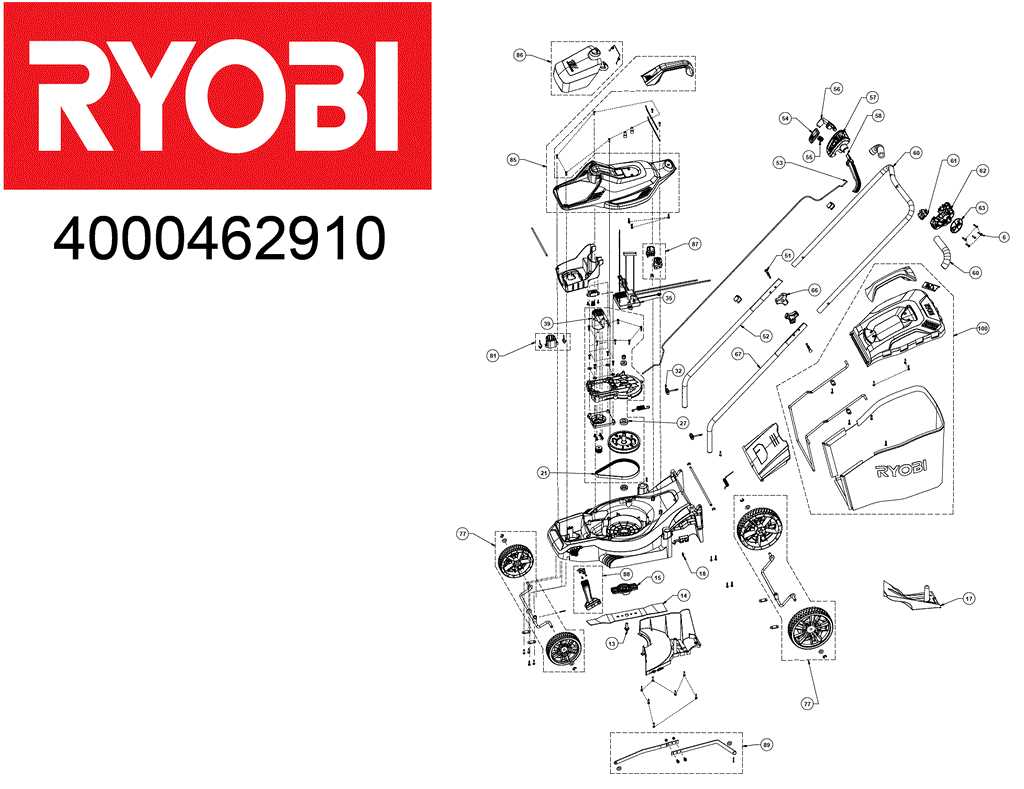

Locate the manufacturer’s exploded view schematic–usually found in the user manual or on the brand’s official support portal under model-specific resources. For example, models RY40101 and RY40121 share key assemblies like the 36V lithium-ion battery pack (item 12), deck housing (item 3), and cutting blade assembly (item 6), but differ in grass discharge mechanisms (side vs. rear). Cross-reference the part number printed on each component with the schematic’s legend to confirm compatibility before ordering replacements. Third-party platforms may list obsolete or incompatible substitutes; verify dimensions–primarily the blade’s arbor hole diameter (19mm) and deck mounting points–before purchasing.

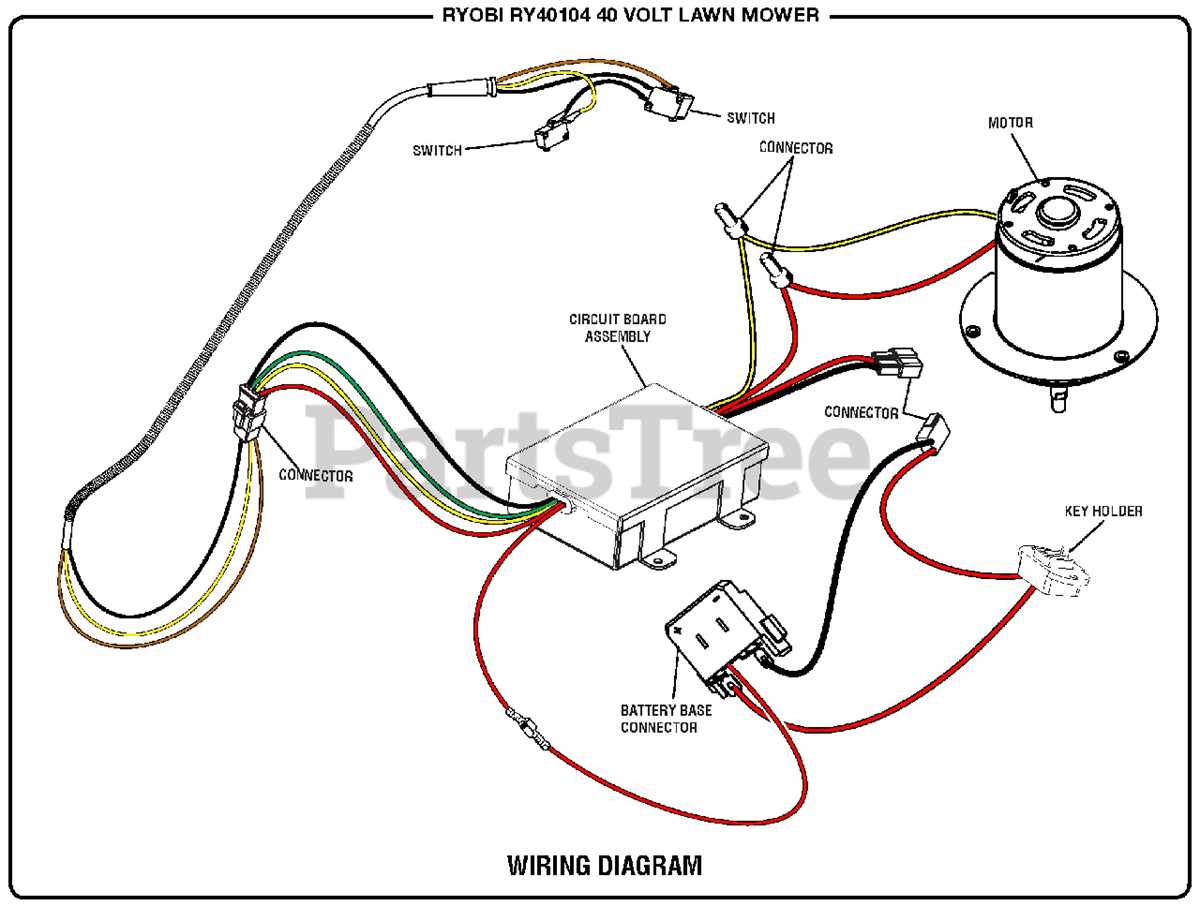

Inspect the wiring harness (item 15) for frayed insulation or loose connectors, as intermittent power loss often stems from these issues rather than motor failure. The brushless motor (item 7) lacks replaceable carbon brushes, so diagnose faults via resistance testing: disconnect leads, probe terminals with a multimeter, and compare readings to factory specs (typically 5-10 ohms). If values exceed 20 ohms, the stator windings may be compromised–consider a certified service center for rewinding rather than DIY repairs, as improper handling risks voiding warranties or creating safety hazards.
Locating Authorized Schematics for Cordless Garden Cutters
Begin with the manufacturer’s dedicated support portal. For U.S. users, visit ryobitools.com/support–enter the model number printed on the underside of the deck or on a sticker near the handle. The site will display a clickable link labeled “Exploded View” alongside torque specs and replacement intervals for blades, batteries, and drive assemblies.
Canadian and European owners should navigate to ryobitools.ca or ryobitools.eu respectively. Each regional site filters content by voltage–18 V or 40 V series–so select the correct platform before the schematic loads. A PDF download starts automatically; save it to cross-reference later when disassembling.
Local service centers approved by the brand maintain printed versions. Use the store locator on the main site, toggle “Authorized Repair” filters, and confirm the center stocks technical prints before visiting. Some locations charge a nominal fee–$5–$10–for a color copy, while others offer digital transfer via QR code at the counter.
Online retailers like ereplacementparts.com host granular illustrations for individual assemblies. Search the model prefix (e.g., “RY40190”) and scroll past inventory listings to the “Technical Documents” tab. The diagrams show sequential numbering for fasteners, helping identify a missing bolt during reassembly.
Mobile apps designed for trade professionals, such as Fixya and ManualsLib, catalog OEM schematics by machine class. Download the app, upload a photo of the serial tag, and receive an instantaneous overlay identifying every gearbox component, wiring harness connector, and grass-catching frame.
Third-party youtube channels operated by certified technicians frequently embed download links in video descriptions. Look for channels with “Official Repair” badges, verify the model alignment in the title, and scan the pinned comment for direct PDF access hosted on Google Drive or Dropbox.
Specialized forums for outdoor power equipment often archive high-resolution versions. Check gardenweb.com/forums/outdoorpower–use the search bar to enter full model designation; members typically attach the schematic within the first reply, annotated with torque and lubrication notes.
Hardware stores with dedicated OPE sections–Home Depot, Lowe’s, some Ace affiliates–print exploded views as shelf tags. Locate the corresponding display unit, tilt the machine forward, and photograph the reverse side of the price strip; it includes a QR leading to the same PDF available on the branded portal.
Critical Elements of a Battery-Powered Grass Cutter and Where to Find Them
Begin troubleshooting or maintenance by inspecting the cutting deck–the main housing beneath the unit. Check for debris buildup near the discharge chute, where grass clippings exit the machine. Severe blockages here reduce cutting efficiency and strain the motor, often located directly above this area. Reference your model’s service schematic to identify the exact position of the deck’s attachment points, typically secured by bolts or quick-release levers near the wheels.
The rotary blade sits horizontally under the deck, mounted to the spindle via a central bolt. Always disconnect the battery before attempting access–failure to do so risks injury. Rotate the blade manually to ensure it spins freely; friction suggests bearing wear or misalignment. Replace blades annually or when nicks exceed 2mm, as dull edges tear grass instead of slicing, leading to uneven cuts and brown patches.
Locate the drive system near the rear wheels–this includes the motor, gearbox, and transmission elements. On self-propelled variants, a cable connects the bail lever to the speed control mechanism. If the unit pulls unevenly, inspect this cable for kinks or tension issues. Lubricate the gearbox sparingly with lithium grease every 50 hours of use; excess attracts dirt, accelerating wear.
Battery terminals reside in a compartment, usually at the machine’s rear or beneath the handle frame. Corrosion on contacts disrupts power flow–clean with a wire brush and baking soda solution if terminals appear white or flaky. For optimal lifespan, store the power source at 50% charge in cool, dry conditions; extreme temperatures degrade cells faster than regular use.
The height adjustment mechanism varies by model but typically consists of levers or knobs near each wheel. Uneven cutting results from improper calibration–compare all four settings before operation. On some units, a single dial controls all wheels simultaneously; on others, each requires manual adjustment. Test adjustments before mowing; incorrect settings scalp turf or leave tall patches.
Handle assemblies often conceal control wiring–check for frayed insulation or loose connections if the start button fails. Zip ties secure wires along the handle; replace damaged ties to prevent interference with moving parts. The bail lever, critical for safety, must depress fully to enable blade rotation; if sticky, clean the contact points with rubbing alcohol.
Chute deflectors and side discharge guards attach via screws or clips. Missing or damaged guards violate safety standards and allow debris to eject dangerously. Replace cracked components immediately–plastic fatigue worsens with exposure to UV light and impacts. For mulching models, ensure the dedicated plug seals the discharge port completely; improper installation creates leaks and uneven clipping distribution.
Airflow vents, typically behind the motor housing, require periodic clearing to prevent overheating. Use compressed air to remove grass clippings and dust; blocking vents forces the motor to work harder, shortening its lifespan. Always verify the cooling fan spins freely after cleaning–if obstructed, the unit may shut off mid-operation due to thermal overload.
Step-by-Step Guide to Finding Components via Schematic Illustrations
Locate the product’s model number on a sticker beneath the main housing or near the serial plate. This alphanumeric sequence–typically 8-12 characters–matches specific breakdowns in manufacturer documentation. Cross-reference it with online databases or paper manuals before proceeding, as variations even in a single digit can lead to incorrect selections.
Retrieve the exploded-view sheet from the manufacturer’s website or included paperwork. Download the highest resolution available (minimum 300 DPI) to ensure fine details like bolt threads, clip shapes, and wiring harness connectors remain visible. Print or display on a tablet with brightness increased to eliminate glare reflections.
Organize the schematic into zones: power unit, cutting assembly, wheels, handle frame, and collection bag. Label each zone with removable sticky notes or digital annotations. This segmentation prevents overlooking small fasteners buried within multi-component clusters.
- Power unit cluster: note motor casing gaskets, brush sets, capacitor placement, and thermal fuse positioning.
- Cutting assembly: identify blade hub, spacers, anti-vibration washers, and deck guard edges.
- Wheel zone: distinguish axles, bushings, hub caps, and traction gears specific to drive vs. passive rollers.
- Handle frame: separate lower pivot joint bushings, upper clamp rings, and safety switch housing.
- Collection bag: examine bag frame latch, fabric hinge, and dust filter mesh density.
Compare the disassembled component to its representation in the schematic. Hold side-by-side if possible; rotate items slowly to match angles depicted. Check for subtle marks: mold release lines, laser-etched identifiers, or color banding on plastic housings unique to certain production runs.
Measure critical dimensions using digital calipers: shaft diameters, gear tooth counts, spring tension lengths, and fastener thread pitches (e.g., M6x1.0 vs. #10-32). Record measurements directly on the printed schematic next to each item for rapid validation during ordering.
- Verify supplier’s compatibility listings match model number and schematic reference code.
- Cross-check part names: terms like “spacer ring” vs. “thrust washer” often differ between brands.
- Inspect packaging imagery–sometimes shows exact assembly orientation missing in schematics.
- Confirm electrical ratings (volts/amps) for wires, switches, and capacitors.
- Prefer suppliers offering 3D exploded viewer tools; zoom and rotate to confirm physical fit.
Reassemble using the schematic’s sequential numbering, working backward from the assembly’s outermost layer inward. Double-check each placement twice before torque application; misaligned gears or inverted springs cause premature wear or safety lockout triggers. Store the annotated schematic with maintenance notes for future reference.
