Start by securing the lifting cables–they must attach to the bottom brackets at precise tension to prevent sagging or misalignment during operation. Improper tension leads to uneven wear on rollers and tracks, increasing replacement frequency by up to 40%. Check cable thickness: 3/16-inch diameter suits residential units, while heavier commercial models require 1/4-inch. Always match cable length to the full extended height of the assembly to avoid slack.
The torsion spring system sits above the opening, wound clockwise for right-side setups and counterclockwise for left-side configurations. Spring wire gauge determines cycle life: 0.225 inches supports 10,000–15,000 cycles, while 0.250 inches extends to 20,000+ cycles. Mark the winding cone with a permanent marker before adjusting tension–each quarter-turn equals 3” of travel on the door. Failure to pre-mark risks over-tensioning, which can snap springs with 6x the force of a .45 caliber bullet.
Inspect hinges between panels–grade 8 zinc plating resists corrosion 3x longer than standard galvanized options. Replace hinges if play exceeds 1/16 inch; loose hinges cause misaligned tracks and binding. Use self-lubricating nylon rollers (not steel) on abused systems–nylon reduces noise by 2 dB and eliminates grease buildup on tracks. Check roller stems for chips; even minor defects accelerate bearing failure.
The track assembly must maintain exactly 2 inches of offset from the ceiling when fully open. Vertical tracks align with the wall edge at a strict 90-degree angle–any variance beyond 1/8 inch causes the door to jam. Measure horizontal track length: it should equal panel height plus 12 inches for proper clearance. Secure tracks with lag bolts (not drywall anchors) into studs every 24 inches.
Test the photo-eye sensors weekly by waving an object through the beam path. If the door reverses, clean lenses with isopropyl alcohol–dust reduces detection range by 30%. Adjust sensor alignment until the LED indicator stops blinking, ensuring uninterrupted infrared signal. Misaligned sensors account for 22% of service calls annually, yet require only 5 minutes to correct.

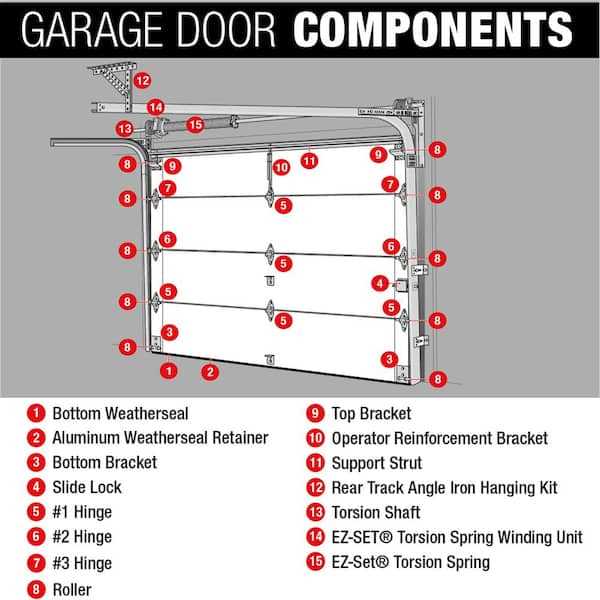

Essential Components of a Sectional Roll-Up Mechanism
Begin by locating the torsion spring assembly at the top of the opening. This coiled component counterbalances the panel weight, reducing strain on the opener. Inspect the winding cones–metal collars with set screws–but avoid adjusting them without a winding bar. Misalignment can cause sudden release of tension, risking injury or damage.
Examine the horizontal tracks mounted on either side of the frame. These steel channels guide the rollers during vertical movement. Ensure they’re parallel and spaced no more than 1/4 inch from the wall. Bent tracks warp under load, causing uneven lifting or jamming. Use a level and rubber mallet for minor corrections; damaged sections require replacement.
The cable system includes high-tensile steel wires and pulleys. Cables attach to the bottom bracket and run through the torsion spring, supporting the weight. Frayed or slack cables snap under tension, so replace them in pairs. Check pulleys for smooth rotation–worn bearings create friction, increasing wear on other components.
- Rollers: Nylon or steel wheels with ball bearings. Nylon lasts longer but cracks under heavy use. Steel handles weight better but generates more noise.
- Hinges: Connect each panel, allowing articulation. Rust or loose screws cause misalignment. Lubricate pivot points with silicone spray.
- Weatherstripping: Bottom seal prevents drafts. Replace cracked or compressed strips to maintain insulation.
Opener Assembly and Safety Features
The drive mechanism sits above the frame center. Chain-drive models use a metal chain on a sprocket, while belt-drive systems employ a reinforced rubber belt for quieter operation. Test the auto-reverse function by placing a 2×4 under the closing panels–it should reverse within two seconds. If not, adjust the force limits or replace the safety sensors.
Safety sensors mount 6 inches above the floor on each side of the frame. Align the LED beams to ensure they’re level; misalignment triggers false negatives. Clean lenses with a microfiber cloth–dust or spiderwebs block the signal. For older models without sensors, install mechanical edge sensors that halt movement upon contact.
Maintenance Checklist for Longevity
- Monthly: Lubricate hinges, rollers, and tracks with lithium grease. Avoid WD-40–it attracts dirt.
- Quarterly: Tighten loose hardware. Check cable tension and spring condition.
- Annually: Inspect opener gears for wear. Replace battery in backup systems.
For replacement components, match manufacturer specifications. A 10-gauge steel torsion spring lasts ~10,000 cycles; heavier panels require thicker springs. Keep a spare set of cables sized to the panel height–standard lengths are 6, 8, and 10 feet. When assembling, prioritize sequence: tracks → panels → cables → springs → opener.

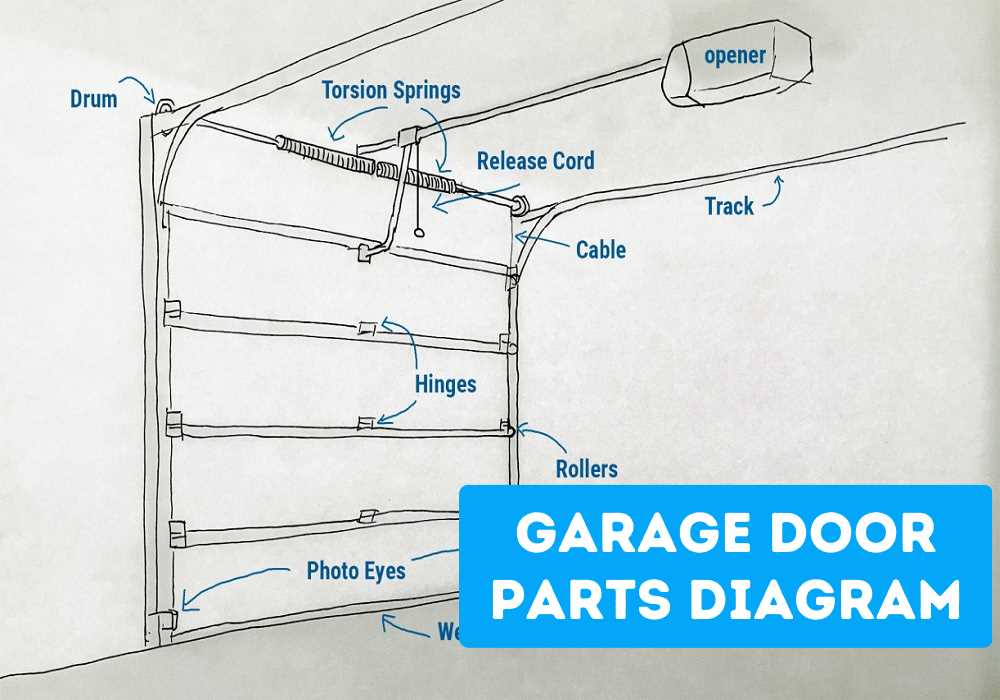

How to Spot Critical Elements in an Automated Entryway Setup
Start by locating the torsion spring assembly–usually mounted horizontally above the closed panel. These coiled mechanisms counteract the weight, enabling smooth vertical movement. Note whether the setup uses one or two springs; heavier setups often require dual units for balanced force distribution. Measure the wire diameter (common gauges range from .207″ to .295″) and count active coils to estimate load capacity. A snapped spring leaves the system inoperable, so verify its condition before addressing other issues.
Examine the roller tracks on both sides of the opening. Vertical sections should align perfectly with the horizontal runs, forming a continuous pathway. Misaligned tracks cause binding, premature wear on wheel inserts, and uneven movement. Check for gaps exceeding 1/8″ between track sections–these indicate improper installation or structural shifts. Lubricate the tracks annually with silicone spray to prevent corrosion and reduce noise during operation.
The lifting cables attach to the bottom bracket and wind around the drum at the torsion spring ends. Inspect for fraying, rust, or slack–defective cables snap under tension, creating dangerous recoil. Ensure both cables have equal tension; mismatched lengths strain the motor and pulley system. Replace any cable showing visible wear immediately, even if still functional, to avoid sudden failures.

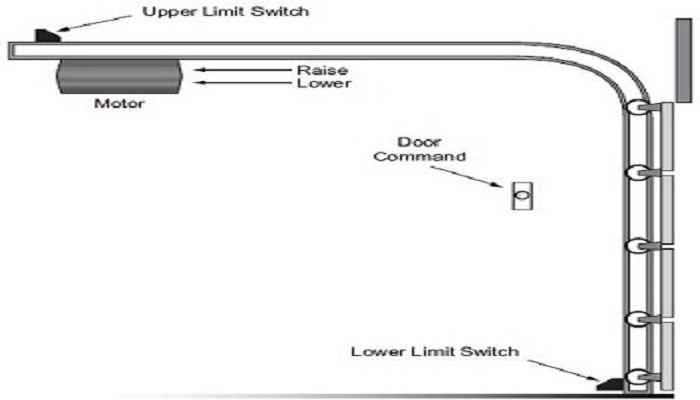

Identify the motor unit–typically mounted at the ceiling or wall–by its power source (110V or 220V) and drive mechanism (belt, chain, or screw). Listen for unusual noises: grinding suggests gear wear, while clicking may indicate a jammed limit switch. Test the manual release cord to confirm the disengagement lever operates smoothly, allowing hand-operated movement during power outages. Reset any tripped overload protectors inside the motor housing before assuming electrical faults.
Check the weather seal along the bottom edge of the panel. A worn seal lets in drafts, debris, and pests, compromising insulation. Replace cracked or compressed seals with vinyl or rubber variants rated for local temperature extremes. For side-mounted seals, ensure they compress evenly along the frame without binding. Proper seals reduce strain on the motor by maintaining consistent internal pressure.
Finally, verify the functioning of safety sensors near the base of the opening. Align the infrared beams so they shine uninterrupted across the threshold. Misaligned sensors prevent closure, triggering error codes on the opener. Clean the emitter and receiver lenses with a soft cloth to remove dust accumulation. Test the auto-reverse function by placing a solid object in the beam’s path–failure requires immediate recalibration to meet safety standards.
Step-by-Step Breakdown of Torsion Spring Assembly Components
Begin by securing the winding cone to the torsion tube before inserting the spring. Mark the tube’s centerline to align the stationary cones accurately–misalignment causes uneven tension. Use a drill with a 7/16″ socket to tighten the set screws on the winding cone to 18-22 ft-lbs, ensuring the spring doesn’t shift during operation. Replace worn cones immediately; stripped threads or cracks compromise safety and force distribution.
Critical Hardware Specifications
Counterbalance springs require specific wire diameters: 0.243″ for 250 lb lifting capacity, 0.262″ for 350 lb. Verify the inside diameter matches the tube (typically 1 3/4″ for residential models). The cable drum’s groove must match the lift cable thickness–commonly 3/32″ for standard systems. Lubricate the torsion shaft with lithium-based grease before assembly; dry bearings accelerate wear and noise.
Position the left-hand wound spring on the left side of the header, right-hand on the right–this orientation dictates rotation direction. Install the bearing plates with the convex side facing outward to prevent cable binding. Test spring tension by lifting the panel manually to 90°; it should remain stationary. Adjust with a winding bar in 1/4-turn increments, never exceeding seven full turns for standard 8-foot lifts.
Inspect the containment cable annually–frayed strands reduce breaking strength below the required 1,500 lbs safety margin. Replace rusted fasteners with grade-5 or better hardware; zinc-plated bolts resist corrosion in humid environments. Keep a spare winding bar on-site; using improvised tools risks slippage and severe injury.
