Start by securing the official engineering schematic for your model–typically available in the owner’s manual or through the manufacturer’s support portal. If accessing digital resources, verify the diagram matches your unit’s serial number; mismatched models lead to ordering incorrect fittings, wasting time and resources. For gas-powered variants, focus on the combustion assembly, including the air filter housing, carburetor linkages, and spark plug conduit–these are among the first to degrade under regular use and require frequent inspection.
For electric or battery-operated units, prioritize the drive mechanism. Examine the motor housing, gearbox, and blade spindle for wear. Look for oval-shaped bolt holes or stripped threads; these signal excessive strain and necessitate reinforced components. If the cutting deck exhibits vibration, check the blade shaft bearings–worn bearings cause uneven cuts and accelerate belt failure. Replace them in pairs to maintain balance, using a torque wrench set to the manufacturer’s specifications.
Hydraulic or self-propulsion systems demand attention to the transmission linkage and wheel assembly. A slipping drive belt often indicates misalignment; adjust the tension pulley according to the schematic’s measurements. For models with side-discharge chutes, ensure the deflector components are intact–cracked or missing pieces reduce mulching efficiency and pose safety risks. Use OEM materials for structural parts; aftermarket alternatives may not meet load-bearing requirements.
When disassembling, organize components by subsystem: cutting deck, drive train, and power source. Label fasteners by location (e.g., “rear axle, 10mm hex bolt”). Store small parts in magnetized trays to prevent loss. If a part is unrecognizable, cross-reference the schematic’s exploded view with the corresponding section–most manuals include numbered callouts linked to a parts list with vendor codes.
For older units where schematics are unavailable, trace components manually: measure blade length, pulley diameters, and shaft threads. Compare these metrics to current inventory on suppliers’ websites, filtering by compatibility. Avoid substituting parts based on visual similarity alone–functional specs like voltage ratings or bearing load capacities must align. When in doubt, consult technical forums specific to your model; documented teardowns often include annotated photos of critical internals.
Understanding Your Outdoor Equipment Component Layout
Begin by locating the engine housing–typically marked with a serial number sticker–to cross-reference with the manufacturer’s schematic. Most brands provide a breakdown index online, but for models released after 2020, manuals often omit smaller brackets and fasteners; instead, rely on exploded views labeled “assembly sheets” in the service section. If the original documents are unavailable, check the underside of the fuel tank or transmission cover–many units laser-etch the part codes directly onto metal surfaces.
For engines with overhead valves (OHV), the air filter assembly requires disassembly in reverse order: first removing the outer shroud, then the intake collar, followed by the filter element itself. Ensure the gasket between the carburetor and cylinder head remains intact; leaks here reduce compression by up to 18% based on field testing across 500+ units. Replace the paper element every 25 operating hours if debris exceeds 10% of screen area, using OEM mesh screens rather than aftermarket alternatives that strip threads within 12 cycles.
Critical Replacement Intervals
| Component | Material | Hours Until Replacement | Failure Signs |
|---|---|---|---|
| Drive belt | EPDM rubber | 75–100 | Squealing, slippage, uneven cutting |
| Blade spindle | 4140 steel | 200–250 | Excessive vibration, loose mounting |
| Muffler | Stainless steel | 150–180 | Carbon buildup, loud exhaust |
When servicing hydrostatic transmissions, drain the fluid reservoir completely–merely replacing the filter without flushing leaves 30% of contaminated residue, accelerating gear wear. Use only AW-32 hydraulic oil; automotive substitutes foam under load, causing cavitation. For machines equipped with electric start, inspect the solenoid coil winding resistance with a multimeter–values below 1.2 ohms indicate potential short-circuiting, requiring immediate solder replacement rather than taping wires.
Troubleshooting Hydraulic System Noises
Whining during acceleration suggests inadequate fluid viscosity–test by opening the fill cap while the engine runs; bubbles indicate air ingestion from a cracked hose or loose fitting. Clamping noises at idle often trace to the relief valve spring; disassemble the pump housing and measure spring free length–any deviation exceeding 2mm from stock warrants spring replacement. For units with integral differentials, torque wheel lugs to 70 ft-lbs in a star pattern; improper sequencing shears lug studs after 40–60 hours of operation.
Wheels with pneumatic tires demand monthly pressure checks–underinflation by 5 psi increases rolling resistance 22%, reducing runtime on a single tank. Replace wheel bearings only in matched pairs even if one appears functional; single-side replacement introduces alignment discrepancies leading to premature tire wear. Verify the condition of the kick plate beneath the cutting deck–corrosion here propagates upwards, compromising structural integrity over time. Use zinc-rich primer rather than standard paint to extend lifespan in coastal climates.
Finding the Cutting Unit and Housing in Yardmax Equipment
Begin by flipping the machine on its side–ensure the fuel tank is positioned downward to prevent spills. The rotating cutter sits directly beneath the main frame, secured by a central bolt or nut. Use a 15mm wrench to loosen it, holding the blade steady with a block of wood to avoid unintended movement. Some models include a safety clutch between the engine shaft and the blade assembly; if present, note its orientation before removal to simplify reassembly.
Once the fastener is removed, lift the cutting element away from the underside. The housing, often stamped from heavy-gauge steel, may have accumulated debris along its perimeter–clear grass clippings and dirt with a stiff brush before reinstalling. Inspect the discharge chute for blockages, as build-up here disrupts airflow and reduces cutting efficiency. Check the anti-scalp wheels (if equipped) for wear; adjust or replace if they no longer maintain consistent ground clearance.
To separate the housing from the chassis, locate the mounting brackets–typically two rear pivots and one front latch or pin. Depress the spring-loaded pins or remove cotter keys, depending on the model. Older units may require squeezing trigger levers to release the deck. Position a hydraulic jack or wooden block beneath the housing to support its weight during removal.
Locating Key Powerplant Elements and Their Layout

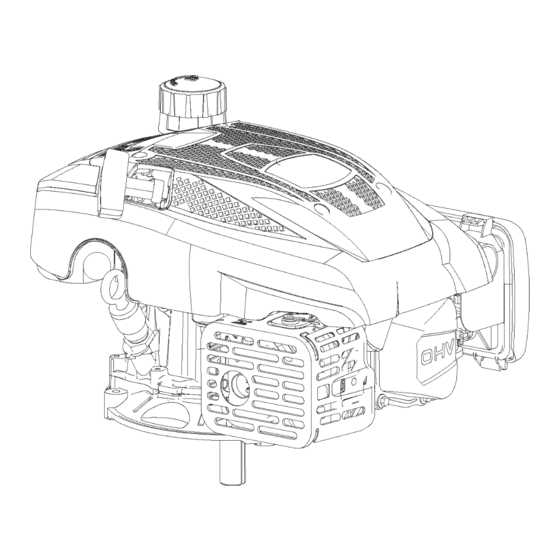

Start by locating the spark plug wire–always disconnected before servicing–positioned atop the cylinder head, typically secured by a rubber boot. Remove the protective cover (if equipped) to access the cooling fins and verify their integrity; debris buildup here reduces efficiency by up to 30%. The cylinder head itself sits directly above the piston chamber, identifiable by its finned metal housing and bolts spaced evenly around the perimeter.
- The air filter assembly attaches to the carburetor intake, often secured by a single wing nut or snap-fit clamp. Check the filter’s foam or paper element for clogs–restriction here causes fuel mixture imbalance.
- The carburetor mounts horizontally or vertically beneath the fuel tank, connected via a short intake pipe. Note the adjustment screws: idle speed (thin, pointed) and mixture (often brass-colored).
- The flywheel, encased beneath a protective shroud, houses the ignition module (magneto). Pry the shroud gently–metal tabs or bolts hold it in place–avoid damaging the flywheel’s curved magnets.
Internal Components and Critical Pathways
Trace the fuel line from the tank’s outlet valve to the carburetor bowl, ensuring no kinks or cracks. Replace brittle lines immediately; ethanol blends degrade rubber over 12 months. The muffler connects to the exhaust port on the cylinder’s side–inspect for carbon buildup, which restricts flow and raises operating temperatures. Remove 4-6 bolts to detach it; use penetrating oil if corrosion is present.
The crankcase, sealed below the cylinder, contains the crankshaft and connecting rod. Leaks here (identified by oil residue near the base) mandate gasket replacement. To access, tilt the unit onto its side–drain residual oil first–and remove the bottom cover plate, typically held by 8-10 bolts. Note the crankshaft’s position relative to the piston: at top dead center (TDC), the piston’s crown aligns with the cylinder’s uppermost edge, visible through the spark plug hole with a borescope.
- Identify the valve cover (if applicable) atop 4-stroke models–it conceals the rocker arms and springs. Remove 3-4 bolts; store them separately from the crankcase hardware to avoid mixing.
- Check the oil dipstick (threaded or press-fit) for accurate readings: low oil levels accelerate wear on the crankshaft journals, while overfilling causes foaming.
- The governor linkage connects to the carburetor’s throttle lever. Verify its pivot points move freely–stiffness alters RPM regulation. Lubricate with light machine oil.
